Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

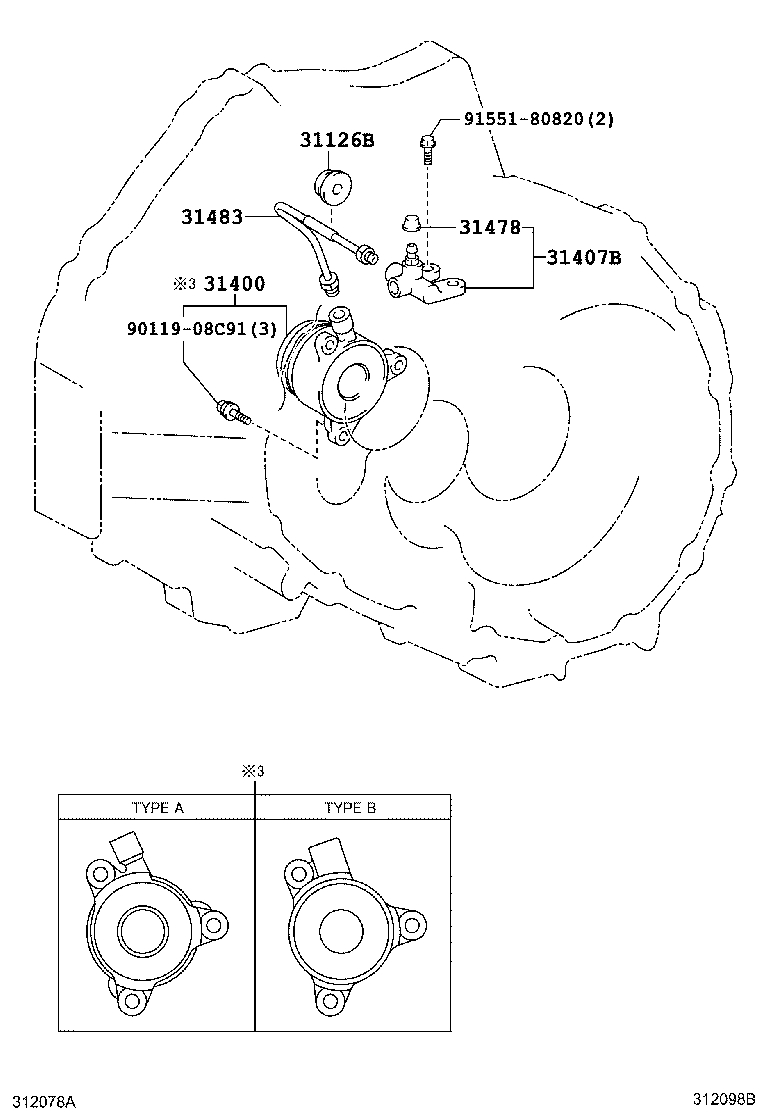

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31126B — Boot, Clutch Tube | ||||
| 31126-20090 note |
Boot, Clutch Tube
2008-10 → 2009-10
ended
|
NDE150,NRE150,ZRE15# 6F | — | |
| 31126-20090 |
Boot, Clutch Tube
2008-12 → 2009-10
ended
|
NDE150,ZRE151 6FS | — | |
| 31126-20090 note |
Boot, Clutch Tube
2008-09 → 2009-10
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 31126-20090 note |
Boot, Clutch Tube
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 31400 — Cylinder Assy, Clutch Release W/Bearing | ||||
| 31400-19005 note |
Cylinder Assy, Clutch Release W/Bearing
2008-09 → 2009-10
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 31400-19005 note |
Cylinder Assy, Clutch Release W/Bearing
2008-10 → 2009-10
ended
|
NDE150,NRE150,ZRE15# 6F | — | |
| 31400-59005 |
Cylinder Assy, Clutch Release W/Bearing
2008-12 → 2009-10
ended
|
NDE150,ZRE151 6FS | — | |
| 31400-19005 note |
Cylinder Assy, Clutch Release W/Bearing
2009-10 → 2010-04
ended
|
NDE150,ZRE151 | — | |
| 31400-59015 note |
Cylinder Assy, Clutch Release W/Bearing
2010-04 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 31407B — Bleeder Sub-assy, Clutch Release | ||||
| 31407-52010 note |
Bleeder Sub-assy, Clutch Release
2008-09 → 2009-10
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 31407-52010 note |
Bleeder Sub-assy, Clutch Release
2008-10 → 2009-10
ended
|
NDE150,NRE150,ZRE15# 6F | — | |
| 31407-52010 |
Bleeder Sub-assy, Clutch Release
2008-12 → 2009-10
ended
|
NDE150,ZRE151 6FS | — | |
| 31407-52010 note |
Bleeder Sub-assy, Clutch Release
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 31478 — Cap, Bleeder Plug(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
Cap, Bleeder Plug(FOR RELEASE CYLINDER)
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 5F | — | |
| 31478-30010 |
Cap, Bleeder Plug(FOR RELEASE CYLINDER)
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 31478-30010 note |
Cap, Bleeder Plug(FOR RELEASE CYLINDER)
2008-09 → 2009-10
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 31478-30010 note |
Cap, Bleeder Plug(FOR RELEASE CYLINDER)
2008-10 → 2009-10
ended
|
NDE150,NRE150,ZRE15# 6F | — | |
| 31478-30010 |
Cap, Bleeder Plug(FOR RELEASE CYLINDER)
2008-12 → 2009-10
ended
|
ADE150 DCRL;NDE150,ZRE151 6FS | — | |
| 31478-30010 note |
Cap, Bleeder Plug(FOR RELEASE CYLINDER)
2009-10 → —
|
NDE150,ZRE151 | — | |
| 31483 — Tube, Bleeder Clutch Release | ||||
| 31482-52090 |
Tube, Bleeder Clutch Release
2008-12 → 2009-10
ended
|
NDE150,ZRE151 6FS | — | |
| 31482-52110 note |
Tube, Bleeder Clutch Release
2008-09 → 2009-10
ended
|
NDE150,NRE150,ZRE151 6F | — | |
| 31482-52110 note |
Tube, Bleeder Clutch Release
2008-10 → 2009-10
ended
|
NDE150,NRE150,ZRE15# 6F | — | |
| 31482-52090 note |
Tube, Bleeder Clutch Release
2010-04 → —
|
NDE150,ZRE151 | — | |
| 31482-52110 note |
Tube, Bleeder Clutch Release
2009-10 → 2010-04
ended
|
NDE150,ZRE151 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
