Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

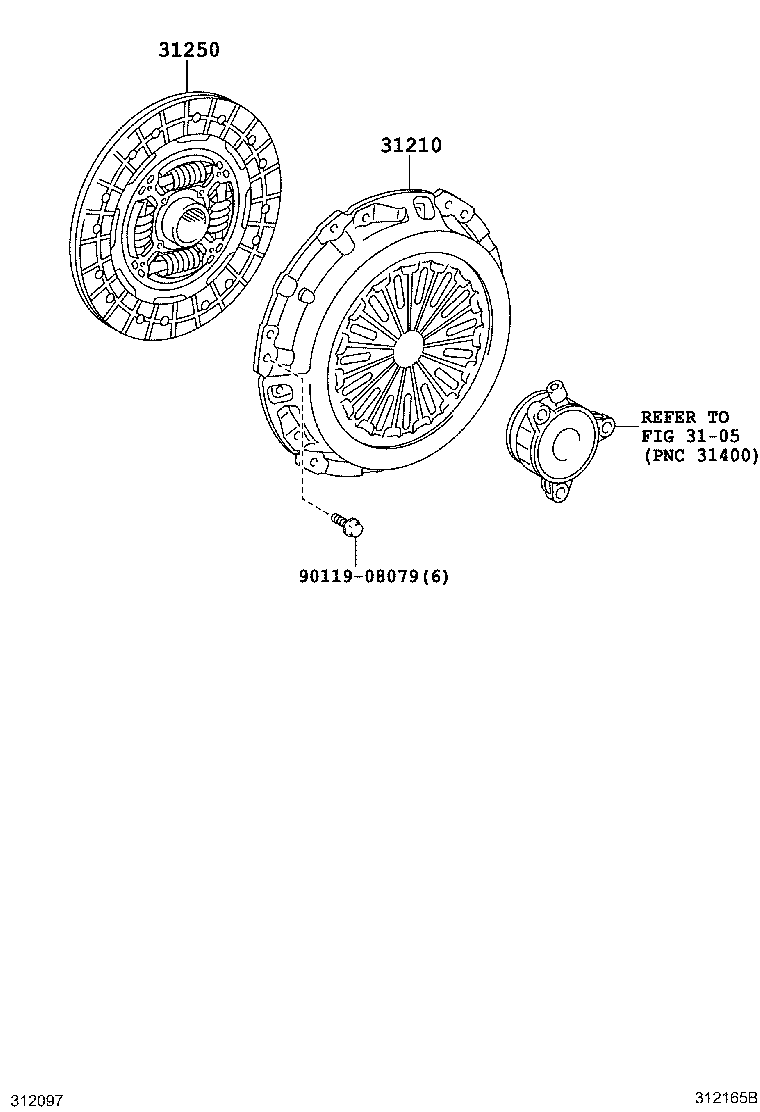

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31210 — Cover Assy, Clutch | ||||
| 31210-12280 |
Cover Assy, Clutch
2006-10 → 2007-11
ended
|
ZZE150 | — | |
| 31210-12281 |
Cover Assy, Clutch
2007-12 → 2008-07
ended
|
ZZE150 | — | |
| 31210-12282 |
Cover Assy, Clutch
2008-08 → 2008-12
ended
|
ZZE150 | — | |
| 31210-12290 |
Cover Assy, Clutch
2006-10 → 2007-02
ended
|
NDE150 5F | — | |
| 31210-12291 |
Cover Assy, Clutch
2007-03 → 2008-12
ended
|
NDE150 5F | — | |
| 31210-52051 |
Cover Assy, Clutch
2006-10 → 2007-02
ended
|
ZRE151 5F | — | |
| 31210-52052 |
Cover Assy, Clutch
2007-03 → 2008-12
ended
|
ZRE151 5F | — | |
| 31210-12330 |
Cover Assy, Clutch
2008-12 → 2009-10
ended
|
ZRE151 6F | — | |
| 31210-12340 |
Cover Assy, Clutch
2008-12 → 2009-10
ended
|
ZRE152 | — | |
| 31210-12360 |
Cover Assy, Clutch
2008-12 → 2009-10
ended
|
ZRE151 6FS | — | |
| 31210-52100 |
Cover Assy, Clutch
2008-12 → 2009-10
ended
|
NDE150 6F | — | |
| 31210-52110 |
Cover Assy, Clutch
2008-12 → 2009-10
ended
|
NDE150 6FS | — | |
| 31210-52130 |
Cover Assy, Clutch
2008-09 → 2009-10
ended
|
NRE150 | — | |
| 31210-12330 |
Cover Assy, Clutch
2009-10 → 2012-08
ended
|
ZRE151 | — | |
| 31210-52100 |
Cover Assy, Clutch
2009-10 → 2012-08
ended
|
NDE150 | — | |
| 31250 — Disc Assy, Clutch | ||||
| 31250-12500 |
Disc Assy, Clutch
2006-10 → 2008-12
ended
|
ZZE150 | — | |
| 31250-12510 |
Disc Assy, Clutch
2006-10 → 2008-12
ended
|
ZRE151 5F | — | |
| 31250-12520 |
Disc Assy, Clutch
2006-10 → 2008-12
ended
|
NDE150 5F | — | |
| 31250-12480 |
Disc Assy, Clutch
2008-12 → 2009-10
ended
|
ZRE151 6FS | — | |
| 31250-12600 |
Disc Assy, Clutch
2008-12 → 2009-10
ended
|
ZRE15# 6F | — | |
| 31250-52120 |
Disc Assy, Clutch
2008-09 → 2009-10
ended
|
NRE150 | — | |
| 31250-52130 |
Disc Assy, Clutch
2008-12 → 2009-10
ended
|
NDE150 6F | — | |
| 31250-52150 |
Disc Assy, Clutch
2008-12 → 2009-10
ended
|
NDE150 6FS | — | |
| 31250-12600 |
Disc Assy, Clutch
2009-10 → —
|
ZRE151 | — | |
| 31250-52130 |
Disc Assy, Clutch
2009-10 → 2011-03
ended
|
NDE150 | — | |
| 31250-52131 |
Disc Assy, Clutch
2011-04 → —
|
NDE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
