Toyota Auris/Corolla (JPP)

2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

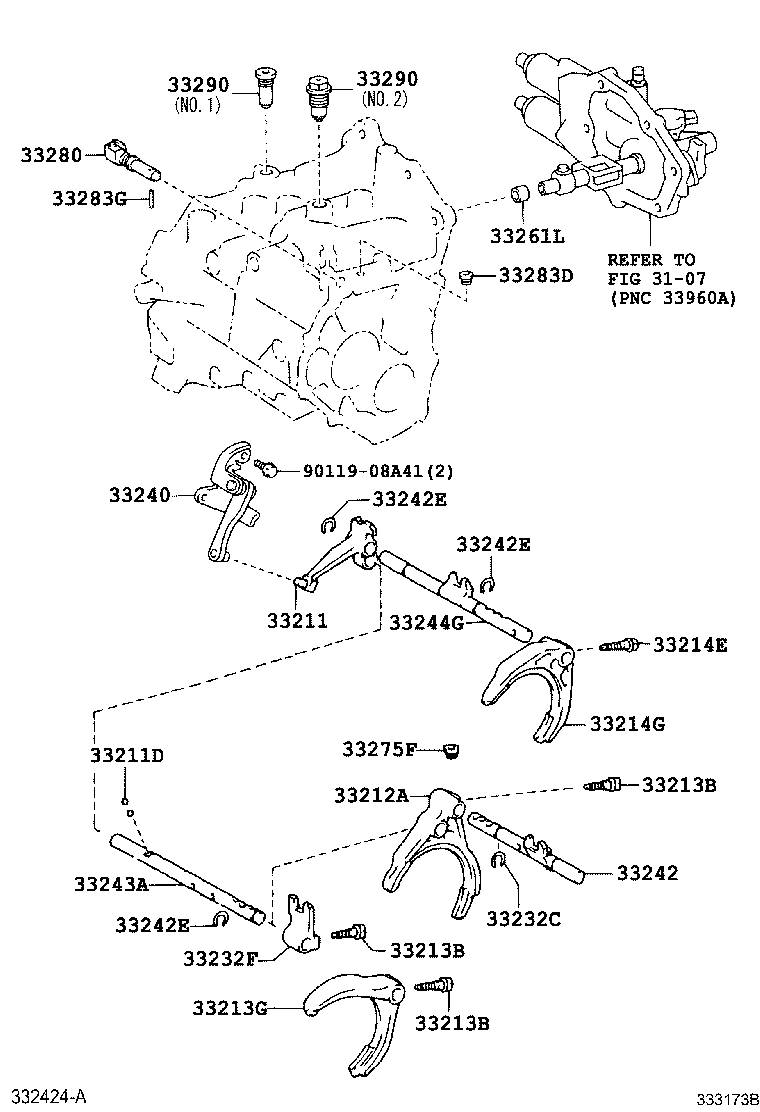

Exploded illustration 333173B 33213G — FORK, GEAR SHIFT, NO.2 (3 parts) 33232C — RING, SNAP (FOR 1ST & 2ND SHIFT HEAD) (1 parts) 33213B — BOLT(FOR SHIFT FORK SET) (3 parts) 33242 — SHAFT, GEAR SHIFT FORK, NO.1 (1 parts) 33213B — BOLT(FOR SHIFT FORK SET) (3 parts) 33283G — PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) (1 parts) 33213B — BOLT(FOR SHIFT FORK SET) (3 parts) 3107 — not listed in this catalogue 33261L — BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) (9 parts) 33211D — BALL(FOR REVERSE SHIFT FORK) (1 parts) 33212A — FORK, GEAR SHIFT, NO.1 (3 parts) 33243A — SHAFT, GEAR SHIFT FORK, NO.2 (1 parts) 33290 — BALL ASSY, LOCK, NO.1 (9 parts) 33290 — BALL ASSY, LOCK, NO.1 (9 parts) 33240 — BRACKET ASSY, REVERSE SHIFT ARM (8 parts) 9011908A41 — not listed in this catalogue 33214E — BOLT(FOR GEAR SHIFT FORK LOCK) (1 parts) 33214G — FORK, GEAR SHIFT, NO.3 (3 parts) 33275F — PLUG (FOR SHIFT DETENT BALL) (8 parts) 33280 — PIN ASSY, REVERSE RESTRICT (4 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (1 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (1 parts) 33283D — PLUG (FOR REVERSE RESTRICT PIN) (1 parts) 33211 — FORK, REVERSE SHIFT (3 parts) 33232F — HEAD, GEAR SHIFT, NO.1 (1 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (1 parts) 33244G — SHAFT, GEAR SHIFT FORK, NO.3 (1 parts)
333173B · 25 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
33211 — Fork, Reverse Shift
33211-12021 Fork, Reverse Shift
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
33211-20030 Fork, Reverse Shift
2006-10 → 2009-01 ended
ADE150 —
33211-20030 Fork, Reverse Shift
2009-01 → 2009-10 ended
ADE150 —
33211D — Ball(FOR REVERSE SHIFT FORK)
90360-06004 note Ball(FOR REVERSE SHIFT FORK)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
33212A — Fork, Gear Shift, NO.1
33210-20010 Fork, Gear Shift, NO.1
2006-10 → 2009-01 ended
ADE150 —
33212-10013 Fork, Gear Shift, NO.1
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
33210-20010 Fork, Gear Shift, NO.1
2009-01 → 2009-10 ended
ADE150 —
33213B — Bolt(FOR SHIFT FORK SET)
90105-06077 Bolt(FOR SHIFT FORK SET)
2006-10 → 2009-01 ended
ADE150 —
90105-06115 Bolt(FOR SHIFT FORK SET)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
90105-06077 Bolt(FOR SHIFT FORK SET)
2009-01 → 2009-10 ended
ADE150 —
33213G — Fork, Gear Shift, NO.2
33213-20050 Fork, Gear Shift, NO.2
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
33220-20010 Fork, Gear Shift, NO.2
2006-10 → 2009-01 ended
ADE150 —
33220-20010 Fork, Gear Shift, NO.2
2009-01 → 2009-10 ended
ADE150 —
33214E — Bolt(FOR GEAR SHIFT FORK LOCK)
90105-06115 Bolt(FOR GEAR SHIFT FORK LOCK)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
33214G — Fork, Gear Shift, NO.3
33214-20050 Fork, Gear Shift, NO.3
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
33230-20020 Fork, Gear Shift, NO.3
2006-10 → 2009-01 ended
ADE150 —
33230-20020 Fork, Gear Shift, NO.3
2009-01 → 2009-10 ended
ADE150 —
33232C — Ring, Snap (FOR 1ST & 2ND SHIFT HEAD)
90520-12003 Ring, Snap (FOR 1ST & 2ND SHIFT HEAD)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
33232F — Head, Gear Shift, NO.1
33232-20030 Head, Gear Shift, NO.1
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
33240 — Bracket Assy, Reverse Shift Arm
33240-16020 Bracket Assy, Reverse Shift Arm
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
33240-20040 note Bracket Assy, Reverse Shift Arm
2008-09 → 2009-09 ended
NDE150,NRE150,ZRE151 6F —
33240-20040 note Bracket Assy, Reverse Shift Arm
2008-10 → 2009-09 ended
NDE150,NRE150,ZRE15# 6F —
33240-20040 Bracket Assy, Reverse Shift Arm
2008-12 → 2009-09 ended
NDE150,ZRE151 6FS —
33240-20041 Bracket Assy, Reverse Shift Arm
2009-09 → 2009-10 ended
NDE150,ZRE151 6FS —
33240-20041 note Bracket Assy, Reverse Shift Arm
2009-09 → 2009-10 ended
NDE150,NRE150,ZRE15# 6F —
33240-20041 note Bracket Assy, Reverse Shift Arm
2009-09 → 2009-10 ended
NDE150,NRE150,ZRE151 6F —
33240-20041 note Bracket Assy, Reverse Shift Arm
2009-10 → —
NDE150,ZRE151 —
33242 — Shaft, Gear Shift Fork, NO.1
33242-52040 Shaft, Gear Shift Fork, NO.1
2006-10 → 2008-12 ended
NDE150,ZRE151 5FS —
33242E — Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
90520-12003 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
33243A — Shaft, Gear Shift Fork, NO.2
33243-20070 Shaft, Gear Shift Fork, NO.2
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
33244G — Shaft, Gear Shift Fork, NO.3
33244-52030 Shaft, Gear Shift Fork, NO.3
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
33261L — Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
90384-15002 Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
2006-10 → 2008-12 ended
NDE150,ZRE151 5FS —
90384-14008 note Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
2008-10 → 2009-10 ended
NDE150,NRE150,ZRE15# 6F —
90384-14008 note Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
2008-12 → 2009-10 ended
NDE150,ZRE151 6FS —
90384-14008 note Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
2008-09 → 2009-10 ended
NDE150,NRE150,ZRE151 6F —
90384-16005 note Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
2008-09 → 2009-10 ended
NDE150,NRE150,ZRE151 6F —
90384-16005 note Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
2008-10 → 2009-10 ended
NDE150,NRE150,ZRE15# 6F —
90384-16005 note Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
2008-12 → 2009-10 ended
NDE150,ZRE151 6FS —
90384-14008 note Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
2009-10 → —
NDE150,ZRE151 —
90384-16005 note Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
2009-10 → —
NDE150,ZRE151 —
33275F — Plug (FOR SHIFT DETENT BALL)
90341-12004 Plug (FOR SHIFT DETENT BALL)
2006-10 → 2008-12 ended
NDE150,ZRE151 5FS —
90341-12004 Plug (FOR SHIFT DETENT BALL)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 5F —
90341-12004 Plug (FOR SHIFT DETENT BALL)
2006-10 → 2009-01 ended
ADE150 —
90341-12004 note Plug (FOR SHIFT DETENT BALL)
2008-09 → 2009-10 ended
NDE150,NRE150,ZRE151 6F —
90341-12004 note Plug (FOR SHIFT DETENT BALL)
2008-10 → 2009-10 ended
NDE150,NRE150,ZRE15# 6F —
90341-12004 Plug (FOR SHIFT DETENT BALL)
2008-12 → 2009-10 ended
NDE150,ZRE151 6FS —
90341-12004 Plug (FOR SHIFT DETENT BALL)
2009-01 → 2009-10 ended
ADE150 —
90341-12004 note Plug (FOR SHIFT DETENT BALL)
2009-10 → 2012-08 ended
NDE150,ZRE151 —
33280 — Pin Assy, Reverse Restrict
33280-12061 Pin Assy, Reverse Restrict
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
33280-20050 note Pin Assy, Reverse Restrict
2008-09 → 2009-10 ended
NDE150,NRE150,ZRE151 6F —
33280-20050 note Pin Assy, Reverse Restrict
2008-10 → 2009-10 ended
NDE150,NRE150,ZRE15# 6F —
33280-20050 note Pin Assy, Reverse Restrict
2009-10 → —
NDE150,ZRE151 —
33283D — Plug (FOR REVERSE RESTRICT PIN)
90341-10065 Plug (FOR REVERSE RESTRICT PIN)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
33283G — Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
90254-05003 Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
33290 — Ball Assy, Lock, NO.1
33290-0H010 note Ball Assy, Lock, NO.1
2007-07 → 2008-12 ended
NDE150,ZRE151 5FS —
33290-12011 note Ball Assy, Lock, NO.1
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
33290-20020 Ball Assy, Lock, NO.1
2006-10 → 2009-01 ended
ADE150 —
33290-52010 note Ball Assy, Lock, NO.1
2006-10 → 2007-07 ended
NDE150,ZRE151 5FS —
33290-52040 note Ball Assy, Lock, NO.1
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 5F —
33290-20020 Ball Assy, Lock, NO.1
2009-01 → 2009-10 ended
ADE150 —
33290-52040 note Ball Assy, Lock, NO.1
2008-09 → 2009-10 ended
NDE150,NRE150,ZRE151 6F —
33290-52040 note Ball Assy, Lock, NO.1
2008-10 → 2009-10 ended
NDE150,NRE150,ZRE15# 6F —
33290-52040 note Ball Assy, Lock, NO.1
2009-10 → —
NDE150,ZRE151 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
