Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

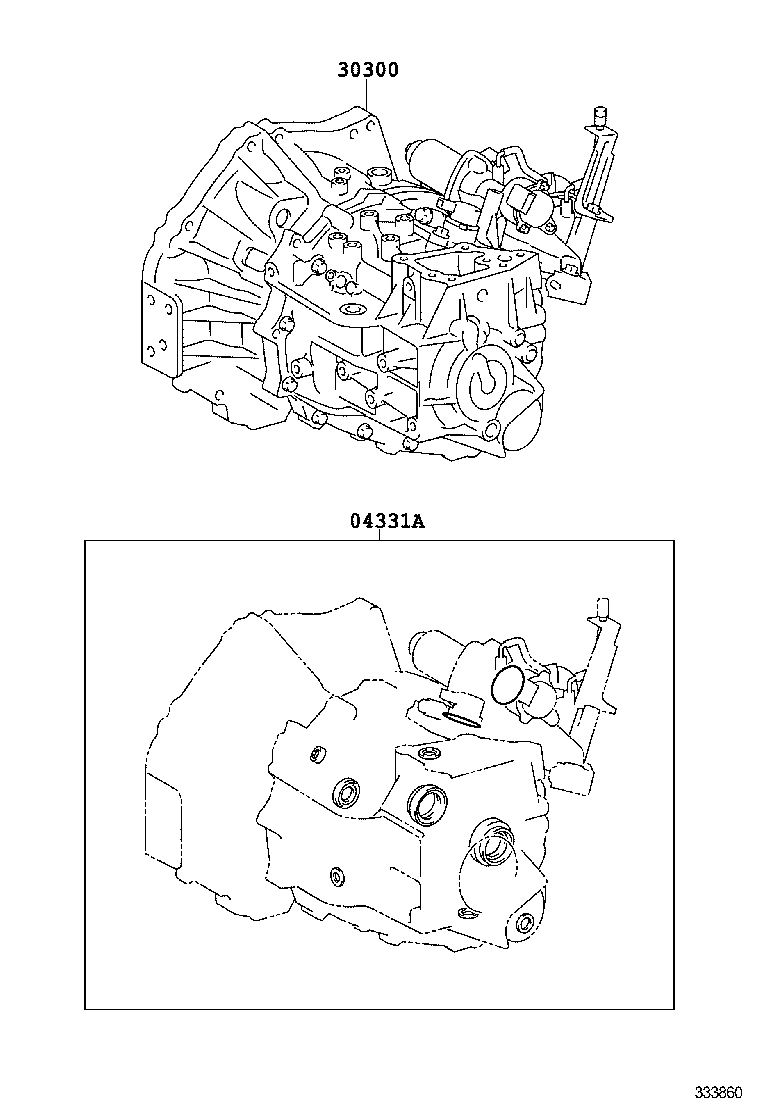

| 04331A — Gasket Kit, Transaxle Overhaul(MTM) | ||||
| 04331-12630 |
Gasket Kit, Transaxle Overhaul(MTM)
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 04331-12640 |
Gasket Kit, Transaxle Overhaul(MTM)
2006-10 → 2008-12
ended
|
NDE150 5FS | — | |
| 04331-12650 |
Gasket Kit, Transaxle Overhaul(MTM)
2006-10 → 2008-12
ended
|
NDE150 5F | — | |
| 04331-12660 |
Gasket Kit, Transaxle Overhaul(MTM)
2006-10 → 2008-12
ended
|
ZRE151 5FS | — | |
| 04331-12670 |
Gasket Kit, Transaxle Overhaul(MTM)
2006-10 → 2008-12
ended
|
ZRE151 5F | — | |
| 04331-12690 |
Gasket Kit, Transaxle Overhaul(MTM)
2006-10 → 2008-12
ended
|
ZZE150 | — | |
| 04331-20200 |
Gasket Kit, Transaxle Overhaul(MTM)
2009-01 → 2009-10
ended
|
ADE150 | — | |
| 04331-20250 note |
Gasket Kit, Transaxle Overhaul(MTM)
2008-12 → 2009-10
ended
|
NDE150,ZRE15# 6F | — | |
| 04331-20250 note |
Gasket Kit, Transaxle Overhaul(MTM)
2008-12 → 2009-10
ended
|
NDE150,ZRE151 6F | — | |
| 04331-52590 note |
Gasket Kit, Transaxle Overhaul(MTM)
2008-09 → 2009-10
ended
|
NRE150 | — | |
| 04331-52590 note |
Gasket Kit, Transaxle Overhaul(MTM)
2008-10 → 2009-10
ended
|
NRE150 | — | |
| 04331-52610 |
Gasket Kit, Transaxle Overhaul(MTM)
2008-12 → 2009-10
ended
|
NDE150,ZRE151 6FS | — | |
| 04331-20250 note |
Gasket Kit, Transaxle Overhaul(MTM)
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 30300 — Transaxle Assy, Manual | ||||
| 30300-12A80 note |
Transaxle Assy, Manual
2006-10 → 2008-12
ended
|
ZZE150 | — | |
| 30300-12A90 note |
Transaxle Assy, Manual
2006-10 → 2008-12
ended
|
ZRE151 5F | — | |
| 30300-12B00 note |
Transaxle Assy, Manual
2006-10 → 2008-12
ended
|
NDE150 5F | — | |
| 30300-12B30 note |
Transaxle Assy, Manual
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 30340-12020 note |
Transaxle Assy, Manual
2006-10 → 2008-12
ended
|
ZRE151 5FS | — | |
| 30340-12030 note |
Transaxle Assy, Manual
2006-10 → 2008-12
ended
|
NDE150 5FS | — | |
| 30300-12C60 note |
Transaxle Assy, Manual
2008-09 → 2009-10
ended
|
NRE150 | — | |
| 30300-12C70 note |
Transaxle Assy, Manual
2008-09 → 2009-10
ended
|
NRE150 | — | |
| 30300-12C80 note |
Transaxle Assy, Manual
2008-12 → 2009-10
ended
|
ZRE151 6F | — | |
| 30300-12D00 note |
Transaxle Assy, Manual
2008-12 → 2009-10
ended
|
NDE150 6F | — | |
| 30300-12D10 note |
Transaxle Assy, Manual
2009-01 → 2009-10
ended
|
ADE150 | — | |
| 30300-12D30 note |
Transaxle Assy, Manual
2008-10 → 2009-10
ended
|
NRE150 | — | |
| 30300-12D40 note |
Transaxle Assy, Manual
2008-10 → 2009-10
ended
|
NRE150 | — | |
| 30300-12D50 note |
Transaxle Assy, Manual
2008-12 → 2009-10
ended
|
ZRE151 6F | — | |
| 30300-12D60 note |
Transaxle Assy, Manual
2008-12 → 2009-10
ended
|
NDE150 6F | — | |
| 30300-12D70 note |
Transaxle Assy, Manual
2008-12 → 2009-10
ended
|
ZRE152 | — | |
| 30330-12040 note |
Transaxle Assy, Manual
2008-12 → 2009-10
ended
|
ZRE151 6FS | — | |
| 30330-12050 note |
Transaxle Assy, Manual
2008-12 → 2009-10
ended
|
NDE150 6FS | — | |
| 30300-12C80 note |
Transaxle Assy, Manual
2009-10 → 2010-04
ended
|
ZRE151 | — | |
| 30300-12D00 note |
Transaxle Assy, Manual
2009-10 → 2010-04
ended
|
NDE150 | — | |
| 30300-12D50 note |
Transaxle Assy, Manual
2009-10 → 2010-04
ended
|
ZRE151 | — | |
| 30300-12D51 note |
Transaxle Assy, Manual
2010-04 → 2012-08
ended
|
ZRE151 | — | |
| 30300-12D60 note |
Transaxle Assy, Manual
2009-10 → 2010-04
ended
|
NDE150 | — | |
| 30300-12D61 note |
Transaxle Assy, Manual
2010-04 → 2012-08
ended
|
NDE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
