Toyota Auris/Corolla (JPP)

2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

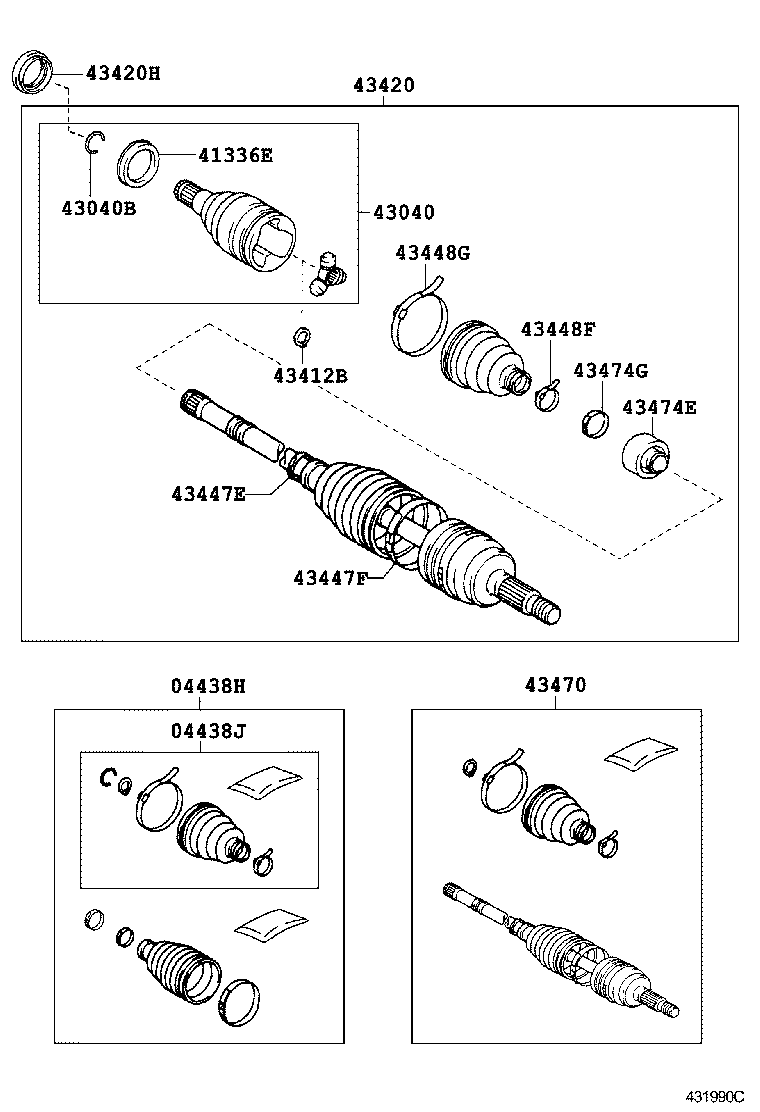

Exploded illustration 431990C 43420 — SHAFT ASSY, FRONT DRIVE, LH (8 parts) 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (7 parts) 43040B — RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH) (7 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (11 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (7 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (5 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (5 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (5 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (5 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (5 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (7 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (7 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (8 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (2 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (2 parts)
431990C · 15 callouts Full size ↗
91 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04428-02410 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2006-10 → 2008-12 ended
NDE150 —
04428-02420 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2006-10 → 2008-12 ended
ZRE151,ZZE150 —
04428-02440 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2006-10 → 2009-01 ended
ADE150 —
04428-02410 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2008-12 → 2009-10 ended
NDE150,ZRE15# —
04428-02420 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2008-09 → 2009-10 ended
NRE150 —
04428-02440 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-01 → 2009-10 ended
ADE150 —
04428-02410 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-10 → —
NDE150,ZRE151 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-02280 Boot Kit, Front Drive Shaft Inboard Joint, LH
2006-10 → 2008-12 ended
NDE150 —
04437-02290 Boot Kit, Front Drive Shaft Inboard Joint, LH
2006-10 → 2008-12 ended
ZRE151,ZZE150 —
04438-05320 Boot Kit, Front Drive Shaft Inboard Joint, LH
2006-10 → 2009-01 ended
ADE150 —
04437-02280 Boot Kit, Front Drive Shaft Inboard Joint, LH
2008-12 → 2009-10 ended
NDE150,ZRE15# —
04437-02290 Boot Kit, Front Drive Shaft Inboard Joint, LH
2008-09 → 2009-10 ended
NRE150 —
04438-05320 Boot Kit, Front Drive Shaft Inboard Joint, LH
2009-01 → 2009-10 ended
ADE150 —
04437-02280 Boot Kit, Front Drive Shaft Inboard Joint, LH
2009-10 → —
NDE150,ZRE151 —
41336E — Cover, Front Drive Shaft Dust, LH
41336-05010 Cover, Front Drive Shaft Dust, LH
2006-10 → 2008-12 ended
ZRE151,ZZE150 —
41336-05130 Cover, Front Drive Shaft Dust, LH
2006-10 → 2009-01 ended
ADE150 —
41336-05140 Cover, Front Drive Shaft Dust, LH
2006-10 → 2008-12 ended
NDE150 —
41336-05010 Cover, Front Drive Shaft Dust, LH
2008-09 → 2009-10 ended
NRE150 —
41336-05130 Cover, Front Drive Shaft Dust, LH
2009-01 → 2009-10 ended
ADE150 —
41336-05140 Cover, Front Drive Shaft Dust, LH
2008-12 → 2009-10 ended
NDE150,ZRE15# —
41336-05140 Cover, Front Drive Shaft Dust, LH
2009-10 → —
NDE150,ZRE151 —
43040 — Joint Assy, Front Drive Inboard, LH
43040-02030 Joint Assy, Front Drive Inboard, LH
2006-10 → 2008-12 ended
ZRE151,ZZE150 —
43040-05110 Joint Assy, Front Drive Inboard, LH
2006-10 → 2008-12 ended
NDE150 —
43040-05141 Joint Assy, Front Drive Inboard, LH
2006-10 → 2009-01 ended
ADE150 —
43040-02030 Joint Assy, Front Drive Inboard, LH
2008-09 → 2009-10 ended
NRE150 —
43040-05110 Joint Assy, Front Drive Inboard, LH
2008-12 → 2009-10 ended
NDE150,ZRE15# —
43040-05141 Joint Assy, Front Drive Inboard, LH
2009-01 → 2009-10 ended
ADE150 —
43040-05110 Joint Assy, Front Drive Inboard, LH
2009-10 → —
NDE150,ZRE151 —
43040B — Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
43425-05070 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2006-10 → 2009-01 ended
ADE150 —
90080-52055 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2006-10 → 2008-12 ended
NDE150 —
90080-52056 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2006-10 → 2008-12 ended
ZRE151,ZZE150 —
43425-05070 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2009-01 → 2009-10 ended
ADE150 —
90080-52055 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2008-12 → 2009-10 ended
NDE150,ZRE15# —
90080-52056 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2008-09 → 2009-10 ended
NRE150 —
90080-52055 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2009-10 → —
NDE150,ZRE151 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-05040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2006-10 → 2009-01 ended
ADE150 —
90080-52093 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
43425-05040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2009-01 → 2009-10 ended
ADE150 —
90080-52093 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2008-09 → 2009-10 ended
NDE150,NRE150,ZRE15# 6F,6FS —
90080-52093 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2009-10 → —
NDE150,ZRE151 —
43420 — Shaft Assy, Front Drive, LH
43420-02610 Shaft Assy, Front Drive, LH
2006-10 → 2008-12 ended
ZRE151,ZZE150 —
43420-02620 Shaft Assy, Front Drive, LH
2006-10 → 2008-12 ended
NDE150 —
43420-02630 Shaft Assy, Front Drive, LH
2006-10 → 2009-01 ended
ADE150 —
43420-02610 Shaft Assy, Front Drive, LH
2008-09 → 2009-10 ended
NRE150 —
43420-02620 Shaft Assy, Front Drive, LH
2008-12 → 2009-10 ended
NDE150,ZRE15# —
43420-02630 Shaft Assy, Front Drive, LH
2009-01 → 2009-10 ended
ADE150 —
43420-02620 Shaft Assy, Front Drive, LH
2009-10 → 2011-11 ended
NDE150,ZRE151 —
43420-02621 Shaft Assy, Front Drive, LH
2011-11 → 2012-08 ended
NDE150,ZRE151 —
43420H — Oil Seal, Front Drive Shaft, LH
90311-34034 Oil Seal, Front Drive Shaft, LH
2006-10 → 2008-12 ended
ZRE151,ZZE150 —
90311-35058 Oil Seal, Front Drive Shaft, LH
2006-10 → 2008-12 ended
NDE150 —
90311-50032 Oil Seal, Front Drive Shaft, LH
2006-10 → 2009-01 ended
ADE150 —
90311-34034 note Oil Seal, Front Drive Shaft, LH
2008-09 → 2009-10 ended
NRE150 —
90311-34034 note Oil Seal, Front Drive Shaft, LH
2008-10 → 2009-10 ended
NRE150 —
90311-35061 Oil Seal, Front Drive Shaft, LH
2008-12 → 2009-10 ended
NDE150,ZRE151 6FS —
90311-35061 note Oil Seal, Front Drive Shaft, LH
2008-12 → 2009-10 ended
NDE150,ZRE15# 6F —
90311-35061 note Oil Seal, Front Drive Shaft, LH
2008-12 → 2009-10 ended
NDE150,ZRE151 6F —
90311-50032 Oil Seal, Front Drive Shaft, LH
2009-01 → 2009-10 ended
ADE150 —
90311-35061 note Oil Seal, Front Drive Shaft, LH
2009-10 → 2010-12 ended
NDE150,ZRE151 —
90311-35066 note Oil Seal, Front Drive Shaft, LH
2010-12 → 2012-08 ended
NDE150,ZRE151 —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-05140 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
42345-05280 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2006-10 → 2009-01 ended
ADE150 —
42345-05140 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2008-09 → 2009-10 ended
NDE150,NRE150,ZRE15# 6F,6FS —
42345-05280 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-01 → 2009-10 ended
ADE150 —
42345-05140 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-10 → —
NDE150,ZRE151 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-02220 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
42345-05270 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2006-10 → 2009-01 ended
ADE150 —
42345-02220 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2008-09 → 2009-10 ended
NDE150,NRE150,ZRE15# 6F,6FS —
42345-05270 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-01 → 2009-10 ended
ADE150 —
42345-02220 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-10 → —
NDE150,ZRE151 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-02240 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
42345-05250 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2006-10 → 2009-01 ended
ADE150 —
42345-02240 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2008-09 → 2009-10 ended
NDE150,NRE150,ZRE15# 6F,6FS —
42345-05250 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-01 → 2009-10 ended
ADE150 —
42345-02240 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-10 → —
NDE150,ZRE151 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-05030 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
42345-05210 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2006-10 → 2009-01 ended
ADE150 —
42345-05030 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2008-09 → 2009-10 ended
NDE150,NRE150,ZRE15# 6F,6FS —
42345-05210 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-01 → 2009-10 ended
ADE150 —
42345-05030 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-10 → —
NDE150,ZRE151 —
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-09S50 Shaft Assy, Front Drive Outboard Joint, LH
2006-10 → 2008-12 ended
NDE150 —
43470-09S60 Shaft Assy, Front Drive Outboard Joint, LH
2006-10 → 2008-12 ended
ZRE151,ZZE150 —
43470-09T00 Shaft Assy, Front Drive Outboard Joint, LH
2006-10 → 2009-01 ended
ADE150 —
43470-09S50 Shaft Assy, Front Drive Outboard Joint, LH
2008-12 → 2009-10 ended
NDE150,ZRE15# —
43470-09S60 Shaft Assy, Front Drive Outboard Joint, LH
2008-09 → 2009-10 ended
NRE150 —
43470-09T00 Shaft Assy, Front Drive Outboard Joint, LH
2009-01 → 2009-10 ended
ADE150 —
43470-09S50 Shaft Assy, Front Drive Outboard Joint, LH
2009-10 → 2011-11 ended
NDE150,ZRE151 —
43470-09S51 Shaft Assy, Front Drive Outboard Joint, LH
2011-11 → —
NDE150,ZRE151 —
43474E — Damper, Front Drive Shaft, LH
43474-02180 Damper, Front Drive Shaft, LH
2006-10 → 2009-01 ended
ADE150 —
43474-02180 Damper, Front Drive Shaft, LH
2009-01 → 2009-10 ended
ADE150 —
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-02320 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2006-10 → 2009-01 ended
ADE150 —
42345-02320 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2009-01 → 2009-10 ended
ADE150 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
