Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

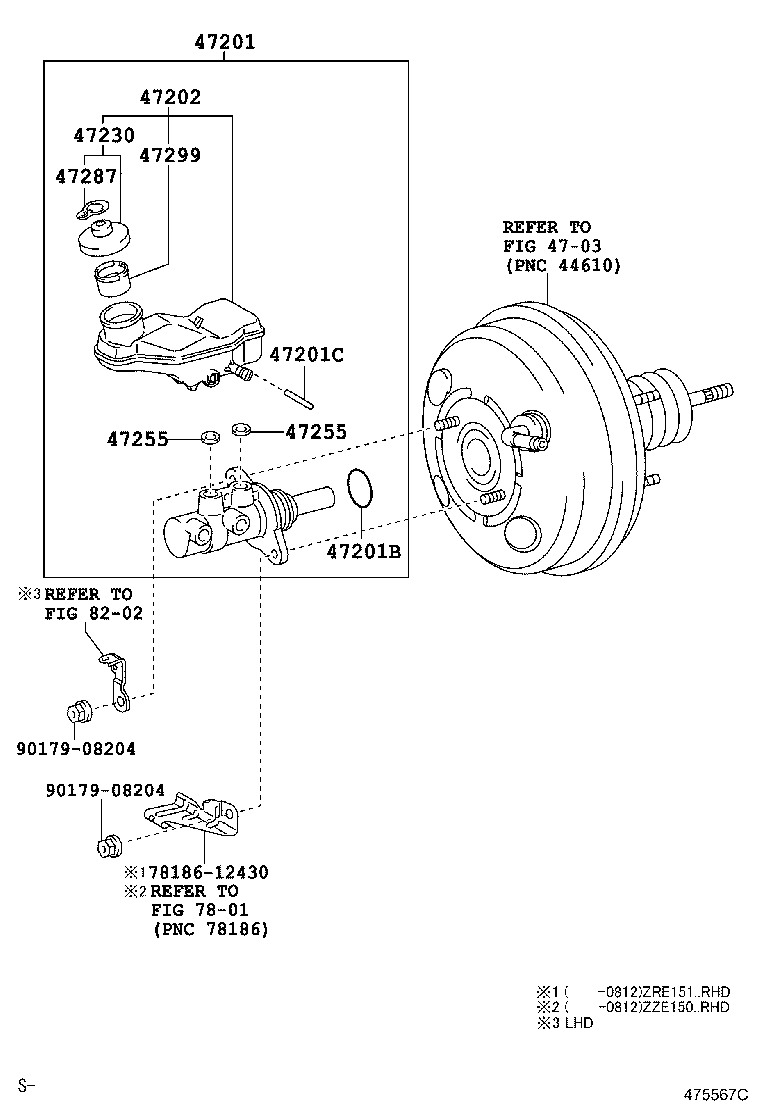

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47201 — Cylinder Sub-assy, Brake Master | ||||
| 47201-12A00 |
Cylinder Sub-assy, Brake Master
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 RHD | — | |
| 47201-12A10 note |
Cylinder Sub-assy, Brake Master
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 RHD | — | |
| 47201-12A10 note |
Cylinder Sub-assy, Brake Master
2006-10 → 2008-12
ended
|
ZZE150 RHD TERRA | — | |
| 47201-12A20 note |
Cylinder Sub-assy, Brake Master
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 LHD | — | |
| 47201-12A20 note |
Cylinder Sub-assy, Brake Master
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 LHD 5F TERRA | — | |
| 47201-12A70 |
Cylinder Sub-assy, Brake Master
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 LHD | — | |
| 47201-19015 |
Cylinder Sub-assy, Brake Master
2006-10 → 2008-04
ended
|
ADE150,NDE150 LHD | — | |
| 47201-19025 note |
Cylinder Sub-assy, Brake Master
2006-10 → 2008-04
ended
|
ADE150,NDE150 LHD (5F,6F) TERRA | — | |
| 47201-19025 note |
Cylinder Sub-assy, Brake Master
2006-10 → 2008-04
ended
|
ADE150,NDE150 LHD | — | |
| 47201-19035 note |
Cylinder Sub-assy, Brake Master
2006-10 → 2008-04
ended
|
ADE150,NDE150 RHD | — | |
| 47201-19035 note |
Cylinder Sub-assy, Brake Master
2006-10 → 2008-04
ended
|
NDE150 RHD TERRA | — | |
| 47201-19045 |
Cylinder Sub-assy, Brake Master
2006-10 → 2008-04
ended
|
ADE150,NDE150 RHD | — | |
| 47201-19055 note |
Cylinder Sub-assy, Brake Master
2008-04 → 2009-01
ended
|
ADE150 TERRA;NDE150 LHD 5F +1 | — | |
| 47201-19055 note |
Cylinder Sub-assy, Brake Master
2008-04 → 2009-01
ended
|
ADE150 LHD;NDE150 LHD (5F,5FS) | — | |
| 47201-19065 |
Cylinder Sub-assy, Brake Master
2008-04 → 2009-01
ended
|
ADE150 LHD;NDE150 LHD (5F,5FS) | — | |
| 47201-19075 note |
Cylinder Sub-assy, Brake Master
2008-04 → 2008-12
ended
|
NDE150 RHD TERRA | — | |
| 47201-19075 note |
Cylinder Sub-assy, Brake Master
2008-04 → 2009-01
ended
|
ADE150 RHD;NDE150 RHD (5F,5FS) | — | |
| 47201-19085 |
Cylinder Sub-assy, Brake Master
2008-04 → 2009-01
ended
|
ADE150 RHD;NDE150 RHD (5F,5FS) | — | |
| 47201-12A00 |
Cylinder Sub-assy, Brake Master
2008-09 → 2009-10
ended
|
NRE150,ZRE15# RHD (6F,6FS) | — | |
| 47201-12A10 note |
Cylinder Sub-assy, Brake Master
2008-09 → 2009-10
ended
|
NRE150 RHD | — | |
| 47201-12A10 note |
Cylinder Sub-assy, Brake Master
2008-09 → 2009-10
ended
|
NRE150 RHD TERRA | — | |
| 47201-12A10 note |
Cylinder Sub-assy, Brake Master
2008-09 → 2009-10
ended
|
NRE150,ZRE15# RHD (6F,6FS) | — | |
| 47201-12A20 note |
Cylinder Sub-assy, Brake Master
2008-09 → 2009-10
ended
|
ZRE151 6F TERRA HTWVM;NRE150,ZRE152 +2 | — | |
| 47201-12A20 note |
Cylinder Sub-assy, Brake Master
2008-09 → 2009-10
ended
|
NRE150,ZRE152 LHD;ZRE151 LHD HTWVM | — | |
| 47201-12A20 note |
Cylinder Sub-assy, Brake Master
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 47201-12A70 |
Cylinder Sub-assy, Brake Master
2008-09 → 2009-10
ended
|
NRE150,ZRE15# LHD (6F,6FS) | — | |
| 47201-19055 note |
Cylinder Sub-assy, Brake Master
2008-12 → 2009-10
ended
|
ADE150 TERRA DCRL;NDE150 LHD +2 | — | |
| 47201-19055 note |
Cylinder Sub-assy, Brake Master
2008-12 → 2009-10
ended
|
NDE150 LHD;ADE150 LHD DCRL | — | |
| 47201-19065 |
Cylinder Sub-assy, Brake Master
2008-12 → 2009-10
ended
|
NDE150 LHD;ADE150 LHD DCRL | — | |
| 47201-19075 note |
Cylinder Sub-assy, Brake Master
2008-12 → 2009-10
ended
|
NDE150 RHD TERRA | — | |
| 47201-19075 note |
Cylinder Sub-assy, Brake Master
2008-12 → 2009-10
ended
|
NDE150 RHD;ADE150 RHD DCRL | — | |
| 47201-19085 |
Cylinder Sub-assy, Brake Master
2008-12 → 2009-10
ended
|
NDE150 RHD;ADE150 RHD DCRL | — | |
| 47201-12A70 |
Cylinder Sub-assy, Brake Master
2009-10 → 2012-08
ended
|
ZRE151 | — | |
| 47201-19075 |
Cylinder Sub-assy, Brake Master
2009-10 → 2012-08
ended
|
NDE150 | — | |
| 47201B — Ring, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH002 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 | — | |
| 90015-AH002 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2008-09 → 2009-10
ended
|
NRE150,ZRE15# 6F,6FS | — | |
| 90015-AH002 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2009-10 → 2012-08
ended
|
ZRE151 | — | |
| 47201C — Ring Pin, Brake Master Cylinder | ||||
| 90029-15803 |
Ring Pin, Brake Master Cylinder
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 | — | |
| 90029-15803 |
Ring Pin, Brake Master Cylinder
2008-09 → 2009-10
ended
|
NRE150,ZRE15# 6F,6FS | — | |
| 90029-15803 |
Ring Pin, Brake Master Cylinder
2009-10 → 2012-08
ended
|
ZRE151 | — | |
| 47202 — Reservoir Sub-assy, Brake Master Cylinder | ||||
| 47220-09090 |
Reservoir Sub-assy, Brake Master Cylinder
2006-10 → 2009-01
ended
|
ADE150 LHD;NDE150 LHD (5F,5FS) | — | |
| 47220-09100 |
Reservoir Sub-assy, Brake Master Cylinder
2006-10 → 2009-01
ended
|
ADE150 RHD;NDE150 RHD (5F,5FS) | — | |
| 47220-12190 |
Reservoir Sub-assy, Brake Master Cylinder
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 RHD | — | |
| 47220-12200 |
Reservoir Sub-assy, Brake Master Cylinder
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 LHD | — | |
| 47220-09090 |
Reservoir Sub-assy, Brake Master Cylinder
2008-12 → 2009-10
ended
|
NDE150 LHD;ADE150 LHD DCRL | — | |
| 47220-09100 |
Reservoir Sub-assy, Brake Master Cylinder
2008-12 → 2009-10
ended
|
NDE150 RHD;ADE150 RHD DCRL | — | |
| 47220-12190 |
Reservoir Sub-assy, Brake Master Cylinder
2008-09 → 2009-10
ended
|
NRE150,ZRE15# RHD (6F,6FS) | — | |
| 47220-12200 |
Reservoir Sub-assy, Brake Master Cylinder
2008-09 → 2009-10
ended
|
NRE150,ZRE15# LHD (6F,6FS) | — | |
| 47220-09100 |
Reservoir Sub-assy, Brake Master Cylinder
2009-10 → 2012-08
ended
|
NDE150 | — | |
| 47220-12200 |
Reservoir Sub-assy, Brake Master Cylinder
2009-10 → 2012-08
ended
|
ZRE151 | — | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-0D010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2006-10 → 2008-12
ended
|
NDE150 | — | |
| 47230-0D010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 47230-20140 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 | — | |
| 47230-0D010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2008-12 → 2009-10
ended
|
NDE150;ADE150 DCRL | — | |
| 47230-20140 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2008-09 → 2009-10
ended
|
NRE150,ZRE15# 6F,6FS | — | |
| 47230-0D010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2009-10 → 2012-08
ended
|
NDE150 | — | |
| 47230-20140 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2009-10 → 2012-08
ended
|
ZRE151 | — | |
| 47255 — Grommet, Master Cylinder Reservoir | ||||
| 47255-09040 |
Grommet, Master Cylinder Reservoir
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 47255-09040 |
Grommet, Master Cylinder Reservoir
2006-10 → 2008-12
ended
|
NDE150 | — | |
| 90029-48001 |
Grommet, Master Cylinder Reservoir
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 | — | |
| 47255-09040 |
Grommet, Master Cylinder Reservoir
2008-12 → 2009-10
ended
|
NDE150;ADE150 DCRL | — | |
| 90029-48001 |
Grommet, Master Cylinder Reservoir
2008-09 → 2009-10
ended
|
NRE150,ZRE15# 6F,6FS | — | |
| 47255-09040 |
Grommet, Master Cylinder Reservoir
2009-10 → 2012-08
ended
|
NDE150 | — | |
| 90029-48001 |
Grommet, Master Cylinder Reservoir
2009-10 → 2012-08
ended
|
ZRE151 | — | |
| 47287 — Label, Brake Fluid Information | ||||
| 47287-20010 |
Label, Brake Fluid Information
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 | — | |
| 47287-20010 |
Label, Brake Fluid Information
2008-09 → 2009-10
ended
|
NRE150,ZRE15# 6F,6FS | — | |
| 47287-20010 |
Label, Brake Fluid Information
2009-10 → 2012-08
ended
|
ZRE151 | — | |
| 47299 — Strainer, Brake Master Cylinder Reservoir | ||||
| 47299-02160 |
Strainer, Brake Master Cylinder Reservoir
2006-10 → 2008-12
ended
|
NDE150 | — | |
| 47299-02160 |
Strainer, Brake Master Cylinder Reservoir
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 | — | |
| 47299-02160 |
Strainer, Brake Master Cylinder Reservoir
2008-12 → 2009-10
ended
|
NDE150;ADE150 DCRL | — | |
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2008-09 → 2009-10
ended
|
NRE150,ZRE15# 6F,6FS | — | |
| 47299-02160 |
Strainer, Brake Master Cylinder Reservoir
2009-10 → 2012-08
ended
|
NDE150 | — | |
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2009-10 → 2012-08
ended
|
ZRE151 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
