Toyota Auris/Corolla (JPP)

2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

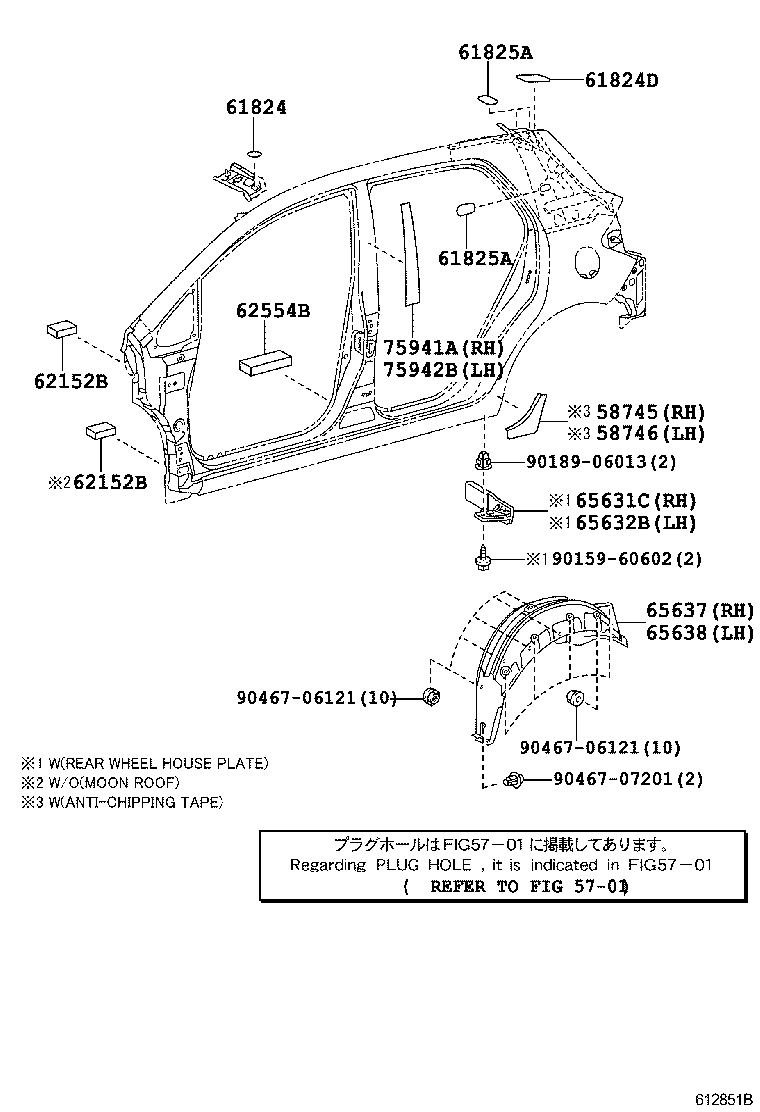

Exploded illustration 612851B 58745 — PROTECTOR, QUARTER PANEL, FRONT RH (5 parts) 58746 — PROTECTOR, QUARTER PANEL, FRONT LH (5 parts) 61824 — PLATE, NOISE CONTROL, NO.1 (14 parts) 61824D — PLATE, NOISE CONTROL, NO.1 (9 parts) 61825A — PLATE, NOISE CONTROL, NO.2 (5 parts) 61825A — PLATE, NOISE CONTROL, NO.2 (5 parts) 62152B — PAD, COWL SIDE SILENCER, NO.2 (11 parts) 62152B — PAD, COWL SIDE SILENCER, NO.2 (11 parts) 62554B — PAD, PILLAR, NO.4 (4 parts) 65637 — LINER, REAR WHEEL HOUSE, RH (5 parts) 65638 — LINER, REAR WHEEL HOUSE, LH (5 parts) 75941A — STRIPE, CENTER PILLAR, RH (5 parts) 75942B — STRIPE, CENTER PILLAR, LH (5 parts) 9046706121 — not listed in this catalogue 9046706121 — not listed in this catalogue 9046707201 — not listed in this catalogue 65631C — PLATE, REAR WHEEL HOUSE, FRONT RH (7 parts) 9015960602 — not listed in this catalogue 65632B — PLATE, REAR WHELL HOUSE, FRONT LH (7 parts) 9018906013 — not listed in this catalogue 5701 — not listed in this catalogue
612851B · 15 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
87 parts on this figure
Part number Description Fitment Price
58745 — Protector, Quarter Panel, Front RH
58741-12150 note Protector, Quarter Panel, Front RH
2006-10 → 2009-01 ended
ADE150 —
58741-12150 note Protector, Quarter Panel, Front RH
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
58741-12150 note Protector, Quarter Panel, Front RH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
58741-12150 note Protector, Quarter Panel, Front RH
2009-10 → 2010-03 ended
ZRE151 SOL —
58741-12150 note Protector, Quarter Panel, Front RH
2009-10 → —
NDE150,ZRE151 TERRA —
58746 — Protector, Quarter Panel, Front LH
58742-12150 note Protector, Quarter Panel, Front LH
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
58742-12150 note Protector, Quarter Panel, Front LH
2006-10 → 2009-01 ended
ADE150 —
58742-12150 note Protector, Quarter Panel, Front LH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
58742-12150 note Protector, Quarter Panel, Front LH
2009-10 → 2010-03 ended
ZRE151 SOL —
58742-12150 note Protector, Quarter Panel, Front LH
2009-10 → —
NDE150,ZRE151 TERRA —
61824 — Plate, Noise Control, NO.1
61824-12060 note Plate, Noise Control, NO.1
2006-10 → 2007-01 ended
ADE150,ZRE151,ZZE150 SOL —
61824-12060 Plate, Noise Control, NO.1
2006-10 → 2007-01 ended
ADE150,NDE150,ZRE151,ZZE150 —
61824-12060 note Plate, Noise Control, NO.1
2006-10 → 2007-01 ended
ADE150,ZRE151,ZZE150 SOL —
61824-12070 note Plate, Noise Control, NO.1
2007-02 → 2008-12 ended
ZRE151,ZZE150 SOL —
61824-12070 note Plate, Noise Control, NO.1
2007-02 → 2008-12 ended
ZRE151,ZZE150 SOL —
61824-12070 Plate, Noise Control, NO.1
2007-02 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
61824-12070 note Plate, Noise Control, NO.1
2007-02 → 2009-01 ended
ADE150 SOL —
61824-12070 note Plate, Noise Control, NO.1
2007-02 → 2009-01 ended
ADE150 SOL —
61824-12070 Plate, Noise Control, NO.1
2007-02 → 2009-01 ended
ADE150 —
61824-12070 note Plate, Noise Control, NO.1
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE15# (6F,6FS) SOL (DCRL,HTWC,HTWVM) —
61824-12070 Plate, Noise Control, NO.1
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
61824-12070 note Plate, Noise Control, NO.1
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE15# (6F,6FS) SOL (DCRL,HTWC,HTWVM) —
61824-12070 note Plate, Noise Control, NO.1
2009-10 → 2010-03 ended
ZRE151 SOL —
61824-12070 Plate, Noise Control, NO.1
2009-10 → —
NDE150,ZRE151 —
61824D — Plate, Noise Control, NO.1
61815-16030 note Plate, Noise Control, NO.1
2006-10 → 2008-12 ended
ZRE151,ZZE150 SOL —
61815-16030 Plate, Noise Control, NO.1
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
61815-16030 note Plate, Noise Control, NO.1
2006-10 → 2009-01 ended
ADE150 SOL —
61815-16030 Plate, Noise Control, NO.1
2006-10 → 2009-01 ended
ADE150 —
61815-16030 note Plate, Noise Control, NO.1
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE15# (6F,6FS) SOL (DCRL,HTWC,HTWVM) —
61815-16030 Plate, Noise Control, NO.1
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
61815-16030 Plate, Noise Control, NO.1
2009-10 → 2010-03 ended
ZRE151 SOL —
61815-16030 Plate, Noise Control, NO.1
2009-10 → —
NDE150,ZRE151 TERRA —
61815-16030 note Plate, Noise Control, NO.1
2009-10 → 2010-03 ended
ZRE151 SOL —
61825A — Plate, Noise Control, NO.2
61825-52060 Plate, Noise Control, NO.2
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
61825-52060 Plate, Noise Control, NO.2
2006-10 → 2009-01 ended
ADE150 —
61825-52060 Plate, Noise Control, NO.2
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
61825-52060 Plate, Noise Control, NO.2
2009-10 → 2010-03 ended
ZRE151 SOL —
61825-52060 Plate, Noise Control, NO.2
2009-10 → —
NDE150,ZRE151 TERRA —
62152B — Pad, Cowl Side Silencer, NO.2
62152-12050 Pad, Cowl Side Silencer, NO.2
2006-10 → 2009-01 ended
ADE150 —
62152-12050 note Pad, Cowl Side Silencer, NO.2
2006-10 → 2009-01 ended
ADE150 SOL —
62152-12050 note Pad, Cowl Side Silencer, NO.2
2006-10 → 2009-01 ended
ADE150 SOL —
62152-12050 note Pad, Cowl Side Silencer, NO.2
2006-10 → 2008-12 ended
ZRE151,ZZE150 SOL —
62152-12050 Pad, Cowl Side Silencer, NO.2
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
62152-12050 note Pad, Cowl Side Silencer, NO.2
2006-10 → 2008-12 ended
ZRE151,ZZE150 SOL —
62152-12050 note Pad, Cowl Side Silencer, NO.2
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE15# (6F,6FS) SOL (DCRL,HTWC,HTWVM) —
62152-12050 note Pad, Cowl Side Silencer, NO.2
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE15# (6F,6FS) SOL (DCRL,HTWC,HTWVM) —
62152-12050 Pad, Cowl Side Silencer, NO.2
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
62152-12050 note Pad, Cowl Side Silencer, NO.2
2009-10 → 2010-03 ended
ZRE151 SOL —
62152-12050 Pad, Cowl Side Silencer, NO.2
2009-10 → —
NDE150,ZRE151 —
62554B — Pad, Pillar, NO.4
62554-12180 Pad, Pillar, NO.4
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
62554-12180 Pad, Pillar, NO.4
2006-10 → 2009-01 ended
ADE150 —
62554-12180 Pad, Pillar, NO.4
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
62554-12180 Pad, Pillar, NO.4
2009-10 → —
NDE150,ZRE151 —
65631C — Plate, Rear Wheel House, Front RH
65631-12010 Plate, Rear Wheel House, Front RH
2006-10 → 2007-06 ended
ZRE151,ZZE150 —
65631-12011 Plate, Rear Wheel House, Front RH
2007-07 → 2008-09 ended
ZRE151 —
65631-12011 Plate, Rear Wheel House, Front RH
2007-07 → 2008-12 ended
ZZE150 —
65631-12070 Plate, Rear Wheel House, Front RH
2008-09 → 2008-12 ended
ZRE151 —
65631-12070 Plate, Rear Wheel House, Front RH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
65631-12070 Plate, Rear Wheel House, Front RH
2009-10 → 2010-03 ended
ZRE151 SOL —
65631-12070 Plate, Rear Wheel House, Front RH
2009-10 → —
NDE150,ZRE151 TERRA —
65632B — Plate, Rear Whell House, Front LH
65632-12010 Plate, Rear Whell House, Front LH
2006-10 → 2007-06 ended
ZRE151,ZZE150 —
65632-12011 Plate, Rear Whell House, Front LH
2007-07 → 2008-09 ended
ZRE151 —
65632-12011 Plate, Rear Whell House, Front LH
2007-07 → 2008-12 ended
ZZE150 —
65632-12070 Plate, Rear Whell House, Front LH
2008-09 → 2008-12 ended
ZRE151 —
65632-12070 Plate, Rear Whell House, Front LH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
65632-12070 Plate, Rear Whell House, Front LH
2009-10 → —
NDE150,ZRE151 TERRA —
65632-12070 Plate, Rear Whell House, Front LH
2009-10 → 2010-03 ended
ZRE151 SOL —
65637 — Liner, Rear Wheel House, RH
65637-12020 Liner, Rear Wheel House, RH
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
65637-12020 Liner, Rear Wheel House, RH
2006-10 → 2009-01 ended
ADE150 —
65637-12020 Liner, Rear Wheel House, RH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
65637-12020 Liner, Rear Wheel House, RH
2009-10 → 2010-03 ended
ZRE151 SOL —
65637-12020 Liner, Rear Wheel House, RH
2009-10 → —
NDE150,ZRE151 TERRA —
65638 — Liner, Rear Wheel House, LH
65638-12020 Liner, Rear Wheel House, LH
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
65638-12020 Liner, Rear Wheel House, LH
2006-10 → 2009-01 ended
ADE150 —
65638-12020 Liner, Rear Wheel House, LH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
65638-12020 Liner, Rear Wheel House, LH
2009-10 → —
NDE150,ZRE151 TERRA —
65638-12020 Liner, Rear Wheel House, LH
2009-10 → 2010-03 ended
ZRE151 SOL —
75941A — Stripe, Center Pillar, RH
75941-12030 Stripe, Center Pillar, RH
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
75941-12030 Stripe, Center Pillar, RH
2006-10 → 2009-01 ended
ADE150 —
75941-12030 Stripe, Center Pillar, RH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
75941-12030 Stripe, Center Pillar, RH
2009-10 → 2010-03 ended
ZRE151 SOL —
75941-12030 Stripe, Center Pillar, RH
2009-10 → —
NDE150,ZRE151 TERRA —
75942B — Stripe, Center Pillar, LH
75942-12030 Stripe, Center Pillar, LH
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
75942-12030 Stripe, Center Pillar, LH
2006-10 → 2009-01 ended
ADE150 —
75942-12030 Stripe, Center Pillar, LH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
75942-12030 Stripe, Center Pillar, LH
2009-10 → 2010-03 ended
ZRE151 SOL —
75942-12030 Stripe, Center Pillar, LH
2009-10 → —
NDE150,ZRE151 TERRA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
