Toyota Auris/Corolla (JPP)

2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

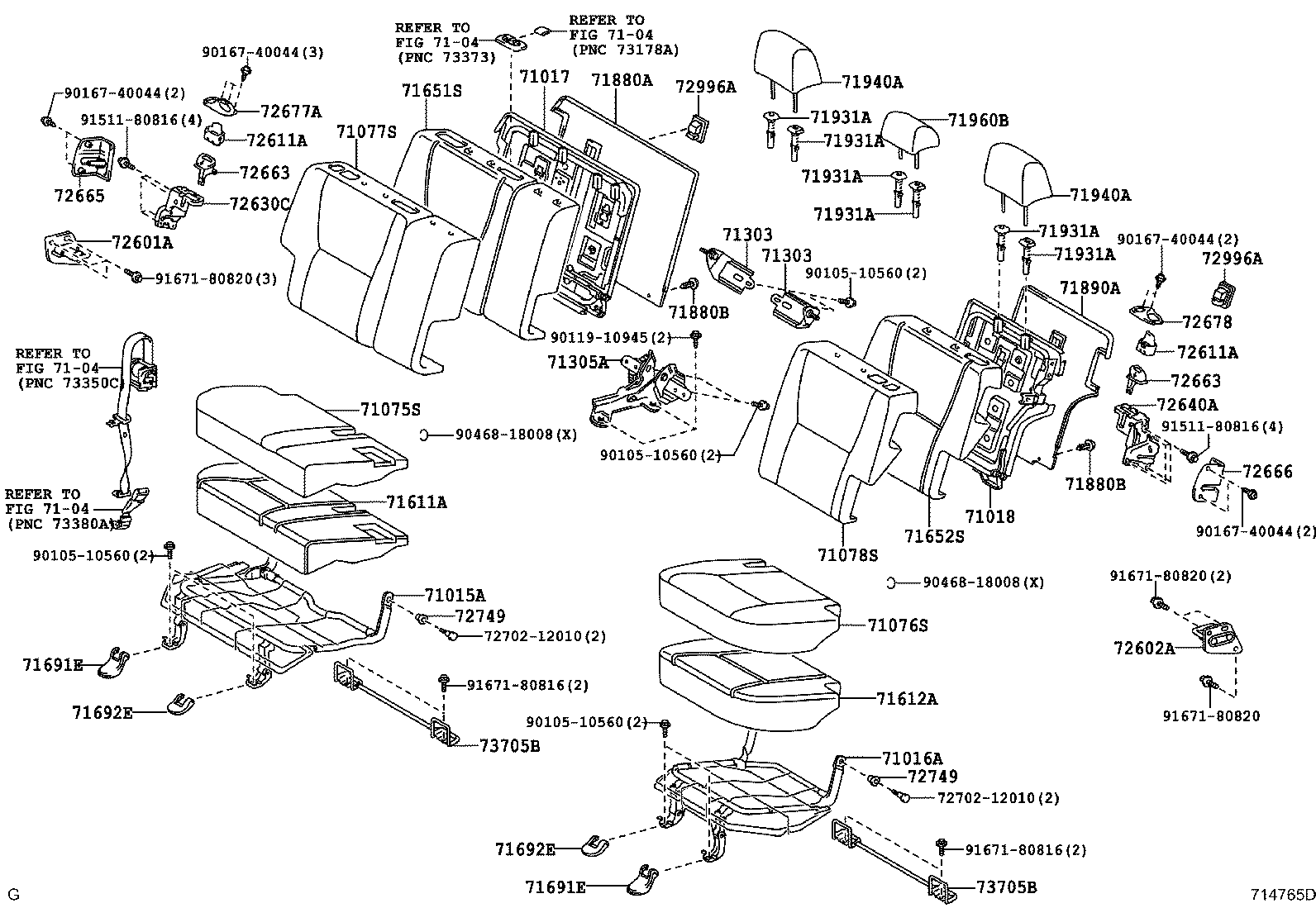

Exploded illustration 714765D 71931A — SUPPORT, REAR SEAT HEADREST (12 parts) 71931A — SUPPORT, REAR SEAT HEADREST (12 parts) 71931A — SUPPORT, REAR SEAT HEADREST (12 parts) 71960B — HEADREST ASSY, REAR SEAT, CENTER (5 parts) 71931A — SUPPORT, REAR SEAT HEADREST (12 parts) 71940A — HEADREST ASSY, REAR SEAT (5 parts) 71931A — SUPPORT, REAR SEAT HEADREST (12 parts) 71931A — SUPPORT, REAR SEAT HEADREST (12 parts) 72996A — COVER, REAR SEATBACK (6 parts) 71890A — CARPET ASSY, REAR SEATBACK BOARD, LH (6 parts) 72678 — BASE, REAR SEATBACK LOCK CONTROL LEVER, LH (6 parts) 72611A — BASE, REAR SEAT LOCK (8 parts) 72663 — LEVER, REAR SEAT LOCK CONTROL, NO.1 (16 parts) 72640A — LOCK ASSY, REAR SEATBACK, LH (5 parts) 71880B — CLIP(FOR REAR SEATBACK CARPET) (6 parts) 71880B — CLIP(FOR REAR SEATBACK CARPET) (6 parts) 71303 — HINGE SUB-ASSY, REAR SEATBACK (4 parts) 71303 — HINGE SUB-ASSY, REAR SEATBACK (4 parts) 71018 — FRAME SUB-ASSY, REAR SEATBACK, LH (4 parts) 71652S — PAD, REAR SEATBACK, LH(FOR SEPARATE TYPE) (4 parts) 71078S — COVER, REAR SEATBACK, LH(FOR SEPARATE TYPE) (8 parts) 71076S — COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) (8 parts) 71612A — PAD, REAR SEAT CUSHION, LH (4 parts) 72602A — STRIKER SUB-ASSY, REAR SEATBACK LOCK, LH (4 parts) 71016A — FRAME SUB-ASSY, REAR SEAT CUSHION, LH (4 parts) 72749 — SPACER, REAR SEAT RECLINING (4 parts) 73705B — BRACKET SUB-ASSY, CROSS ANCHOR (7 parts) 71691E — COVER, REAR SEAT CUSHION HINGE, NO.1 (7 parts) 71692E — COVER, REAR SEAT CUSHION HINGE, NO.2 (7 parts) 73705B — BRACKET SUB-ASSY, CROSS ANCHOR (7 parts) 72749 — SPACER, REAR SEAT RECLINING (4 parts) 71691E — COVER, REAR SEAT CUSHION HINGE, NO.1 (7 parts) 71692E — COVER, REAR SEAT CUSHION HINGE, NO.2 (7 parts) 71611A — PAD, REAR SEAT CUSHION, RH (4 parts) 71075S — COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) (8 parts) 72601A — STRIKER SUB-ASSY, REAR SEATBACK LOOK, RH (4 parts) 72677A — BASE, REAR SEATBACK LOCK CONTROL LEVER, RH (6 parts) 72611A — BASE, REAR SEAT LOCK (8 parts) 72663 — LEVER, REAR SEAT LOCK CONTROL, NO.1 (16 parts) 72630C — LOCK ASSY, REAR SEATBACK, RH (5 parts) 71077S — COVER, REAR SEATBACK, RH (FOR SEPARATE TYPE) (15 parts) 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (11 parts) 71880A — CARPET ASSY, REAR SEATBACK BOARD, RH (6 parts) 72996A — COVER, REAR SEATBACK (6 parts) 72665 — COVER, REAR SEATBACK LOCK, RH (6 parts) 71015A — FRAME SUB-ASSY, REAR SEAT CUSHION, RH (4 parts) 71305A — HINGE SUB-ASSY, REAR SEATBACK, CENTER (4 parts) 72666 — COVER, REAR SEATBACK LOCK, LH (6 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9046818008 — not listed in this catalogue 9167180820 — not listed in this catalogue 9167180820 — not listed in this catalogue 9167180820 — not listed in this catalogue 9151180816 — not listed in this catalogue 9151180816 — not listed in this catalogue 9011910945 — not listed in this catalogue 9010510560 — not listed in this catalogue 9010510560 — not listed in this catalogue 9016740044 — not listed in this catalogue 9167180816 — not listed in this catalogue 9010510560 — not listed in this catalogue 7270212010 — not listed in this catalogue 7270212010 — not listed in this catalogue 9167180816 — not listed in this catalogue 9016740044 — not listed in this catalogue 71940A — HEADREST ASSY, REAR SEAT (5 parts) 9010510560 — not listed in this catalogue 71651S — PAD, REAR SEATBACK, RH(FOR SEPARATE TYPE) (11 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 9046818008 — not listed in this catalogue
714765D · 50 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
230 parts on this figure
Part number Description Fitment Price
71015A — Frame Sub-assy, Rear Seat Cushion, RH
71015-12420 Frame Sub-assy, Rear Seat Cushion, RH
2006-10 → 2009-01 ended
ADE150 —
71015-12420 Frame Sub-assy, Rear Seat Cushion, RH
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
71015-12420 Frame Sub-assy, Rear Seat Cushion, RH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
71015-12420 Frame Sub-assy, Rear Seat Cushion, RH
2009-10 → 2012-08 ended
NDE150,ZRE151 —
71016A — Frame Sub-assy, Rear Seat Cushion, LH
71016-12010 Frame Sub-assy, Rear Seat Cushion, LH
2006-10 → 2009-01 ended
ADE150 —
71016-12010 Frame Sub-assy, Rear Seat Cushion, LH
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
71016-12010 Frame Sub-assy, Rear Seat Cushion, LH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
71016-12010 Frame Sub-assy, Rear Seat Cushion, LH
2009-10 → 2012-08 ended
NDE150,ZRE151 —
71017 — Frame Sub-assy, Rear Seatback, RH
71017-12700 Frame Sub-assy, Rear Seatback, RH
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
71017-12700 Frame Sub-assy, Rear Seatback, RH
2006-10 → 2009-01 ended
ADE150 —
71017-12710 note Frame Sub-assy, Rear Seatback, RH
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 SOL —
71017-12710 note Frame Sub-assy, Rear Seatback, RH
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 LHD SOL —
71017-12710 note Frame Sub-assy, Rear Seatback, RH
2006-10 → 2009-01 ended
ADE150 SOL —
71017-12710 note Frame Sub-assy, Rear Seatback, RH
2006-10 → 2009-01 ended
ADE150 LHD SOL —
71017-12700 Frame Sub-assy, Rear Seatback, RH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
71017-12710 note Frame Sub-assy, Rear Seatback, RH
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71017-12710 note Frame Sub-assy, Rear Seatback, RH
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE152 L LHD (DCR,DCRL,HTWVM) +5 —
71017-12700 Frame Sub-assy, Rear Seatback, RH
2009-10 → 2012-08 ended
NDE150,ZRE151 —
71017-12710 note Frame Sub-assy, Rear Seatback, RH
2009-10 → 2010-03 ended
ZRE151 SOL —
71018 — Frame Sub-assy, Rear Seatback, LH
71018-12350 Frame Sub-assy, Rear Seatback, LH
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
71018-12350 Frame Sub-assy, Rear Seatback, LH
2006-10 → 2009-01 ended
ADE150 —
71018-12350 Frame Sub-assy, Rear Seatback, LH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
71018-12350 Frame Sub-assy, Rear Seatback, LH
2009-10 → 2012-08 ended
NDE150,ZRE151 —
71075S — Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71075-12C60-B3 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71075-12C60-E2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71075-12C70-B2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA —
71075-12C60-B3 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71075-12C60-E2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71075-12C70-B2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
NDE150 (6F,6FS) TERRA;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71075-12J20-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2009-10 → 2012-08 ended
NDE150,ZRE151 TERRA —
71075-12J30-B2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2009-10 → 2010-03 ended
ZRE151 SOL —
71076S — Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71076-12230-B4 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71076-12230-E2 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71076-12240-B2 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA —
71076-12230-B4 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71076-12230-E2 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71076-12240-B2 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
NDE150 (6F,6FS) TERRA;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71076-12350-B1 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2009-10 → 2012-08 ended
NDE150,ZRE151 TERRA —
71076-12360-B2 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2009-10 → 2010-03 ended
ZRE151 SOL —
71077S — Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077-12E80-B3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA —
71077-12E90-B5 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71077-12E90-B5 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150,ZZE150 LHD SOL;NDE150,ZRE151 LHD +2 —
71077-12E90-E3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71077-12E90-E3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150,ZZE150 LHD SOL;NDE150,ZRE151 LHD +2 —
71077-12F80-B4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71077-12E80-B3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
NDE150 (6F,6FS) TERRA;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71077-12E90-B5 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71077-12E90-B5 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE152 L LHD (DCR,DCRL,HTWVM) +5 —
71077-12E90-E3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71077-12E90-E3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE152 L LHD (DCR,DCRL,HTWVM) +5 —
71077-12F80-B4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71077-12M10-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2009-10 → 2012-08 ended
NDE150,ZRE151 TERRA —
71077-12M20-B2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2009-10 → 2010-03 ended
ZRE151 SOL —
71077-12M40-B2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2009-10 → 2010-03 ended
ZRE151 SOL —
71078S — Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71078-12D80-B6 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71078-12D80-E3 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71078-12D90-B3 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA —
71078-12D80-B6 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71078-12D80-E3 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71078-12D90-B3 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
NDE150 (6F,6FS) TERRA;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71078-12K80-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2009-10 → 2012-08 ended
NDE150,ZRE151 TERRA —
71078-12K90-B2 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2009-10 → 2010-03 ended
ZRE151 SOL —
71303 — Hinge Sub-assy, Rear Seatback
71303-12161 Hinge Sub-assy, Rear Seatback
2006-10 → 2009-01 ended
ADE150 —
71303-12161 Hinge Sub-assy, Rear Seatback
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
71303-12161 Hinge Sub-assy, Rear Seatback
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
71303-12161 Hinge Sub-assy, Rear Seatback
2009-10 → —
NDE150,ZRE151 —
71305A — Hinge Sub-assy, Rear Seatback, Center
71305-12190 Hinge Sub-assy, Rear Seatback, Center
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
71305-12190 Hinge Sub-assy, Rear Seatback, Center
2006-10 → 2009-01 ended
ADE150 —
71305-12190 Hinge Sub-assy, Rear Seatback, Center
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
71305-12190 Hinge Sub-assy, Rear Seatback, Center
2009-10 → —
NDE150,ZRE151 —
71611A — Pad, Rear Seat Cushion, RH
71611-12670 Pad, Rear Seat Cushion, RH
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
71611-12670 Pad, Rear Seat Cushion, RH
2006-10 → 2009-01 ended
ADE150 —
71611-12670 Pad, Rear Seat Cushion, RH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
71611-12670 Pad, Rear Seat Cushion, RH
2009-10 → 2012-08 ended
NDE150,ZRE151 —
71612A — Pad, Rear Seat Cushion, LH
71612-12380 Pad, Rear Seat Cushion, LH
2006-10 → 2009-01 ended
ADE150 —
71612-12380 Pad, Rear Seat Cushion, LH
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
71612-12380 Pad, Rear Seat Cushion, LH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
71612-12380 Pad, Rear Seat Cushion, LH
2009-10 → 2012-08 ended
NDE150,ZRE151 —
71651S — Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71651-12840 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
71651-12840 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150 —
71651-12850 note Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 SOL —
71651-12850 note Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 LHD SOL —
71651-12850 note Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150 SOL —
71651-12850 note Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150 LHD SOL —
71651-12840 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
71651-12850 note Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71651-12850 note Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE152 L LHD (DCR,DCRL,HTWVM) +5 —
71651-12840 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2009-10 → 2012-08 ended
NDE150,ZRE151 —
71651-12850 note Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2009-10 → 2010-03 ended
ZRE151 SOL —
71652S — Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71652-12720 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
71652-12720 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2006-10 → 2009-01 ended
ADE150 —
71652-12720 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
71652-12720 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2009-10 → 2012-08 ended
NDE150,ZRE151 —
71691E — Cover, Rear Seat Cushion Hinge, NO.1
71691-12010-B0 note Cover, Rear Seat Cushion Hinge, NO.1
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71691-12010-B0 note Cover, Rear Seat Cushion Hinge, NO.1
2006-10 → 2009-01 ended
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA —
71691-12010-E1 note Cover, Rear Seat Cushion Hinge, NO.1
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71691-12010-B0 note Cover, Rear Seat Cushion Hinge, NO.1
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
71691-12010-E1 note Cover, Rear Seat Cushion Hinge, NO.1
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71691-12010-B0 note Cover, Rear Seat Cushion Hinge, NO.1
2009-10 → 2012-08 ended
NDE150,ZRE151 —
71691-12010-E1 note Cover, Rear Seat Cushion Hinge, NO.1
2009-10 → 2010-03 ended
ZRE151 SOL —
71692E — Cover, Rear Seat Cushion Hinge, NO.2
71692-12030-B0 note Cover, Rear Seat Cushion Hinge, NO.2
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71692-12030-B0 note Cover, Rear Seat Cushion Hinge, NO.2
2006-10 → 2009-01 ended
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA —
71692-12030-E1 note Cover, Rear Seat Cushion Hinge, NO.2
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71692-12030-B0 note Cover, Rear Seat Cushion Hinge, NO.2
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
71692-12030-E1 note Cover, Rear Seat Cushion Hinge, NO.2
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71692-12030-B0 note Cover, Rear Seat Cushion Hinge, NO.2
2009-10 → 2012-08 ended
NDE150,ZRE151 —
71692-12030-E1 note Cover, Rear Seat Cushion Hinge, NO.2
2009-10 → 2010-03 ended
ZRE151 SOL —
71880A — Carpet Assy, Rear Seatback Board, RH
71885-12100-C0 note Carpet Assy, Rear Seatback Board, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71885-12100-C0 note Carpet Assy, Rear Seatback Board, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA —
71885-12100-C0 note Carpet Assy, Rear Seatback Board, RH
2008-09 → 2009-10 ended
NDE150 (6F,6FS) TERRA;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71885-12100-C0 note Carpet Assy, Rear Seatback Board, RH
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71885-12100-C0 note Carpet Assy, Rear Seatback Board, RH
2009-10 → 2010-03 ended
ZRE151 SOL —
71885-12100-C0 note Carpet Assy, Rear Seatback Board, RH
2009-10 → 2012-08 ended
NDE150,ZRE151 TERRA —
71880B — Clip(FOR REAR SEATBACK CARPET)
90467-05161-B0 note Clip(FOR REAR SEATBACK CARPET)
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
90467-05161-B0 note Clip(FOR REAR SEATBACK CARPET)
2006-10 → 2009-01 ended
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA —
90467-05161-B0 note Clip(FOR REAR SEATBACK CARPET)
2008-09 → 2009-10 ended
NDE150 (6F,6FS) TERRA;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
90467-05161-B0 note Clip(FOR REAR SEATBACK CARPET)
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
90467-05161-B0 note Clip(FOR REAR SEATBACK CARPET)
2009-10 → 2010-03 ended
ZRE151 SOL —
90467-05161-B0 note Clip(FOR REAR SEATBACK CARPET)
2009-10 → 2012-08 ended
NDE150,ZRE151 TERRA —
71890A — Carpet Assy, Rear Seatback Board, LH
71886-12090-C0 note Carpet Assy, Rear Seatback Board, LH
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71886-12090-C0 note Carpet Assy, Rear Seatback Board, LH
2006-10 → 2009-01 ended
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA —
71886-12090-C0 note Carpet Assy, Rear Seatback Board, LH
2008-09 → 2009-10 ended
NDE150 (6F,6FS) TERRA;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71886-12090-C0 note Carpet Assy, Rear Seatback Board, LH
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71886-12090-C0 note Carpet Assy, Rear Seatback Board, LH
2009-10 → 2010-03 ended
ZRE151 SOL —
71886-12090-C0 note Carpet Assy, Rear Seatback Board, LH
2009-10 → 2012-08 ended
NDE150,ZRE151 TERRA —
71931A — Support, Rear Seat Headrest
71930-47010-B2 note Support, Rear Seat Headrest
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71930-47010-B2 note Support, Rear Seat Headrest
2006-10 → 2009-01 ended
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA —
71930-47010-E3 note Support, Rear Seat Headrest
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71931-47010-B2 note Support, Rear Seat Headrest
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71931-47010-B2 note Support, Rear Seat Headrest
2006-10 → 2009-01 ended
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA —
71931-47010-E4 note Support, Rear Seat Headrest
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71930-47010-B2 note Support, Rear Seat Headrest
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
71930-47010-E3 note Support, Rear Seat Headrest
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71931-47010-B2 note Support, Rear Seat Headrest
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
71931-47010-E4 note Support, Rear Seat Headrest
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71930-44020-B0 note Support, Rear Seat Headrest
2009-10 → 2012-08 ended
NDE150,ZRE151 —
71931-47010-B2 note Support, Rear Seat Headrest
2009-10 → 2012-08 ended
NDE150,ZRE151 —
71940A — Headrest Assy, Rear Seat
71940-12770-B2 note Headrest Assy, Rear Seat
2006-10 → 2009-01 ended
ADE150,ZZE150;NDE150,ZRE151 5F,5FS —
71940-12770-E1 note Headrest Assy, Rear Seat
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71940-12770-B2 note Headrest Assy, Rear Seat
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
71940-12770-E1 note Headrest Assy, Rear Seat
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71940-12C30-B0 note Headrest Assy, Rear Seat
2009-10 → 2012-08 ended
NDE150,ZRE151 —
71960B — Headrest Assy, Rear Seat, Center
71960-12360-B2 note Headrest Assy, Rear Seat, Center
2006-10 → 2009-01 ended
ADE150,ZZE150;NDE150,ZRE151 5F,5FS —
71960-12360-E1 note Headrest Assy, Rear Seat, Center
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
71960-12360-B2 note Headrest Assy, Rear Seat, Center
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
71960-12360-E1 note Headrest Assy, Rear Seat, Center
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
71960-12700-B0 note Headrest Assy, Rear Seat, Center
2009-10 → 2012-08 ended
NDE150,ZRE151 —
72601A — Striker Sub-assy, Rear Seatback Look, RH
72601-12200 Striker Sub-assy, Rear Seatback Look, RH
2006-10 → 2009-01 ended
ADE150 —
72601-12200 Striker Sub-assy, Rear Seatback Look, RH
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
72601-12200 Striker Sub-assy, Rear Seatback Look, RH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
72601-12200 Striker Sub-assy, Rear Seatback Look, RH
2009-10 → —
NDE150,ZRE151 —
72602A — Striker Sub-assy, Rear Seatback Lock, LH
72602-12060 Striker Sub-assy, Rear Seatback Lock, LH
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
72602-12060 Striker Sub-assy, Rear Seatback Lock, LH
2006-10 → 2009-01 ended
ADE150 —
72602-12060 Striker Sub-assy, Rear Seatback Lock, LH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
72602-12060 Striker Sub-assy, Rear Seatback Lock, LH
2009-10 → —
NDE150,ZRE151 —
72611A — Base, Rear Seat Lock
72631-12100 note Base, Rear Seat Lock
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
72631-12100 note Base, Rear Seat Lock
2006-10 → 2009-01 ended
ADE150 —
72632-12090 note Base, Rear Seat Lock
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
72632-12090 note Base, Rear Seat Lock
2006-10 → 2009-01 ended
ADE150 —
72631-12100 note Base, Rear Seat Lock
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
72632-12090 note Base, Rear Seat Lock
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
72631-12100 note Base, Rear Seat Lock
2009-10 → 2012-08 ended
NDE150,ZRE151 —
72632-12090 note Base, Rear Seat Lock
2009-10 → 2012-08 ended
NDE150,ZRE151 —
72630C — Lock Assy, Rear Seatback, RH
72603-12040 Lock Assy, Rear Seatback, RH
2007-04 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
72603-12040 Lock Assy, Rear Seatback, RH
2007-04 → 2009-01 ended
ADE150 —
72630-12320 Lock Assy, Rear Seatback, RH
2006-10 → 2007-03 ended
ADE150,NDE150,ZRE151,ZZE150 —
72603-12040 Lock Assy, Rear Seatback, RH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
72603-12040 Lock Assy, Rear Seatback, RH
2009-10 → 2012-08 ended
NDE150,ZRE151 —
72640A — Lock Assy, Rear Seatback, LH
72604-12060 Lock Assy, Rear Seatback, LH
2007-04 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
72604-12060 Lock Assy, Rear Seatback, LH
2007-04 → 2009-01 ended
ADE150 —
72640-12290 Lock Assy, Rear Seatback, LH
2006-10 → 2007-03 ended
ADE150,NDE150,ZRE151,ZZE150 —
72604-12060 Lock Assy, Rear Seatback, LH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
72604-12060 Lock Assy, Rear Seatback, LH
2009-10 → 2012-08 ended
NDE150,ZRE151 —
72663 — Lever, Rear Seat Lock Control, NO.1
72663-12020-B0 note Lever, Rear Seat Lock Control, NO.1
2006-10 → 2006-11 ended
ADE150,NDE150,ZRE151,ZZE150 SOL —
72663-12020-B0 note Lever, Rear Seat Lock Control, NO.1
2006-10 → 2006-11 ended
ADE150,NDE150,ZRE151,ZZE150 TERRA —
72663-12020-E0 note Lever, Rear Seat Lock Control, NO.1
2006-10 → 2006-11 ended
ADE150,NDE150,ZRE151,ZZE150 SOL —
72663-12021-B0 note Lever, Rear Seat Lock Control, NO.1
2006-12 → 2009-01 ended
ADE150,ZZE150;NDE150,ZRE151 5F,5FS —
72663-12021-E0 note Lever, Rear Seat Lock Control, NO.1
2006-12 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
72664-12020-B0 note Lever, Rear Seat Lock Control, NO.1
2006-10 → 2006-11 ended
ADE150,NDE150,ZRE151,ZZE150 TERRA —
72664-12020-B0 note Lever, Rear Seat Lock Control, NO.1
2006-10 → 2006-11 ended
ADE150,NDE150,ZRE151,ZZE150 SOL —
72664-12020-E0 note Lever, Rear Seat Lock Control, NO.1
2006-10 → 2006-11 ended
ADE150,NDE150,ZRE151,ZZE150 SOL —
72664-12021-B0 note Lever, Rear Seat Lock Control, NO.1
2006-12 → 2009-01 ended
ADE150,ZZE150;NDE150,ZRE151 5F,5FS —
72664-12021-E0 note Lever, Rear Seat Lock Control, NO.1
2006-12 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
72663-12021-B0 note Lever, Rear Seat Lock Control, NO.1
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
72663-12021-E0 note Lever, Rear Seat Lock Control, NO.1
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
72664-12021-B0 note Lever, Rear Seat Lock Control, NO.1
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
72664-12021-E0 note Lever, Rear Seat Lock Control, NO.1
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
72663-12021-B0 note Lever, Rear Seat Lock Control, NO.1
2009-10 → 2012-08 ended
NDE150,ZRE151 —
72664-12021-B0 note Lever, Rear Seat Lock Control, NO.1
2009-10 → 2012-08 ended
NDE150,ZRE151 —
72665 — Cover, Rear Seatback Lock, RH
72665-12030-B0 note Cover, Rear Seatback Lock, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
72665-12030-B0 note Cover, Rear Seatback Lock, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA —
72665-12030-B0 note Cover, Rear Seatback Lock, RH
2008-09 → 2009-10 ended
NDE150 (6F,6FS) TERRA;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
72665-12030-B0 note Cover, Rear Seatback Lock, RH
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
72665-12030-B0 note Cover, Rear Seatback Lock, RH
2009-10 → 2010-03 ended
ZRE151 SOL —
72665-12030-B0 note Cover, Rear Seatback Lock, RH
2009-10 → 2012-08 ended
NDE150,ZRE151 TERRA —
72666 — Cover, Rear Seatback Lock, LH
72666-12020-B0 note Cover, Rear Seatback Lock, LH
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
72666-12020-B0 note Cover, Rear Seatback Lock, LH
2006-10 → 2009-01 ended
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA —
72666-12020-B0 note Cover, Rear Seatback Lock, LH
2008-09 → 2009-10 ended
NDE150 (6F,6FS) TERRA;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
72666-12020-B0 note Cover, Rear Seatback Lock, LH
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
72666-12020-B0 note Cover, Rear Seatback Lock, LH
2009-10 → 2010-03 ended
ZRE151 SOL —
72666-12020-B0 note Cover, Rear Seatback Lock, LH
2009-10 → 2012-08 ended
NDE150,ZRE151 TERRA —
72677A — Base, Rear Seatback Lock Control Lever, RH
72677-12010-B0 note Base, Rear Seatback Lock Control Lever, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA —
72677-12010-B0 note Base, Rear Seatback Lock Control Lever, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
72677-12010-E0 note Base, Rear Seatback Lock Control Lever, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
72677-12010-B0 note Base, Rear Seatback Lock Control Lever, RH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
72677-12010-E0 note Base, Rear Seatback Lock Control Lever, RH
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
72677-12010-B0 note Base, Rear Seatback Lock Control Lever, RH
2009-10 → 2012-08 ended
NDE150,ZRE151 —
72678 — Base, Rear Seatback Lock Control Lever, LH
72678-12010-B0 note Base, Rear Seatback Lock Control Lever, LH
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
72678-12010-B0 note Base, Rear Seatback Lock Control Lever, LH
2006-10 → 2009-01 ended
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA —
72678-12010-E0 note Base, Rear Seatback Lock Control Lever, LH
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
72678-12010-B0 note Base, Rear Seatback Lock Control Lever, LH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
72678-12010-E0 note Base, Rear Seatback Lock Control Lever, LH
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
72678-12010-B0 note Base, Rear Seatback Lock Control Lever, LH
2009-10 → 2012-08 ended
NDE150,ZRE151 —
72749 — Spacer, Rear Seat Reclining
72749-12010 Spacer, Rear Seat Reclining
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
72749-12010 Spacer, Rear Seat Reclining
2006-10 → 2009-01 ended
ADE150 —
72749-12010 Spacer, Rear Seat Reclining
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
72749-12010 Spacer, Rear Seat Reclining
2009-10 → 2012-08 ended
NDE150,ZRE151 —
72996A — Cover, Rear Seatback
72996-12320-B0 note Cover, Rear Seatback
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
72996-12320-B0 note Cover, Rear Seatback
2006-10 → 2009-01 ended
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA —
72996-12320-B0 note Cover, Rear Seatback
2008-09 → 2009-10 ended
NDE150 (6F,6FS) TERRA;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
72996-12320-B0 note Cover, Rear Seatback
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
72996-12320-B0 note Cover, Rear Seatback
2009-10 → 2010-03 ended
ZRE151 SOL —
72996-12320-B0 note Cover, Rear Seatback
2009-10 → 2012-08 ended
NDE150,ZRE151 TERRA —
73705B — Bracket Sub-assy, Cross Anchor
73705-12060 Bracket Sub-assy, Cross Anchor
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
73705-12060 note Bracket Sub-assy, Cross Anchor
2006-10 → 2008-12 ended
NDE150 LHD;ZZE150 TERRA;ZZE150 LHD +3 —
73705-12060 Bracket Sub-assy, Cross Anchor
2006-10 → 2009-01 ended
ADE150 —
73705-12060 note Bracket Sub-assy, Cross Anchor
2006-10 → 2009-01 ended
ADE150 LHD —
73705-12060 Bracket Sub-assy, Cross Anchor
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
73705-12060 Bracket Sub-assy, Cross Anchor
2009-10 → 2010-03 ended
ZRE151 SOL —
73705-12060 Bracket Sub-assy, Cross Anchor
2009-10 → —
NDE150,ZRE151 TERRA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
