Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

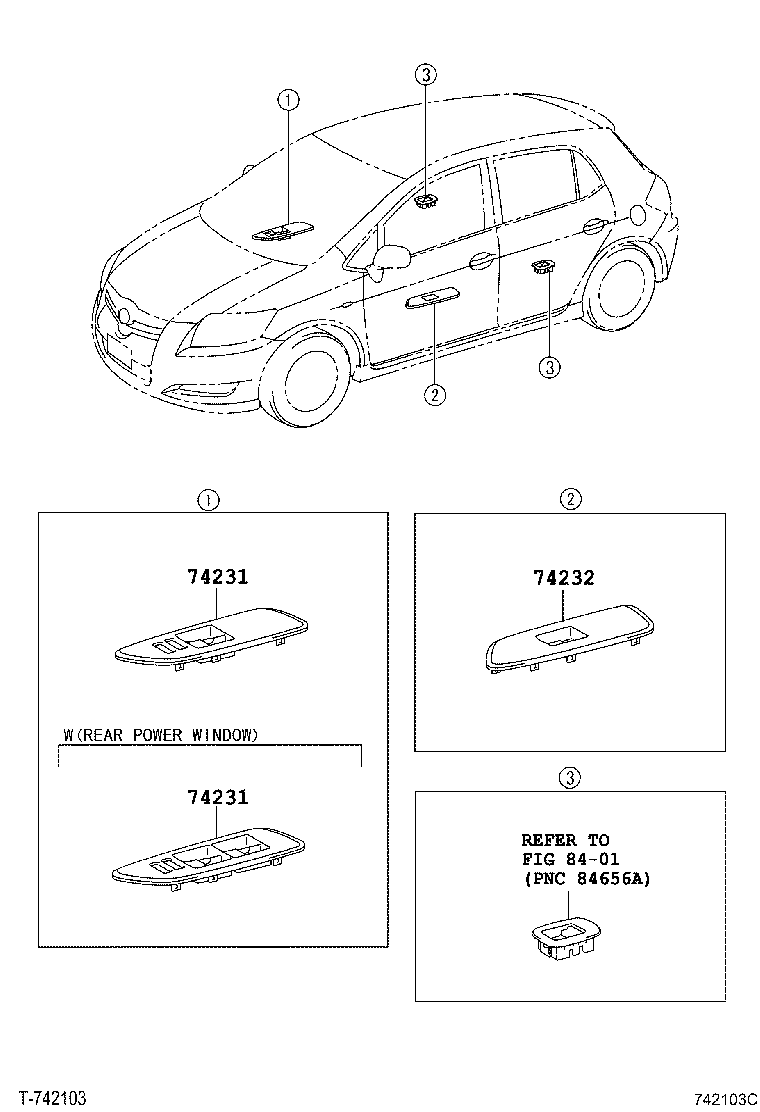

| 74231 — Panel, Front Armrest Base, Upper RH | ||||
| 74231-12750-B0 note |
Panel, Front Armrest Base, Upper RH
2006-10 → 2009-01
ended
|
ADE150,ZZE150 LHD;NDE150,ZRE151 LHD (5F,5FS) | — | |
| 74231-12750-E0 note |
Panel, Front Armrest Base, Upper RH
2006-10 → 2009-01
ended
|
ADE150,ZZE150 LHD SOL;NDE150,ZRE151 LHD +2 | — | |
| 74231-12770-B0 note |
Panel, Front Armrest Base, Upper RH
2006-10 → 2008-12
ended
|
NDE150,ZZE150 RHD TERRA | — | |
| 74231-12770-B0 note |
Panel, Front Armrest Base, Upper RH
2006-10 → 2009-01
ended
|
NDE150 RHD (5F,5FS) SOL;ADE150,ZRE151,ZZE150 +3 | — | |
| 74231-12770-E0 note |
Panel, Front Armrest Base, Upper RH
2006-10 → 2009-01
ended
|
NDE150 RHD (5F,5FS) SOL;ADE150,ZRE151,ZZE150 +3 | — | |
| 74231-12780-B0 note |
Panel, Front Armrest Base, Upper RH
2006-10 → 2008-12
ended
|
NDE150,ZZE150 RHD TERRA | — | |
| 74231-12750-B0 note |
Panel, Front Armrest Base, Upper RH
2008-09 → 2009-10
ended
|
NDE150 LHD (6F,6FS);ADE150,NRE150,ZRE15# LHD +2 | — | |
| 74231-12750-E0 note |
Panel, Front Armrest Base, Upper RH
2008-09 → 2009-10
ended
|
NDE150 WVM) LHD (6F,6FS) +5 | — | |
| 74231-12770-B0 note |
Panel, Front Armrest Base, Upper RH
2008-09 → 2009-10
ended
|
NDE150 WVM) RHD (6F,6FS) +5 | — | |
| 74231-12770-B0 note |
Panel, Front Armrest Base, Upper RH
2008-09 → 2009-10
ended
|
NDE150,NRE150 RHD 6F TERRA | — | |
| 74231-12770-E0 note |
Panel, Front Armrest Base, Upper RH
2008-09 → 2009-10
ended
|
NDE150 WVM) RHD (6F,6FS) +5 | — | |
| 74231-12780-B0 note |
Panel, Front Armrest Base, Upper RH
2008-09 → 2009-10
ended
|
NDE150,NRE150 RHD 6F TERRA | — | |
| 74231-12750-B0 note |
Panel, Front Armrest Base, Upper RH
2009-10 → 2012-08
ended
|
ZRE151 | — | |
| 74231-12770-B0 note |
Panel, Front Armrest Base, Upper RH
2009-10 → 2010-12
ended
|
NDE150 | — | |
| 74231-12770-B0 note |
Panel, Front Armrest Base, Upper RH
2010-12 → 2012-08
ended
|
NDE150 | — | |
| 74231-12780-B0 note |
Panel, Front Armrest Base, Upper RH
2009-10 → 2010-12
ended
|
NDE150 | — | |
| 74232 — Panel, Front Armrest Base, Upper LH | ||||
| 74232-12560-B0 note |
Panel, Front Armrest Base, Upper LH
2006-10 → 2009-01
ended
|
ADE150,ZZE150 LHD SOL;NDE150,ZRE151 LHD +2 | — | |
| 74232-12560-B0 note |
Panel, Front Armrest Base, Upper LH
2006-10 → 2009-01
ended
|
ADE150,ZZE150 LHD TERRA;NDE150,ZRE151 LHD +2 | — | |
| 74232-12560-E0 note |
Panel, Front Armrest Base, Upper LH
2006-10 → 2009-01
ended
|
ADE150,ZZE150 LHD SOL;NDE150,ZRE151 LHD +2 | — | |
| 74232-12570-B0 note |
Panel, Front Armrest Base, Upper LH
2006-10 → 2009-01
ended
|
NDE150 RHD (5F,5FS);ADE150,ZRE151,ZZE150 RHD +1 | — | |
| 74232-12570-E0 note |
Panel, Front Armrest Base, Upper LH
2006-10 → 2009-01
ended
|
NDE150 RHD (5F,5FS) SOL;ADE150,ZRE151,ZZE150 +3 | — | |
| 74232-12580-B0 note |
Panel, Front Armrest Base, Upper LH
2006-10 → 2009-01
ended
|
ADE150,ZZE150 LHD TERRA;NDE150,ZRE151 LHD +2 | — | |
| 74232-12560-B0 note |
Panel, Front Armrest Base, Upper LH
2008-09 → 2009-10
ended
|
NDE150 WVM) LHD (6F,6FS) +5 | — | |
| 74232-12560-B0 note |
Panel, Front Armrest Base, Upper LH
2008-09 → 2009-10
ended
|
NDE150 C,HTWVM) LHD (6F,6FS) +5 | — | |
| 74232-12560-E0 note |
Panel, Front Armrest Base, Upper LH
2008-09 → 2009-10
ended
|
NDE150 WVM) LHD (6F,6FS) +5 | — | |
| 74232-12570-B0 note |
Panel, Front Armrest Base, Upper LH
2008-09 → 2009-10
ended
|
NDE150 RHD (6F,6FS);ADE150,NRE150,ZRE15# RHD +2 | — | |
| 74232-12570-E0 note |
Panel, Front Armrest Base, Upper LH
2008-09 → 2009-10
ended
|
NDE150 WVM) RHD (6F,6FS) +5 | — | |
| 74232-12580-B0 note |
Panel, Front Armrest Base, Upper LH
2008-09 → 2009-10
ended
|
NDE150 C,HTWVM) LHD (6F,6FS) +5 | — | |
| 74232-12560-B0 note |
Panel, Front Armrest Base, Upper LH
2009-10 → 2010-03
ended
|
ZRE151 SOL | — | |
| 74232-12560-B0 note |
Panel, Front Armrest Base, Upper LH
2009-10 → 2012-08
ended
|
ZRE151 TERRA | — | |
| 74232-12570-B0 note |
Panel, Front Armrest Base, Upper LH
2009-10 → 2012-08
ended
|
NDE150 | — | |
| 74232-12580-B0 note |
Panel, Front Armrest Base, Upper LH
2009-10 → 2012-08
ended
|
ZRE151 TERRA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
