Toyota Auris/Corolla (JPP)

2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

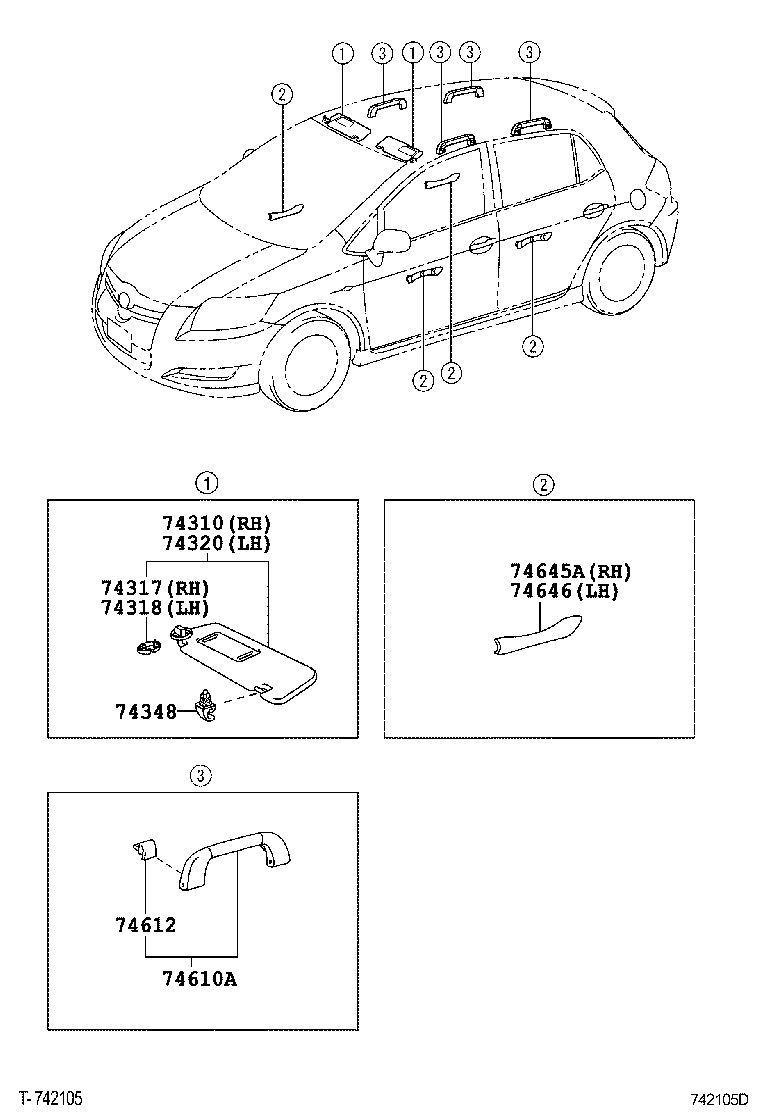

Exploded illustration 742105D 74646 — COVER, DOOR ASSIST GRIP, LH (3 parts) 74645A — COVER, DOOR ASSIST GRIP, RH (3 parts) 74320 — VISOR ASSY, LH (18 parts) 74310 — VISOR ASSY, RH (40 parts) 74348 — HOLDER, VISOR (6 parts) 74318 — COVER, VISOR BRACKET, LH (6 parts) 74317 — COVER, VISOR BRACKET, RH (6 parts) 74610A — GRIP SUB-ASSY, ASSIST (6 parts) 74612 — COVER, ASSIST GRIP (8 parts)
742105D · 9 callouts Full size ↗
96 parts on this figure
Part number Description Fitment Price
74310 — Visor Assy, RH
74310-12A60-B0 note Visor Assy, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 LHD;NDE150,ZRE151 LHD (5F,5FS) —
74310-12A60-B0 note Visor Assy, RH
2008-04 → 2009-01 ended
ADE150 RHD;NDE150 RHD 5F +1 —
74310-12A60-E0 note Visor Assy, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 LHD SOL;NDE150,ZRE151 LHD +2 —
74310-12A60-E0 note Visor Assy, RH
2008-04 → 2009-01 ended
ADE150 RHD —
74310-12A70-B0 note Visor Assy, RH
2006-10 → 2009-01 ended
ZRE151,ZZE150 LHD (5F,5FS) —
74310-12A70-B0 note Visor Assy, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 LHD;NDE150,ZRE151 LHD (5F,5FS) —
74310-12A70-B0 note Visor Assy, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 LHD;NDE150,ZRE151 LHD (5F,5FS) —
74310-12A70-B0 note Visor Assy, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 LHD;NDE150,ZRE151 LHD (5F,5FS) —
74310-12A70-B0 note Visor Assy, RH
2007-12 → 2009-01 ended
ADE150 LHD;NDE150 LHD (5F,5FS) —
74310-12A70-B0 note Visor Assy, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 LHD;NDE150,ZRE151 LHD (5F,5FS) —
74310-12A70-E0 note Visor Assy, RH
2006-10 → 2009-01 ended
ZRE151,ZZE150 LHD (5F,5FS) SOL —
74310-12A70-E0 note Visor Assy, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 LHD SOL;NDE150,ZRE151 LHD +2 —
74310-12A70-E0 note Visor Assy, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 LHD SOL;NDE150,ZRE151 LHD +2 —
74310-12A70-E0 note Visor Assy, RH
2007-12 → 2009-01 ended
ADE150 LHD SOL;NDE150 LHD +2 —
74310-12A70-E0 note Visor Assy, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 LHD SOL;NDE150,ZRE151 LHD +2 —
74310-12A70-E0 note Visor Assy, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 LHD SOL;NDE150,ZRE151 LHD +2 —
74310-12A90-B0 note Visor Assy, RH
2006-10 → 2009-01 ended
NDE150 RHD (5F,5FS);ADE150,ZRE151,ZZE150 RHD +1 —
74310-12A90-E0 note Visor Assy, RH
2006-10 → 2009-01 ended
NDE150 RHD (5F,5FS) SOL;ADE150,ZRE151,ZZE150 +3 —
74310-12A60-B0 note Visor Assy, RH
2008-09 → 2009-10 ended
NDE150 LHD (6F,6FS);ADE150,NRE150,ZRE15# LHD +2 —
74310-12A60-B0 note Visor Assy, RH
2008-12 → 2009-10 ended
ADE150 RHD DCRL;NDE150 RHD +2 —
74310-12A60-E0 note Visor Assy, RH
2008-09 → 2009-10 ended
NDE150 WVM) LHD (6F,6FS) +5 —
74310-12A60-E0 note Visor Assy, RH
2009-01 → 2009-10 ended
ADE150 RHD —
74310-12A70-B0 note Visor Assy, RH
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE152 RL,HTWVM) LHD (DCRL,HTWC,HTWVM);NDE150,ZRE151 +3 —
74310-12A70-B0 note Visor Assy, RH
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE152 RL,HTWVM) LHD (DCRL,HTWC,HTWVM);NDE150,ZRE151 +3 —
74310-12A70-B0 note Visor Assy, RH
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE152 RL,HTWVM) LHD (DCRL,HTWC,HTWVM);NDE150,ZRE151 +3 —
74310-12A70-B0 note Visor Assy, RH
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE152 RL,HTWVM) LHD (DCRL,HTWC,HTWVM);NDE150,ZRE151 +3 —
74310-12A70-B0 note Visor Assy, RH
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE152 RL,HTWVM) LHD (DCRL,HTWC,HTWVM);NDE150,ZRE151 +3 —
74310-12A70-E0 note Visor Assy, RH
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE152 L LHD (DCR,DCRL,HTWVM) +5 —
74310-12A70-E0 note Visor Assy, RH
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE152 L LHD (DCR,DCRL,HTWVM) +5 —
74310-12A70-E0 note Visor Assy, RH
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE152 L LHD (DCR,DCRL,HTWVM) +5 —
74310-12A70-E0 note Visor Assy, RH
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE152 L LHD (DCR,DCRL,HTWVM) +5 —
74310-12A70-E0 note Visor Assy, RH
2008-09 → 2009-10 ended
ADE150,NRE150,ZRE152 L LHD (DCR,DCRL,HTWVM) +5 —
74310-12A90-B0 note Visor Assy, RH
2008-09 → 2009-10 ended
NDE150 RHD (6F,6FS);ADE150,NRE150,ZRE15# RHD +2 —
74310-12A90-E0 note Visor Assy, RH
2008-09 → 2009-10 ended
NDE150 WVM) RHD (6F,6FS) +5 —
74310-12A60-B0 note Visor Assy, RH
2009-10 → 2010-09 ended
ZRE151 —
74310-12A60-B0 note Visor Assy, RH
2009-10 → 2010-09 ended
NDE150 —
74310-12A60-B0 note Visor Assy, RH
2010-10 → 2012-08 ended
NDE150 —
74310-12A60-E0 note Visor Assy, RH
2009-10 → 2010-03 ended
ZRE151 SOL —
74310-12A90-B0 note Visor Assy, RH
2009-10 → 2012-08 ended
NDE150 —
74310-12E50-B0 note Visor Assy, RH
2010-10 → 2012-08 ended
ZRE151 —
74317 — Cover, Visor Bracket, RH
74317-52010-B1 note Cover, Visor Bracket, RH
2006-10 → 2009-01 ended
ADE150,ZZE150;NDE150,ZRE151 5F,5FS —
74317-52010-E0 note Cover, Visor Bracket, RH
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
74317-52010-B1 note Cover, Visor Bracket, RH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
74317-52010-E0 note Cover, Visor Bracket, RH
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
74317-52010-B1 note Cover, Visor Bracket, RH
2009-10 → 2012-08 ended
NDE150,ZRE151 —
74317-52010-E0 note Cover, Visor Bracket, RH
2009-10 → 2010-03 ended
ZRE151 SOL —
74318 — Cover, Visor Bracket, LH
74318-52020-B1 note Cover, Visor Bracket, LH
2006-10 → 2009-01 ended
ADE150,ZZE150;NDE150,ZRE151 5F,5FS —
74318-52020-E0 note Cover, Visor Bracket, LH
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
74318-52020-B1 note Cover, Visor Bracket, LH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
74318-52020-E0 note Cover, Visor Bracket, LH
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
74318-52020-B1 note Cover, Visor Bracket, LH
2009-10 → 2012-08 ended
NDE150,ZRE151 —
74318-52020-E0 note Cover, Visor Bracket, LH
2009-10 → 2010-03 ended
ZRE151 SOL —
74320 — Visor Assy, LH
74320-12A30-B0 note Visor Assy, LH
2008-04 → 2009-01 ended
ADE150 RHD;NDE150 RHD 5F +1 —
74320-12A30-B0 note Visor Assy, LH
2006-10 → 2009-01 ended
ADE150,ZZE150 LHD;NDE150,ZRE151 LHD (5F,5FS) —
74320-12A30-E0 note Visor Assy, LH
2006-10 → 2009-01 ended
ADE150,ZZE150 LHD SOL;NDE150,ZRE151 LHD +2 —
74320-12A30-E0 note Visor Assy, LH
2008-04 → 2009-01 ended
ADE150 RHD —
74320-12A40-B0 note Visor Assy, LH
2006-10 → 2009-01 ended
NDE150 RHD (5F,5FS);ADE150,ZRE151,ZZE150 RHD +1 —
74320-12A40-E0 note Visor Assy, LH
2006-10 → 2009-01 ended
NDE150 RHD (5F,5FS) SOL;ADE150,ZRE151,ZZE150 +3 —
74320-12A30-B0 note Visor Assy, LH
2008-12 → 2009-10 ended
ADE150 RHD DCRL;NDE150 RHD +2 —
74320-12A30-B0 note Visor Assy, LH
2008-09 → 2009-10 ended
NDE150 LHD (6F,6FS);ADE150,NRE150,ZRE15# LHD +2 —
74320-12A30-E0 note Visor Assy, LH
2008-09 → 2009-10 ended
NDE150 WVM) LHD (6F,6FS) +5 —
74320-12A30-E0 note Visor Assy, LH
2009-01 → 2009-10 ended
ADE150 RHD —
74320-12A40-B0 note Visor Assy, LH
2008-09 → 2009-10 ended
NDE150 RHD (6F,6FS);ADE150,NRE150,ZRE15# RHD +2 —
74320-12A40-E0 note Visor Assy, LH
2008-09 → 2009-10 ended
NDE150 WVM) RHD (6F,6FS) +5 —
74320-12A30-B0 note Visor Assy, LH
2009-10 → 2010-10 ended
NDE150 —
74320-12A30-B0 note Visor Assy, LH
2009-10 → 2012-08 ended
ZRE151 —
74320-12A30-E0 note Visor Assy, LH
2009-10 → 2010-03 ended
ZRE151 SOL —
74320-12A40-B0 note Visor Assy, LH
2009-10 → 2010-09 ended
NDE150 —
74320-12E10-B0 note Visor Assy, LH
2010-10 → 2012-08 ended
NDE150 —
74320-12E30-B0 note Visor Assy, LH
2010-10 → 2012-08 ended
NDE150 —
74348 — Holder, Visor
74348-33040-B1 note Holder, Visor
2006-10 → 2009-01 ended
ADE150,ZZE150;NDE150,ZRE151 5F,5FS —
74348-33040-E0 note Holder, Visor
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
74348-33040-B1 note Holder, Visor
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
74348-33040-E0 note Holder, Visor
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
74348-33040-B1 note Holder, Visor
2009-10 → 2012-08 ended
NDE150,ZRE151 —
74348-33040-E0 note Holder, Visor
2009-10 → 2010-03 ended
ZRE151 SOL —
74610A — Grip Sub-assy, Assist
74610-52020-B1 note Grip Sub-assy, Assist
2006-10 → 2009-01 ended
ADE150,ZZE150;NDE150,ZRE151 5F,5FS —
74610-52020-E0 note Grip Sub-assy, Assist
2006-10 → 2009-01 ended
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL —
74610-52020-B1 note Grip Sub-assy, Assist
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
74610-52020-E0 note Grip Sub-assy, Assist
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
74610-52020-B1 note Grip Sub-assy, Assist
2009-10 → 2012-08 ended
NDE150,ZRE151 —
74610-52020-E0 note Grip Sub-assy, Assist
2009-10 → 2010-03 ended
ZRE151 SOL —
74612 — Cover, Assist Grip
74610-52020-B1 note Cover, Assist Grip
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 —
74612-52030-B1 note Cover, Assist Grip
2006-10 → 2009-01 ended
ADE150 —
74612-52030-E0 note Cover, Assist Grip
2006-10 → 2008-12 ended
NDE150,ZRE151,ZZE150 SOL —
74612-52030-E0 note Cover, Assist Grip
2006-10 → 2009-01 ended
ADE150 SOL —
74612-52030-B1 note Cover, Assist Grip
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
74612-52030-E0 note Cover, Assist Grip
2008-09 → 2009-10 ended
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 —
74612-52030-B1 note Cover, Assist Grip
2009-10 → 2012-08 ended
NDE150,ZRE151 —
74612-52030-E0 note Cover, Assist Grip
2009-10 → 2010-03 ended
ZRE151 SOL —
74645A — Cover, Door Assist Grip, RH
74645-12020 Cover, Door Assist Grip, RH
2006-10 → 2009-01 ended
ADE150,ZZE150;NDE150,ZRE151 5F,5FS —
74645-12020 Cover, Door Assist Grip, RH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
74645-12040 Cover, Door Assist Grip, RH
2009-10 → 2012-08 ended
NDE150,ZRE151 —
74646 — Cover, Door Assist Grip, LH
74646-12020 Cover, Door Assist Grip, LH
2006-10 → 2009-01 ended
ADE150,ZZE150;NDE150,ZRE151 5F,5FS —
74646-12020 Cover, Door Assist Grip, LH
2008-09 → 2009-10 ended
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) —
74646-12040 Cover, Door Assist Grip, LH
2009-10 → 2012-08 ended
NDE150,ZRE151 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
