Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

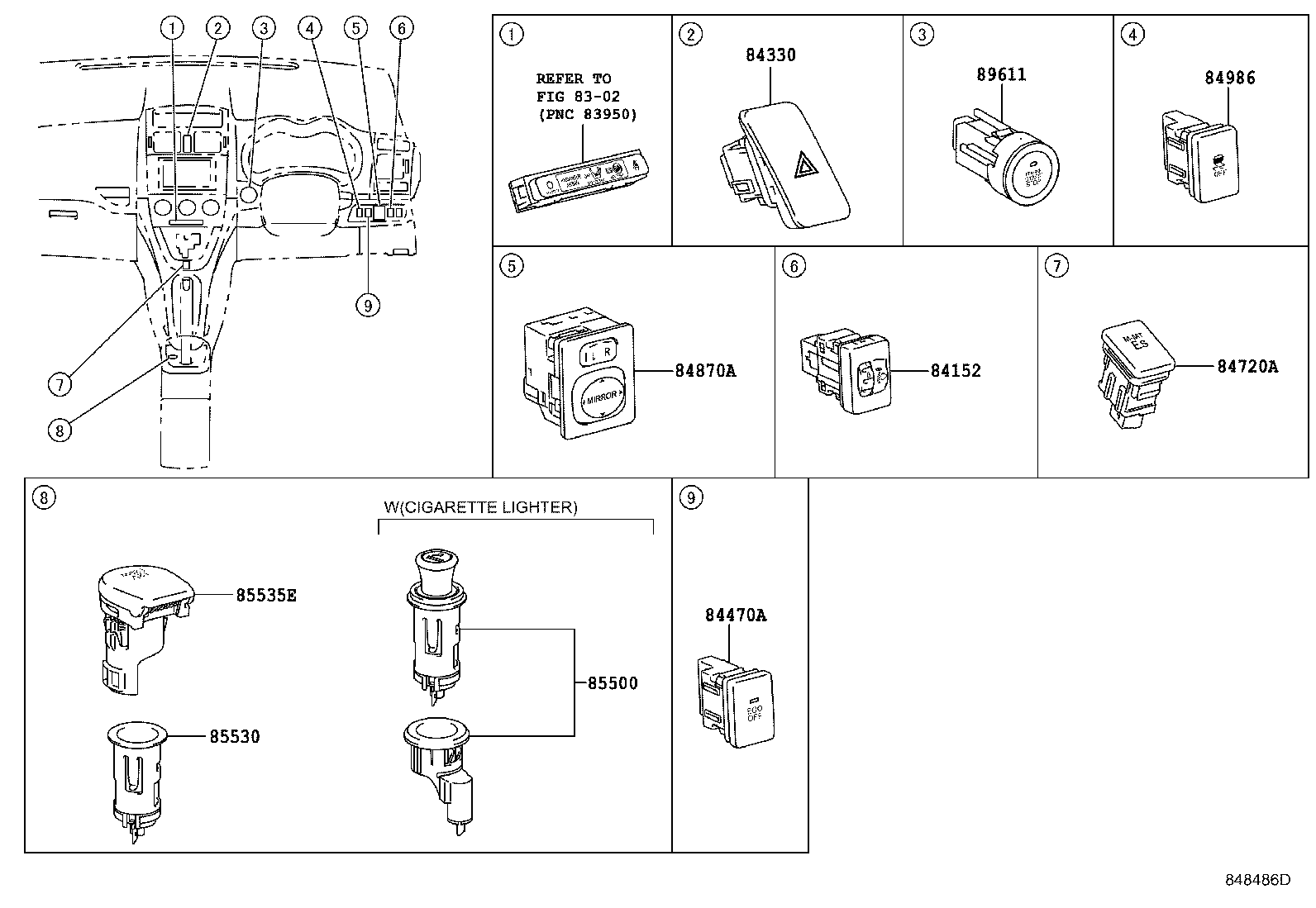

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84152 — Switch, Headlamp Leveling | ||||
| 84152-12070 note |
Switch, Headlamp Leveling
2006-10 → 2008-12
ended
|
ZRE151 LHD SOL | — | |
| 84152-12070 |
Switch, Headlamp Leveling
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 84152-12070 note |
Switch, Headlamp Leveling
2006-10 → 2009-01
ended
|
ADE150 SOL | — | |
| 84152-12070 |
Switch, Headlamp Leveling
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 84152-12070 |
Switch, Headlamp Leveling
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 84152-12070 note |
Switch, Headlamp Leveling
2008-12 → 2009-10
ended
|
ADE150,ZRE15# LHD SOL (DCRL,HTWC,HTWVM) | — | |
| 84152-12070 |
Switch, Headlamp Leveling
2009-10 → —
|
NDE150,ZRE151 | — | |
| 84330 — Switch Assy, Hazard Warning Signal | ||||
| 84332-12510 |
Switch Assy, Hazard Warning Signal
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 84332-12510 |
Switch Assy, Hazard Warning Signal
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 84332-12510 |
Switch Assy, Hazard Warning Signal
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 84332-12510 |
Switch Assy, Hazard Warning Signal
2009-10 → 2010-03
ended
|
ZRE151 SOL | — | |
| 84332-12510 |
Switch Assy, Hazard Warning Signal
2009-10 → —
|
NDE150,ZRE151 TERRA | — | |
| 84470A — Switch Assy, Ecorun Cancel | ||||
| 84470-12010 note |
Switch Assy, Ecorun Cancel
2008-09 → 2009-10
ended
|
NRE150 | — | |
| 84720A — Switch Assy, Pattern Select, NO.1 | ||||
| 84720-12090 |
Switch Assy, Pattern Select, NO.1
2006-10 → 2008-12
ended
|
NDE150,ZRE151 5FS | — | |
| 84720-12090 |
Switch Assy, Pattern Select, NO.1
2008-12 → 2009-03
ended
|
NDE150,ZRE151 6FS | — | |
| 84720-12091 |
Switch Assy, Pattern Select, NO.1
2009-03 → 2009-10
ended
|
NDE150,ZRE151 6FS | — | |
| 84870A — Switch Assy, Outer Mirror | ||||
| 84870-34010 |
Switch Assy, Outer Mirror
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 84870-34010 |
Switch Assy, Outer Mirror
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 84870-34010 |
Switch Assy, Outer Mirror
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 84870-12190 note |
Switch Assy, Outer Mirror
2009-10 → 2010-12
ended
|
NDE150,ZRE151 TERRA | — | |
| 84870-12190 note |
Switch Assy, Outer Mirror
2009-10 → 2010-12
ended
|
NDE150 | — | |
| 84870-12190 |
Switch Assy, Outer Mirror
2009-10 → —
|
ZRE151 SOL | — | |
| 84870-12190 |
Switch Assy, Outer Mirror
2010-12 → —
|
NDE150,ZRE151 | — | |
| 84870-12200 |
Switch Assy, Outer Mirror
2009-10 → 2010-12
ended
|
NDE150,ZRE151 TERRA | — | |
| 84986 — Switch, Vehicle Stability Control | ||||
| 84986-12010 note |
Switch, Vehicle Stability Control
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 84986-12010 note |
Switch, Vehicle Stability Control
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 84986-12010 note |
Switch, Vehicle Stability Control
2008-09 → 2009-10
ended
|
ADE150,NRE150,ZRE152 DCRL,HTWC,HTWVM;NDE150,ZRE151 (6F,6FS) (DCR,DCRL,HTWVM) | — | |
| 84986-12010 note |
Switch, Vehicle Stability Control
2009-10 → 2010-12
ended
|
NDE150 | — | |
| 84986-12010 |
Switch, Vehicle Stability Control
2010-12 → —
|
NDE150 | — | |
| 85500 — Lighter Assy, Cigarette | ||||
| 85500-09060 |
Lighter Assy, Cigarette
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 85500-09060 note |
Lighter Assy, Cigarette
2008-01 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 85500-09060 note |
Lighter Assy, Cigarette
2008-01 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 85500-09060 |
Lighter Assy, Cigarette
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 85500-09060 note |
Lighter Assy, Cigarette
2008-01 → 2009-01
ended
|
ADE150 | — | |
| 85500-09060 note |
Lighter Assy, Cigarette
2008-01 → 2009-01
ended
|
ADE150 | — | |
| 85500-09060 |
Lighter Assy, Cigarette
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 85500-09060 note |
Lighter Assy, Cigarette
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 85500-09070 |
Lighter Assy, Cigarette
2009-10 → 2010-03
ended
|
ZRE151 SOL | — | |
| 85500-09070 note |
Lighter Assy, Cigarette
2009-10 → 2010-03
ended
|
ZRE151 SOL | — | |
| 85500-09070 |
Lighter Assy, Cigarette
2009-10 → —
|
NDE150,ZRE151 TERRA | — | |
| 85500-09070 note |
Lighter Assy, Cigarette
2009-10 → —
|
NDE150,ZRE151 TERRA | — | |
| 85530 — Socket Assy, Power Outlet, NO.1 | ||||
| 85530-0D020 note |
Socket Assy, Power Outlet, NO.1
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 85530-0D020 note |
Socket Assy, Power Outlet, NO.1
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 85530-0D020 note |
Socket Assy, Power Outlet, NO.1
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 85530-0D020 note |
Socket Assy, Power Outlet, NO.1
2009-10 → 2010-03
ended
|
ZRE151 SOL | — | |
| 85530-0D020 note |
Socket Assy, Power Outlet, NO.1
2009-10 → —
|
NDE150,ZRE151 TERRA | — | |
| 85535E — Cover, Power Outlet Socket, NO.2 | ||||
| 85535-02040 note |
Cover, Power Outlet Socket, NO.2
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 85535-02040 note |
Cover, Power Outlet Socket, NO.2
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 85535-02040 note |
Cover, Power Outlet Socket, NO.2
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 85535-02040 note |
Cover, Power Outlet Socket, NO.2
2009-10 → 2010-03
ended
|
ZRE151 SOL | — | |
| 85535-02040 note |
Cover, Power Outlet Socket, NO.2
2009-10 → —
|
NDE150,ZRE151 TERRA | — | |
| 89611 — Switch, Push Start | ||||
| 89611-52020 note |
Switch, Push Start
2006-10 → 2007-12
ended
|
ADE150,ZRE151 SOL | — | |
| 89611-52021 note |
Switch, Push Start
2008-01 → 2008-12
ended
|
ZRE151 SOL | — | |
| 89611-52021 note |
Switch, Push Start
2008-01 → 2009-01
ended
|
ADE150 SOL | — | |
| 89611-52021 note |
Switch, Push Start
2008-12 → 2009-10
ended
|
ADE150,ZRE15# SOL (DCRL,HTWC,HTWVM) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
