Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

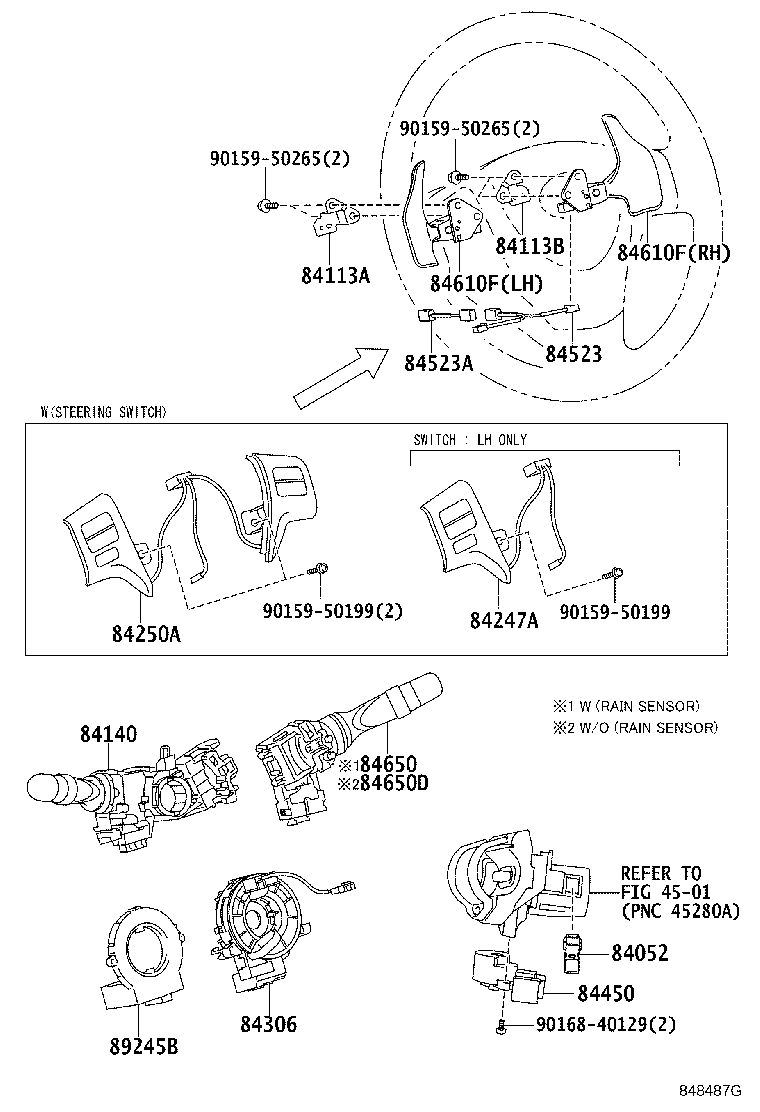

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84052 — Switch Assy, Un-lock Warning | ||||
| 84052-71010 note |
Switch Assy, Un-lock Warning
2006-10 → 2009-01
ended
|
ADE150,ZRE151 RHD (DCR,HTWC) | — | |
| 84052-71010 note |
Switch Assy, Un-lock Warning
2006-10 → 2009-01
ended
|
ADE150,ZRE151 RHD (DCR,HTWC) | — | |
| 84052-71010 note |
Switch Assy, Un-lock Warning
2006-10 → 2009-01
ended
|
ADE150 SOL;ZRE151 (5F,5FS) SOL | — | |
| 84052-71010 |
Switch Assy, Un-lock Warning
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 84052-71010 |
Switch Assy, Un-lock Warning
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 84052-71010 note |
Switch Assy, Un-lock Warning
2008-12 → 2009-10
ended
|
ADE150,ZRE15# RHD (DCRL,HTWVM) | — | |
| 84052-71010 note |
Switch Assy, Un-lock Warning
2008-12 → 2009-10
ended
|
ADE150,ZRE15# LHD SOL (DCRL,HTWC,HTWVM) | — | |
| 84052-71010 note |
Switch Assy, Un-lock Warning
2008-12 → 2009-10
ended
|
ADE150,ZRE15# RHD (DCRL,HTWVM) | — | |
| 84052-71010 note |
Switch Assy, Un-lock Warning
2009-10 → 2010-03
ended
|
ZRE151 SOL | — | |
| 84052-71010 |
Switch Assy, Un-lock Warning
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 84113A — Bracket, Switch, NO.1 | ||||
| 84113-52010 |
Bracket, Switch, NO.1
2006-10 → 2008-12
ended
|
NDE150,ZRE151 5FS | — | |
| 84113-52010 |
Bracket, Switch, NO.1
2008-12 → 2009-10
ended
|
NDE150,ZRE151 6FS | — | |
| 84113B — Bracket, Switch, NO.2 | ||||
| 84113-52020 |
Bracket, Switch, NO.2
2006-10 → 2008-12
ended
|
NDE150,ZRE151 5FS | — | |
| 84113-52020 |
Bracket, Switch, NO.2
2008-12 → 2009-10
ended
|
NDE150,ZRE151 6FS | — | |
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-12610 |
Switch Assy, Headlamp Dimmer
2006-10 → 2008-09
ended
|
ADE150,NDE150,ZRE151,ZZE150 TERRA | — | |
| 84140-12611 |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-01
ended
|
ADE150 TERRA | — | |
| 84140-12611 |
Switch Assy, Headlamp Dimmer
2008-09 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 TERRA | — | |
| 84140-12620 note |
Switch Assy, Headlamp Dimmer
2006-10 → 2008-09
ended
|
ADE150,NDE150,ZRE151,ZZE150 TERRA | — | |
| 84140-12620 |
Switch Assy, Headlamp Dimmer
2006-10 → 2008-09
ended
|
ADE150,NDE150,ZRE151,ZZE150 SOL | — | |
| 84140-12621 |
Switch Assy, Headlamp Dimmer
2008-09 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 SOL | — | |
| 84140-12621 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 TERRA | — | |
| 84140-12621 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-01
ended
|
ADE150 TERRA | — | |
| 84140-12621 |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-01
ended
|
ADE150 SOL | — | |
| 84140-12630 note |
Switch Assy, Headlamp Dimmer
2006-10 → 2008-09
ended
|
ADE150,NDE150,ZRE151,ZZE150 LHD TERRA | — | |
| 84140-12631 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 LHD TERRA | — | |
| 84140-12631 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-01
ended
|
ADE150 TERRA | — | |
| 84140-12640 note |
Switch Assy, Headlamp Dimmer
2006-10 → 2008-09
ended
|
ADE150,NDE150,ZRE151,ZZE150 LHD TERRA | — | |
| 84140-12640 note |
Switch Assy, Headlamp Dimmer
2006-10 → 2008-09
ended
|
ADE150,NDE150,ZRE151,ZZE150 LHD SOL | — | |
| 84140-12641 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-01
ended
|
ADE150 LHD SOL | — | |
| 84140-12641 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-01
ended
|
ADE150 TERRA | — | |
| 84140-12641 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 LHD TERRA | — | |
| 84140-12641 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 LHD SOL | — | |
| 84140-12660 note |
Switch Assy, Headlamp Dimmer
2006-10 → 2008-09
ended
|
ADE150,NDE150,ZRE151,ZZE150 SOL | — | |
| 84140-12660 note |
Switch Assy, Headlamp Dimmer
2006-10 → 2008-09
ended
|
ADE150,NDE150,ZRE151,ZZE150 LHD SOL | — | |
| 84140-12661 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 LHD SOL | — | |
| 84140-12661 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 SOL | — | |
| 84140-12661 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-01
ended
|
ADE150 SOL | — | |
| 84140-12661 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-01
ended
|
ADE150 LHD SOL | — | |
| 84140-12701 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2008-12
ended
|
ZRE151 TERRA | — | |
| 84140-12720 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2008-12
ended
|
ZRE151 TERRA | — | |
| 84140-12611 |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-10
ended
|
NDE150 (6F,6FS) TERRA;ADE150,NRE150,ZRE15# (6F,6FS) +2 | — | |
| 84140-12621 |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-10
ended
|
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 | — | |
| 84140-12621 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-10
ended
|
NDE150 (6F,6FS) TERRA;ADE150,NRE150,ZRE15# (6F,6FS) +2 | — | |
| 84140-12631 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-10
ended
|
ADE150,NRE150,ZRE152 TERRA LHD (DCR,DCRL,HTWVM) +4 | — | |
| 84140-12641 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-10
ended
|
ADE150,NRE150,ZRE152 TERRA LHD (DCR,DCRL,HTWVM) +4 | — | |
| 84140-12641 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-10
ended
|
ADE150,NRE150,ZRE152 L LHD (DCR,DCRL,HTWVM) +5 | — | |
| 84140-12661 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-10
ended
|
NDE150,NRE150 LHD (6F,6FS) SOL;ADE150,ZRE15# +3 | — | |
| 84140-12661 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-10
ended
|
ADE150,NRE150,ZRE152 L LHD (DCR,DCRL,HTWVM) +5 | — | |
| 84140-12661 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2009-01
ended
|
NDE150,NRE150 RHD (6F,6FS) SOL | — | |
| 84140-12701 note |
Switch Assy, Headlamp Dimmer
2008-12 → 2009-10
ended
|
ZRE151 TERRA HTWC | — | |
| 84140-12701 |
Switch Assy, Headlamp Dimmer
2009-10 → —
|
NDE150,ZRE151 TERRA | — | |
| 84140-12711 note |
Switch Assy, Headlamp Dimmer
2009-10 → 2010-12
ended
|
NDE150 | — | |
| 84140-12711 note |
Switch Assy, Headlamp Dimmer
2009-10 → —
|
ZRE151 TERRA | — | |
| 84140-12711 |
Switch Assy, Headlamp Dimmer
2009-10 → 2010-03
ended
|
ZRE151 SOL | — | |
| 84247A — Switch, Steering Pad, LH | ||||
| 84247-12040 |
Switch, Steering Pad, LH
2006-10 → 2009-01
ended
|
ADE150,ZZE150 SOL;NDE150,ZRE151 5F SOL | — | |
| 84247-12050 |
Switch, Steering Pad, LH
2006-10 → 2008-12
ended
|
NDE150,ZRE151 5FS SOL | — | |
| 84247-12040 |
Switch, Steering Pad, LH
2008-09 → 2009-10
ended
|
NDE150 6F SOL;ADE150,NRE150,ZRE15# 6F +2 | — | |
| 84247-12050 |
Switch, Steering Pad, LH
2008-12 → 2009-10
ended
|
NDE150,ZRE151 6FS SOL | — | |
| 84250A — Switch Assy, Steering Pad | ||||
| 84250-12010 note |
Switch Assy, Steering Pad
2006-10 → 2008-12
ended
|
ZRE151 5F SOL | — | |
| 84250-12010 note |
Switch Assy, Steering Pad
2006-10 → 2009-01
ended
|
ADE150 SOL | — | |
| 84250-12020 note |
Switch Assy, Steering Pad
2006-10 → 2008-12
ended
|
ZRE151 5FS SOL | — | |
| 84250-12080 note |
Switch Assy, Steering Pad
2006-10 → 2008-12
ended
|
ZRE151 LHD 5F SOL | — | |
| 84250-12080 note |
Switch Assy, Steering Pad
2006-10 → 2009-01
ended
|
ADE150 LHD SOL | — | |
| 84250-12100 note |
Switch Assy, Steering Pad
2006-10 → 2009-01
ended
|
ADE150 LHD SOL | — | |
| 84250-12100 note |
Switch Assy, Steering Pad
2006-10 → 2008-12
ended
|
ZRE151 LHD 5F SOL | — | |
| 84250-12010 note |
Switch Assy, Steering Pad
2008-12 → 2009-10
ended
|
ADE150,ZRE15# 6F SOL (DCRL,HTWC,HTWVM) | — | |
| 84250-12020 note |
Switch Assy, Steering Pad
2008-12 → 2009-10
ended
|
NDE150,ZRE151 6FS SOL | — | |
| 84250-12020 note |
Switch Assy, Steering Pad
2008-12 → 2009-10
ended
|
ZRE151 6FS SOL | — | |
| 84250-12080 note |
Switch Assy, Steering Pad
2008-12 → 2009-10
ended
|
ADE150,ZRE15# LHD 6F SOL +1 | — | |
| 84250-12100 note |
Switch Assy, Steering Pad
2008-12 → 2009-10
ended
|
ADE150,ZRE15# LHD 6F SOL +1 | — | |
| 84250-12100 note |
Switch Assy, Steering Pad
2008-12 → 2009-10
ended
|
ADE150,ZRE15# LHD 6F SOL +1 | — | |
| 84250-12220 |
Switch Assy, Steering Pad
2009-10 → 2010-03
ended
|
ZRE151 SOL | — | |
| 84250-12220 note |
Switch Assy, Steering Pad
2009-10 → 2010-12
ended
|
NDE150,ZRE151 TERRA | — | |
| 84250-12220 note |
Switch Assy, Steering Pad
2009-10 → 2010-12
ended
|
ZRE151 TERRA | — | |
| 84250-12220 note |
Switch Assy, Steering Pad
2009-10 → 2012-08
ended
|
NDE150 | — | |
| 84250-12220 note |
Switch Assy, Steering Pad
2010-12 → 2012-08
ended
|
ZRE151 | — | |
| 84250-12230 note |
Switch Assy, Steering Pad
2009-10 → 2010-03
ended
|
ZRE151 SOL | — | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84306-12100 |
Cable Sub-assy, Spiral
2006-10 → 2009-01
ended
|
ADE150 TERRA | — | |
| 84306-12100 |
Cable Sub-assy, Spiral
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 5F TERRA | — | |
| 84306-12110 |
Cable Sub-assy, Spiral
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 SOL;NDE150,ZRE151 5FS TERRA | — | |
| 84306-12110 |
Cable Sub-assy, Spiral
2006-10 → 2009-01
ended
|
ADE150 SOL | — | |
| 84306-12100 |
Cable Sub-assy, Spiral
2008-09 → 2009-10
ended
|
NDE150 6F TERRA;ADE150,NRE150,ZRE15# 6F +2 | — | |
| 84306-12110 |
Cable Sub-assy, Spiral
2008-09 → 2009-10
ended
|
ZRE151 (DCRL,HTWC,HTWVM) 6FS;NDE150 6FS +5 | — | |
| 84306-12110 |
Cable Sub-assy, Spiral
2009-10 → —
|
NDE150,ZRE151 | — | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-12200 |
Switch Assy, Ignition OR Starter
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 84450-12200 note |
Switch Assy, Ignition OR Starter
2006-10 → 2009-01
ended
|
ADE150,ZRE151 RHD (DCR,HTWC) | — | |
| 84450-12200 note |
Switch Assy, Ignition OR Starter
2006-10 → 2009-01
ended
|
ADE150,ZRE151 RHD (DCR,HTWC) | — | |
| 84450-12200 note |
Switch Assy, Ignition OR Starter
2006-10 → 2009-01
ended
|
ADE150 SOL;ZRE151 (5F,5FS) SOL | — | |
| 84450-12200 |
Switch Assy, Ignition OR Starter
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 84450-12200 note |
Switch Assy, Ignition OR Starter
2008-12 → 2009-10
ended
|
ADE150,ZRE15# RHD (DCRL,HTWVM) | — | |
| 84450-12200 note |
Switch Assy, Ignition OR Starter
2008-12 → 2009-10
ended
|
ADE150,ZRE15# LHD SOL (DCRL,HTWC,HTWVM) | — | |
| 84450-12200 note |
Switch Assy, Ignition OR Starter
2008-12 → 2009-10
ended
|
ADE150,ZRE15# RHD (DCRL,HTWVM) | — | |
| 84450-12200 note |
Switch Assy, Ignition OR Starter
2009-10 → 2010-03
ended
|
ZRE151 SOL | — | |
| 84450-12200 |
Switch Assy, Ignition OR Starter
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 84523 — Wire, Switch NO.1 | ||||
| 84523-52020 |
Wire, Switch NO.1
2006-10 → 2008-12
ended
|
NDE150,ZRE151 5FS | — | |
| 84523-52020 |
Wire, Switch NO.1
2008-12 → 2009-10
ended
|
NDE150,ZRE151 6FS | — | |
| 84523A — Wire, Switch NO.2 | ||||
| 84523-12010 |
Wire, Switch NO.2
2006-10 → 2008-12
ended
|
NDE150,ZRE151 5FS TERRA | — | |
| 84523-12010 |
Wire, Switch NO.2
2008-12 → 2009-10
ended
|
NDE150,ZRE151 6FS TERRA | — | |
| 84610F — Switch Assy, Transmission Shift | ||||
| 84610-12020 note |
Switch Assy, Transmission Shift
2006-10 → 2008-12
ended
|
NDE150,ZRE151 5FS | — | |
| 84610-12030 note |
Switch Assy, Transmission Shift
2006-10 → 2008-12
ended
|
NDE150,ZRE151 5FS | — | |
| 84610-12020 note |
Switch Assy, Transmission Shift
2008-12 → 2009-10
ended
|
NDE150,ZRE151 6FS | — | |
| 84610-12030 note |
Switch Assy, Transmission Shift
2008-12 → 2009-10
ended
|
NDE150,ZRE151 6FS | — | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-48120 note |
Switch Assy, Windshield Wiper
2006-10 → 2008-09
ended
|
ADE150,NDE150,ZRE151,ZZE150 SOL | — | |
| 84652-48121 note |
Switch Assy, Windshield Wiper
2008-09 → 2009-01
ended
|
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL | — | |
| 84652-48121 note |
Switch Assy, Windshield Wiper
2008-09 → 2009-01
ended
|
NDE150,NRE150,ZRE15# RHD (6F,6FS) SOL | — | |
| 84652-48121 note |
Switch Assy, Windshield Wiper
2008-09 → 2009-10
ended
|
NDE150 WVM) LHD (6F,6FS) +5 | — | |
| 84652-48121 note |
Switch Assy, Windshield Wiper
2009-01 → 2009-10
ended
|
ADE150,ZRE15# RHD | — | |
| 84650D — Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) | ||||
| 84652-48110 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2006-10 → 2008-09
ended
|
ADE150,NDE150,ZRE151,ZZE150 | — | |
| 84652-48111 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2008-09 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 84652-48111 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 84652-48111 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 89245B — Sensor, Steering | ||||
| 89245-12020 note |
Sensor, Steering
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 5F TERRA | — | |
| 89245-12020 note |
Sensor, Steering
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 | — | |
| 89245-33040 note |
Sensor, Steering
2006-10 → 2009-01
ended
|
ADE150 TERRA;NDE150 5F TERRA | — | |
| 89245-33040 note |
Sensor, Steering
2006-10 → 2009-01
ended
|
ADE150;NDE150 5F,5FS | — | |
| 89245-12020 note |
Sensor, Steering
2008-09 → 2009-10
ended
|
NRE150,ZRE152 TERRA;ZRE151 6F TERRA +1 | — | |
| 89245-12020 note |
Sensor, Steering
2008-09 → 2009-10
ended
|
NRE150,ZRE152;ZRE151 HTWVM | — | |
| 89245-33040 note |
Sensor, Steering
2008-12 → 2009-10
ended
|
NDE150 6F TERRA;ADE150 TERRA +1 | — | |
| 89245-33040 note |
Sensor, Steering
2008-12 → 2009-10
ended
|
NDE150;ADE150 DCRL | — | |
| 89245-33040 note |
Sensor, Steering
2009-10 → 2010-12
ended
|
NDE150 | — | |
| 89245-33040 |
Sensor, Steering
2010-12 → 2012-08
ended
|
NDE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
