Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

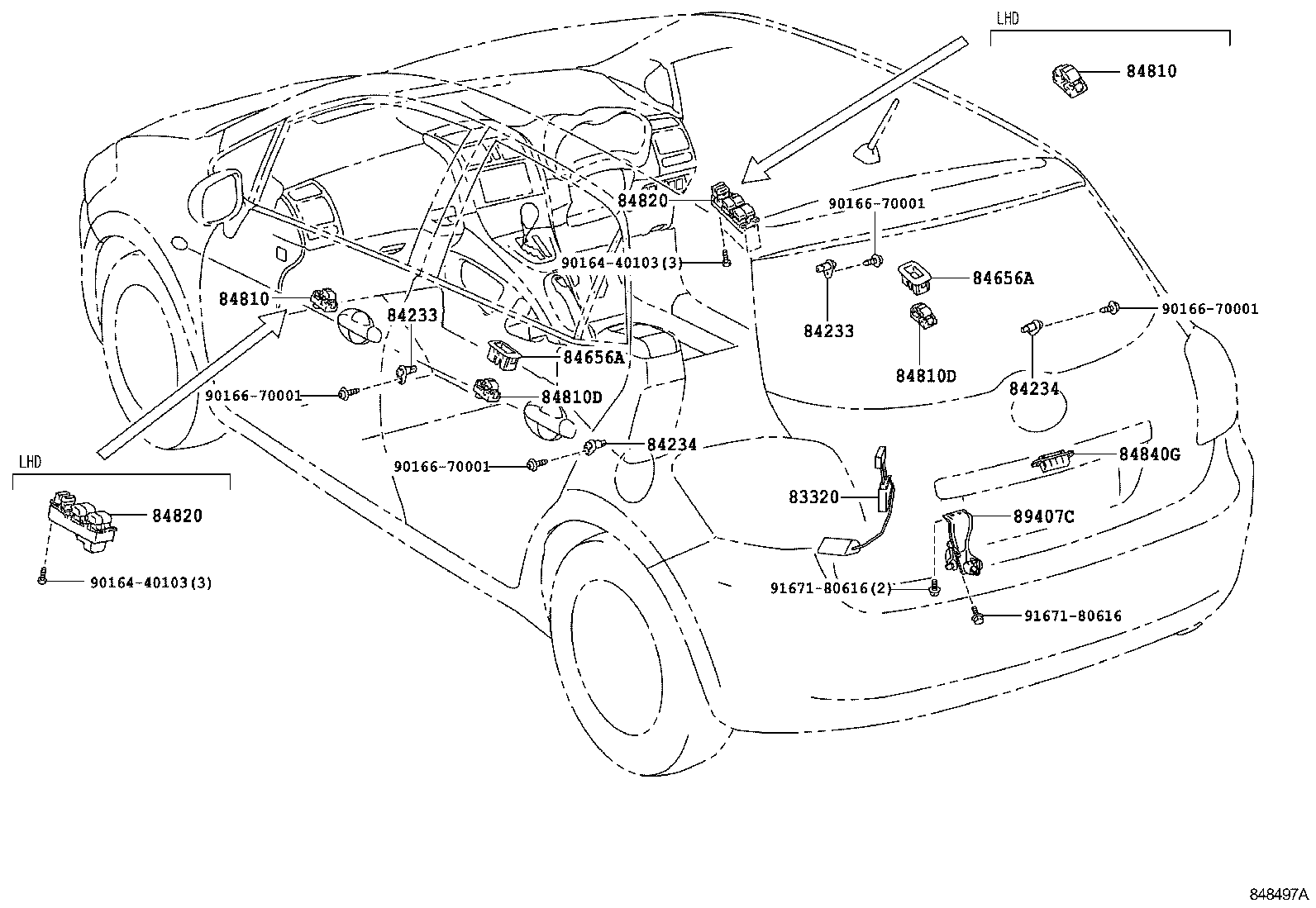

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-12730 |
Gage Assy, Fuel Sender
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 83320-12730 |
Gage Assy, Fuel Sender
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 83320-12730 |
Gage Assy, Fuel Sender
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2009-10 → 2010-03
ended
|
ZRE151 SOL | — | |
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2009-10 → —
|
NDE150,ZRE151 TERRA | — | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2009-10 → 2010-03
ended
|
ZRE151 SOL | — | |
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2009-10 → —
|
NDE150,ZRE151 TERRA | — | |
| 84656A — Bezel, Switch | ||||
| 84656-12170-B0 note |
Bezel, Switch
2006-10 → 2009-01
ended
|
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL | — | |
| 84656-12170-B0 note |
Bezel, Switch
2006-10 → 2009-01
ended
|
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA | — | |
| 84656-12170-E0 note |
Bezel, Switch
2006-10 → 2009-01
ended
|
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL | — | |
| 84656-12170-B0 note |
Bezel, Switch
2008-09 → 2009-10
ended
|
NDE150 (6F,6FS) TERRA;ADE150,NRE150,ZRE15# (6F,6FS) +2 | — | |
| 84656-12170-B0 note |
Bezel, Switch
2008-09 → 2009-10
ended
|
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 | — | |
| 84656-12170-E0 note |
Bezel, Switch
2008-09 → 2009-10
ended
|
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 | — | |
| 84656-12170-B0 note |
Bezel, Switch
2009-10 → 2010-12
ended
|
NDE150 | — | |
| 84656-12170-B0 note |
Bezel, Switch
2009-10 → 2012-08
ended
|
ZRE151 SOL | — | |
| 84656-12170-B0 note |
Bezel, Switch
2009-10 → 2012-08
ended
|
ZRE151 TERRA | — | |
| 84656-12170-B0 note |
Bezel, Switch
2010-12 → 2012-08
ended
|
NDE150 | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-52030 |
Switch Assy, Power Window Regulator
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 84810-52030 |
Switch Assy, Power Window Regulator
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 84810-52030 |
Switch Assy, Power Window Regulator
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 84810-52030 |
Switch Assy, Power Window Regulator
2009-10 → —
|
NDE150,ZRE151 | — | |
| 84810D — Switch Assy, Power Window Regulator, Rear | ||||
| 84810-52030 |
Switch Assy, Power Window Regulator, Rear
2006-10 → 2009-01
ended
|
ADE150,ZZE150 SOL;NDE150,ZRE151 (5F,5FS) SOL | — | |
| 84810-52030 note |
Switch Assy, Power Window Regulator, Rear
2006-10 → 2009-01
ended
|
ADE150,ZZE150 TERRA;NDE150,ZRE151 (5F,5FS) TERRA | — | |
| 84810-52030 |
Switch Assy, Power Window Regulator, Rear
2008-09 → 2009-10
ended
|
NDE150 (6F,6FS) SOL;ADE150,NRE150,ZRE15# (6F,6FS) +2 | — | |
| 84810-52030 note |
Switch Assy, Power Window Regulator, Rear
2008-09 → 2009-10
ended
|
NDE150 (6F,6FS) TERRA;ADE150,NRE150,ZRE15# (6F,6FS) +2 | — | |
| 84810-52030 |
Switch Assy, Power Window Regulator, Rear
2010-12 → 2012-08
ended
|
NDE150 | — | |
| 84810-52030 |
Switch Assy, Power Window Regulator, Rear
2009-10 → 2012-08
ended
|
ZRE151 SOL | — | |
| 84810-52030 note |
Switch Assy, Power Window Regulator, Rear
2009-10 → 2010-12
ended
|
NDE150 | — | |
| 84810-52030 note |
Switch Assy, Power Window Regulator, Rear
2009-10 → 2012-08
ended
|
ZRE151 TERRA | — | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84820-12500 |
Master Switch Assy, Power Window Regulator
2006-10 → 2008-12
ended
|
NDE150,ZZE150 RHD TERRA | — | |
| 84820-12510 |
Master Switch Assy, Power Window Regulator
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 LHD TERRA | — | |
| 84820-12510 |
Master Switch Assy, Power Window Regulator
2006-10 → 2009-01
ended
|
ADE150 TERRA | — | |
| 84820-12520 |
Master Switch Assy, Power Window Regulator
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 LHD SOL | — | |
| 84820-12520 note |
Master Switch Assy, Power Window Regulator
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 LHD TERRA | — | |
| 84820-12520 |
Master Switch Assy, Power Window Regulator
2006-10 → 2009-01
ended
|
ADE150 LHD SOL | — | |
| 84820-12520 note |
Master Switch Assy, Power Window Regulator
2006-10 → 2009-01
ended
|
ADE150 TERRA | — | |
| 84820-12530 |
Master Switch Assy, Power Window Regulator
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 RHD SOL | — | |
| 84820-12530 note |
Master Switch Assy, Power Window Regulator
2006-10 → 2008-12
ended
|
NDE150,ZZE150 RHD TERRA | — | |
| 84820-12530 |
Master Switch Assy, Power Window Regulator
2006-10 → 2009-01
ended
|
ADE150 RHD | — | |
| 84820-12500 |
Master Switch Assy, Power Window Regulator
2008-09 → 2009-10
ended
|
NDE150,NRE150 RHD 6F TERRA | — | |
| 84820-12510 |
Master Switch Assy, Power Window Regulator
2008-09 → 2009-10
ended
|
NDE150 C,HTWVM) LHD (6F,6FS) +5 | — | |
| 84820-12520 note |
Master Switch Assy, Power Window Regulator
2008-09 → 2009-10
ended
|
NDE150 C,HTWVM) LHD (6F,6FS) +5 | — | |
| 84820-12520 |
Master Switch Assy, Power Window Regulator
2008-09 → 2009-10
ended
|
NDE150 WVM) LHD (6F,6FS) +5 | — | |
| 84820-12530 |
Master Switch Assy, Power Window Regulator
2008-09 → 2009-10
ended
|
NDE150 WVM) RHD (6F,6FS) +5 | — | |
| 84820-12530 note |
Master Switch Assy, Power Window Regulator
2008-09 → 2009-10
ended
|
NDE150,NRE150 RHD 6F TERRA | — | |
| 84820-12500 |
Master Switch Assy, Power Window Regulator
2009-10 → 2010-12
ended
|
NDE150 | — | |
| 84820-12510 |
Master Switch Assy, Power Window Regulator
2009-10 → —
|
ZRE151 TERRA | — | |
| 84820-12520 |
Master Switch Assy, Power Window Regulator
2009-10 → 2010-03
ended
|
ZRE151 SOL | — | |
| 84820-12520 note |
Master Switch Assy, Power Window Regulator
2009-10 → —
|
ZRE151 TERRA | — | |
| 84820-12530 note |
Master Switch Assy, Power Window Regulator
2009-10 → 2010-12
ended
|
NDE150 | — | |
| 84820-12530 |
Master Switch Assy, Power Window Regulator
2010-12 → —
|
NDE150 | — | |
| 84840G — Switch Assy, Back Door Opener | ||||
| 84840-28030 |
Switch Assy, Back Door Opener
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 84840-28030 |
Switch Assy, Back Door Opener
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 84840-28040 note |
Switch Assy, Back Door Opener
2008-12 → 2009-10
ended
|
ADE150,ZRE15# SOL (DCRL,HTWC,HTWVM) | — | |
| 84840-28030 |
Switch Assy, Back Door Opener
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 89407C — Sensor Sub-assy, Height Control, Rear | ||||
| 89407-12030 note |
Sensor Sub-assy, Height Control, Rear
2006-10 → 2008-12
ended
|
ZRE151 LHD SOL | — | |
| 89407-12030 note |
Sensor Sub-assy, Height Control, Rear
2006-10 → 2009-01
ended
|
ADE150 LHD SOL | — | |
| 89407-12030 note |
Sensor Sub-assy, Height Control, Rear
2008-12 → 2009-10
ended
|
ADE150,ZRE15# LHD SOL (DCRL,HTWVM) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
