Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

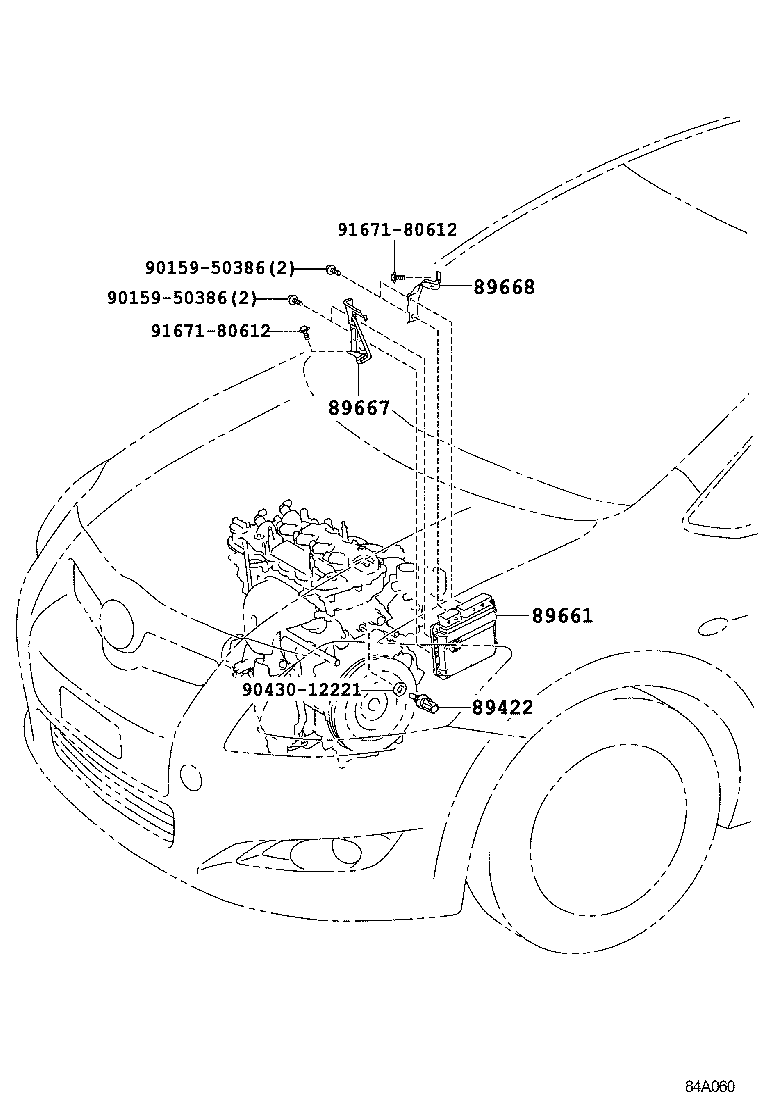

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89422 — Sensor, Water Temperature (FOR E.F.I.) | ||||
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2006-10 → 2008-12
ended
|
ZRE151 | — | |
| 89422-35010 |
Sensor, Water Temperature (FOR E.F.I.)
2006-10 → 2008-12
ended
|
ZZE150 | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2008-09 → 2009-10
ended
|
NRE150,ZRE15# 6F,6FS | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2009-10 → 2010-03
ended
|
ZRE151 SOL | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2009-10 → —
|
ZRE151 TERRA | — | |
| 89661 — Computer, Engine Control | ||||
| 89660-12D40 note |
Computer, Engine Control
2006-10 → 2008-12
ended
|
ZZE150 | — | |
| 89660-12D50 note |
Computer, Engine Control
2006-10 → 2008-12
ended
|
ZZE150 | — | |
| 89661-12B90 note |
Computer, Engine Control
2006-10 → 2006-12
ended
|
ZRE151 5F | — | |
| 89661-12B91 note |
Computer, Engine Control
2006-12 → 2008-12
ended
|
ZRE151 5F | — | |
| 89661-12C00 note |
Computer, Engine Control
2006-10 → 2006-12
ended
|
ZRE151 5F | — | |
| 89661-12C01 note |
Computer, Engine Control
2006-12 → 2008-12
ended
|
ZRE151 5F | — | |
| 89661-12C10 note |
Computer, Engine Control
2006-10 → 2006-12
ended
|
ZRE151 5FS | — | |
| 89661-12C11 note |
Computer, Engine Control
2006-12 → 2008-12
ended
|
ZRE151 5FS | — | |
| 89661-12C20 note |
Computer, Engine Control
2006-10 → 2006-12
ended
|
ZRE151 5FS | — | |
| 89661-12C21 note |
Computer, Engine Control
2006-12 → 2008-12
ended
|
ZRE151 5FS | — | |
| 89661-12G80 note |
Computer, Engine Control
2008-09 → 2009-10
ended
|
NRE150 | — | |
| 89661-12G90 note |
Computer, Engine Control
2008-09 → 2009-10
ended
|
NRE150 | — | |
| 89661-12J00 note |
Computer, Engine Control
2008-09 → 2009-10
ended
|
NRE150 | — | |
| 89661-12J10 note |
Computer, Engine Control
2008-12 → 2009-10
ended
|
ZRE151 HTWC | — | |
| 89661-12J20 note |
Computer, Engine Control
2008-12 → 2009-10
ended
|
ZRE151 HTWC | — | |
| 89661-12J70 note |
Computer, Engine Control
2008-12 → 2009-08
ended
|
ZRE151 6F HTWVM | — | |
| 89661-12J71 note |
Computer, Engine Control
2009-09 → 2009-10
ended
|
ZRE151 6F HTWVM | — | |
| 89661-12J80 note |
Computer, Engine Control
2008-12 → 2009-08
ended
|
ZRE151 6F HTWVM | — | |
| 89661-12J81 note |
Computer, Engine Control
2009-09 → 2009-10
ended
|
ZRE151 6F HTWVM | — | |
| 89661-12J90 note |
Computer, Engine Control
2008-12 → 2009-08
ended
|
ZRE151 6FS | — | |
| 89661-12J91 note |
Computer, Engine Control
2009-09 → 2009-10
ended
|
ZRE151 6FS | — | |
| 89661-12K00 note |
Computer, Engine Control
2008-12 → 2009-08
ended
|
ZRE151 6FS | — | |
| 89661-12K01 note |
Computer, Engine Control
2009-09 → 2009-10
ended
|
ZRE151 6FS | — | |
| 89661-12K10 note |
Computer, Engine Control
2008-12 → 2009-08
ended
|
ZRE152 | — | |
| 89661-12K11 note |
Computer, Engine Control
2009-09 → 2009-10
ended
|
ZRE152 | — | |
| 89661-12K20 note |
Computer, Engine Control
2008-12 → 2009-08
ended
|
ZRE152 | — | |
| 89661-12K21 note |
Computer, Engine Control
2009-09 → 2009-10
ended
|
ZRE152 | — | |
| 89661-12J10 note |
Computer, Engine Control
2009-10 → 2010-12
ended
|
ZRE151 | — | |
| 89661-12J20 note |
Computer, Engine Control
2009-10 → 2010-12
ended
|
ZRE151 | — | |
| 89661-12J20 note |
Computer, Engine Control
2010-12 → 2011-05
ended
|
ZRE151 | — | |
| 89661-12J21 |
Computer, Engine Control
2011-06 → —
|
ZRE151 | — | |
| 89667 — Bracket, Engine Control Computer | ||||
| 89667-12210 |
Bracket, Engine Control Computer
2006-10 → 2008-12
ended
|
ZRE151 | — | |
| 89667-12210 |
Bracket, Engine Control Computer
2008-09 → 2009-10
ended
|
NRE150,ZRE15# 6F,6FS | — | |
| 89667-12210 |
Bracket, Engine Control Computer
2009-10 → —
|
ZRE151 | — | |
| 89668 — Bracket, Engine Control Computer, NO.2 | ||||
| 89668-12120 |
Bracket, Engine Control Computer, NO.2
2006-10 → 2008-12
ended
|
ZRE151 | — | |
| 89668-12120 |
Bracket, Engine Control Computer, NO.2
2008-09 → 2009-10
ended
|
NRE150,ZRE15# 6F,6FS | — | |
| 89668-12120 |
Bracket, Engine Control Computer, NO.2
2009-10 → —
|
ZRE151 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
