Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

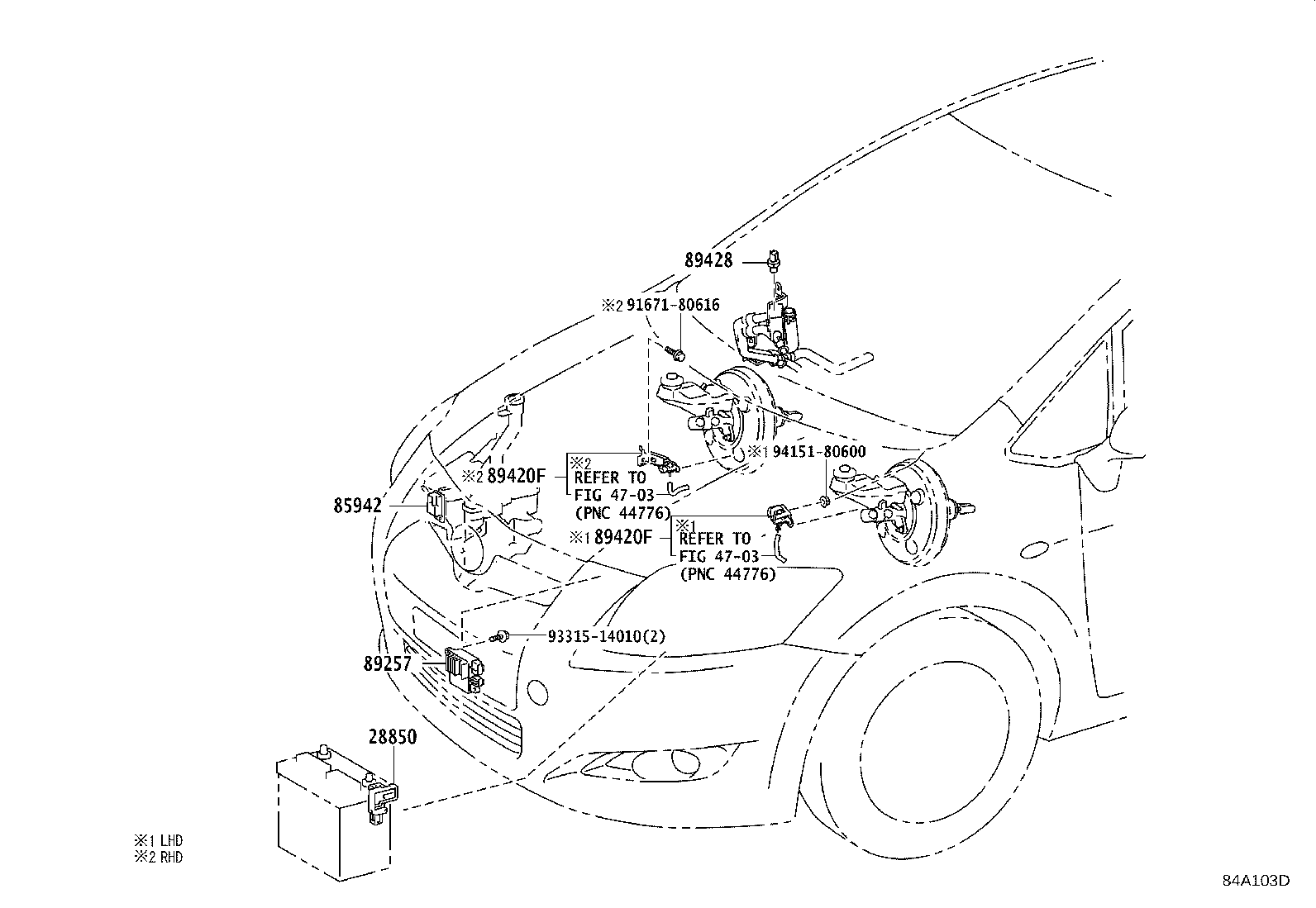

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28850 — Sensor Assy, Battery Current | ||||
| 28850-21020 note |
Sensor Assy, Battery Current
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 28850-21020 |
Sensor Assy, Battery Current
2008-12 → 2009-10
ended
|
1ZRFAE,2ZRFAE ZRE15# | — | |
| 28850-28040 |
Sensor Assy, Battery Current
2008-12 → 2009-10
ended
|
1NDTV NDE150;1ADFTV ADE150 DCRL | — | |
| 28850-28040 |
Sensor Assy, Battery Current
2009-10 → 2012-08
ended
|
1NDTV NDE150 | — | |
| 85942 — Relay, Headlamp Cleaner Control | ||||
| 85942-12010 note |
Relay, Headlamp Cleaner Control
2006-10 → 2009-01
ended
|
ADE150,ZZE150 LHD;NDE150,ZRE151 LHD (5F,5FS) | — | |
| 85942-12010 note |
Relay, Headlamp Cleaner Control
2008-09 → 2009-10
ended
|
ADE150,NRE150,ZRE152 RL,HTWVM) LHD (DCRL,HTWC,HTWVM);NDE150,ZRE151 +3 | — | |
| 89257 — Computer, Cooling Fan | ||||
| 89257-12010 |
Computer, Cooling Fan
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 | — | |
| 89257-12020 |
Computer, Cooling Fan
2006-10 → 2008-12
ended
|
NDE150 | — | |
| 89257-12010 |
Computer, Cooling Fan
2008-09 → 2009-10
ended
|
NRE150,ZRE15# 6F,6FS | — | |
| 89257-12020 |
Computer, Cooling Fan
2008-12 → 2009-10
ended
|
NDE150 | — | |
| 89257-12010 |
Computer, Cooling Fan
2009-10 → 2012-08
ended
|
ZRE151 | — | |
| 89257-12020 |
Computer, Cooling Fan
2009-10 → 2012-08
ended
|
NDE150 | — | |
| 89420F — Sensor Assy, Vacuum | ||||
| 89420-12240 note |
Sensor Assy, Vacuum
2008-09 → 2009-10
ended
|
NRE150 RHD | — | |
| 89420-12270 note |
Sensor Assy, Vacuum
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 89428 — Switch, Temperature Detect, NO.2 | ||||
| 89428-12170 note |
Switch, Temperature Detect, NO.2
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
