Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

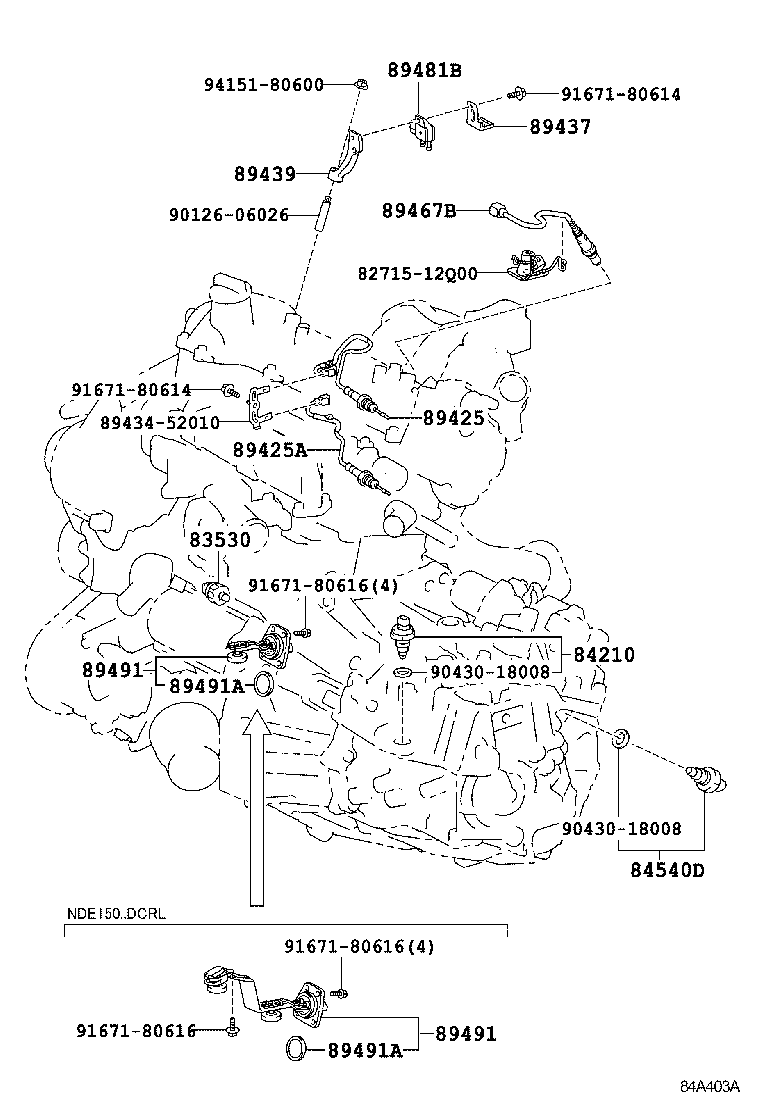

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-05010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2006-10 → 2009-01
ended
|
ADE150;NDE150 5F,5FS | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2006-10 → 2009-01
ended
|
ADE150;NDE150 5F,5FS | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 | — | |
| 83530-05010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2008-09 → 2009-10
ended
|
NRE150,ZRE15# 6F,6FS | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2008-12 → 2009-10
ended
|
NDE150;ADE150 DCRL | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2008-09 → 2009-10
ended
|
NRE150,ZRE15# 6F,6FS | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2008-12 → 2009-10
ended
|
NDE150;ADE150 DCRL | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2008-09 → 2009-10
ended
|
NRE150,ZRE15# 6F,6FS | — | |
| 83530-05010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2009-10 → —
|
ZRE151 | — | |
| 83530-0E010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2011-10 → —
|
ZRE151 | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2009-10 → —
|
NDE150 | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2009-10 → —
|
ZRE151 | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2009-10 → —
|
NDE150 | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2009-10 → —
|
ZRE151 | — | |
| 84210 — Switch Assy, Back-up Lamp | ||||
| 84210-12040 |
Switch Assy, Back-up Lamp
2006-10 → 2009-01
ended
|
ADE150;NDE150,ZRE151 5FS | — | |
| 84210-52010 |
Switch Assy, Back-up Lamp
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 5F | — | |
| 84210-12040 |
Switch Assy, Back-up Lamp
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 84210-12040 |
Switch Assy, Back-up Lamp
2009-10 → 2012-04
ended
|
NDE150,ZRE151 | — | |
| 84210-52050 |
Switch Assy, Back-up Lamp
2012-05 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 84540D — Switch Assy, Neutral Start | ||||
| 84545-12010 |
Switch Assy, Neutral Start
2008-12 → 2009-10
ended
|
NDE150,ZRE151 6FS | — | |
| 84545-20020 note |
Switch Assy, Neutral Start
2008-09 → 2009-10
ended
|
NRE150 | — | |
| 89425 — Sensor, Exhaust Gas Temperature | ||||
| 89425-20360 |
Sensor, Exhaust Gas Temperature
2006-10 → 2009-01
ended
|
ADE150 DCRL | — | |
| 89425-20380 |
Sensor, Exhaust Gas Temperature
2009-01 → 2009-10
ended
|
ADE150 | — | |
| 89425-52010 |
Sensor, Exhaust Gas Temperature
2008-12 → 2009-10
ended
|
NDE150 DCRL | — | |
| 89425A — Sensor, Exhaust Gas Temperature, NO.2 | ||||
| 89425-20370 |
Sensor, Exhaust Gas Temperature, NO.2
2006-10 → 2009-01
ended
|
ADE150 DCRL | — | |
| 89425-20390 |
Sensor, Exhaust Gas Temperature, NO.2
2009-01 → 2009-10
ended
|
ADE150 | — | |
| 89425-52020 |
Sensor, Exhaust Gas Temperature, NO.2
2008-12 → 2009-10
ended
|
NDE150 DCRL | — | |
| 89437 — Cover, Sensor | ||||
| 89437-12110 |
Cover, Sensor
2008-12 → 2009-10
ended
|
NDE150 DCRL | — | |
| 89439 — Bracket, Sensor | ||||
| 89439-52010 |
Bracket, Sensor
2008-12 → 2009-10
ended
|
NDE150 DCRL | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-12020 |
Sensor, Air Fuel Ratio
2006-10 → 2009-01
ended
|
ADE150 DCRL | — | |
| 89467-12030 |
Sensor, Air Fuel Ratio
2008-12 → 2009-10
ended
|
ZRE15# HTWVM | — | |
| 89467-12170 |
Sensor, Air Fuel Ratio
2008-12 → 2009-10
ended
|
NDE150 | — | |
| 89467-20100 |
Sensor, Air Fuel Ratio
2009-01 → 2009-10
ended
|
ADE150 | — | |
| 89467-52070 |
Sensor, Air Fuel Ratio
2008-09 → 2009-10
ended
|
NRE150 | — | |
| 89467-02080 note |
Sensor, Air Fuel Ratio
2011-07 → —
|
NDE150 | — | |
| 89467-12130 note |
Sensor, Air Fuel Ratio
2011-07 → —
|
NDE150 | — | |
| 89467-12170 |
Sensor, Air Fuel Ratio
2009-10 → 2011-06
ended
|
NDE150 | — | |
| 89481B — Sensor, Differential Pressure | ||||
| 89481-12050 |
Sensor, Differential Pressure
2008-12 → 2009-10
ended
|
NDE150 DCRL | — | |
| 89491 — Sensor, Engine Oil Level | ||||
| 89491-12030 |
Sensor, Engine Oil Level
2006-10 → 2008-12
ended
|
NDE150 | — | |
| 89491-20120 |
Sensor, Engine Oil Level
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 89491-20120 |
Sensor, Engine Oil Level
2009-01 → 2009-10
ended
|
ADE150 | — | |
| 89491-52030 |
Sensor, Engine Oil Level
2008-12 → 2009-10
ended
|
NDE150 DCR | — | |
| 89491-52040 |
Sensor, Engine Oil Level
2008-12 → 2009-10
ended
|
NDE150 DCRL | — | |
| 89491-52030 |
Sensor, Engine Oil Level
2009-10 → 2011-11
ended
|
NDE150 | — | |
| 89491-52031 |
Sensor, Engine Oil Level
2011-12 → —
|
NDE150 | — | |
| 89491A — Gasket, Engine Oil Level Sensor | ||||
| 89493-60010 |
Gasket, Engine Oil Level Sensor
2006-10 → 2008-12
ended
|
NDE150 | — | |
| 89493-60010 |
Gasket, Engine Oil Level Sensor
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 90430-36005 |
Gasket, Engine Oil Level Sensor
2008-12 → 2009-10
ended
|
NDE150 | — | |
| 90430-36005 |
Gasket, Engine Oil Level Sensor
2009-10 → —
|
NDE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
