Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

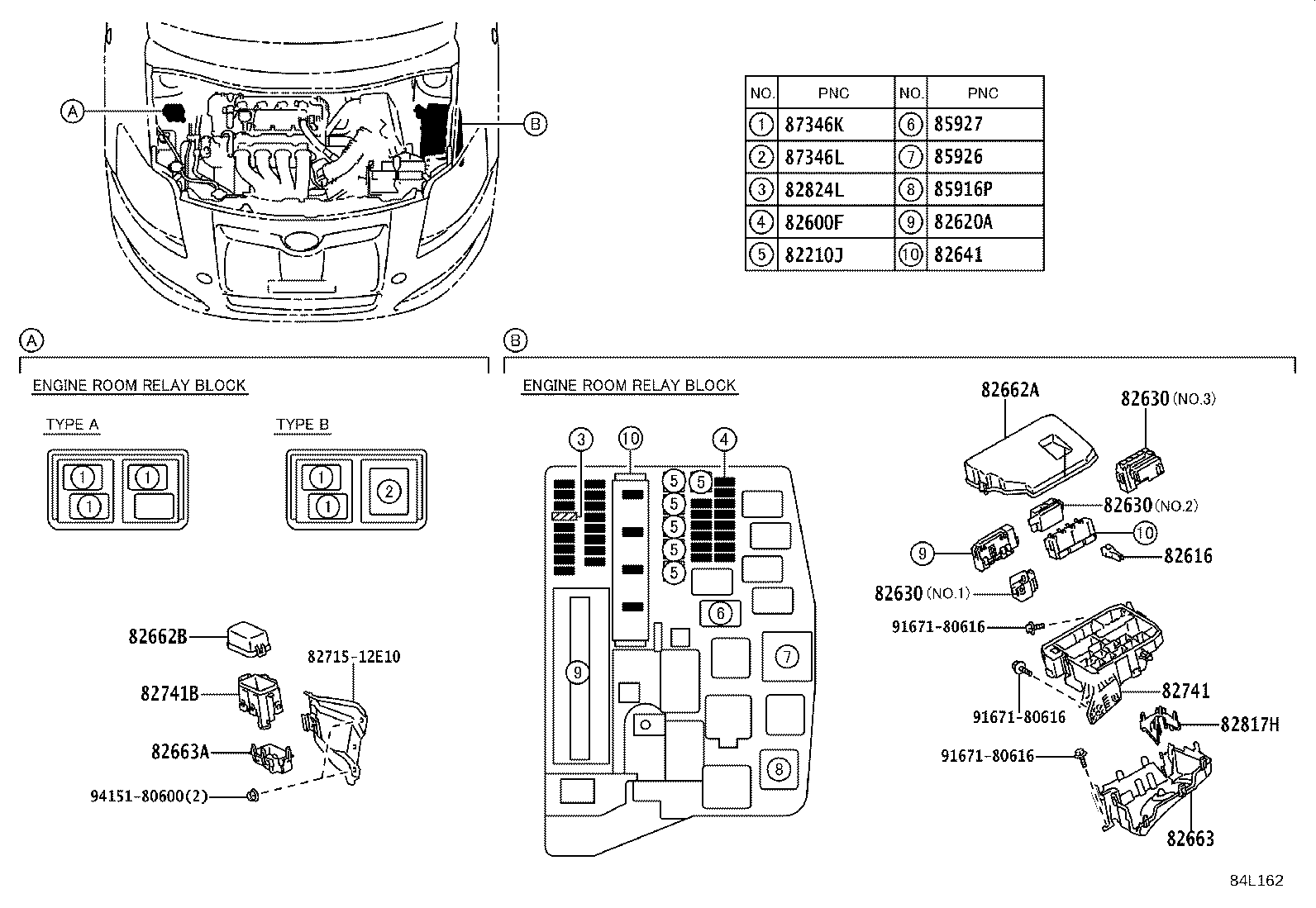

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82210J — Fusible Link | ||||
| 90982-08294 note |
Fusible Link
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 90982-08295 note |
Fusible Link
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 90982-08296 note |
Fusible Link
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 90982-08294 note |
Fusible Link
2008-09 → 2009-10
ended
|
ADE150,NDE150,NRE150,ZRE15#,ZZE150 | — | |
| 90982-08295 note |
Fusible Link
2008-09 → 2009-10
ended
|
ADE150,NDE150,NRE150,ZRE15#,ZZE150 | — | |
| 90982-08296 note |
Fusible Link
2008-09 → 2009-10
ended
|
ADE150,NDE150,NRE150,ZRE15#,ZZE150 | — | |
| 90982-08294 note |
Fusible Link
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 90982-08295 note |
Fusible Link
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 90982-08296 note |
Fusible Link
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-09020 note |
Fuse, Fuse Block
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 90982-09021 note |
Fuse, Fuse Block
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 90982-09022 note |
Fuse, Fuse Block
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 90982-09023 note |
Fuse, Fuse Block
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 90982-09024 note |
Fuse, Fuse Block
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 90982-09025 note |
Fuse, Fuse Block
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 90982-09020 note |
Fuse, Fuse Block
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 90982-09021 note |
Fuse, Fuse Block
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 90982-09022 note |
Fuse, Fuse Block
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 90982-09023 note |
Fuse, Fuse Block
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 90982-09024 note |
Fuse, Fuse Block
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 90982-09025 note |
Fuse, Fuse Block
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 90982-09020 note |
Fuse, Fuse Block
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 90982-09021 note |
Fuse, Fuse Block
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 90982-09022 note |
Fuse, Fuse Block
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 90982-09023 note |
Fuse, Fuse Block
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 90982-09024 note |
Fuse, Fuse Block
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 90982-09025 note |
Fuse, Fuse Block
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 82616 — Puller, Fuse | ||||
| 82616-58010 |
Puller, Fuse
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 82616-58010 |
Puller, Fuse
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 82616-58010 |
Puller, Fuse
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 82620A — Block Assy, Fusible Link | ||||
| 82620-12270 |
Block Assy, Fusible Link
2006-10 → 2009-01
ended
|
ADE150;NDE150 5F,5FS | — | |
| 82620-12280 |
Block Assy, Fusible Link
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 | — | |
| 82620-12270 |
Block Assy, Fusible Link
2008-12 → 2009-10
ended
|
NDE150;ADE150 DCRL | — | |
| 82620-12280 |
Block Assy, Fusible Link
2008-09 → 2009-10
ended
|
NRE150,ZRE15# 6F,6FS | — | |
| 82620-12270 |
Block Assy, Fusible Link
2009-10 → 2012-08
ended
|
NDE150 | — | |
| 82620-12280 |
Block Assy, Fusible Link
2009-10 → 2012-08
ended
|
ZRE151 | — | |
| 82630 — Holder Assy, Fuse | ||||
| 82631-12010 note |
Holder Assy, Fuse
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 82631-12020 note |
Holder Assy, Fuse
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 82631-12030 note |
Holder Assy, Fuse
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 82631-12010 note |
Holder Assy, Fuse
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 82631-12020 note |
Holder Assy, Fuse
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 82631-12030 note |
Holder Assy, Fuse
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 82631-12010 note |
Holder Assy, Fuse
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 82631-12020 note |
Holder Assy, Fuse
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 82631-12030 note |
Holder Assy, Fuse
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 82641 — Relay, Integration NO.1 | ||||
| 82641-47020 |
Relay, Integration NO.1
2006-10 → 2009-01
ended
|
ADE150,ZZE150;ZRE151 5F,5FS | — | |
| 82641-71020 |
Relay, Integration NO.1
2006-10 → 2008-12
ended
|
NDE150 | — | |
| 82641-47020 |
Relay, Integration NO.1
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 82641-47020 |
Relay, Integration NO.1
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 82662A — Cover, Relay Block, Upper, NO.1 | ||||
| 82662-12270 |
Cover, Relay Block, Upper, NO.1
2006-10 → 2008-12
ended
|
ZRE151,ZZE150 | — | |
| 82662-12290 note |
Cover, Relay Block, Upper, NO.1
2006-10 → 2008-12
ended
|
ZRE151 LHD SOL | — | |
| 82662-12290 note |
Cover, Relay Block, Upper, NO.1
2006-10 → 2008-12
ended
|
ZRE151 LHD SOL | — | |
| 82662-12300 |
Cover, Relay Block, Upper, NO.1
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 82662-12310 note |
Cover, Relay Block, Upper, NO.1
2006-10 → 2009-01
ended
|
ADE150 LHD SOL | — | |
| 82662-12310 note |
Cover, Relay Block, Upper, NO.1
2006-10 → 2009-01
ended
|
ADE150 LHD SOL | — | |
| 82662-12320 |
Cover, Relay Block, Upper, NO.1
2006-10 → 2008-12
ended
|
NDE150 | — | |
| 82662-12570 |
Cover, Relay Block, Upper, NO.1
2008-09 → 2009-10
ended
|
NRE150,ZRE15# 6F,6FS | — | |
| 82662-12580 note |
Cover, Relay Block, Upper, NO.1
2008-12 → 2009-10
ended
|
ZRE15# LHD SOL HTWVM | — | |
| 82662-12580 note |
Cover, Relay Block, Upper, NO.1
2008-12 → 2009-10
ended
|
ZRE15# LHD SOL HTWVM | — | |
| 82662-12590 |
Cover, Relay Block, Upper, NO.1
2009-01 → 2009-10
ended
|
ADE150 | — | |
| 82662-12600 note |
Cover, Relay Block, Upper, NO.1
2009-01 → 2009-10
ended
|
ADE150 LHD SOL | — | |
| 82662-12600 note |
Cover, Relay Block, Upper, NO.1
2009-01 → 2009-10
ended
|
ADE150 LHD SOL | — | |
| 82662-12610 |
Cover, Relay Block, Upper, NO.1
2008-12 → 2009-10
ended
|
NDE150 | — | |
| 82662-12620 note |
Cover, Relay Block, Upper, NO.1
2008-09 → 2009-10
ended
|
NRE150 | — | |
| 82662-12620 note |
Cover, Relay Block, Upper, NO.1
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 82662-12620 note |
Cover, Relay Block, Upper, NO.1
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 82662-12620 note |
Cover, Relay Block, Upper, NO.1
2008-09 → 2009-10
ended
|
NRE150 | — | |
| 82662-12670 note |
Cover, Relay Block, Upper, NO.1
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 82662-12670 note |
Cover, Relay Block, Upper, NO.1
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 82662-12570 |
Cover, Relay Block, Upper, NO.1
2009-10 → —
|
ZRE151 | — | |
| 82662-12610 |
Cover, Relay Block, Upper, NO.1
2009-10 → —
|
NDE150 | — | |
| 82662B — Cover, Relay Block, Upper, NO.2 | ||||
| 82662-12280 note |
Cover, Relay Block, Upper, NO.2
2006-10 → 2008-12
ended
|
ZRE151 LHD | — | |
| 82662-12280 |
Cover, Relay Block, Upper, NO.2
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 82662-12280 note |
Cover, Relay Block, Upper, NO.2
2006-10 → 2008-12
ended
|
ZRE151 5F TERRA | — | |
| 82662-12280 note |
Cover, Relay Block, Upper, NO.2
2006-10 → 2008-12
ended
|
ZRE151 LHD SOL | — | |
| 82662-12280 note |
Cover, Relay Block, Upper, NO.2
2006-10 → 2008-12
ended
|
ZRE151 5F TERRA | — | |
| 82662-12280 note |
Cover, Relay Block, Upper, NO.2
2006-10 → 2008-12
ended
|
ZRE151 5F TERRA | — | |
| 82662-12280 note |
Cover, Relay Block, Upper, NO.2
2006-10 → 2008-12
ended
|
ZRE151 LHD | — | |
| 82662-12280 |
Cover, Relay Block, Upper, NO.2
2006-10 → 2008-12
ended
|
NDE150 | — | |
| 82662-12280 note |
Cover, Relay Block, Upper, NO.2
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 82662-12280 note |
Cover, Relay Block, Upper, NO.2
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 82662-12280 note |
Cover, Relay Block, Upper, NO.2
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 82662-12280 note |
Cover, Relay Block, Upper, NO.2
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 82662-12280 note |
Cover, Relay Block, Upper, NO.2
2008-09 → 2009-10
ended
|
NRE150,ZRE152 LHD;ZRE151 LHD HTWVM | — | |
| 82662-12280 note |
Cover, Relay Block, Upper, NO.2
2008-09 → 2009-10
ended
|
ZRE151 6F TERRA HTWVM;NRE150,ZRE152 +2 | — | |
| 82662-12280 note |
Cover, Relay Block, Upper, NO.2
2008-09 → 2009-10
ended
|
NRE150,ZRE152 LHD;ZRE151 LHD HTWVM | — | |
| 82662-12280 |
Cover, Relay Block, Upper, NO.2
2008-12 → 2009-10
ended
|
NDE150;ADE150 DCRL | — | |
| 82662-12280 note |
Cover, Relay Block, Upper, NO.2
2008-12 → 2009-10
ended
|
ZRE15# LHD SOL HTWVM | — | |
| 82662-12280 |
Cover, Relay Block, Upper, NO.2
2009-10 → —
|
NDE150 | — | |
| 82663 — Cover, Relay Block, Lower | ||||
| 82663-12060 |
Cover, Relay Block, Lower
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 82663-12060 |
Cover, Relay Block, Lower
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 82663-12060 |
Cover, Relay Block, Lower
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 82663A — Cover, Relay Block, Lower, NO.2 | ||||
| 82663-12070 note |
Cover, Relay Block, Lower, NO.2
2006-10 → 2008-12
ended
|
ZRE151 LHD | — | |
| 82663-12070 note |
Cover, Relay Block, Lower, NO.2
2006-10 → 2008-12
ended
|
ZRE151 5F TERRA | — | |
| 82663-12070 note |
Cover, Relay Block, Lower, NO.2
2006-10 → 2008-12
ended
|
ZRE151 5F TERRA | — | |
| 82663-12070 note |
Cover, Relay Block, Lower, NO.2
2006-10 → 2008-12
ended
|
ZRE151 LHD | — | |
| 82663-12070 note |
Cover, Relay Block, Lower, NO.2
2006-10 → 2008-12
ended
|
ZRE151 LHD SOL | — | |
| 82663-12070 note |
Cover, Relay Block, Lower, NO.2
2006-10 → 2008-12
ended
|
ZRE151 5F TERRA | — | |
| 82663-12070 |
Cover, Relay Block, Lower, NO.2
2006-10 → 2009-01
ended
|
ADE150;NDE150 5F,5FS | — | |
| 82663-12070 note |
Cover, Relay Block, Lower, NO.2
2008-09 → 2009-10
ended
|
NRE150,ZRE152 LHD;ZRE151 LHD HTWVM | — | |
| 82663-12070 note |
Cover, Relay Block, Lower, NO.2
2008-12 → 2009-10
ended
|
ZRE15# LHD SOL HTWVM | — | |
| 82663-12070 |
Cover, Relay Block, Lower, NO.2
2008-12 → 2009-10
ended
|
NDE150;ADE150 DCRL | — | |
| 82663-12070 note |
Cover, Relay Block, Lower, NO.2
2008-09 → 2009-10
ended
|
NRE150,ZRE152 LHD;ZRE151 LHD HTWVM | — | |
| 82663-12070 note |
Cover, Relay Block, Lower, NO.2
2008-09 → 2009-10
ended
|
ZRE151 6F TERRA HTWVM;NRE150,ZRE152 +2 | — | |
| 82663-12070 note |
Cover, Relay Block, Lower, NO.2
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 82663-12070 note |
Cover, Relay Block, Lower, NO.2
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 82663-12070 note |
Cover, Relay Block, Lower, NO.2
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 82663-12070 note |
Cover, Relay Block, Lower, NO.2
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 82663-12070 |
Cover, Relay Block, Lower, NO.2
2009-10 → 2012-08
ended
|
NDE150 | — | |
| 82741 — Block, Engine Room Relay | ||||
| 82741-12070 |
Block, Engine Room Relay
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 82741-12070 |
Block, Engine Room Relay
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 82741-12070 |
Block, Engine Room Relay
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 82741B — Block, Engine Room Relay | ||||
| 82741-12080 note |
Block, Engine Room Relay
2006-10 → 2008-12
ended
|
ZRE151 LHD | — | |
| 82741-12080 |
Block, Engine Room Relay
2006-10 → 2009-01
ended
|
ADE150;NDE150 5F,5FS | — | |
| 82741-12080 note |
Block, Engine Room Relay
2006-10 → 2008-12
ended
|
ZRE151 5F TERRA | — | |
| 82741-12080 note |
Block, Engine Room Relay
2006-10 → 2008-12
ended
|
ZRE151 LHD SOL | — | |
| 82741-12080 note |
Block, Engine Room Relay
2006-10 → 2008-12
ended
|
ZRE151 5F TERRA | — | |
| 82741-12080 note |
Block, Engine Room Relay
2006-10 → 2008-12
ended
|
ZRE151 5F TERRA | — | |
| 82741-12080 note |
Block, Engine Room Relay
2006-10 → 2008-12
ended
|
ZRE151 LHD | — | |
| 82741-12080 note |
Block, Engine Room Relay
2008-09 → 2009-10
ended
|
ZRE151 6F TERRA HTWVM;NRE150,ZRE152 +2 | — | |
| 82741-12080 note |
Block, Engine Room Relay
2008-12 → 2009-10
ended
|
ZRE15# LHD SOL HTWVM | — | |
| 82741-12080 |
Block, Engine Room Relay
2008-12 → 2009-10
ended
|
NDE150;ADE150 DCRL | — | |
| 82741-12080 note |
Block, Engine Room Relay
2008-09 → 2009-10
ended
|
NRE150,ZRE152 LHD;ZRE151 LHD HTWVM | — | |
| 82741-12080 note |
Block, Engine Room Relay
2008-09 → 2009-10
ended
|
NRE150,ZRE152 LHD;ZRE151 LHD HTWVM | — | |
| 82741-12080 note |
Block, Engine Room Relay
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 82741-12080 note |
Block, Engine Room Relay
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 82741-12080 note |
Block, Engine Room Relay
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 82741-12080 note |
Block, Engine Room Relay
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 82741-12080 |
Block, Engine Room Relay
2009-10 → 2012-08
ended
|
NDE150 | — | |
| 82817H — Protector, Wiring Harness | ||||
| 82817-12A80 |
Protector, Wiring Harness
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 82817-12A80 |
Protector, Wiring Harness
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 82817-12A80 |
Protector, Wiring Harness
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 82824L — Pin, Short | ||||
| 82824-20140 |
Pin, Short
2006-10 → 2009-01
ended
|
ADE150,ZZE150;NDE150,ZRE151 5F,5FS | — | |
| 82824-20140 |
Pin, Short
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 82824-20140 |
Pin, Short
2009-10 → 2012-08
ended
|
NDE150,ZRE151 | — | |
| 85916P — Relay, Headlamp | ||||
| 90987-02025 |
Relay, Headlamp
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 90987-02025 |
Relay, Headlamp
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 90987-02025 |
Relay, Headlamp
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 90987-02025 |
Relay, Headlamp
2009-10 → —
|
NDE150,ZRE151 | — | |
| 85926 — Relay, Headlamp Dimmer | ||||
| 90987-04010 |
Relay, Headlamp Dimmer
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 90987-04010 |
Relay, Headlamp Dimmer
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 90987-04010 |
Relay, Headlamp Dimmer
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 90987-02025 |
Relay, Headlamp Dimmer
2011-03 → —
|
NDE150,ZRE151 | — | |
| 90987-04010 |
Relay, Headlamp Dimmer
2009-10 → 2011-03
ended
|
NDE150,ZRE151 | — | |
| 85927 — Relay, Cooling Fan | ||||
| 90987-02027 |
Relay, Cooling Fan
2006-10 → 2008-12
ended
|
NDE150,ZRE151,ZZE150 | — | |
| 90987-02027 |
Relay, Cooling Fan
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 90987-02027 |
Relay, Cooling Fan
2008-09 → 2009-10
ended
|
NDE150 6F,6FS;ADE150,NRE150,ZRE15# (6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 90987-02027 |
Relay, Cooling Fan
2009-10 → 2010-03
ended
|
ZRE151 SOL | — | |
| 90987-02027 |
Relay, Cooling Fan
2009-10 → —
|
NDE150,ZRE151 TERRA | — | |
| 87346K — Relay, Ptc Heater | ||||
| 90987-02027 note |
Relay, Ptc Heater
2006-10 → 2009-01
ended
|
ADE150 TERRA | — | |
| 90987-02027 note |
Relay, Ptc Heater
2006-10 → 2009-01
ended
|
ADE150 TERRA | — | |
| 90987-02027 note |
Relay, Ptc Heater
2006-10 → 2009-01
ended
|
ADE150 LHD SOL | — | |
| 90987-02027 note |
Relay, Ptc Heater
2006-10 → 2009-01
ended
|
ADE150 | — | |
| 90987-02027 note |
Relay, Ptc Heater
2006-10 → 2008-12
ended
|
NDE150 LHD TERRA | — | |
| 90987-02027 note |
Relay, Ptc Heater
2006-10 → 2008-12
ended
|
NDE150,ZRE151 LHD SOL | — | |
| 90987-02027 note |
Relay, Ptc Heater
2006-10 → 2008-12
ended
|
ZRE151 LHD | — | |
| 90987-02027 note |
Relay, Ptc Heater
2006-10 → 2008-12
ended
|
NDE150 | — | |
| 90987-02027 note |
Relay, Ptc Heater
2006-10 → 2008-12
ended
|
NDE150 TERRA | — | |
| 90987-02027 note |
Relay, Ptc Heater
2008-12 → 2009-10
ended
|
NDE150 | — | |
| 90987-02027 note |
Relay, Ptc Heater
2009-01 → 2009-10
ended
|
ADE150 LHD SOL | — | |
| 90987-02027 note |
Relay, Ptc Heater
2009-01 → 2009-10
ended
|
ADE150 | — | |
| 90987-02027 note |
Relay, Ptc Heater
2008-12 → 2009-10
ended
|
NDE150 LHD SOL | — | |
| 90987-02027 note |
Relay, Ptc Heater
2008-09 → 2009-10
ended
|
NRE150,ZRE152 LHD SOL;ZRE151 LHD +2 | — | |
| 90987-02027 note |
Relay, Ptc Heater
2008-09 → 2009-10
ended
|
NRE150,ZRE152 LHD;ZRE151 LHD HTWVM | — | |
| 90987-02027 note |
Relay, Ptc Heater
2008-09 → 2009-10
ended
|
NRE150 LHD SOL | — | |
| 90987-02027 note |
Relay, Ptc Heater
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 90987-02027 note |
Relay, Ptc Heater
2008-09 → 2009-10
ended
|
NRE150 LHD SOL | — | |
| 90987-02027 note |
Relay, Ptc Heater
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 90987-02027 note |
Relay, Ptc Heater
2009-10 → —
|
NDE150 | — | |
| 87346L — Relay, Ptc Heater | ||||
| 90987-02025 note |
Relay, Ptc Heater
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 90987-02025 note |
Relay, Ptc Heater
2008-09 → 2009-10
ended
|
NRE150 LHD SOL | — | |
| 90987-02025 note |
Relay, Ptc Heater
2008-09 → 2009-10
ended
|
NRE150 LHD | — | |
| 90987-02025 note |
Relay, Ptc Heater
2008-09 → 2009-10
ended
|
NRE150 LHD SOL | — | |
| 90987-02025 note |
Relay, Ptc Heater
2008-12 → 2009-10
ended
|
NDE150 | — | |
| 90987-02025 note |
Relay, Ptc Heater
2008-12 → 2009-10
ended
|
NDE150 LHD SOL | — | |
| 90987-02025 note |
Relay, Ptc Heater
2009-10 → —
|
NDE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
