Toyota Auris/Corolla (JPP)

2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

9 part groups · 6 illustrations

Illustrations

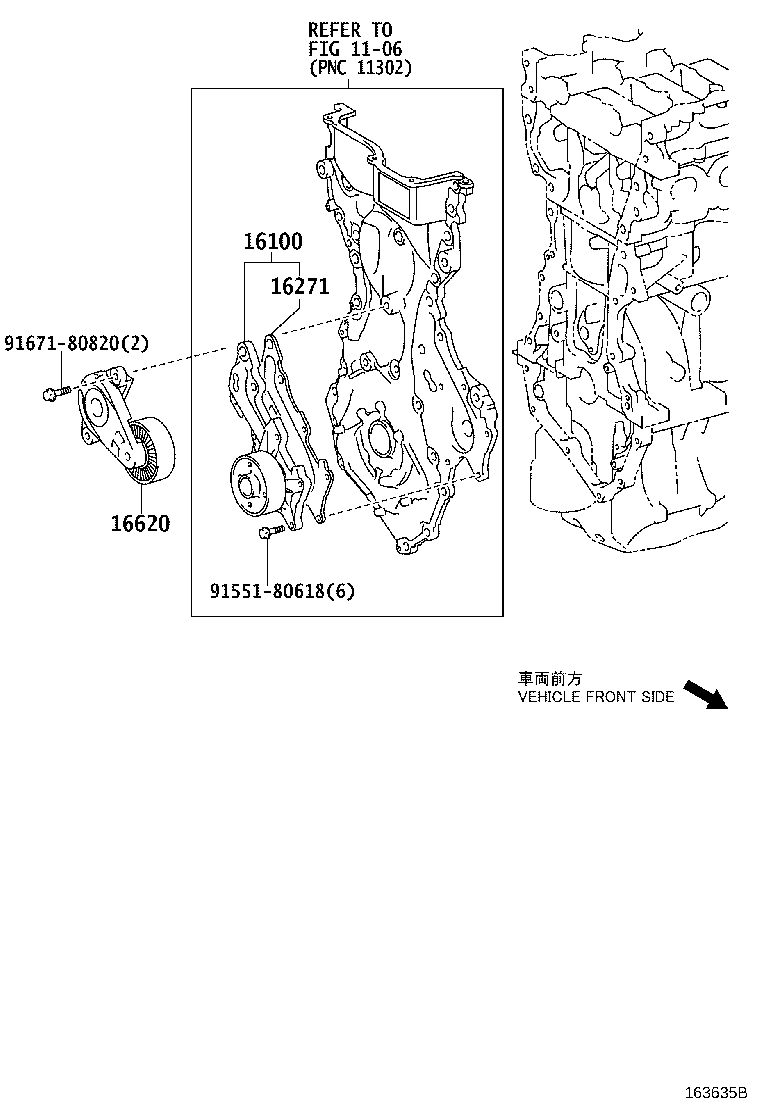

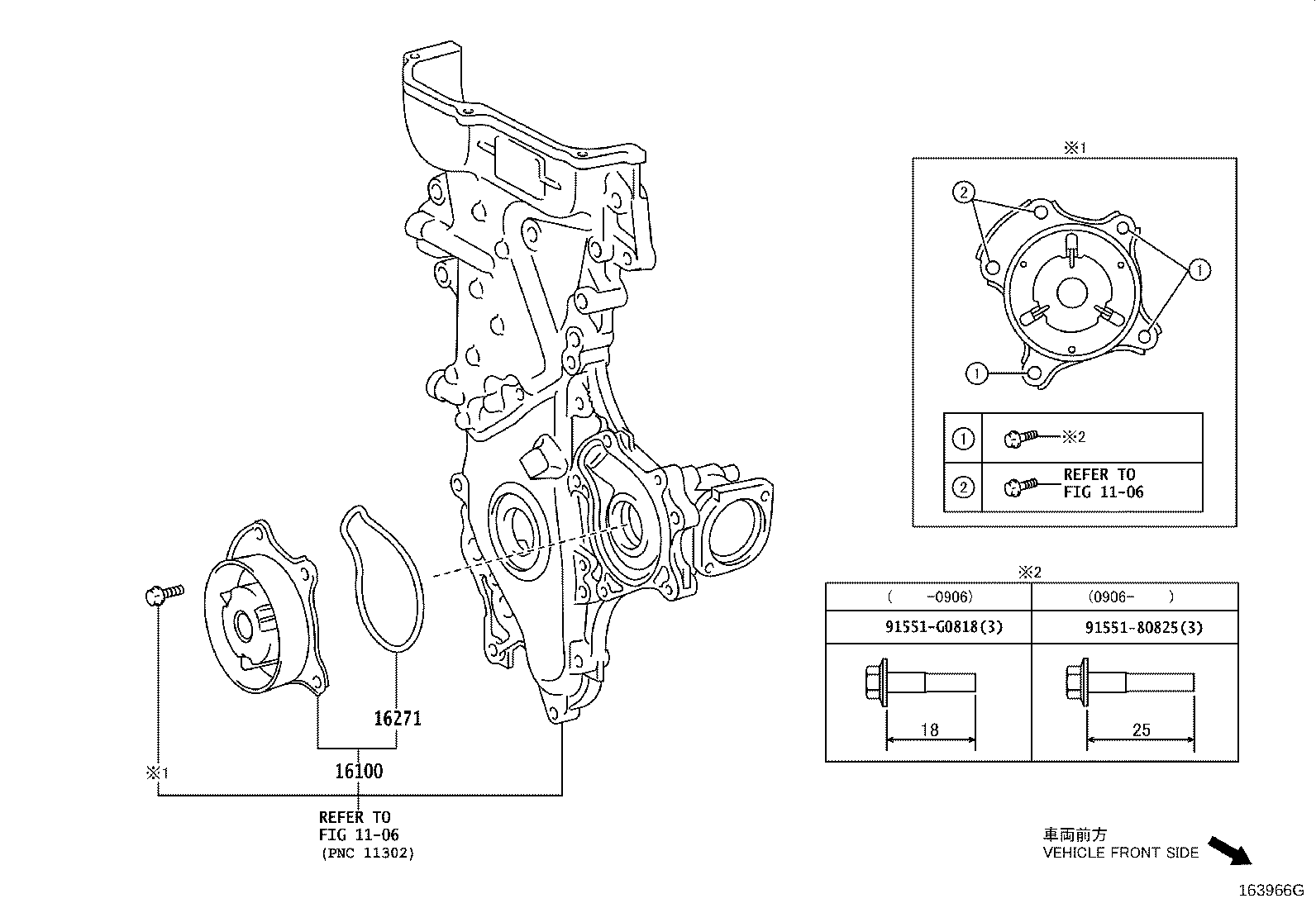

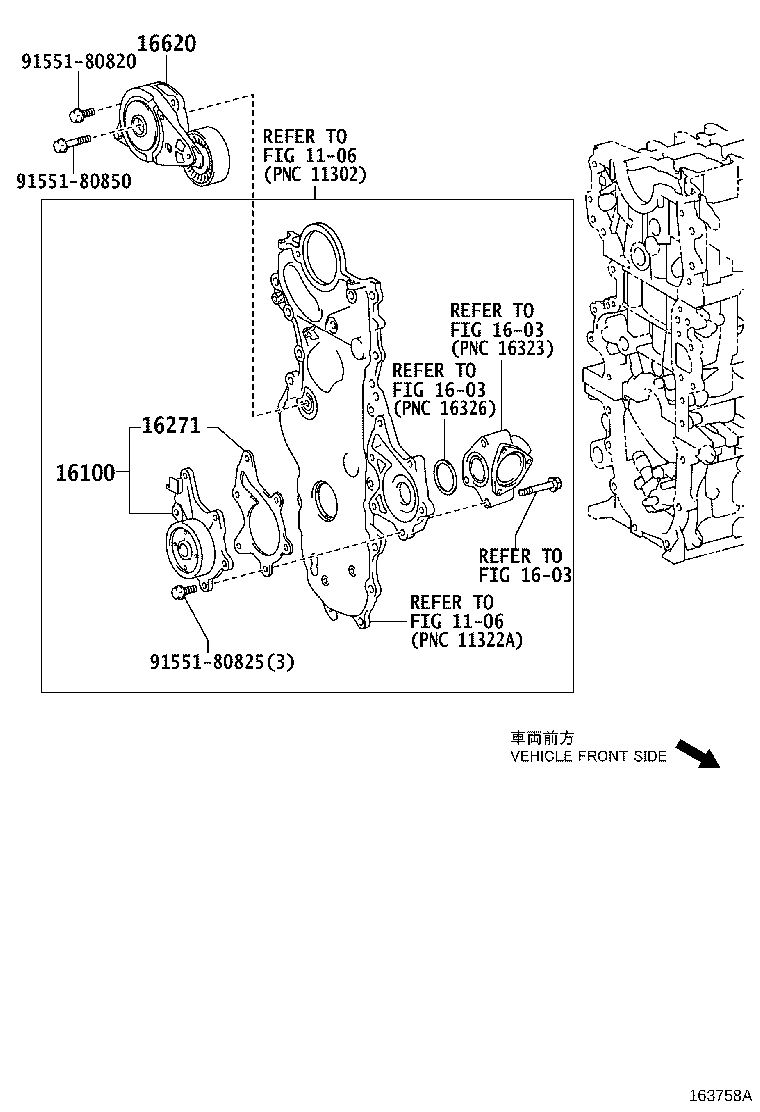

Figure 162939B 162939B 2006-10 → — Figure 162961A 162961A 2006-10 → 2008-12 Figure 163758A 163758A 2008-12 → — Figure 163635B 163635B 2008-09 → — Figure 163966G 163966G 2006-10 → — Figure 164165D 164165D 2006-10 → 2008-12

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100H Ring, O(FOR WATER PUMP)
16173 Pulley, Water Pump
16271 Gasket, Water Pump
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
