Toyota Auris/Corolla (JPP)

2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

16 part groups · 5 illustrations

Illustrations

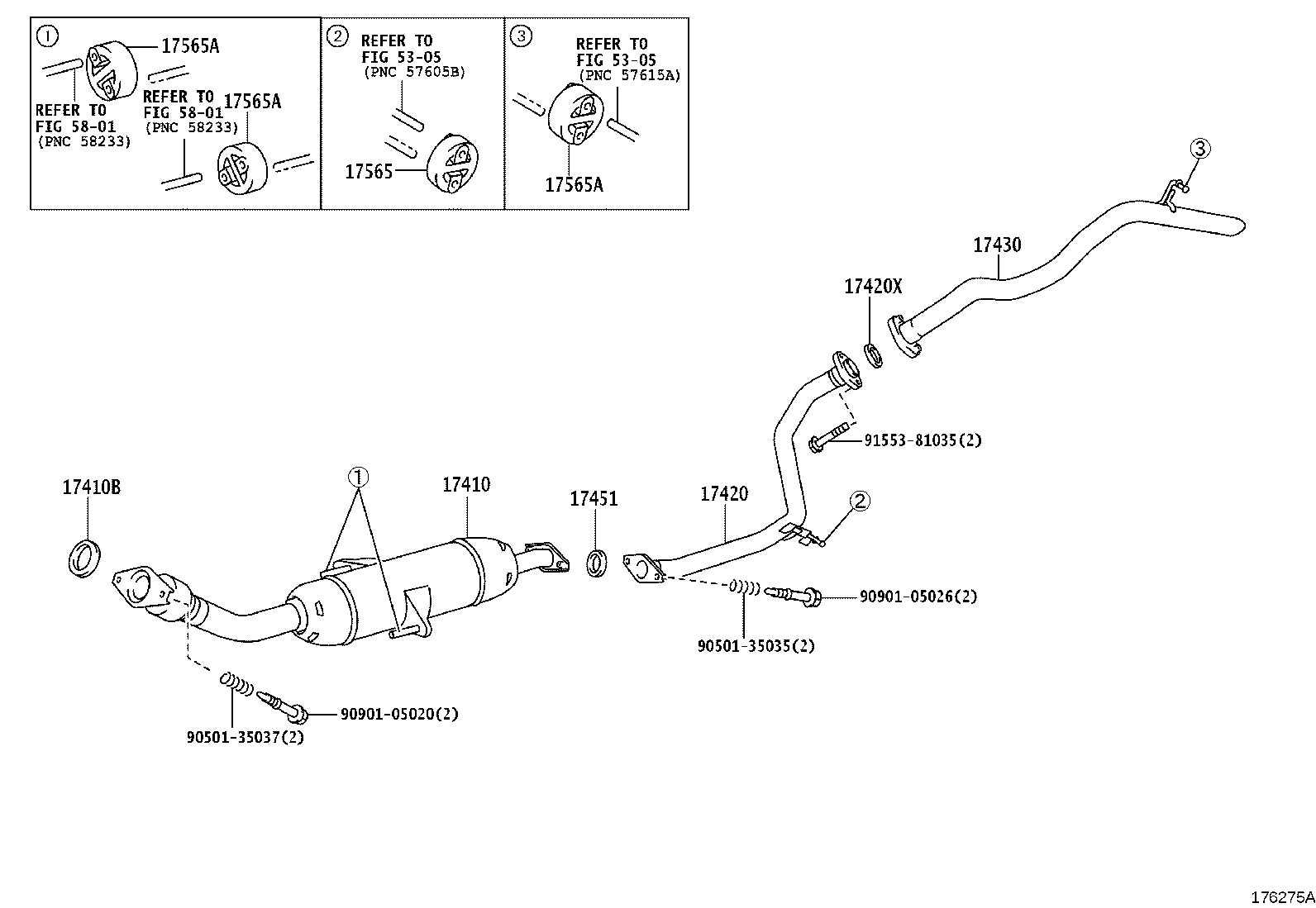

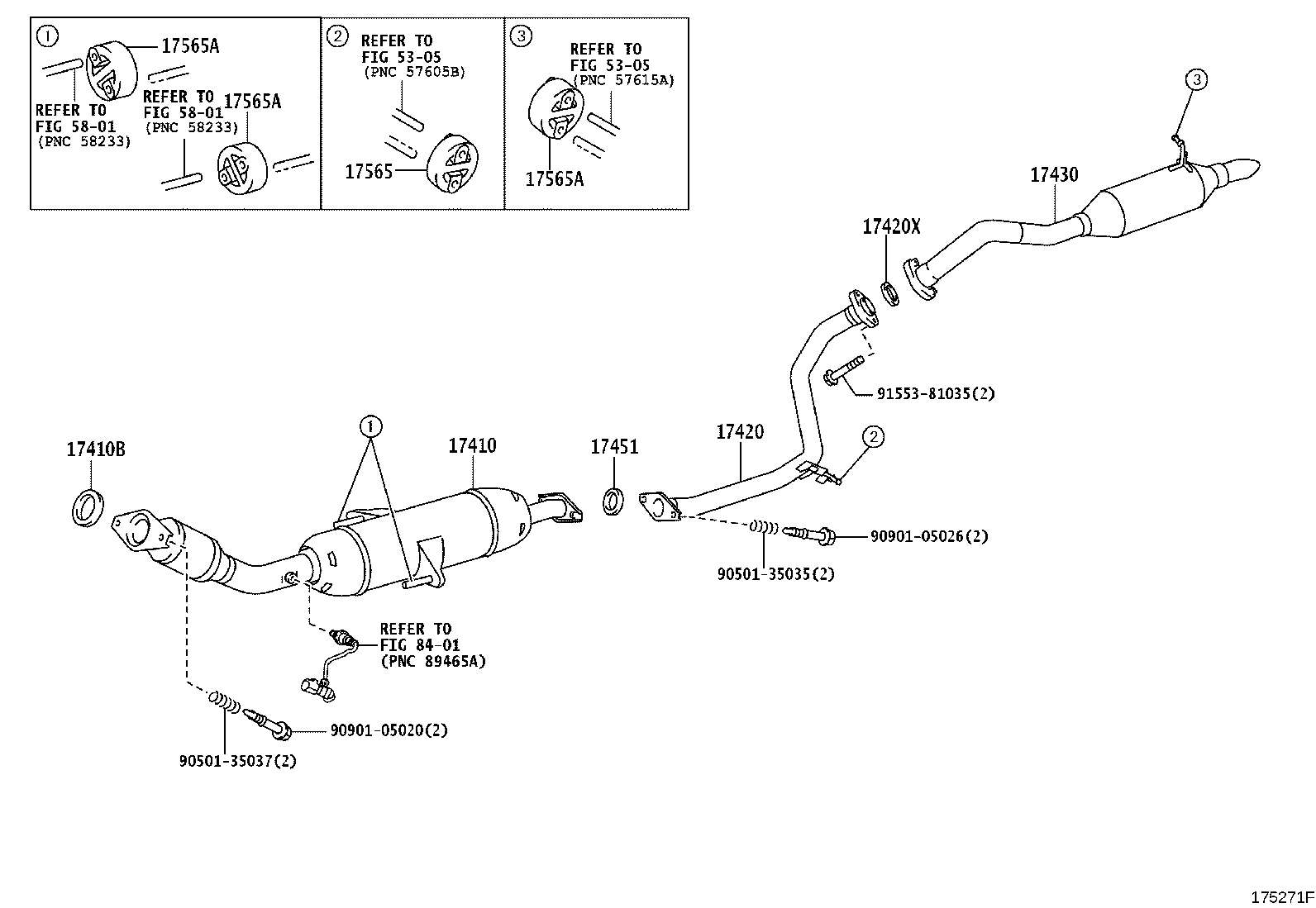

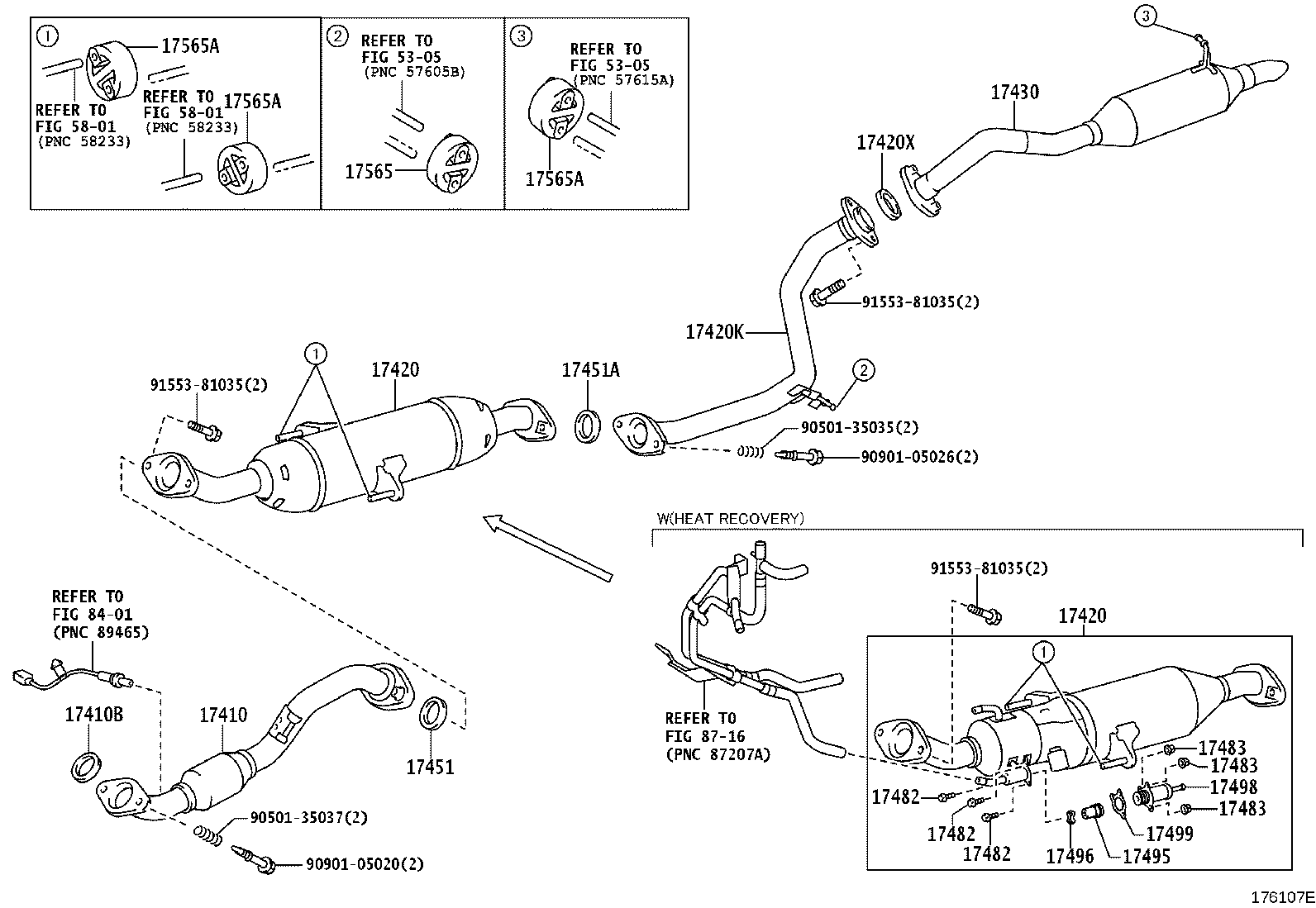

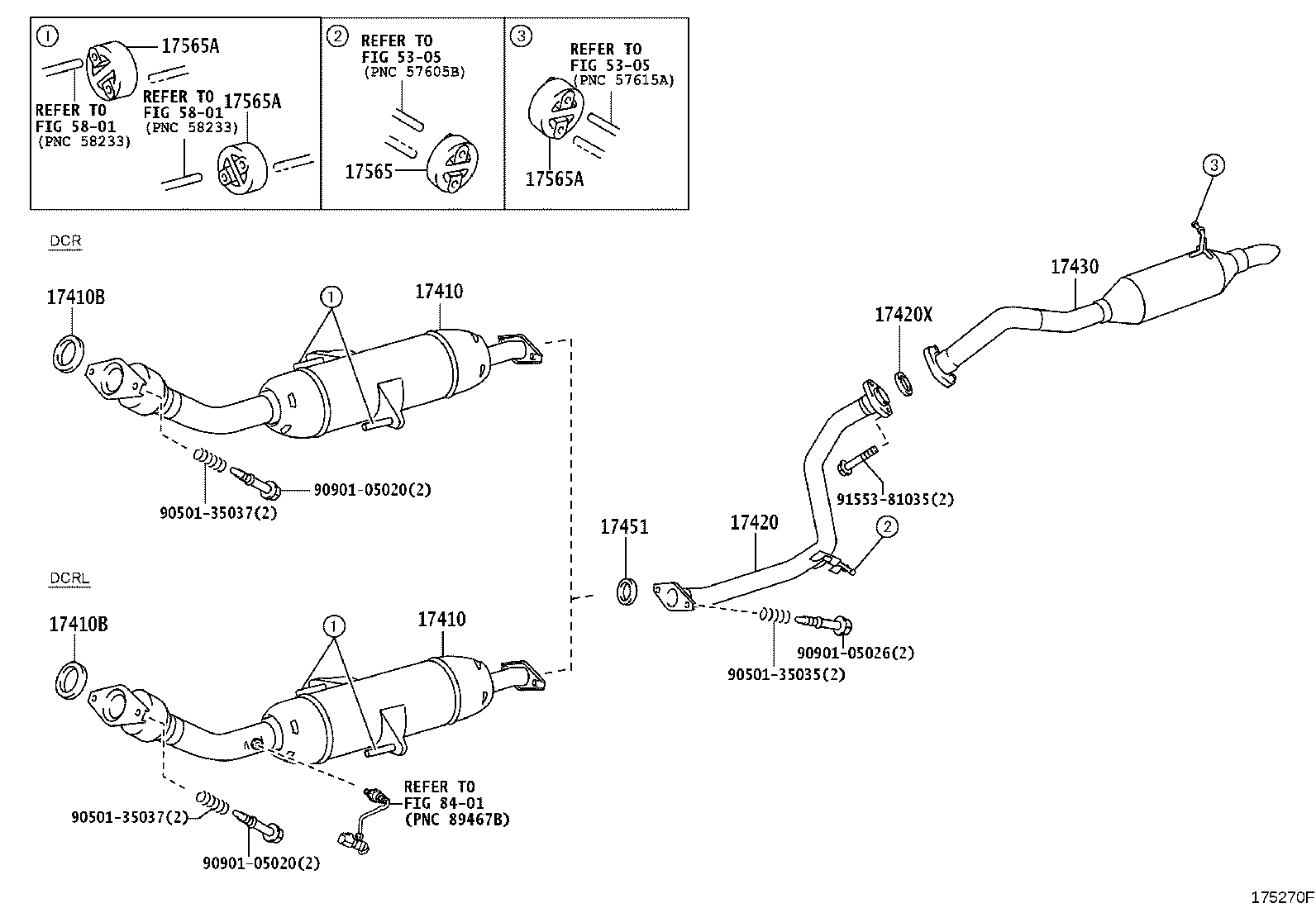

Figure 176276B 176276B 2006-10 → 2008-12 Figure 175270F 175270F 2006-10 → 2009-10 Figure 176275A 176275A 2006-10 → — Figure 175271F 175271F 2006-10 → — Figure 176107E 176107E 2008-09 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420K Pipe Assy, Exhaust, Center NO.2
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17482 Bolt, Exhaust Pipe Gas Control Actuator
17483 Nut, Exhaust Pipe Gas Control Actuator
17495 Actuator, Exhaust Pipe Gas Control
17496 Stopper, Exhaust Pipe Gas Control Actuator
17498 Case, Exhaust Pipe Gas Control Actuator
17499 Gasket, Exhaust Pipe Gas Control Actuator
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
