Toyota Auris/Corolla (JPP)

2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Pump & Actuator, Sequential OR Multi-mode Manual Transaxle

4 part groups · 2 illustrations

Illustrations

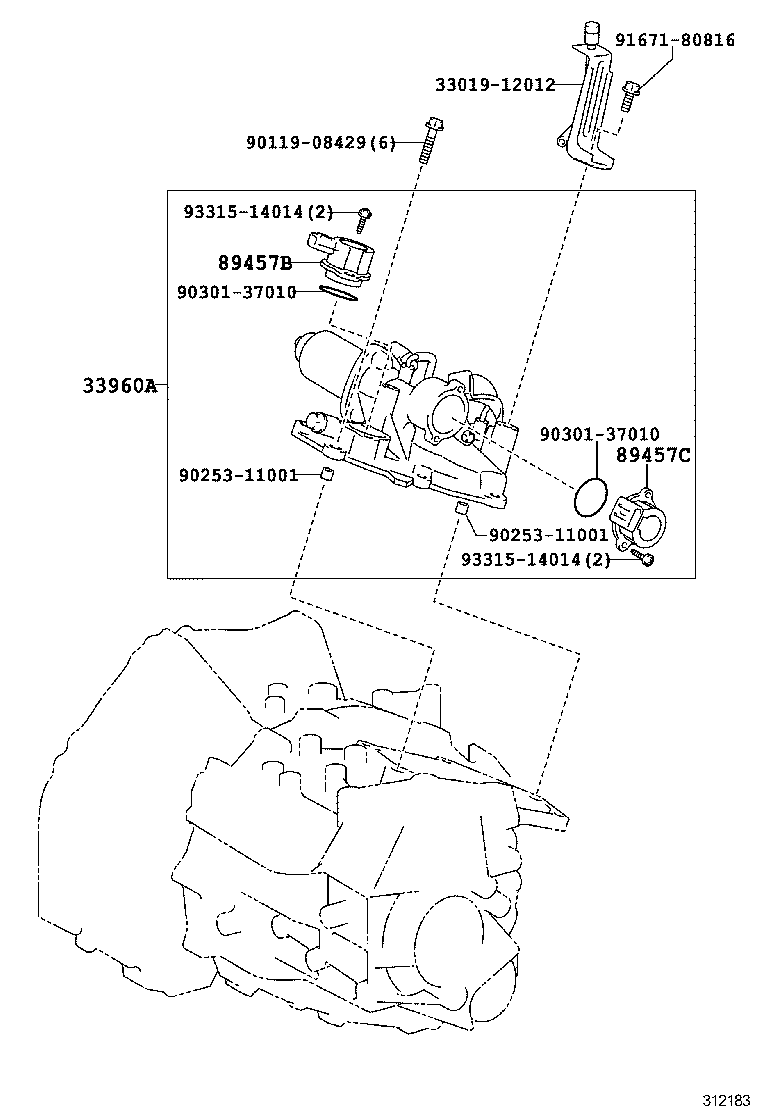

Figure 311769A 311769A 2006-10 → 2008-12 Figure 312183 312183 2008-12 → —

Part groups

PNCDescription
33960A Actuator Assy, Shift & Select
33960B Breather Plug, Shift & Select Actuator
89457B Stroke Sensor, Shift
89457C Stroke Sensor, Select
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
