Toyota Auris/Corolla (JPP)

2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

15 part groups · 5 illustrations

Illustrations

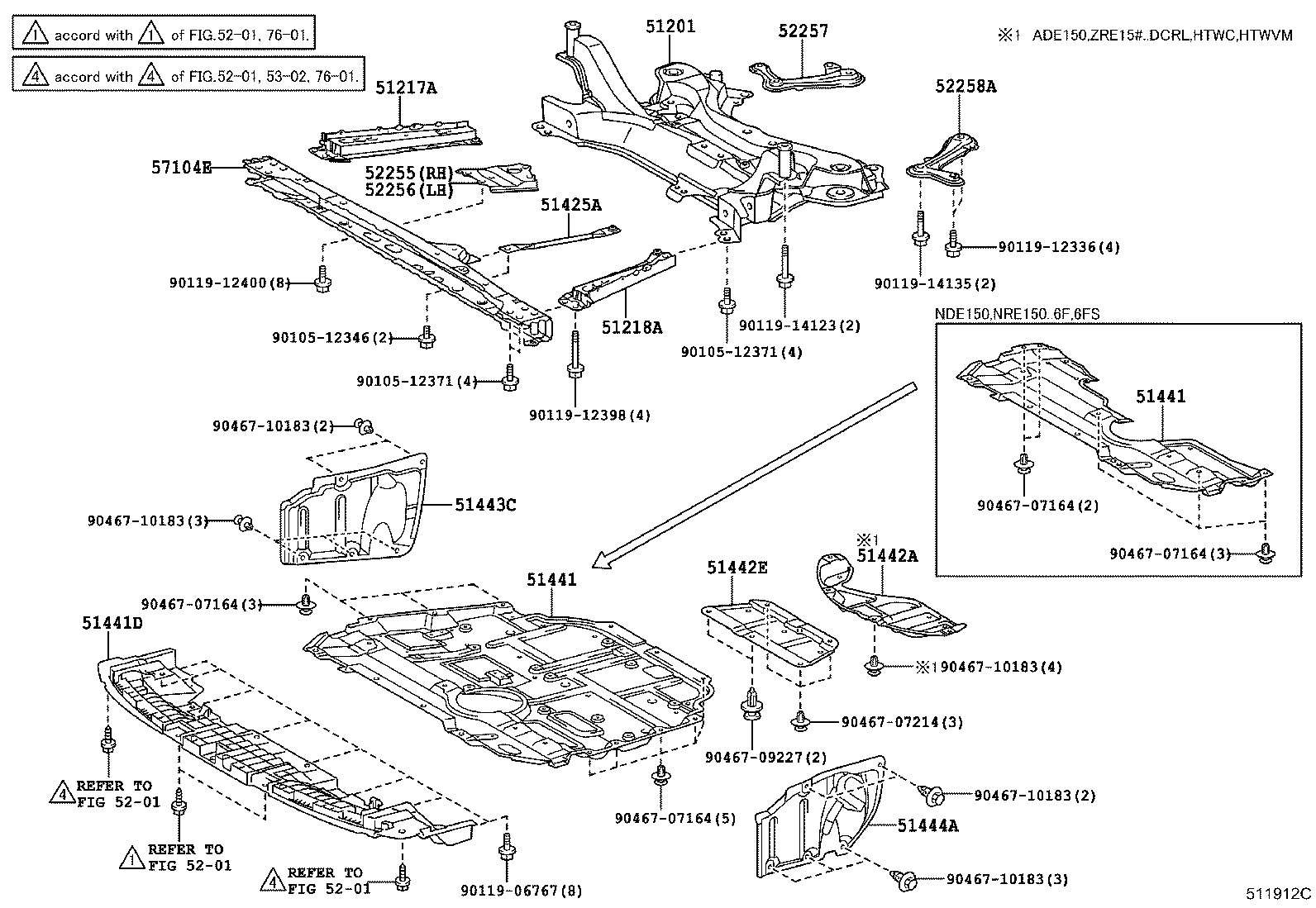

Figure 511627J 511627J 2006-10 → 2008-12 Figure 511627J 511627J 2006-10 → 2009-01 Figure 511912C 511912C 2008-09 → — Figure 511912C 511912C 2008-12 → — Figure 511912C 511912C 2009-01 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51217A Reinforcement, Front Suspension Member, RH
51218A Reinforcement, Front Suspension Member, LH
51425A Reinforcement, Engine Front Mounting Bracket, Lower
51441 Cover, Engine Under, NO.1
51441D Cover, Engine Under
51442A Cover, Engine Under, Front NO.3
51442E Cover, Engine Under, NO.2
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
52255 Brace, Front Suspension Member, Front RH
52256 Brace, Front Suspension Member, Front LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
57104E Member Sub-assy, Front Cross
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
