Toyota Auris/Corolla (JPP)

2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

17 part groups · 2 illustrations

Illustrations

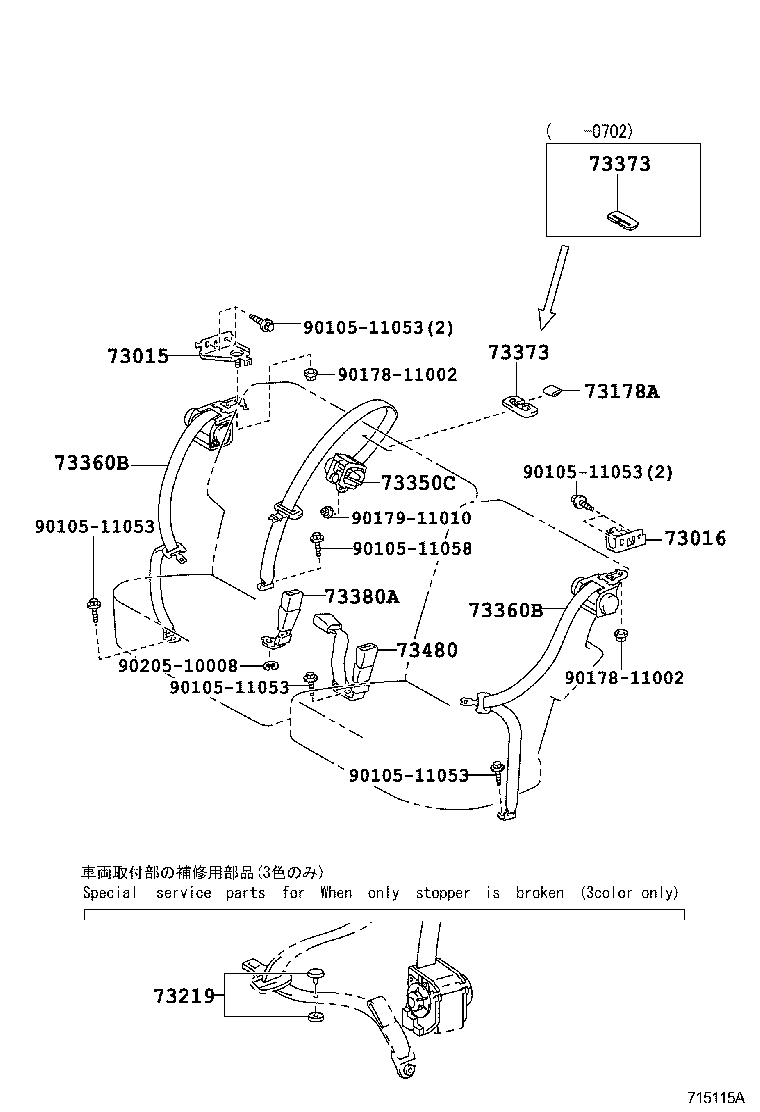

Figure 714761B 714761B 2006-10 → — Figure 715115A 715115A 2006-10 → —

Part groups

PNCDescription
73015 Bracket Sub-assy, Belt Outer Anchor, RH
73016 Bracket Sub-assy, Belt Outer Anchor, LH
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73350C Belt Assy, Rear Seat, Outer Center
73360B Belt Assy, Rear Seat, Outer
73373 Cover, Rear Seat Shoulder Belt
73380A Belt Assy, Rear Seat, Inner
73480 Belt Assy, Rear Seat Inner W/Center, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
