Toyota Auris/Corolla (JPP)

2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

52 part groups · 10 illustrations

Illustrations

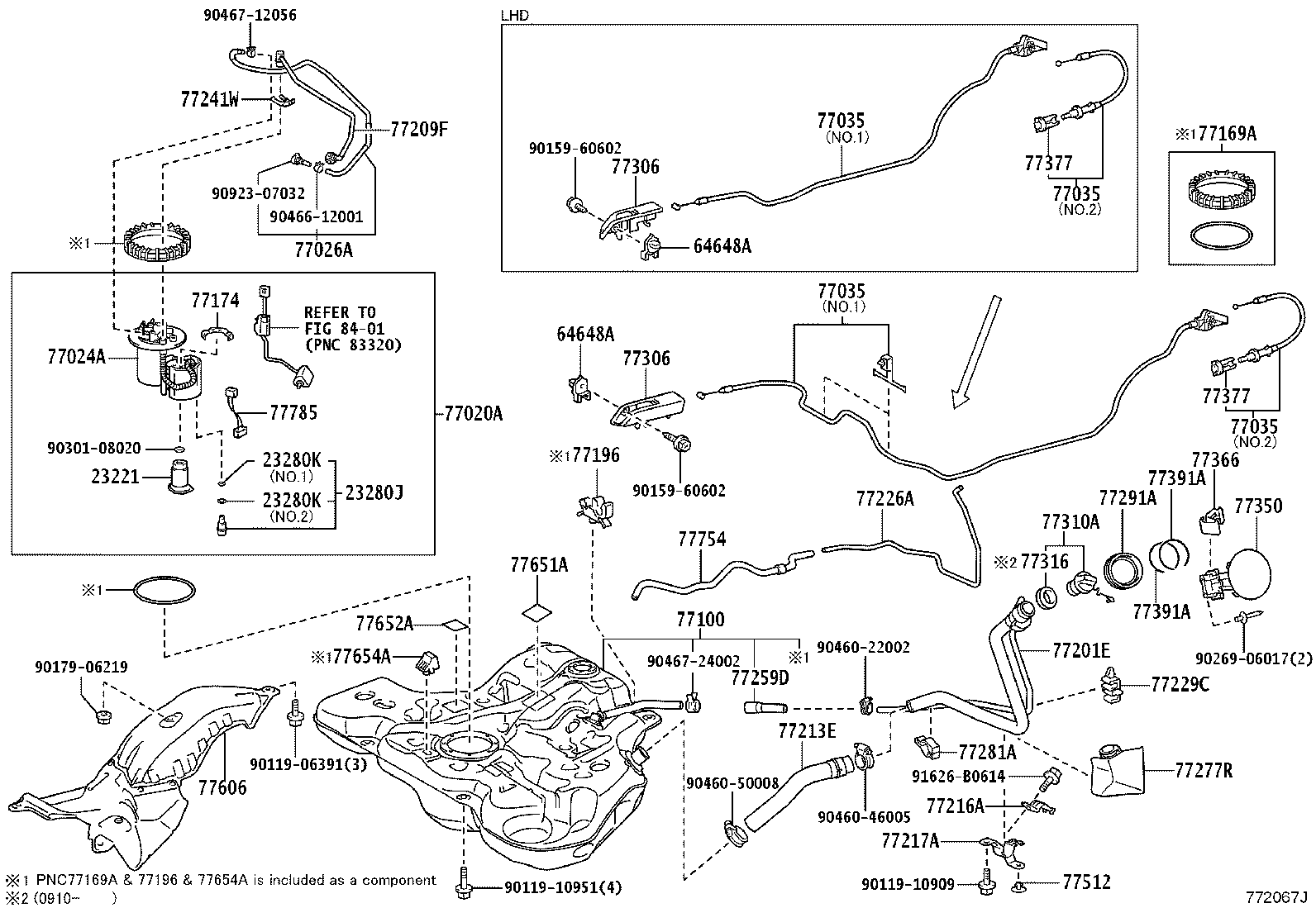

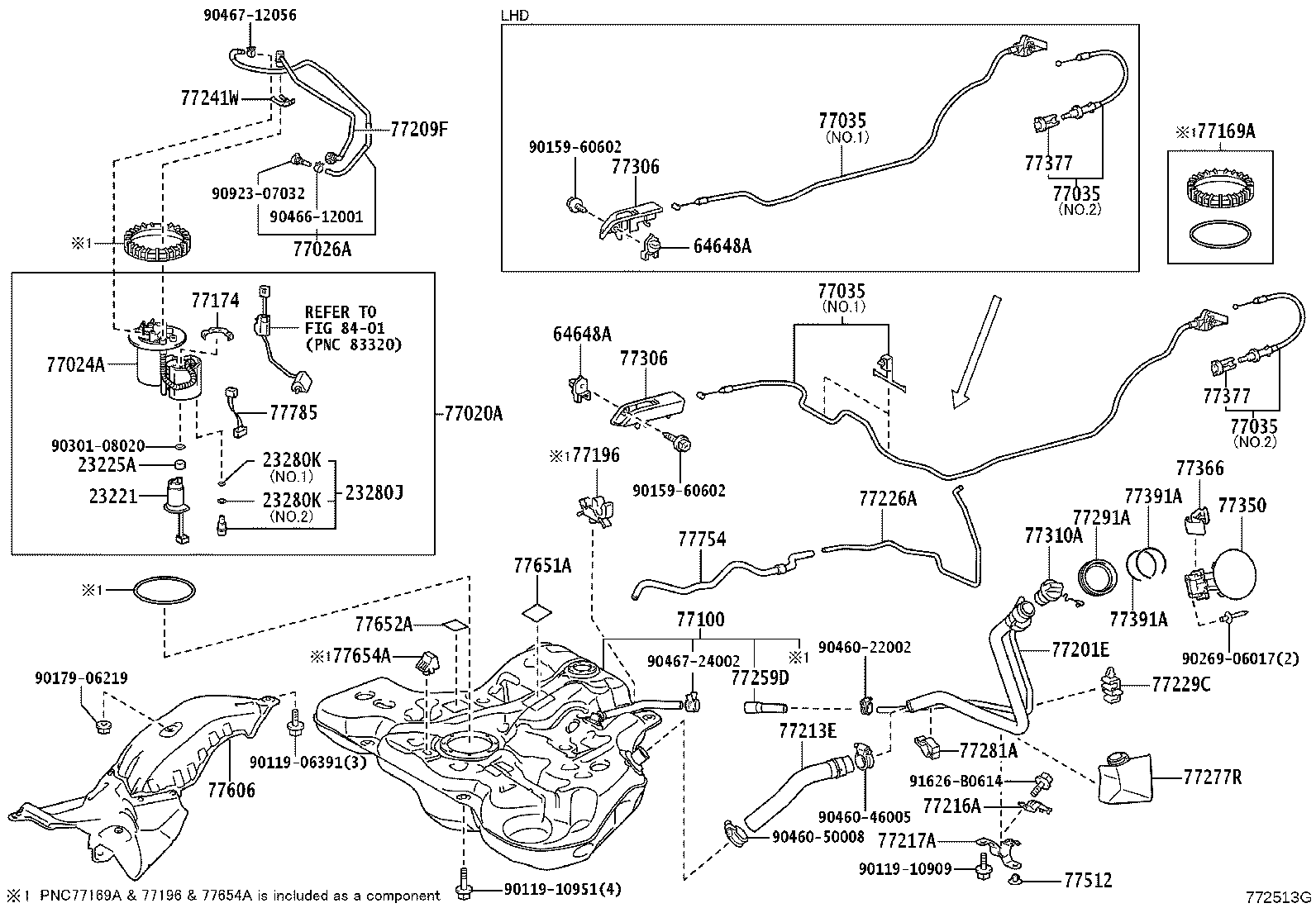

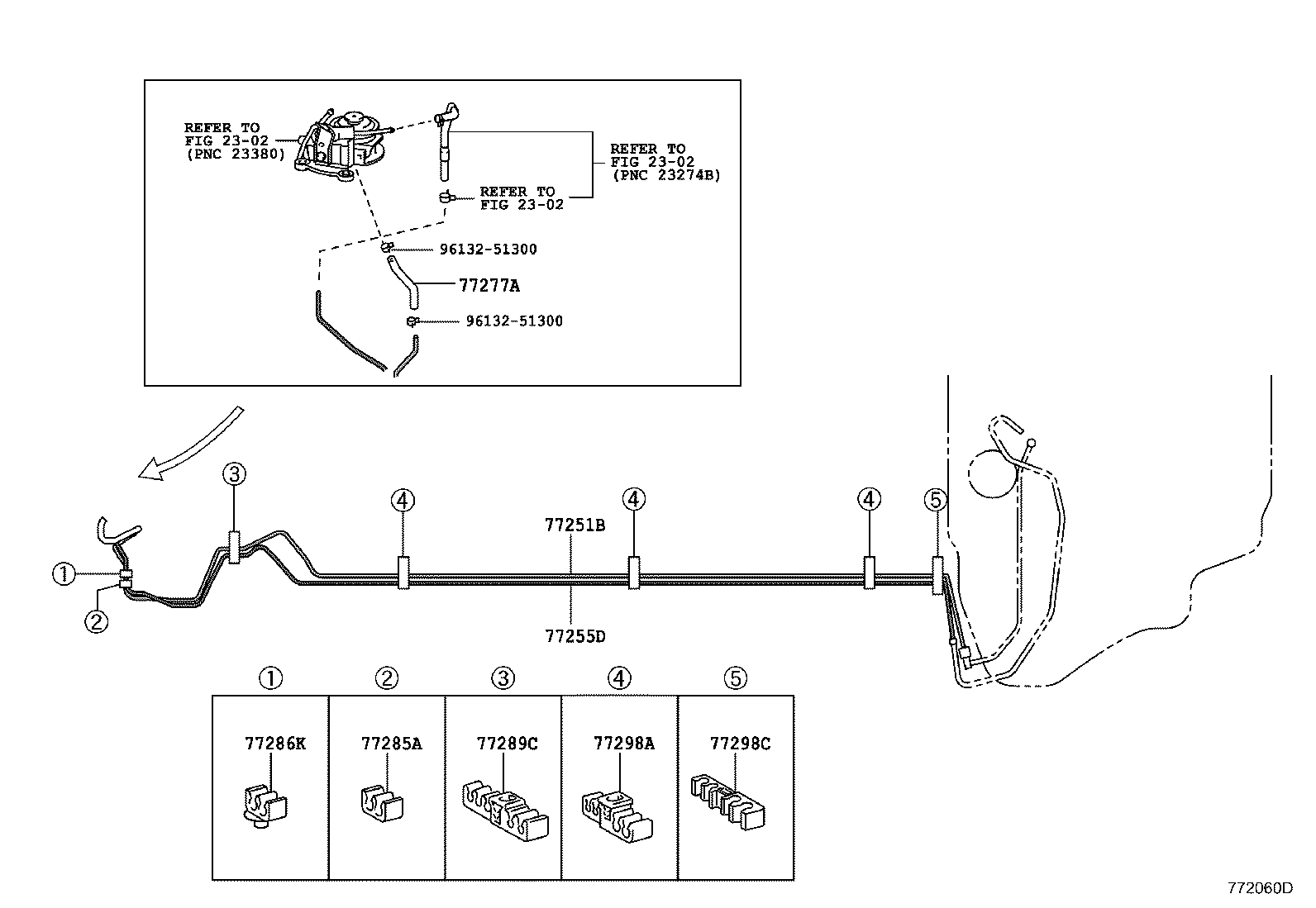

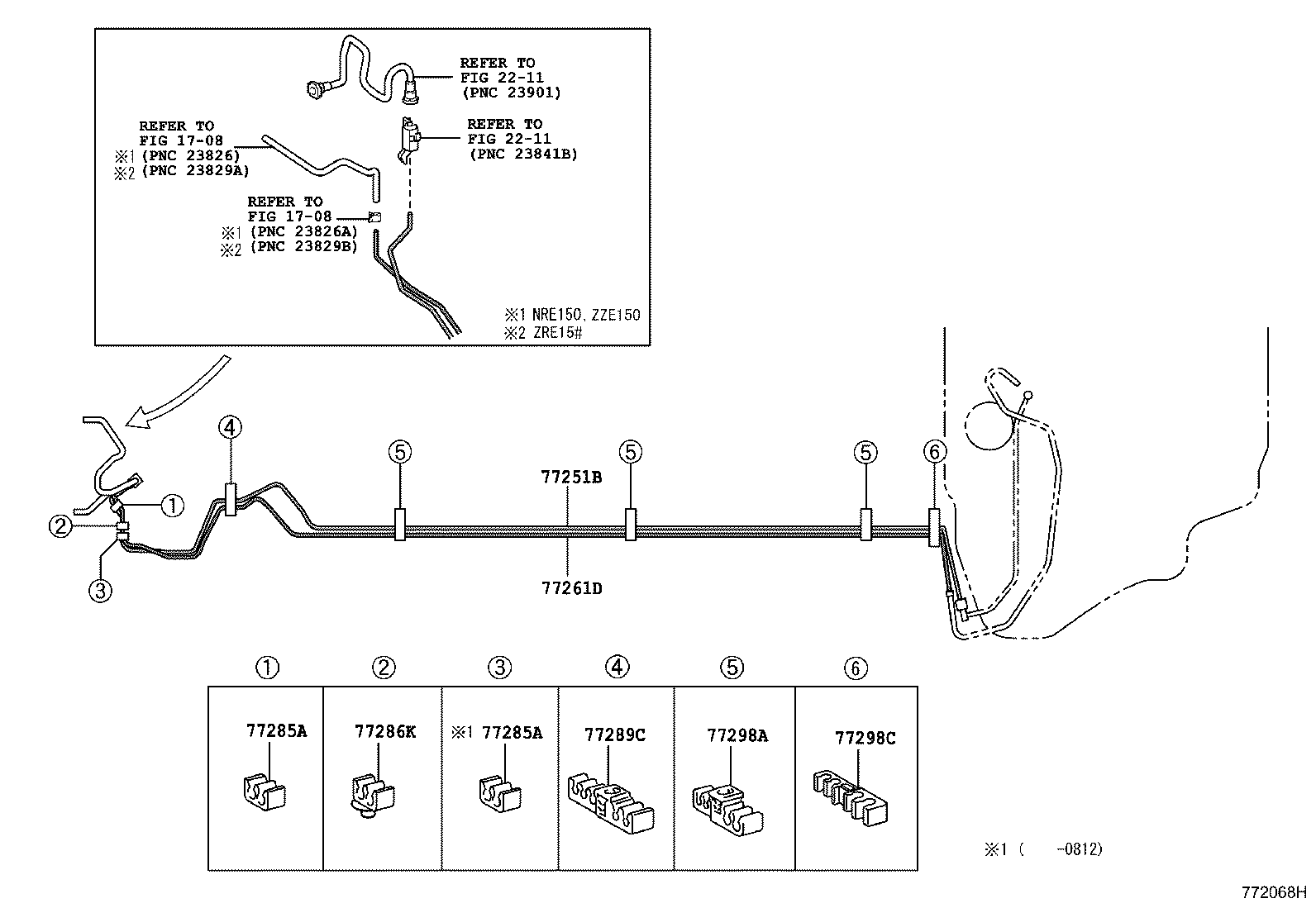

Figure 772058I 772058I 2006-10 → 2009-10 Figure 772058I 772058I 2006-10 → — Figure 772067J 772067J 2006-10 → 2008-12 Figure 772067J 772067J 2006-10 → — Figure 772513G 772513G 2008-09 → 2009-10 Figure 772060D 772060D 2006-10 → 2009-10 Figure 772060D 772060D 2006-10 → — Figure 772068H 772068H 2006-10 → 2008-12 Figure 772068H 772068H 2006-10 → 2009-10 Figure 772068H 772068H 2006-10 → —

Part groups

PNCDescription
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23280J Regulator Assy, Fuel Pressure
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
64648A Grommet, Luggage Door Lock Opener
77017B Tube Sub-assy, Fuel Tank Vent
77020A Tube Assy, Fuel Suction W/Pump & Gage
77023D Filter Sub-assy, Fuel Suction Tube
77024A Plate Sub-assy, Fuel Suction
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77169A Gasket, Fuel Suction Tube Set
77174 Support, Fuel Suction, NO.1
77196 Clamp, Evaporation Vent Tube, NO.1
77201E Pipe Sub-assy, Fuel Tank Filler
77207A Tube Sub-assy, Fuel Return
77209F Tube Sub-assy, Fuel Tank Main
77213E Hose, Fuel Tank TO Filler Pipe
77216A Support, Fuel Tank Filler Pipe, NO.1
77217A Support, Fuel Tank Filler Pipe, NO.2
77226A Tube, Fuel Tank Breather, NO.6
77229C Clamp, Breather Tube
77241W Clip, Tube Joint
77251B Tube, Fuel Main
77255D Tube, Fuel Return
77259D Hose, Fuel, NO.1
77261D Tube, Fuel Tank TO Canister
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277R Protector, Fuel Tank Filler Pipe
77281A Clamp, Fuel Filler Pipe
77285A Support, Fuel Return And Main Tube
77286K Clamp, Fuel Tube, NO.2
77289C Clamp, Fuel Tube, NO.4
77291A Shield, Fuel Tank Filler Pipe
77298A Clamp, Fuel Tube, NO.4
77298C Clamp, Fuel Tube, NO.4
77299A Clamp, Fuel Tube, NO.5
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77391A Ring, Fuel Inlet Box
77512 Bracket, Fuel Tank, Rear
77606 Protector Sub-assy, Fuel Tank, NO.1
77651A Cushion, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77654A Cushion, Fuel Tank, NO.4
77754 Hose, Charcoal Canister Outlet, NO.1
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
