Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

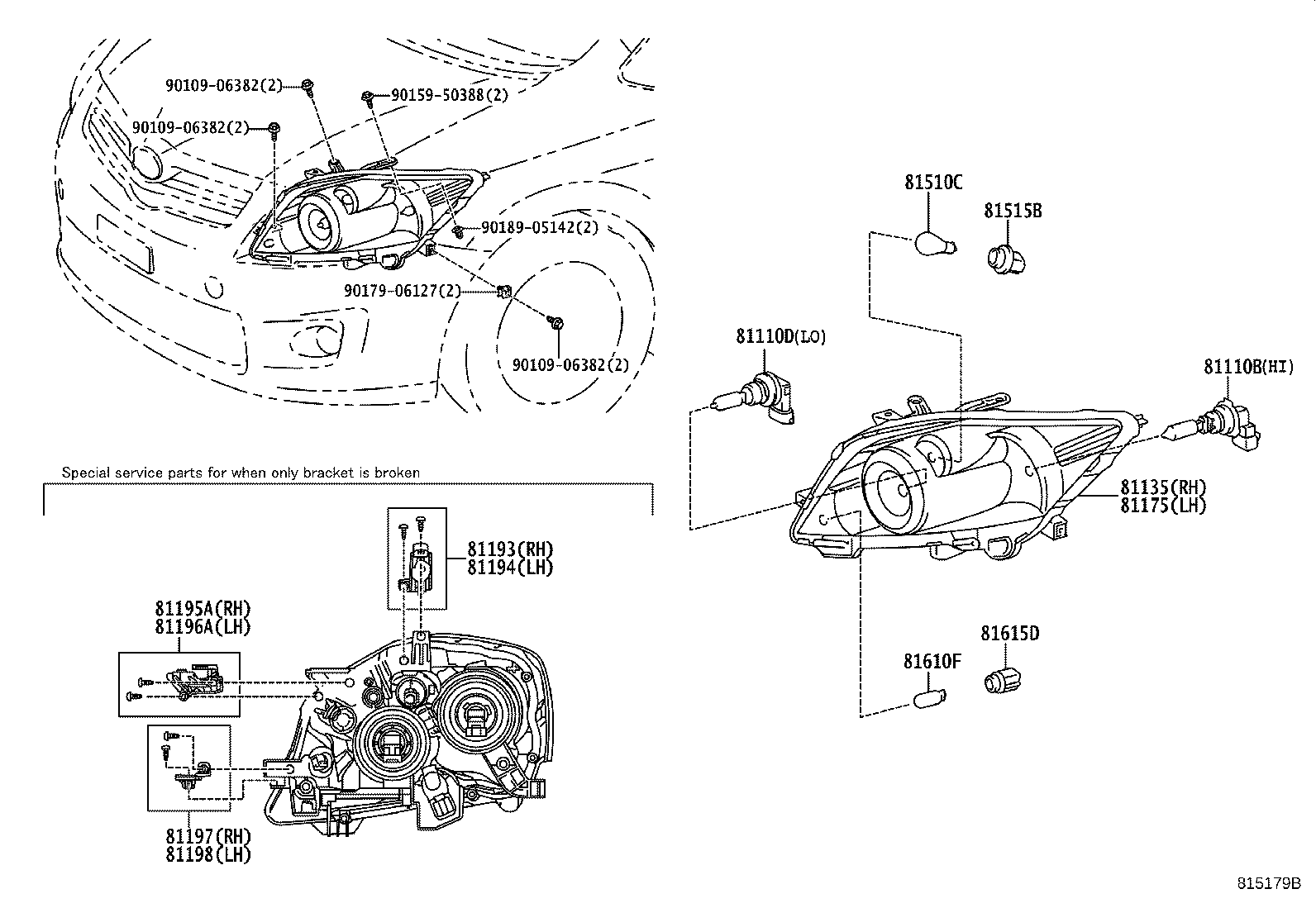

Headlamp
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81110L | Bulb, Discharge Headlamp |
| 81116C | Bracket, Headlamp, RH |
| 81118A | Bracket, Headlamp, RH |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81135C | Cover, Headlamp Back, NO.1 |
| 81156A | Bracket, Headlamp, LH |
| 81158 | Bracket, Headlamp, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81197 | Bracket, Headlamp, Lower RH |
| 81198 | Bracket, Headlamp, Lwr LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
