Toyota Auris/Corolla (JPP)

2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

9 part groups · 4 illustrations

Illustrations

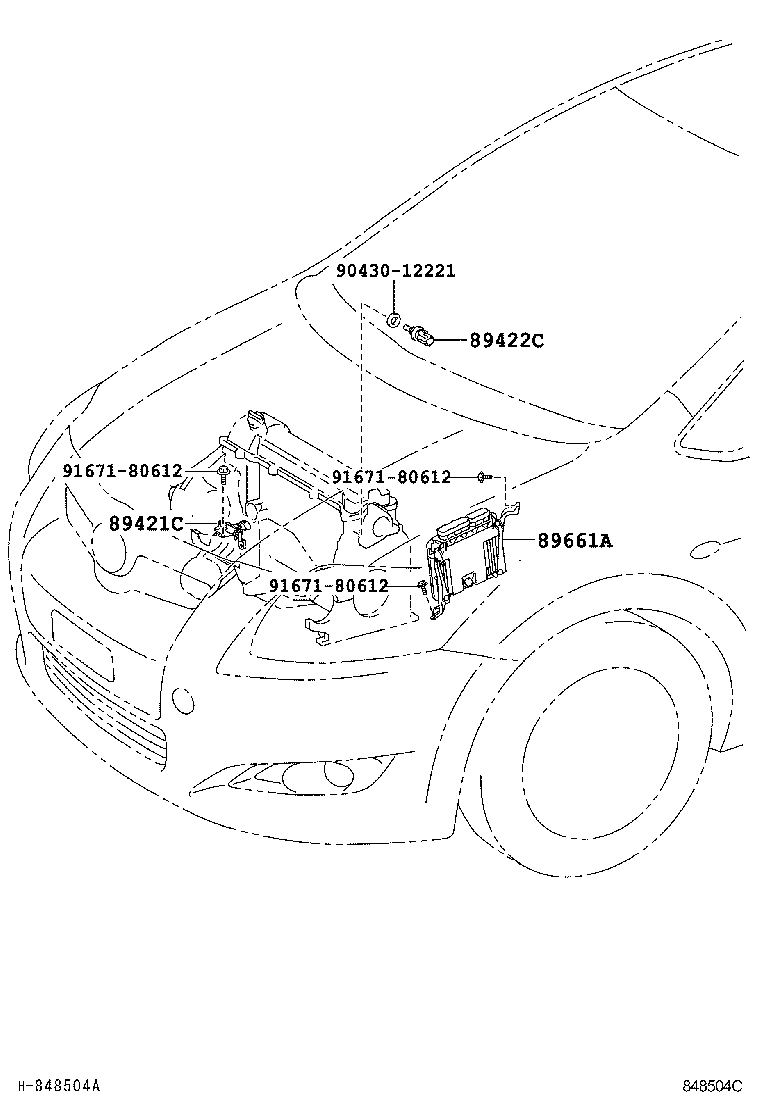

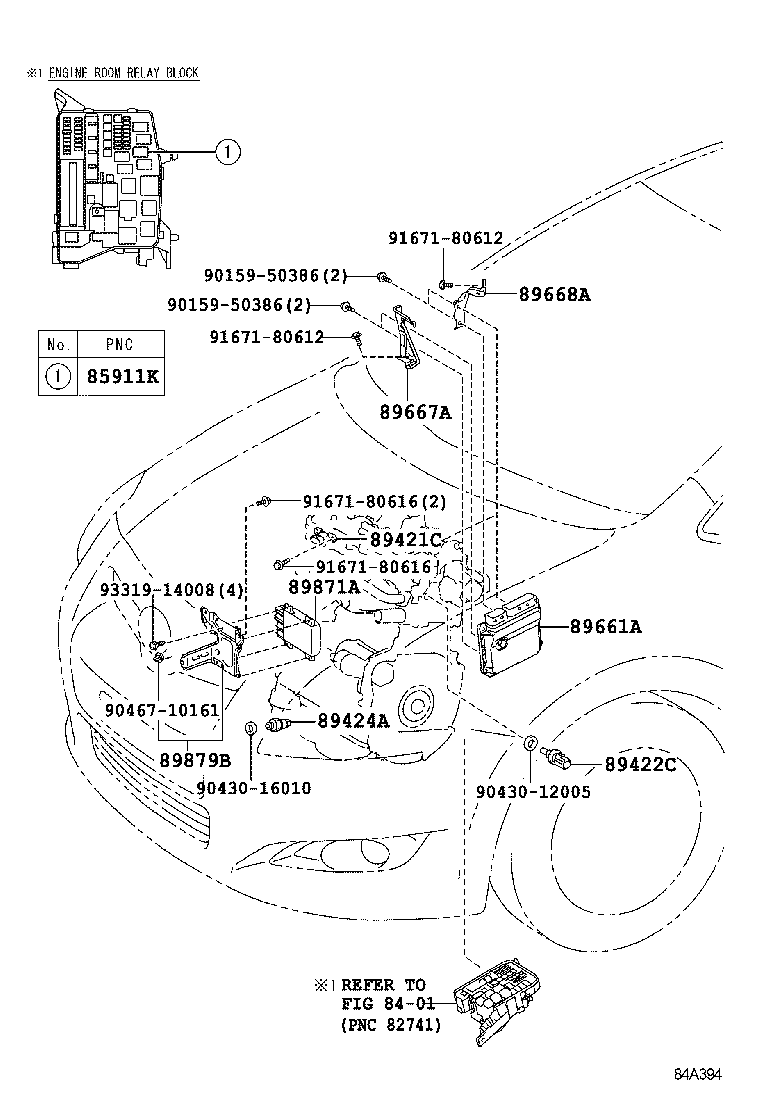

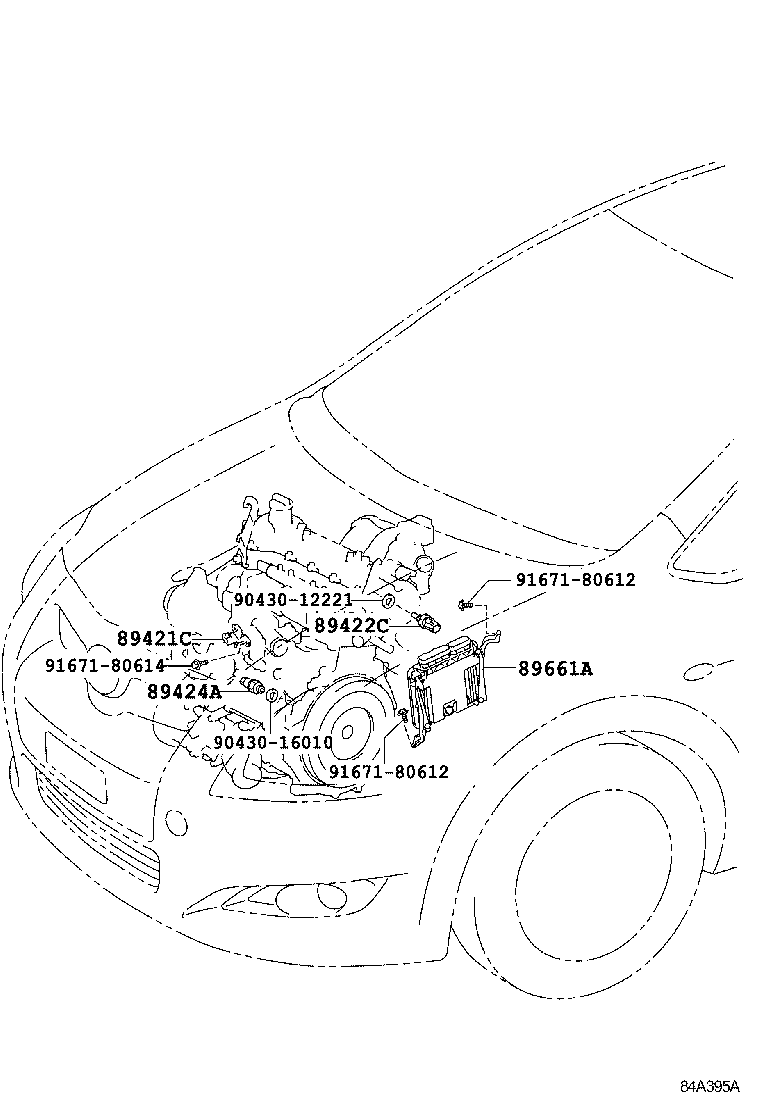

Figure 848503A 848503A 2006-10 → 2009-01 Figure 84A394 84A394 2009-01 → 2009-10 Figure 848504C 848504C 2006-10 → 2008-12 Figure 84A395A 84A395A 2008-12 → —

Part groups

PNCDescription
85911K Relay, Heater(FOR AIR FUEL RATIO SENSOR)
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89422C Sensor, Diesel Engine Water Temperature
89424A Sensor, Inlet Air Temperature (FOR DIESEL TURBO)
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89871A Driver, Injector
89879B Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
