Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

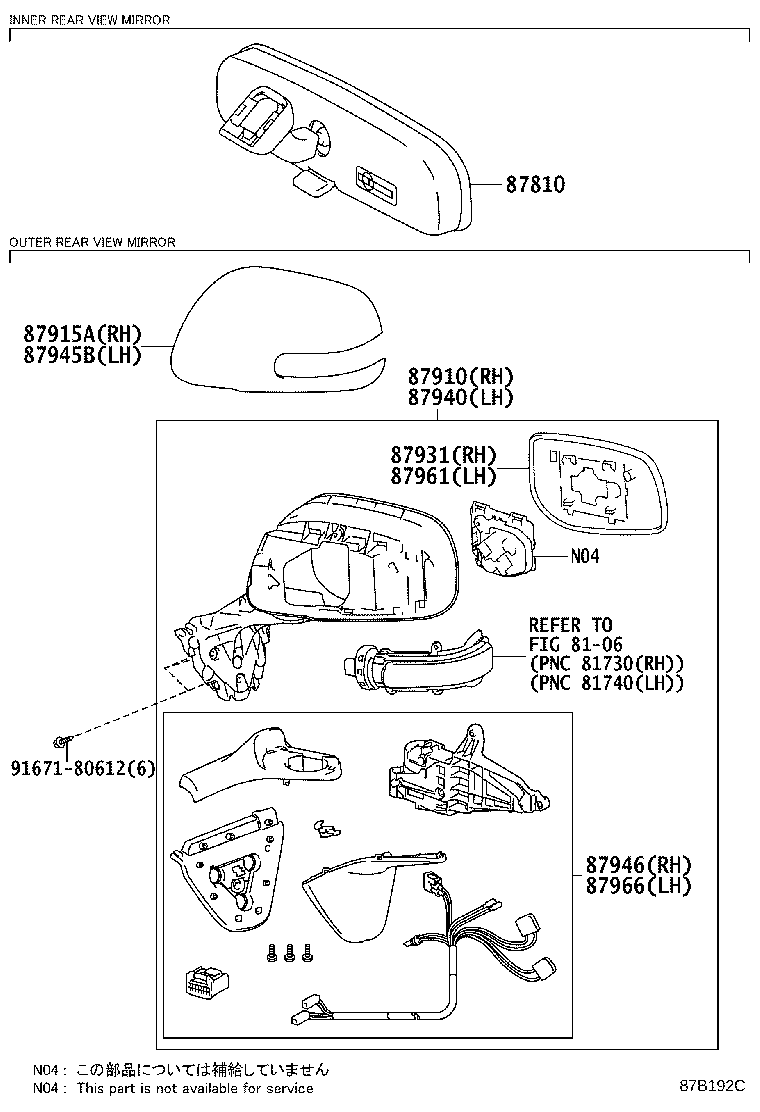

Mirror
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915A | Cover, Outer Mirror, RH |
| 87931 | Outer Mirror, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945B | Cover, Outer Mirror, LH |
| 87946 | Retractor, Outer Mirror, RH |
| 87961 | Mirror Outer, LH |
| 87966 | Retractor, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
