Toyota Corolla (UKP)
2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe
Supported model
Data version 2022-12

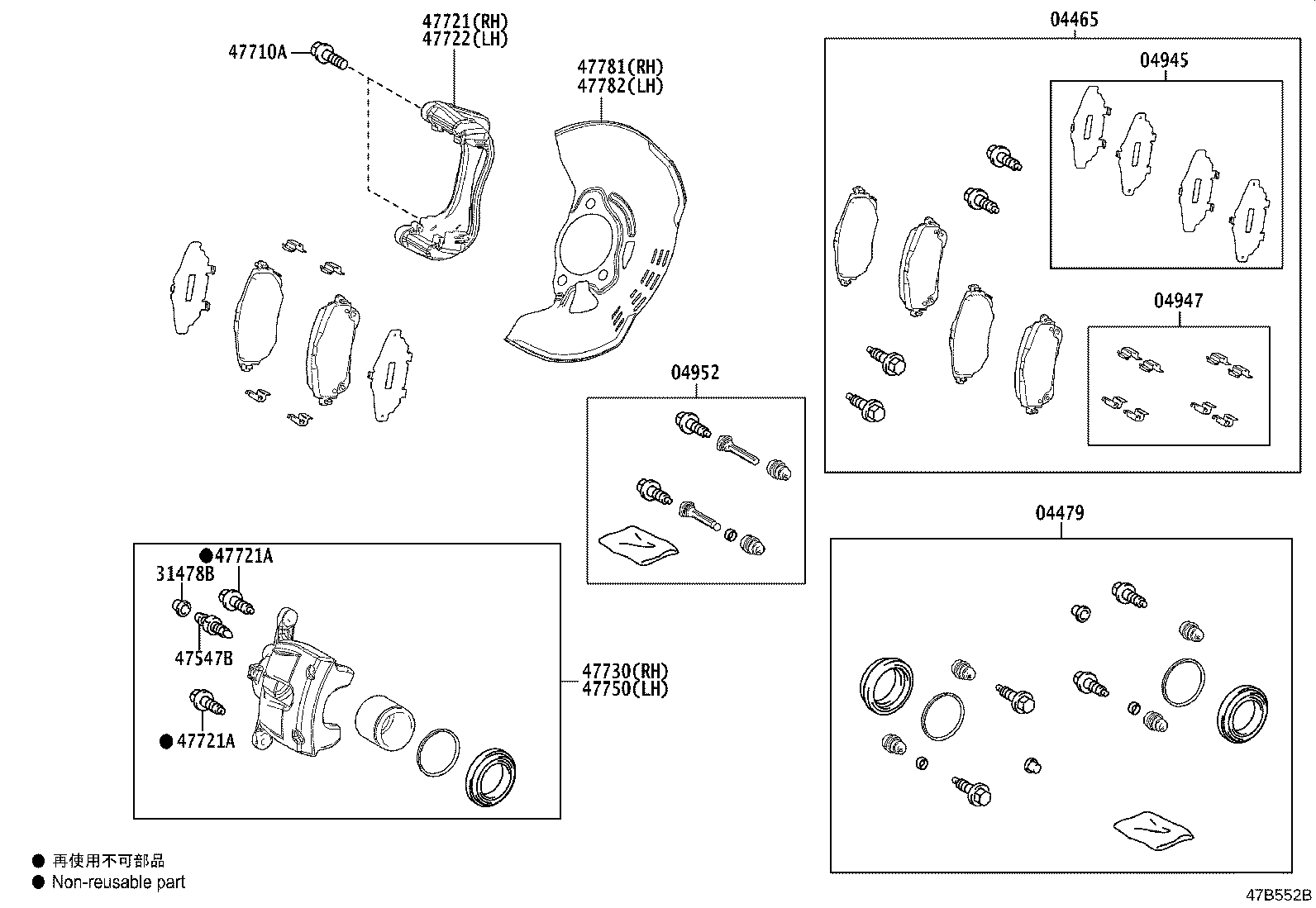

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04465 — Pad Kit, Disc Brake, Front | ||||
| 04465-02470 note |
Pad Kit, Disc Brake, Front
2019-01 → —
|
NRE210,ZWE211 | — | |
| 04465-F4010 note |
Pad Kit, Disc Brake, Front
2019-02 → —
|
MZEH12 | — | |
| 04465-02470 note |
Pad Kit, Disc Brake, Front
2023-01 → —
|
ZWE219 | — | |
| 04465-F4010 note |
Pad Kit, Disc Brake, Front
2023-01 → —
|
MZEH19 | — | |
| 04479 — Cylinder Kit, Disc Brake, Front | ||||
| 04478-02380 |
Cylinder Kit, Disc Brake, Front
2019-01 → —
|
NRE210,ZWE211 | — | |
| 04478-F4010 |
Cylinder Kit, Disc Brake, Front
2019-02 → —
|
MZEH12 | — | |
| 04478-02380 |
Cylinder Kit, Disc Brake, Front
2023-01 → —
|
ZWE219 | — | |
| 04478-F4010 |
Cylinder Kit, Disc Brake, Front
2023-01 → —
|
MZEH19 | — | |
| 04945 — Shim Kit, Anti Squeal, Front | ||||
| 04945-02240 |
Shim Kit, Anti Squeal, Front
2019-01 → —
|
NRE210,ZWE211 | — | |
| 04945-F4010 |
Shim Kit, Anti Squeal, Front
2019-02 → 2020-10
ended
|
MZEH12 | — | |
| 04945-F4030 |
Shim Kit, Anti Squeal, Front
2020-10 → —
|
MZEH12 | — | |
| 04945-02240 |
Shim Kit, Anti Squeal, Front
2023-01 → —
|
ZWE219 | — | |
| 04945-F4030 |
Shim Kit, Anti Squeal, Front
2023-01 → —
|
MZEH19 | — | |
| 04947 — Fitting Kit, Disc Brake, Front | ||||
| 04947-02140 |
Fitting Kit, Disc Brake, Front
2019-01 → —
|
MZEH12,NRE210,ZWE211 | — | |
| 04947-02140 |
Fitting Kit, Disc Brake, Front
2023-01 → —
|
MZEH19,ZWE219 | — | |
| 04952 — Pin Kit, Front Disc Brake Cylinder Slide | ||||
| 04952-02221 |
Pin Kit, Front Disc Brake Cylinder Slide
2019-02 → —
|
MZEH12 | — | |
| 04952-02311 |
Pin Kit, Front Disc Brake Cylinder Slide
2019-01 → —
|
NRE210,ZWE211 | — | |
| 04952-02221 |
Pin Kit, Front Disc Brake Cylinder Slide
2023-01 → —
|
MZEH19 | — | |
| 04952-02311 |
Pin Kit, Front Disc Brake Cylinder Slide
2023-01 → —
|
ZWE219 | — | |
| 31478B — Cap, Bleeder Plug(FOR FRONT DISC BRAKE) | ||||
| 90069-39026 |
Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2019-01 → —
|
MZEH12,NRE210,ZWE211 | — | |
| 90069-39026 |
Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2023-01 → 2024-01
ended
|
MZEH19 | — | |
| 90069-39026 |
Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2023-01 → —
|
ZWE219 | — | |
| 90069-39033 |
Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2024-01 → —
|
MZEH19 | — | |
| 47547B — Plug, Bleeder(FOR FRONT DISC BRAKE) | ||||
| 90069-39025 |
Plug, Bleeder(FOR FRONT DISC BRAKE)
2019-01 → —
|
MZEH12,NRE210,ZWE211 | — | |
| 90069-39025 |
Plug, Bleeder(FOR FRONT DISC BRAKE)
2023-01 → —
|
MZEH19,ZWE219 | — | |
| 47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-W0121 note |
Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2019-01 → —
|
MZEH12,NRE210,ZWE211 | — | |
| 90105-W0121 note |
Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2023-01 → —
|
MZEH19,ZWE219 | — | |
| 47721 — Mounting, Front Disc Brake Cylinder, RH | ||||
| 47721-09570 |
Mounting, Front Disc Brake Cylinder, RH
2019-01 → —
|
NRE210,ZWE211 | — | |
| 47721-F9010 |
Mounting, Front Disc Brake Cylinder, RH
2019-02 → —
|
MZEH12 | — | |
| 47721-09570 |
Mounting, Front Disc Brake Cylinder, RH
2023-01 → —
|
ZWE219 | — | |
| 47721-F9010 |
Mounting, Front Disc Brake Cylinder, RH
2023-01 → —
|
MZEH19 | — | |
| 47721A — Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 47715-05060 |
Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
2019-01 → —
|
MZEH12,NRE210,ZWE211 | — | |
| 47715-05060 |
Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
2023-01 → —
|
MZEH19,ZWE219 | — | |
| 47722 — Mounting, Front Disc Brake Cylinder, LH | ||||
| 47722-09260 |
Mounting, Front Disc Brake Cylinder, LH
2019-01 → —
|
NRE210,ZWE211 | — | |
| 47722-F9010 |
Mounting, Front Disc Brake Cylinder, LH
2019-02 → —
|
MZEH12 | — | |
| 47722-09260 |
Mounting, Front Disc Brake Cylinder, LH
2023-01 → —
|
ZWE219 | — | |
| 47722-F9010 |
Mounting, Front Disc Brake Cylinder, LH
2023-01 → —
|
MZEH19 | — | |
| 47730 — Cylinder Assy, Front Disc Brake, RH | ||||
| 47730-02590 |
Cylinder Assy, Front Disc Brake, RH
2019-01 → —
|
NRE210,ZWE211 | — | |
| 47730-F4010 |
Cylinder Assy, Front Disc Brake, RH
2019-02 → —
|
MZEH12 | — | |
| 47730-02590 |
Cylinder Assy, Front Disc Brake, RH
2023-01 → —
|
ZWE219 | — | |
| 47730-F4010 |
Cylinder Assy, Front Disc Brake, RH
2023-01 → —
|
MZEH19 | — | |
| 47750 — Cylinder Assy, Disc Brake, LH | ||||
| 47750-02490 |
Cylinder Assy, Disc Brake, LH
2019-01 → —
|
NRE210,ZWE211 | — | |
| 47750-F4010 |
Cylinder Assy, Disc Brake, LH
2019-02 → —
|
MZEH12 | — | |
| 47750-02490 |
Cylinder Assy, Disc Brake, LH
2023-01 → —
|
ZWE219 | — | |
| 47750-F4010 |
Cylinder Assy, Disc Brake, LH
2023-01 → —
|
MZEH19 | — | |
| 47781 — Cover, Disc Brake Dust, Front RH | ||||
| 47781-F4010 |
Cover, Disc Brake Dust, Front RH
2019-01 → —
|
MZEH12,NRE210,ZWE211 | — | |
| 47781-F4010 |
Cover, Disc Brake Dust, Front RH
2023-01 → —
|
MZEH19,ZWE219 | — | |
| 47782 — Cover, Disc Brake Dust, Front LH | ||||
| 47782-F4010 |
Cover, Disc Brake Dust, Front LH
2019-01 → —
|
MZEH12,NRE210,ZWE211 | — | |
| 47782-F4010 |
Cover, Disc Brake Dust, Front LH
2023-01 → —
|
MZEH19,ZWE219 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
