Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

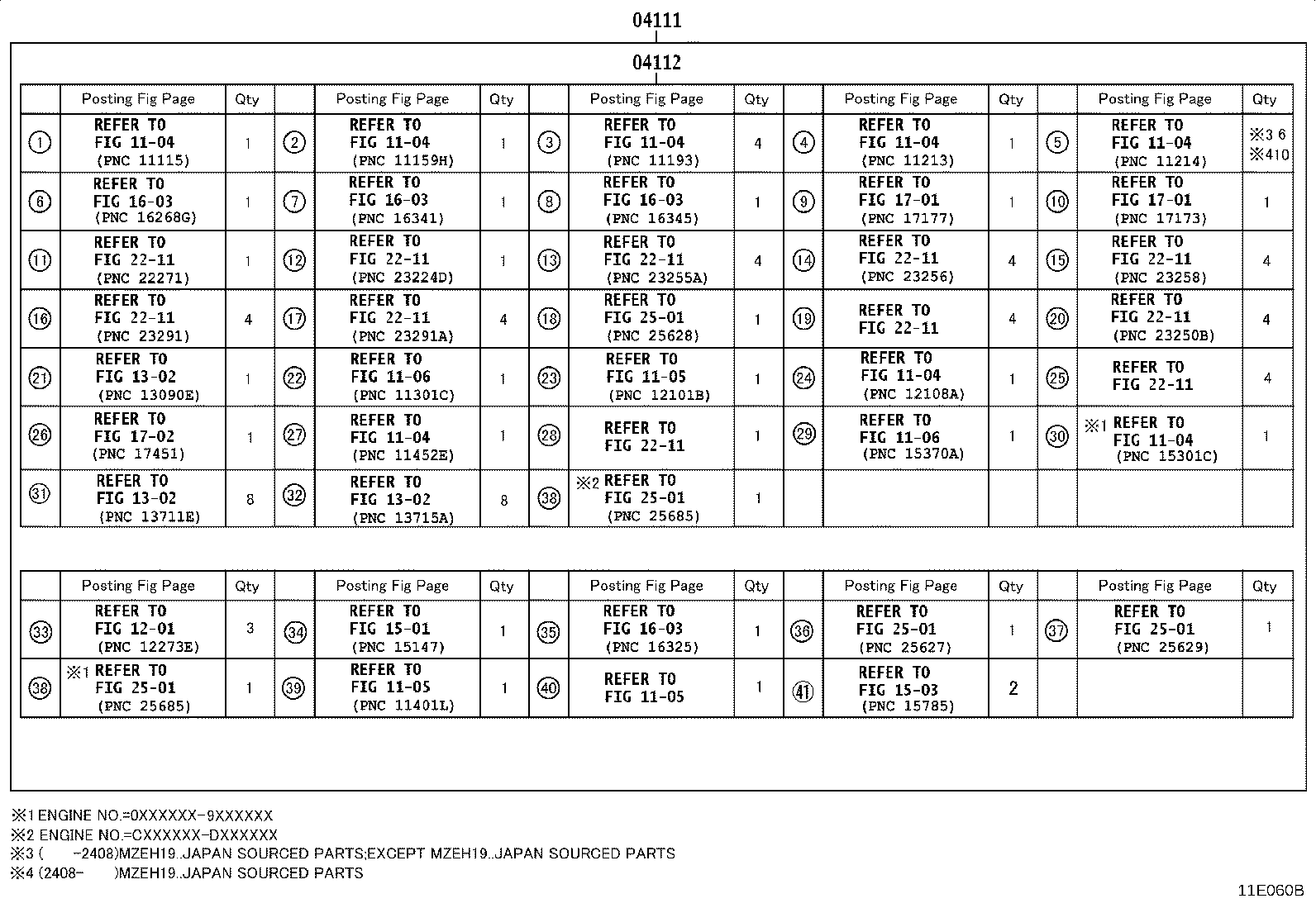

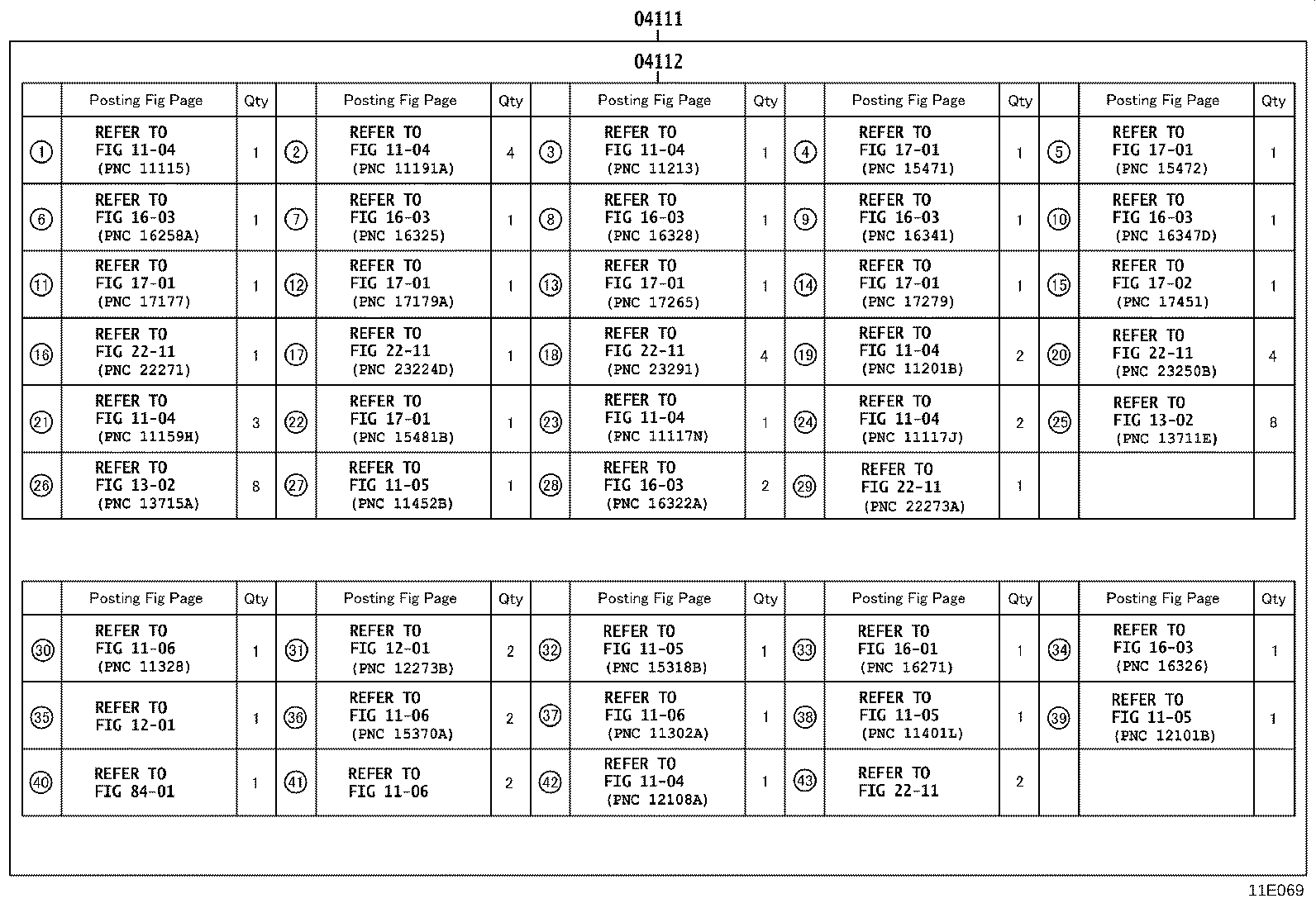

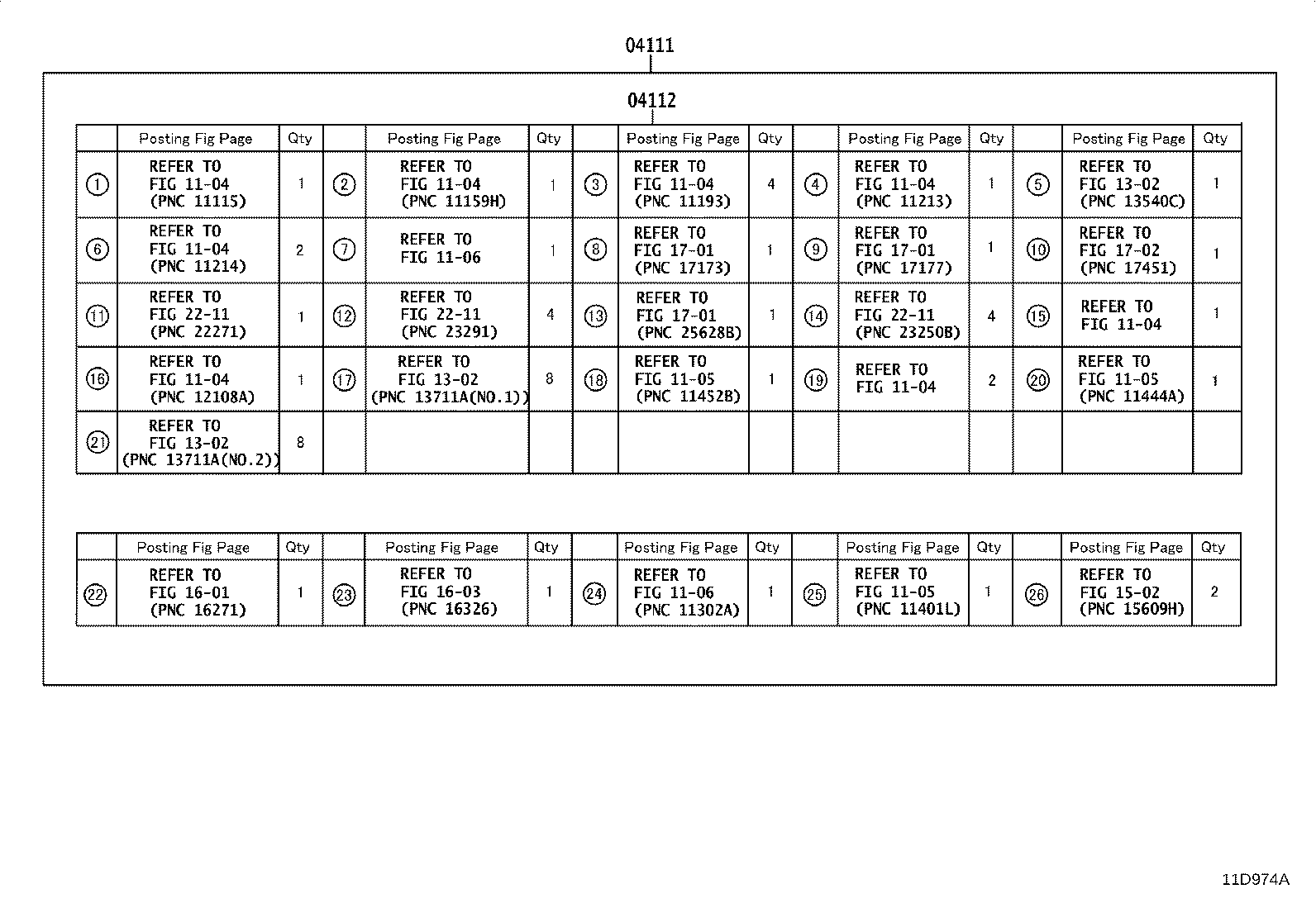

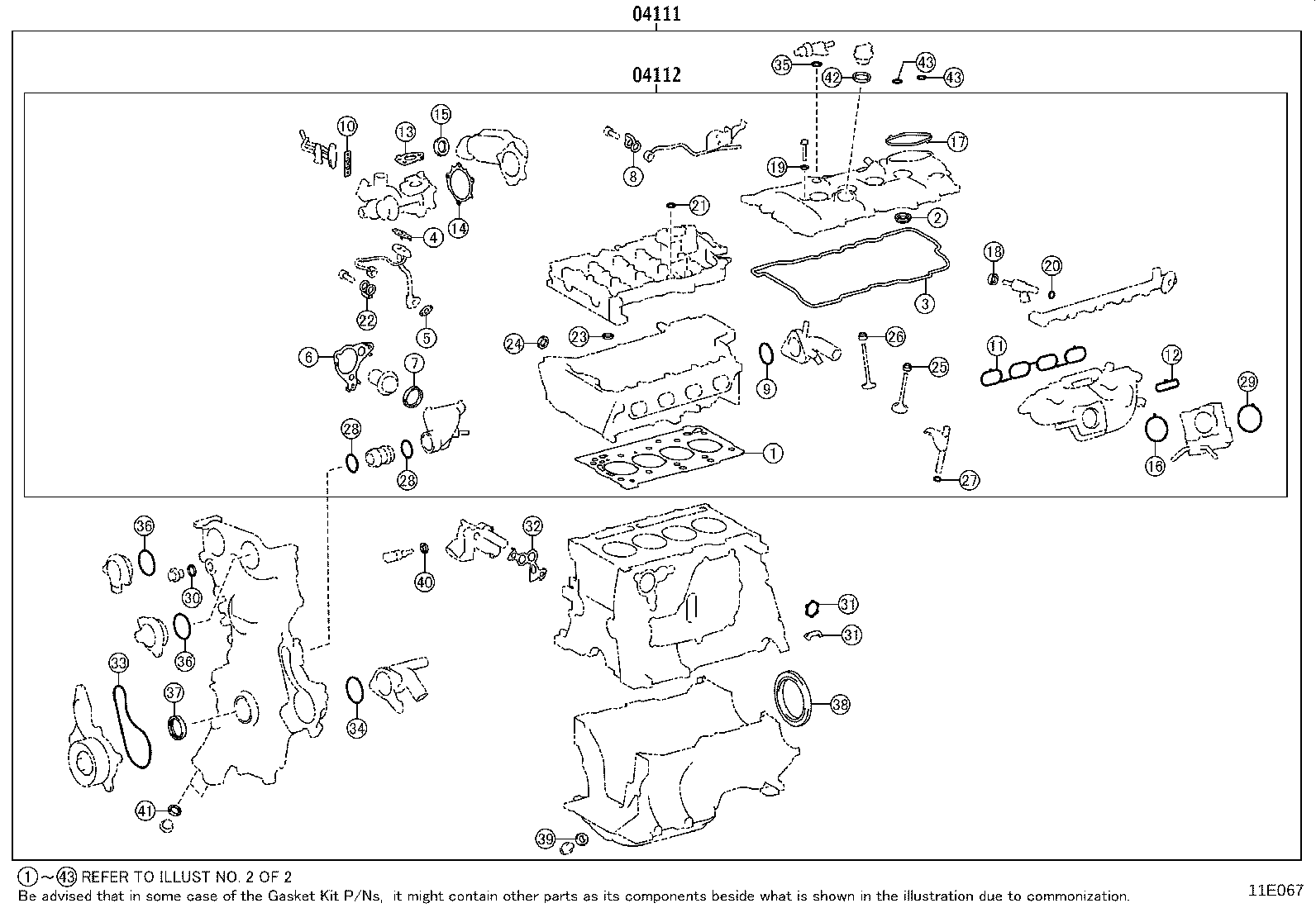

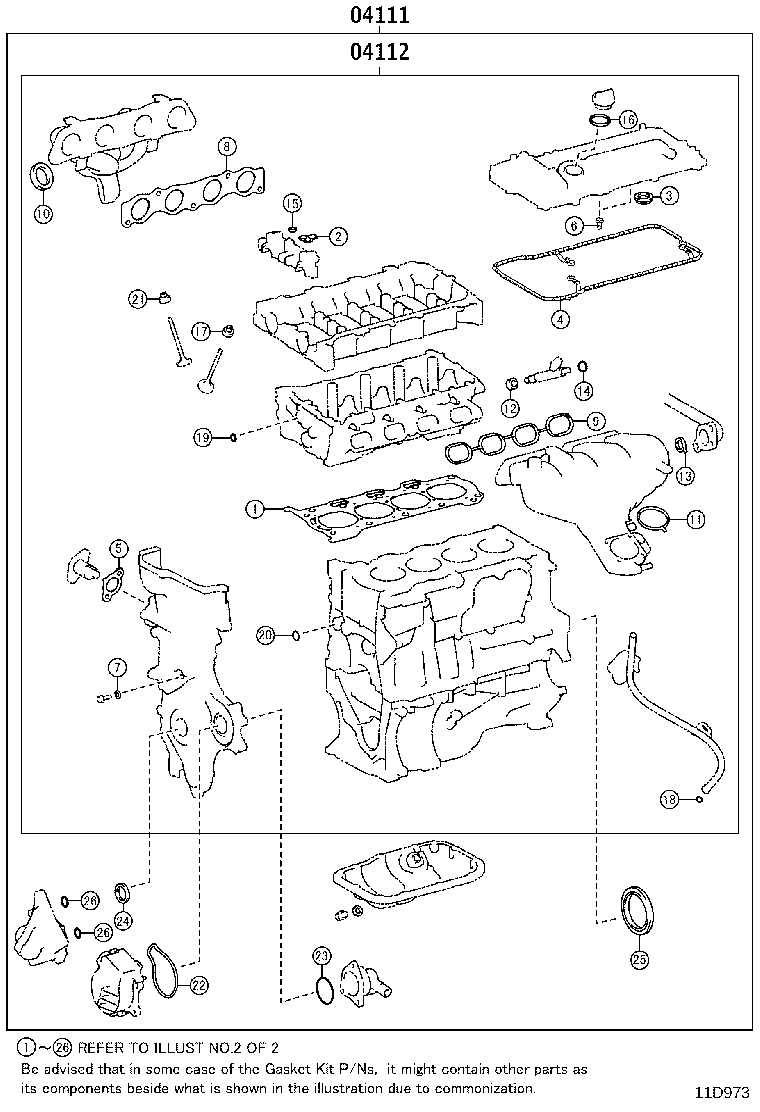

Figure 11E059B 11E059B 2019-02 → — Figure 11E060B 11E060B 2019-02 → — Figure 11E067 11E067 2019-01 → — Figure 11E069 11E069 2019-01 → — Figure 11D973 11D973 2019-01 → — Figure 11D974A 11D974A 2019-01 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
