Toyota Corolla (UKP)
2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe
Supported model
Data version 2022-12

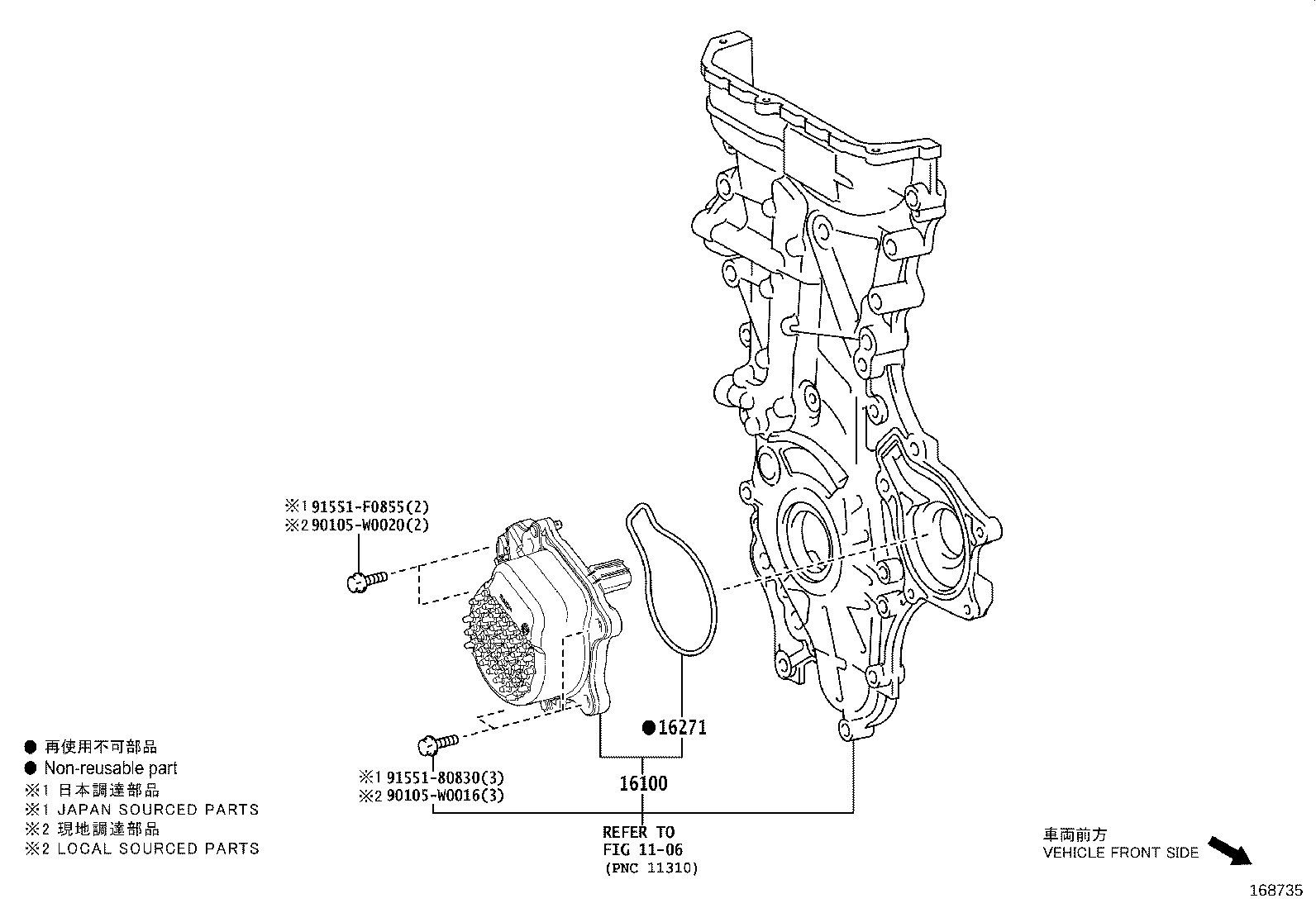

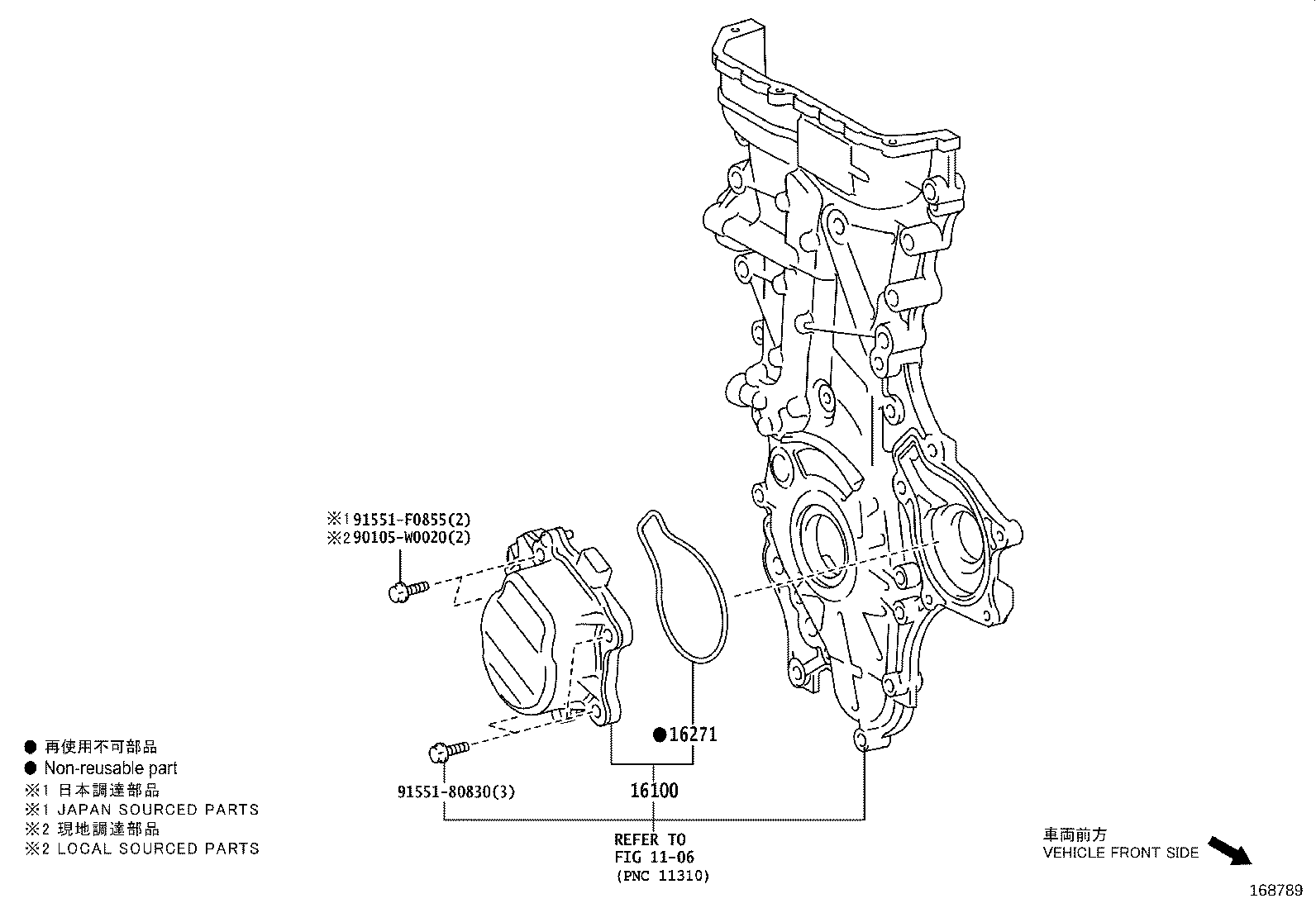

Water Pump
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16271 | Gasket, Water Pump |
| 16603 | Pulley Sub-assy, Idler, NO.1 |
| 16620 | Tensioner Assy, V-ribbed Belt |
| 16631 | Bracket, Idler Pulley |
| 16649B | Plate, Idler Pulley Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
