Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

13 part groups · 9 illustrations

Illustrations

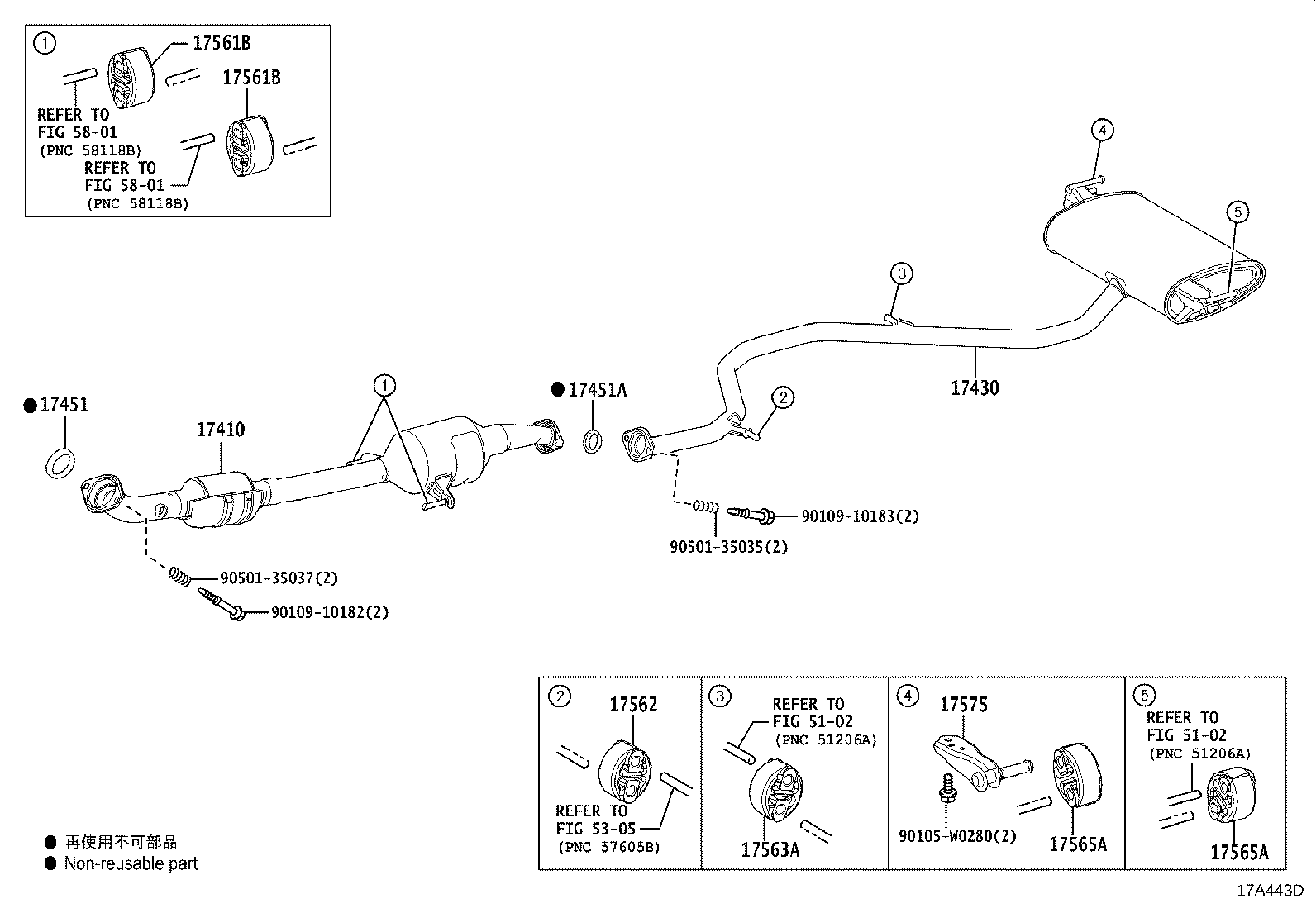

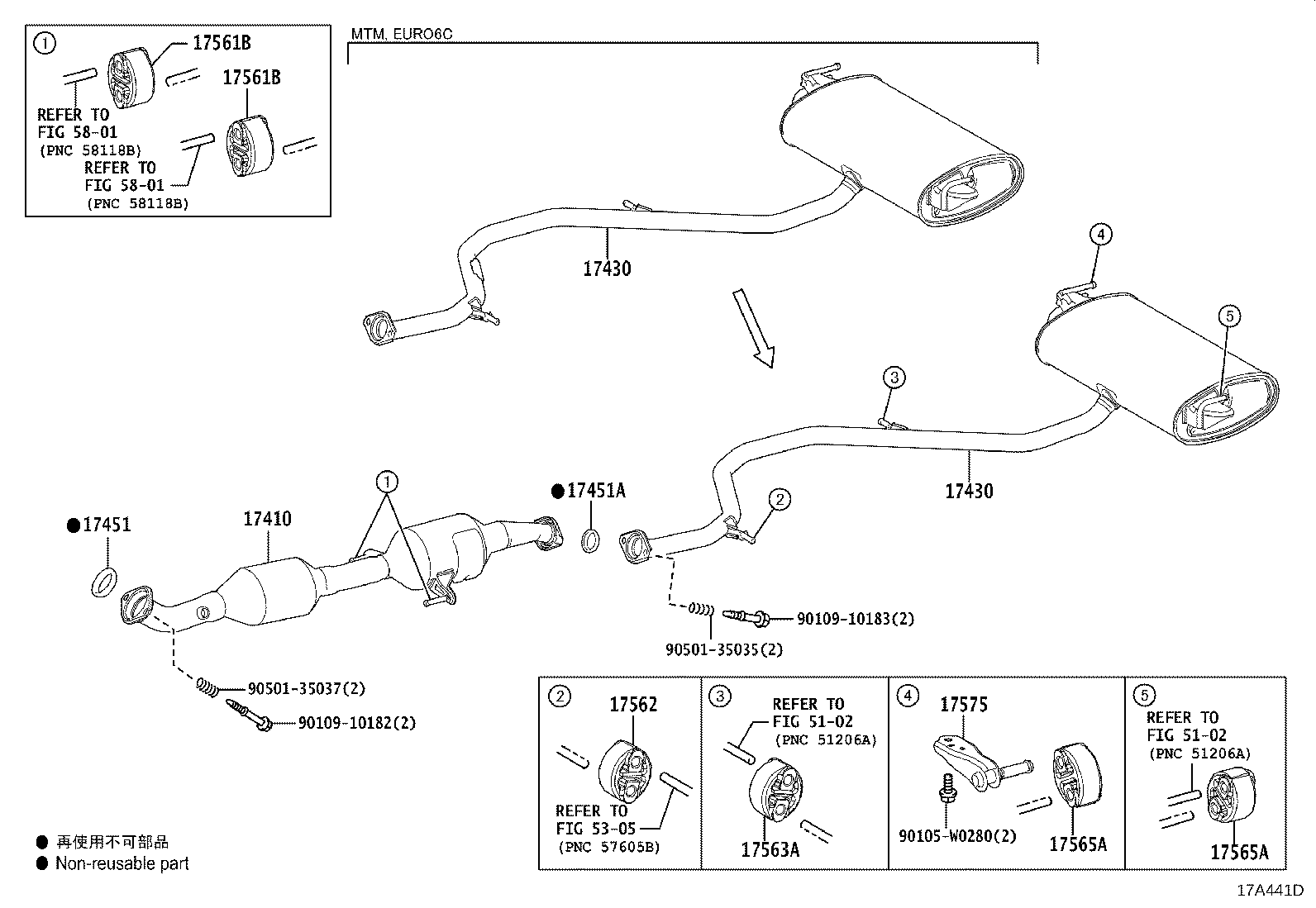

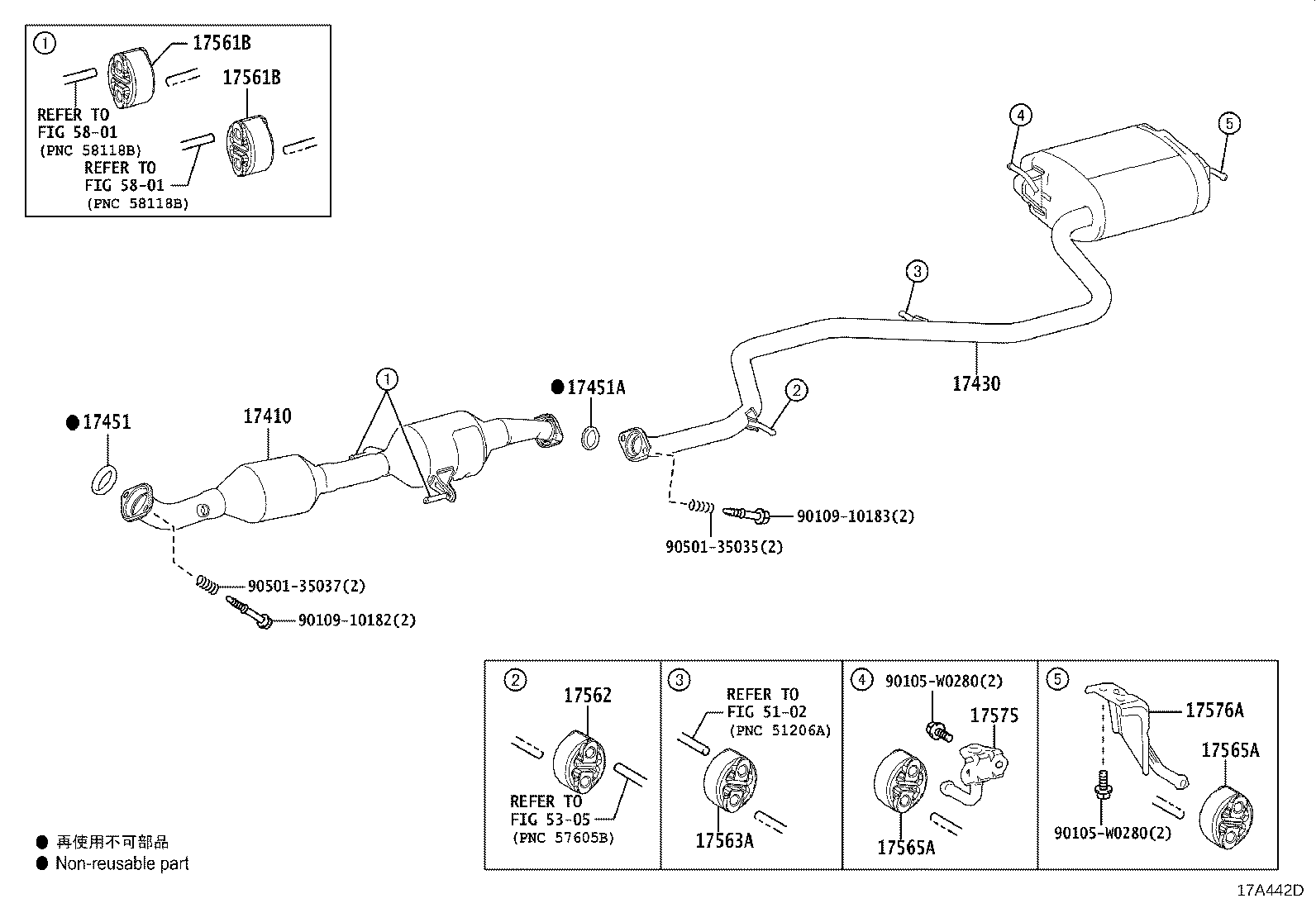

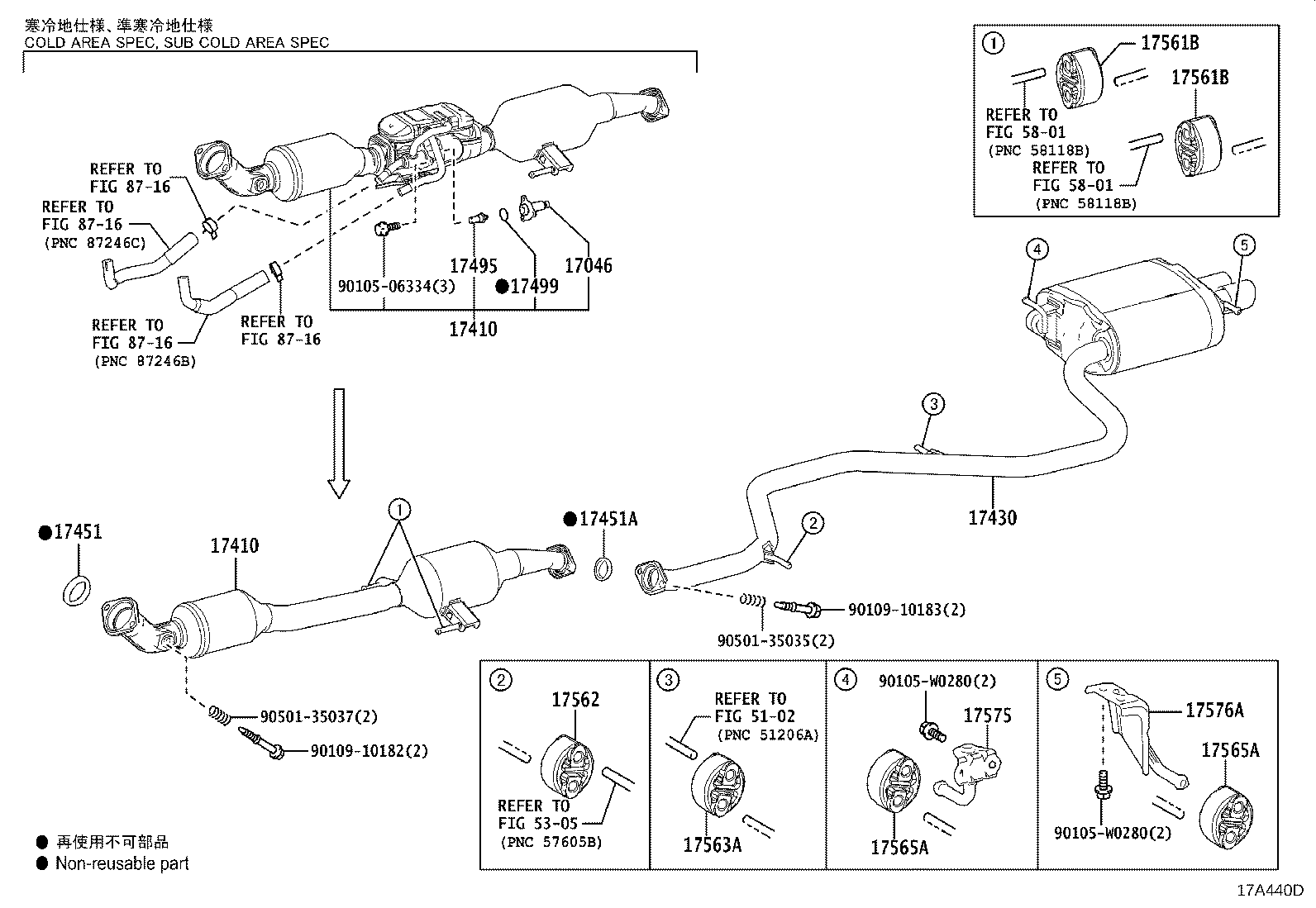

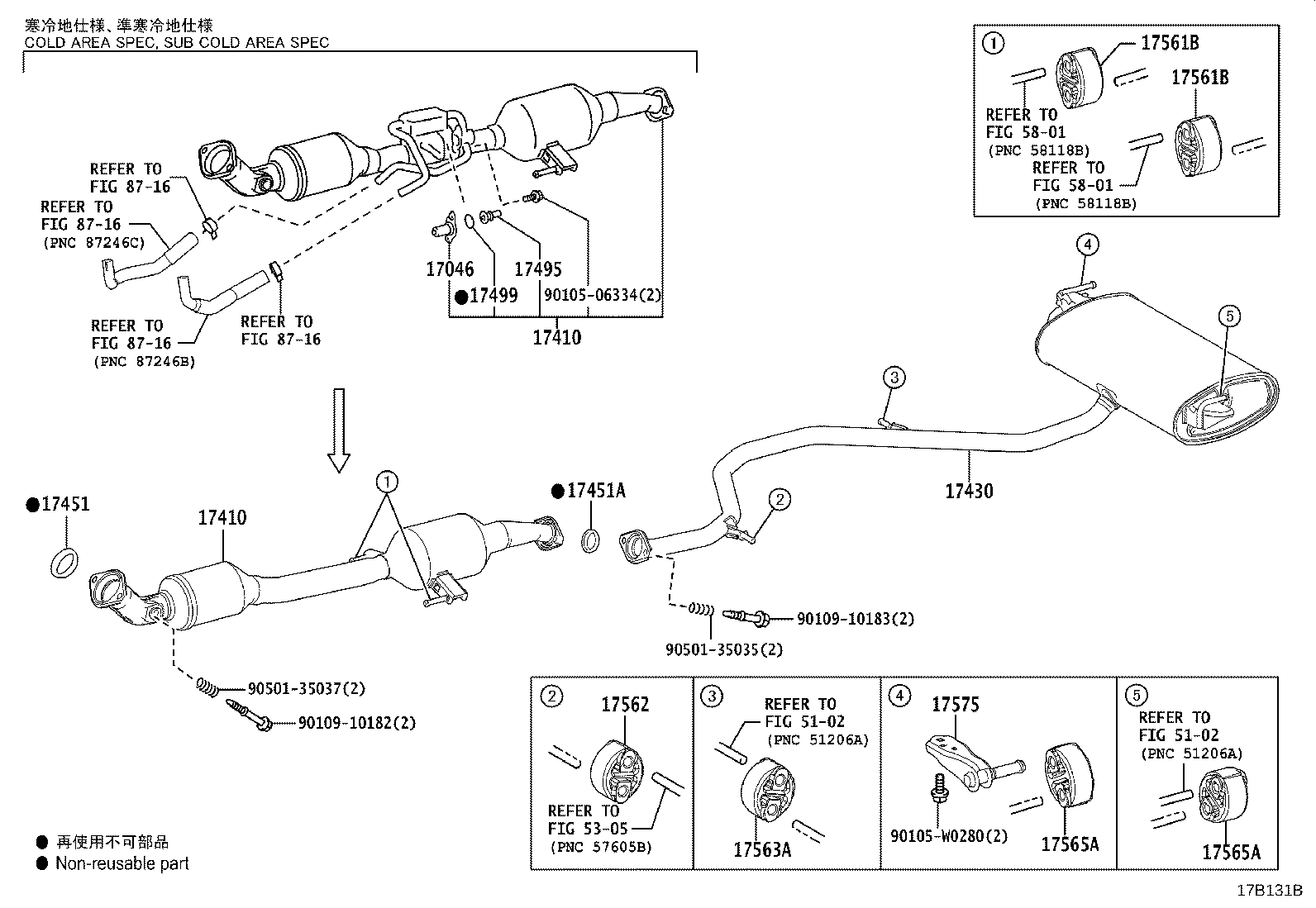

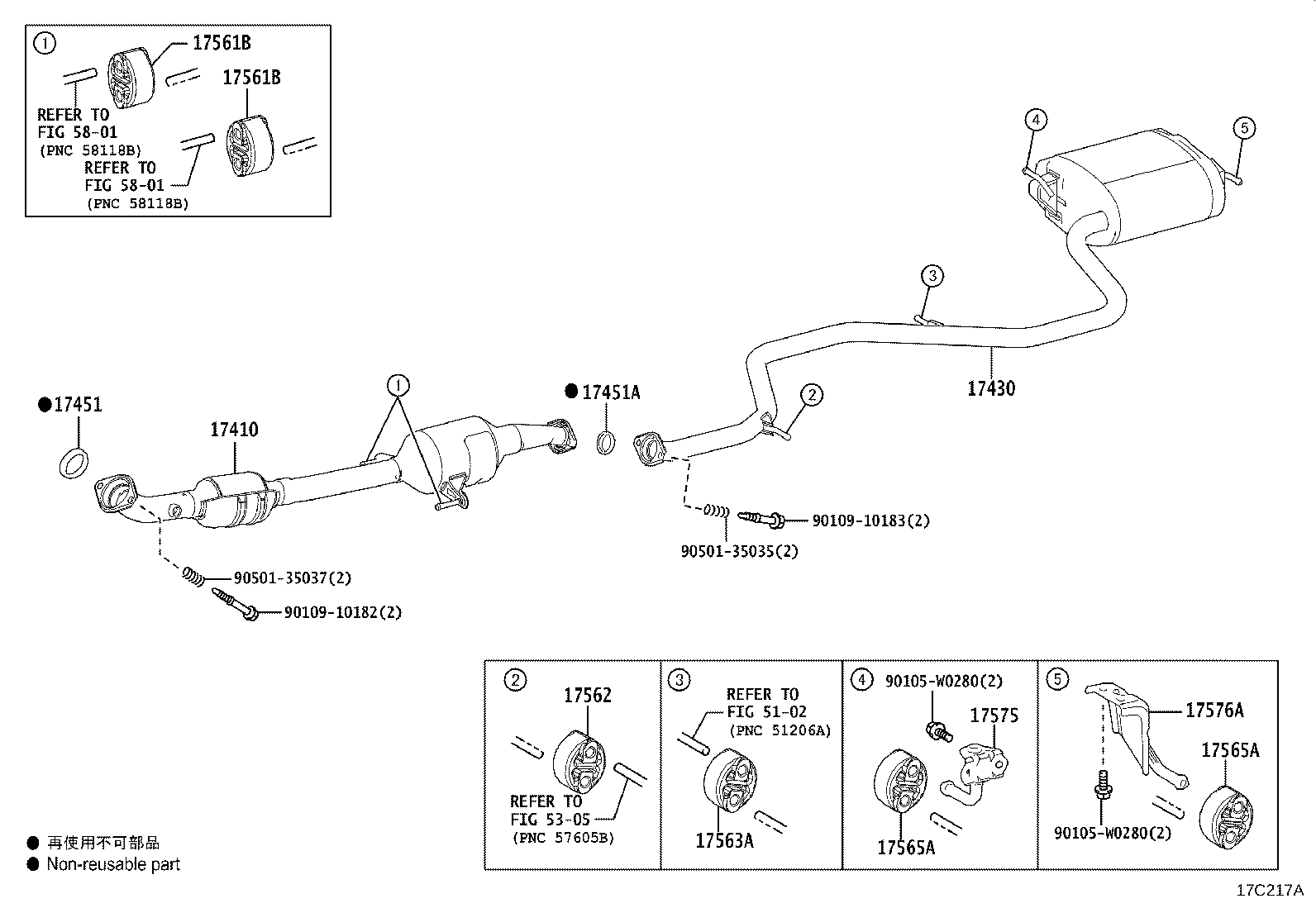

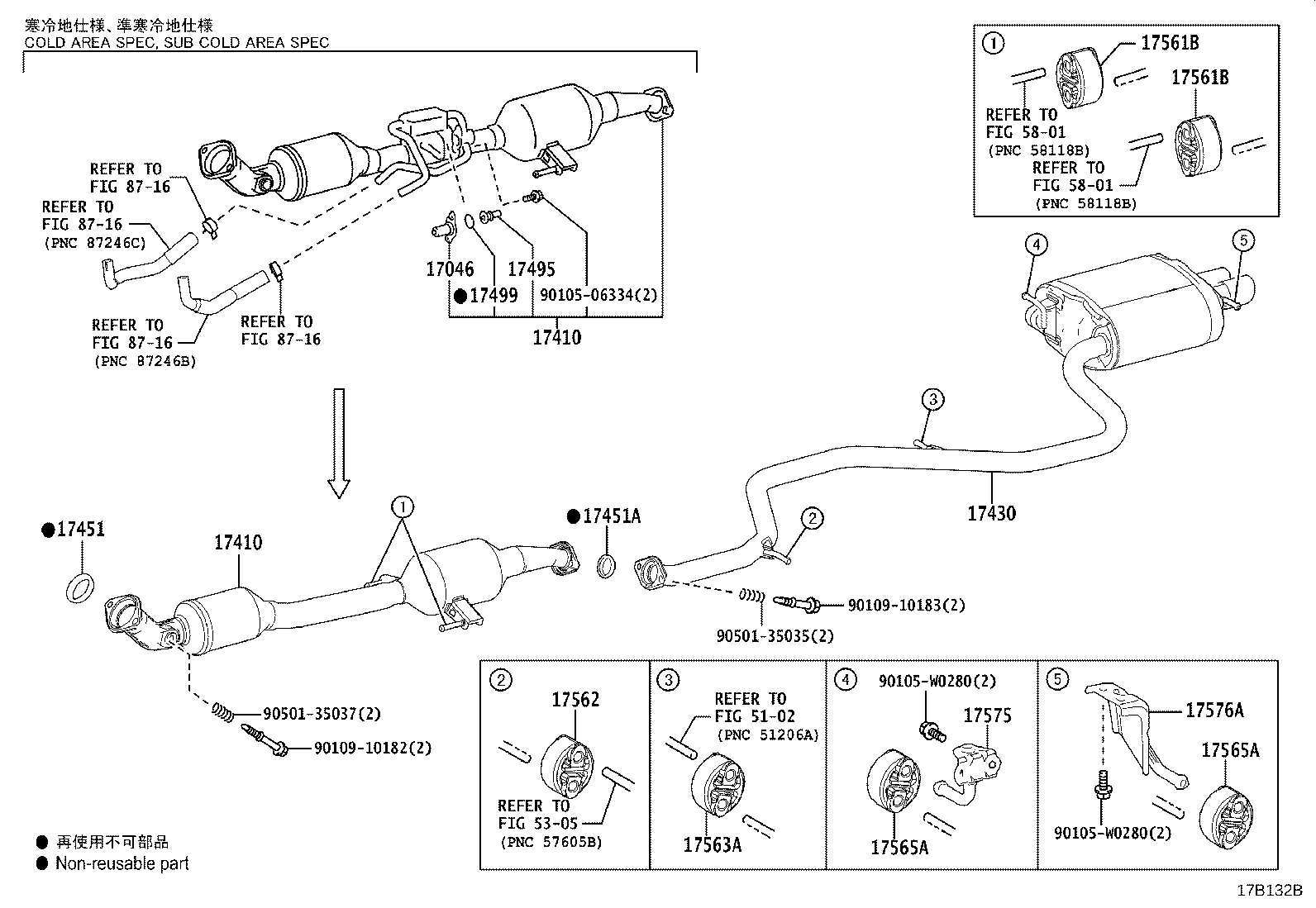

Figure 17A439D 17A439D 2019-02 → 2020-10 Figure 17B131B 17B131B 2020-10 → — Figure 17A440D 17A440D 2019-02 → 2020-10 Figure 17B132B 17B132B 2020-10 → — Figure 17A441D 17A441D 2019-01 → — Figure 17A442D 17A442D 2019-02 → — Figure 17A443D 17A443D 2019-01 → — Figure 17A443D 17A443D 2019-01 → — Figure 17C217A 17C217A 2019-02 → —

Part groups

PNCDescription
17046 Actuator Sub-assy, Exhaust Pipe Gas Control
17410 Pipe Assy, Exhaust, Front
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17495 Actuator, Exhaust Pipe Gas Control
17499 Gasket, Exhaust Pipe Gas Control Actuator
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17576A Bracket, Exhaust Pipe Support, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
