Toyota Corolla (UKP)
2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe
Supported model
Data version 2022-12
Starter

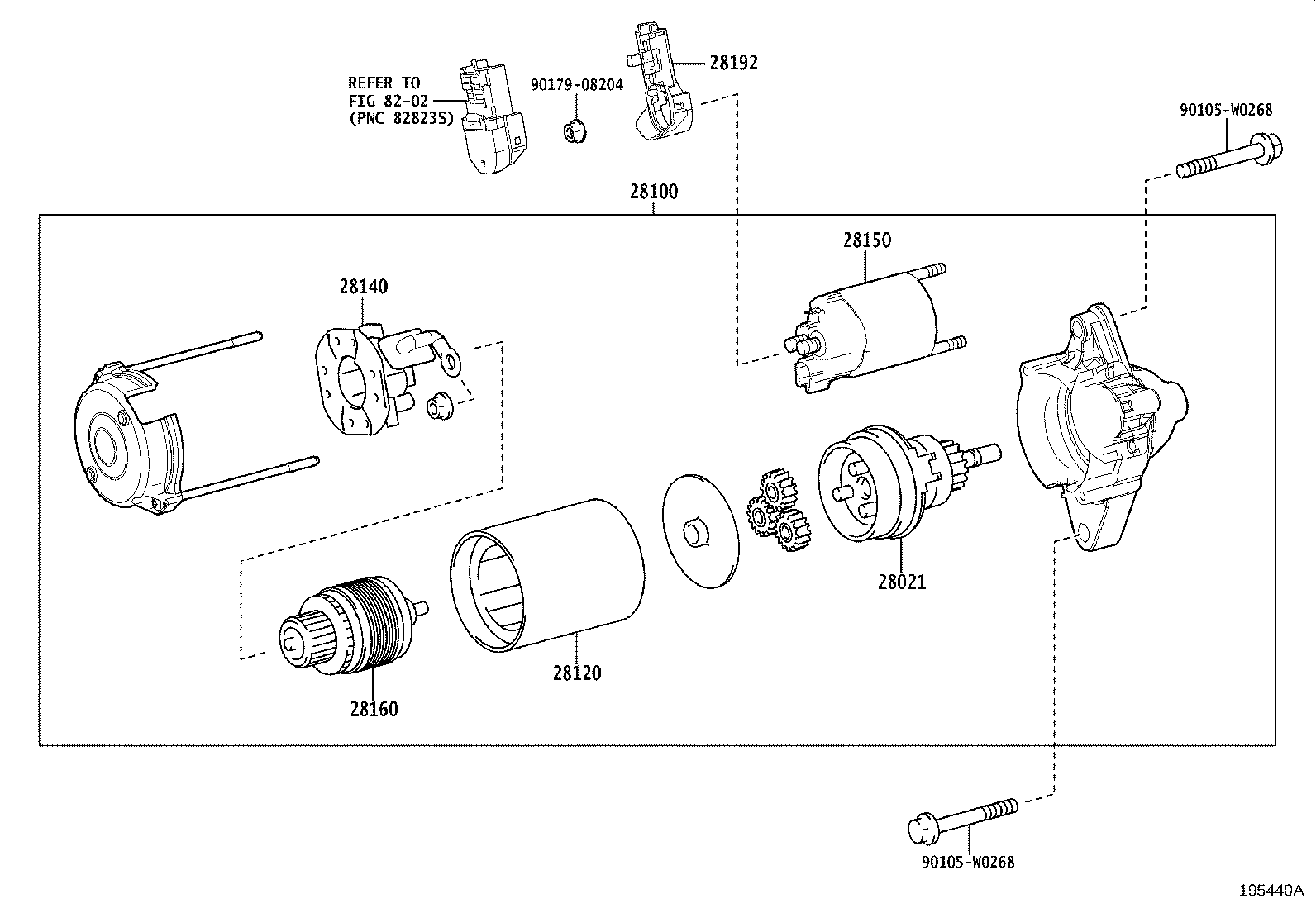

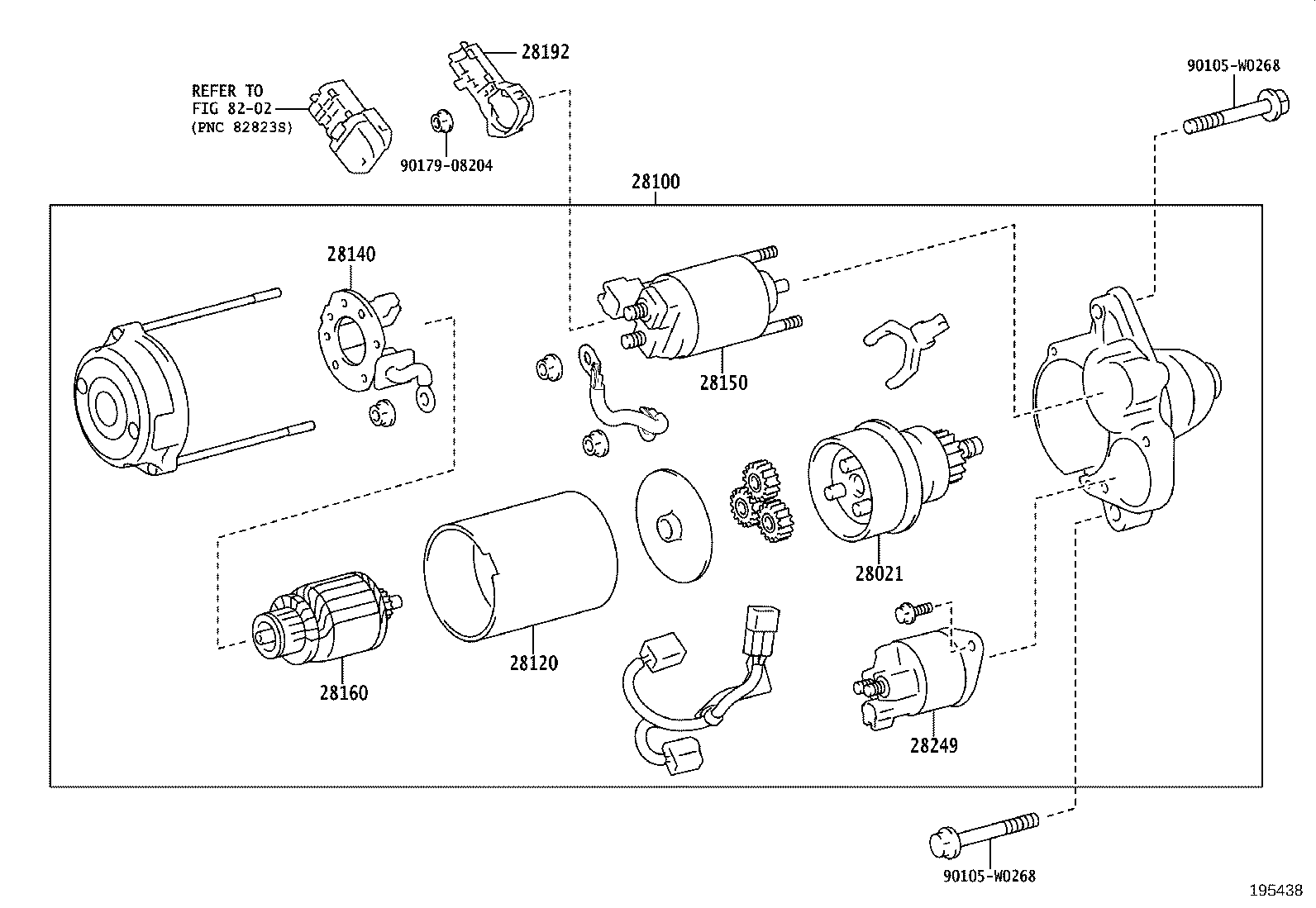

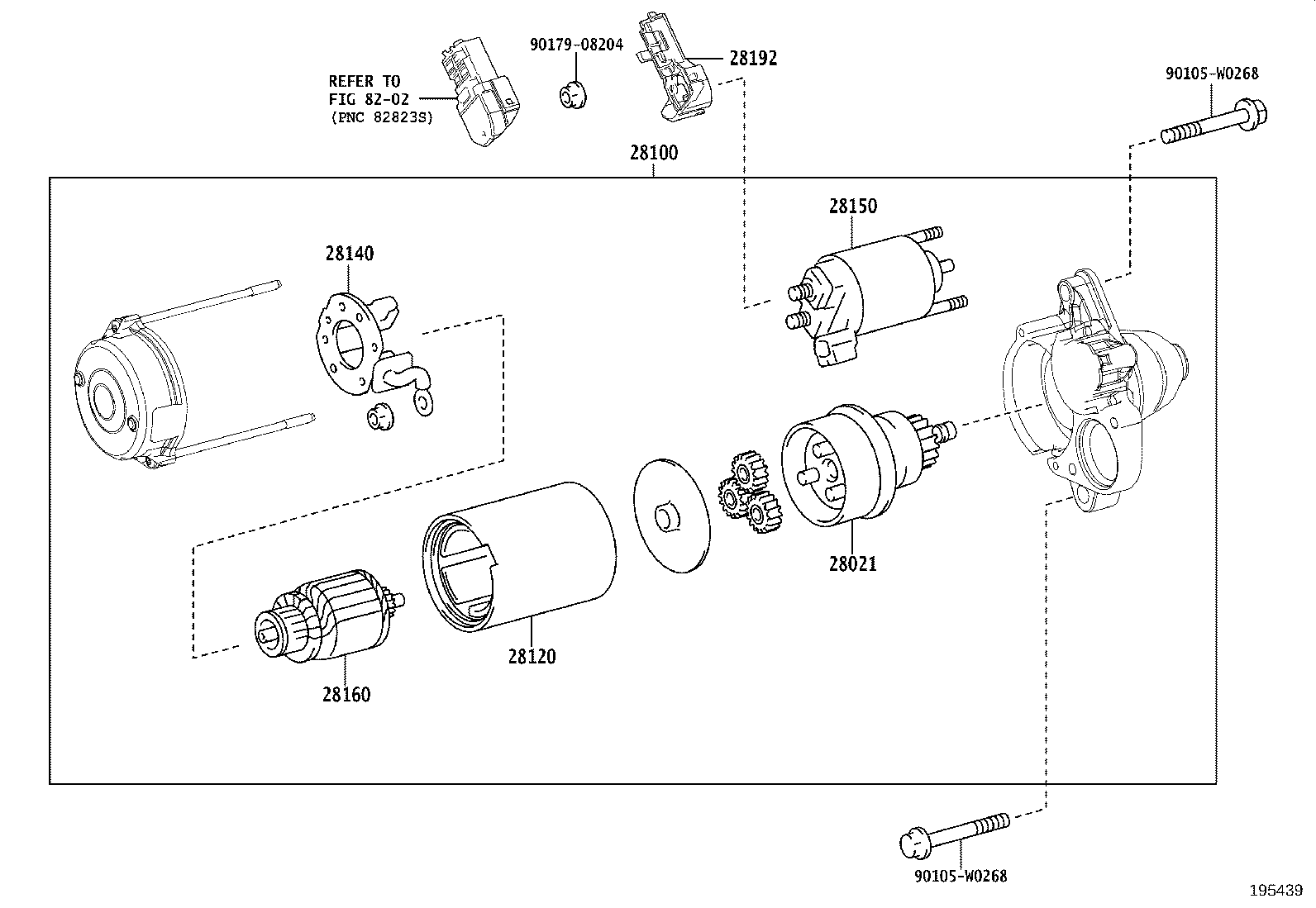

13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28021 | Clutch Sub-assy, Starter Center Bearing |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28112 | Bolt, Housing Set |
| 28113 | Lever, Starter Pinion Drive |
| 28120 | Yoke Assy, Starter |
| 28130 | Frame Assy, Starter Commutator End |
| 28140 | Holder Assy, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28192 | Cover, Starter |
| 28249 | Relay, Starter Inrush Current Reduction |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
