Toyota Corolla (UKP)
2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe
Supported model
Data version 2022-12

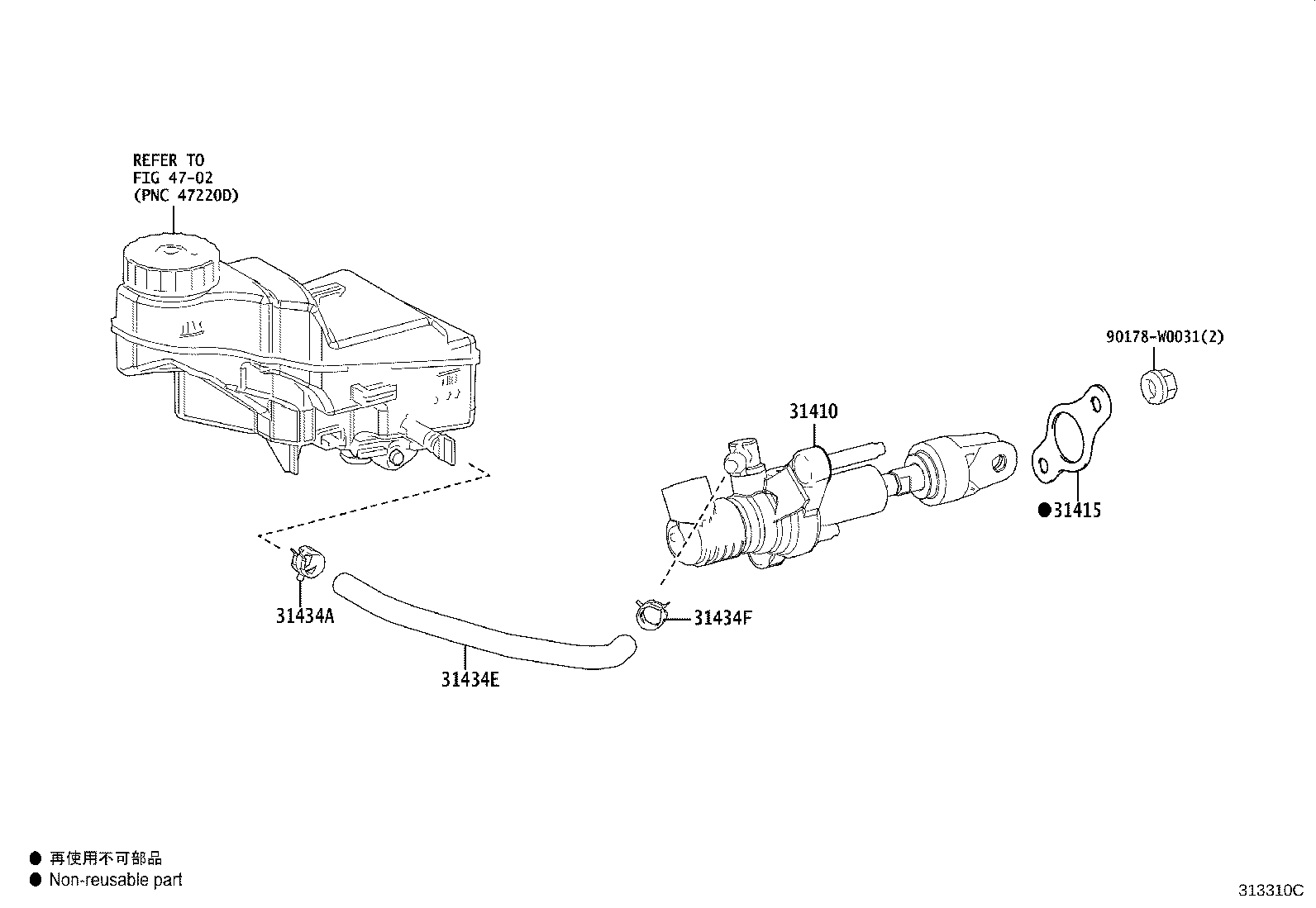

Clutch Master Cylinder
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31410 | Cylinder Assy, Clutch Master |
| 31415 | Gasket, Clutch Master Cylinder |
| 31434A | Clip(FOR CLUTCH RESERVOIR TUBE) |
| 31434E | Hose, Clutch Reservoir, NO.1 |
| 31434F | Clip(FOR CLUTCH RESERVOIR HOSE NO.1) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
