Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

16 part groups · 6 illustrations

Illustrations

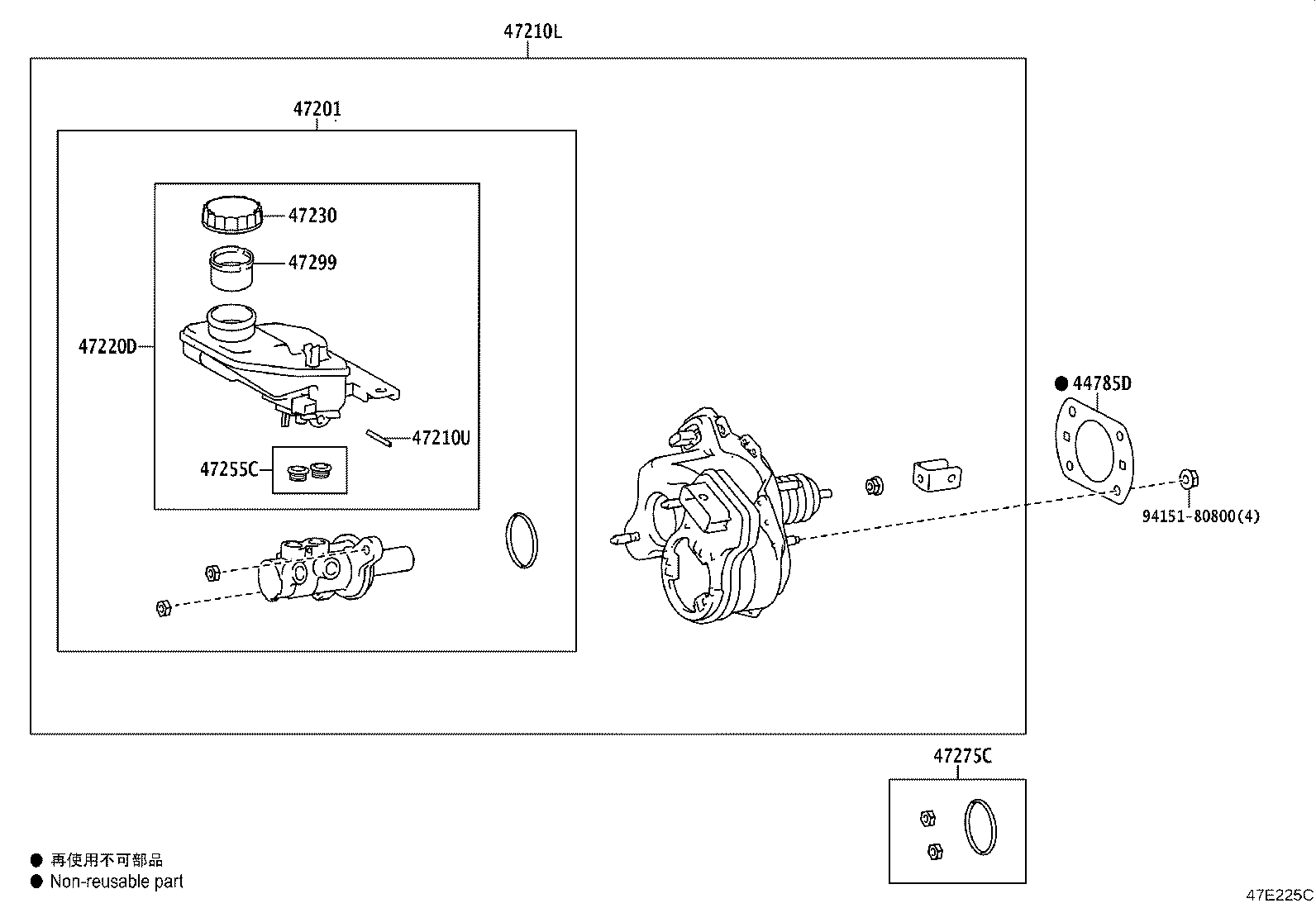

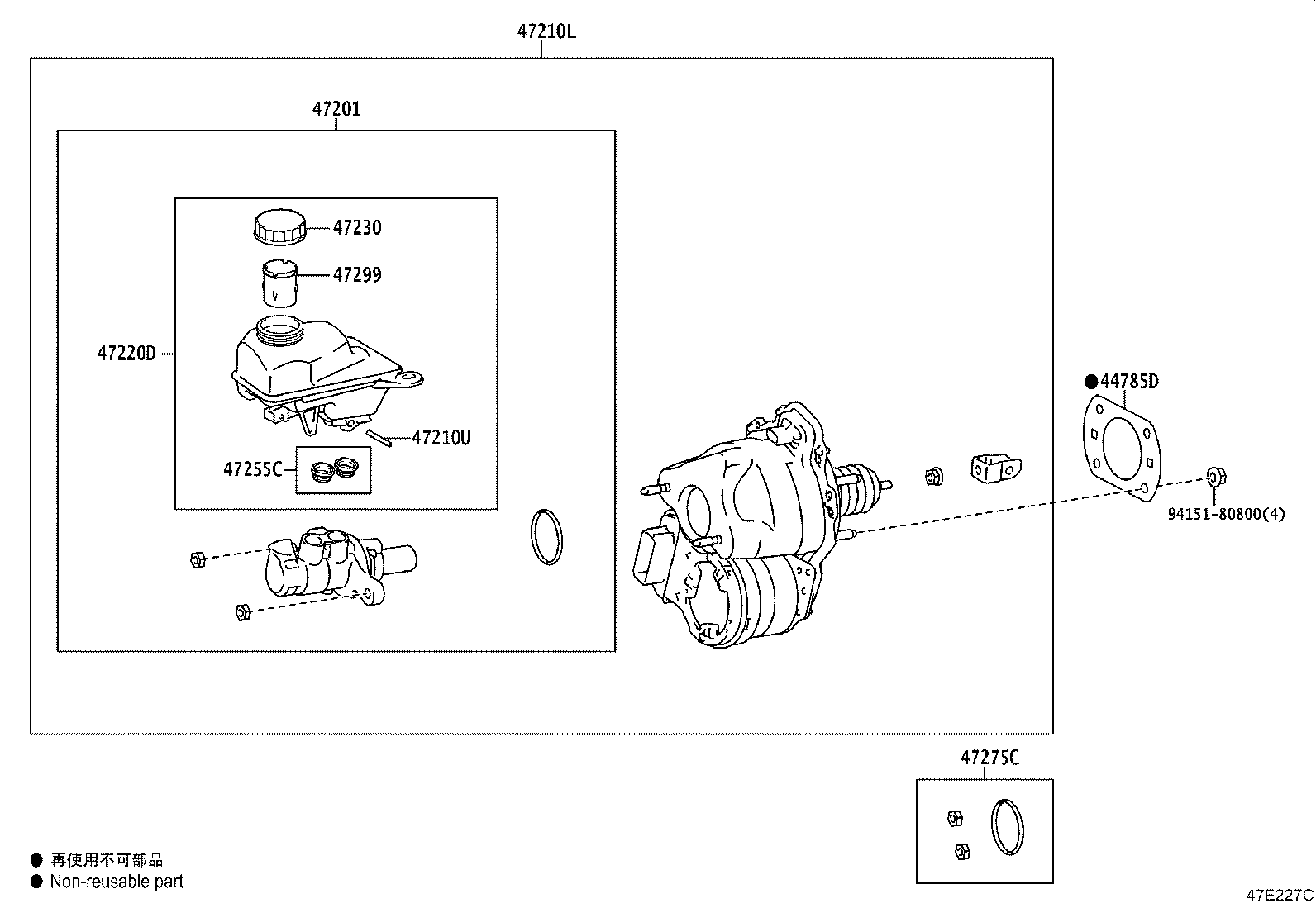

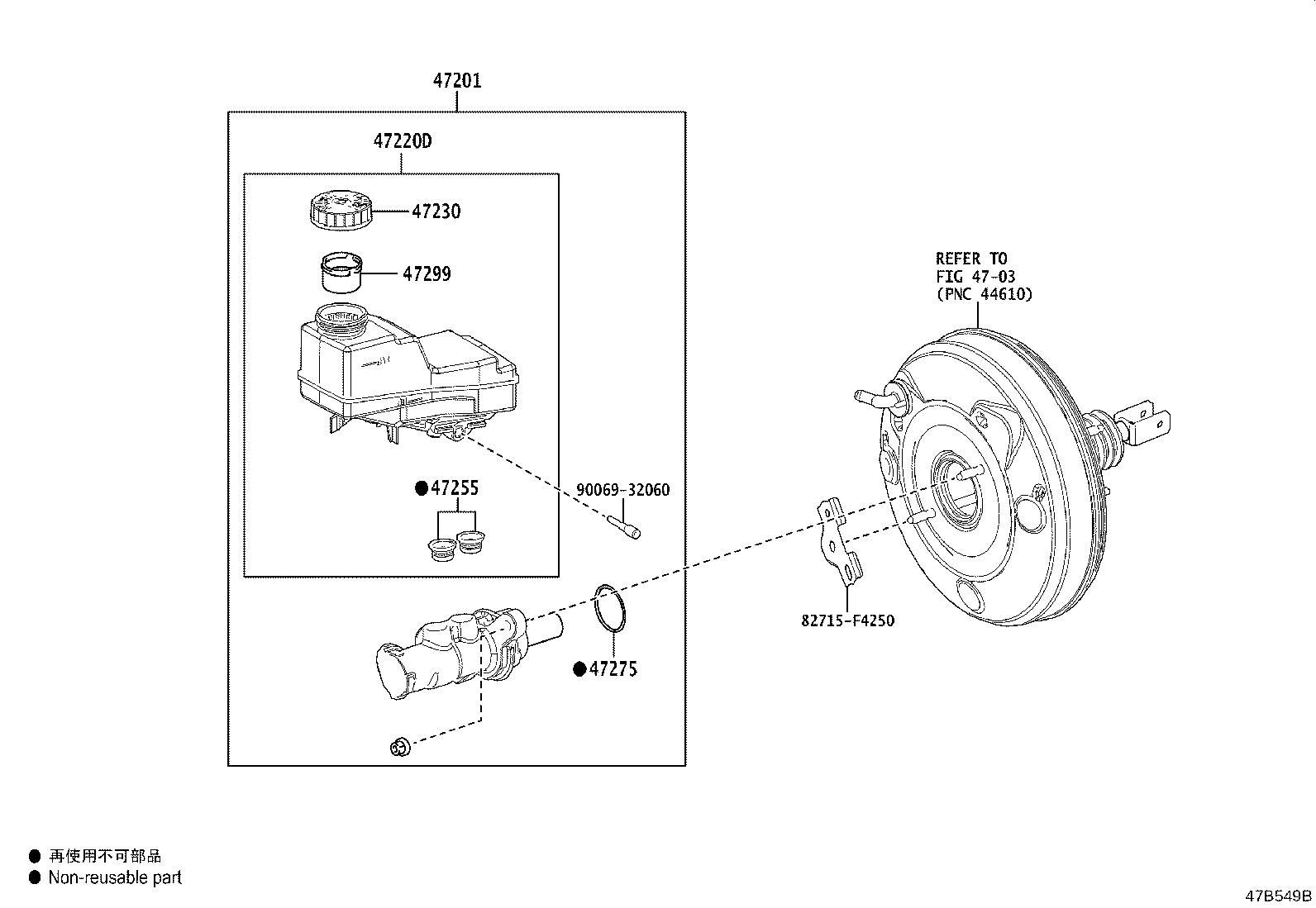

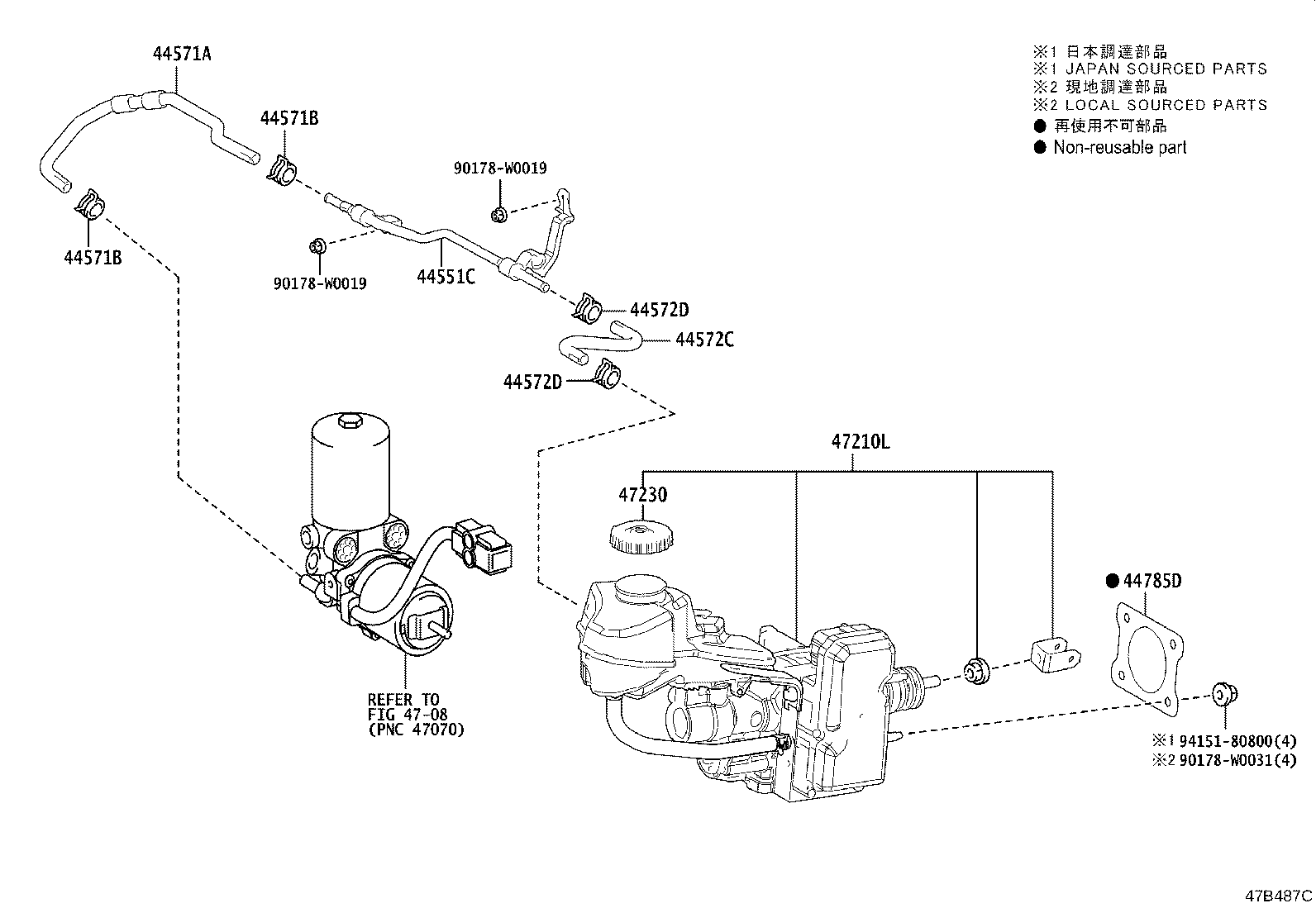

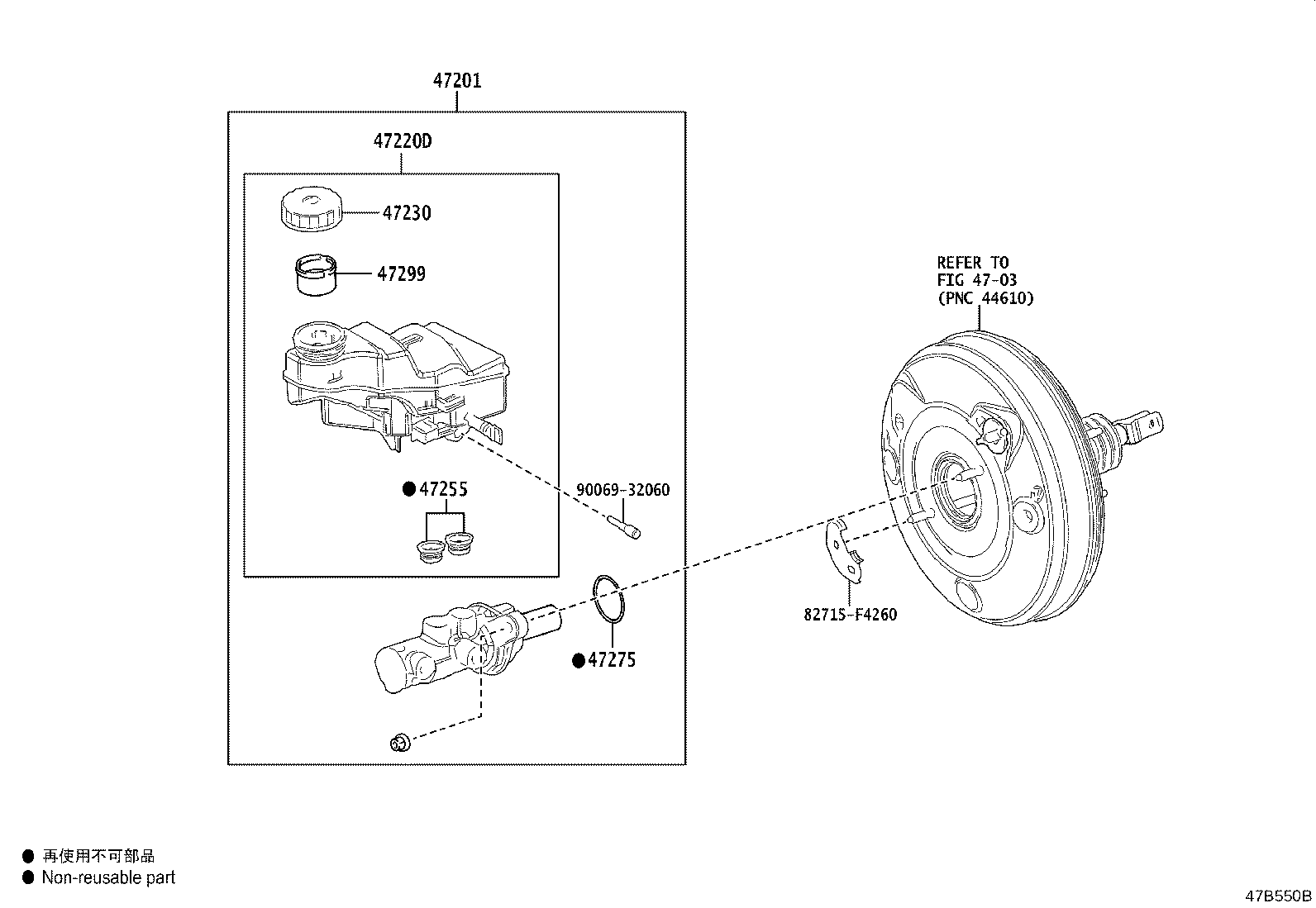

Figure 47B488C 47B488C 2019-01 → — Figure 47B487C 47B487C 2019-01 → — Figure 47E225C 47E225C 2023-01 → — Figure 47E227C 47E227C 2023-01 → — Figure 47B550B 47B550B 2019-01 → — Figure 47B549B 47B549B 2019-01 → —

Part groups

PNCDescription
44551C Tube, Brake Actuator, NO.1
44571A Hose, Brake Actuator, NO.1
44571B Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.1)
44572C Hose, Brake Actuator, NO.2
44572D Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.2)
44785D Gasket, Brake Master Cylinder
47201 Cylinder Sub-assy, Brake Master
47210L Brake Booster Assy, W/Master Cylinder
47210U Pin, Straight(FOR BRAKE MASTER CYLINDER)
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 Grommet, Master Cylinder Reservoir
47255C Grommet Set, Reservoir
47275 Gasket, Brake Master Cylinder
47275C Overhaul Set, Master Cylinder
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
