Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

9 part groups · 2 illustrations

Illustrations

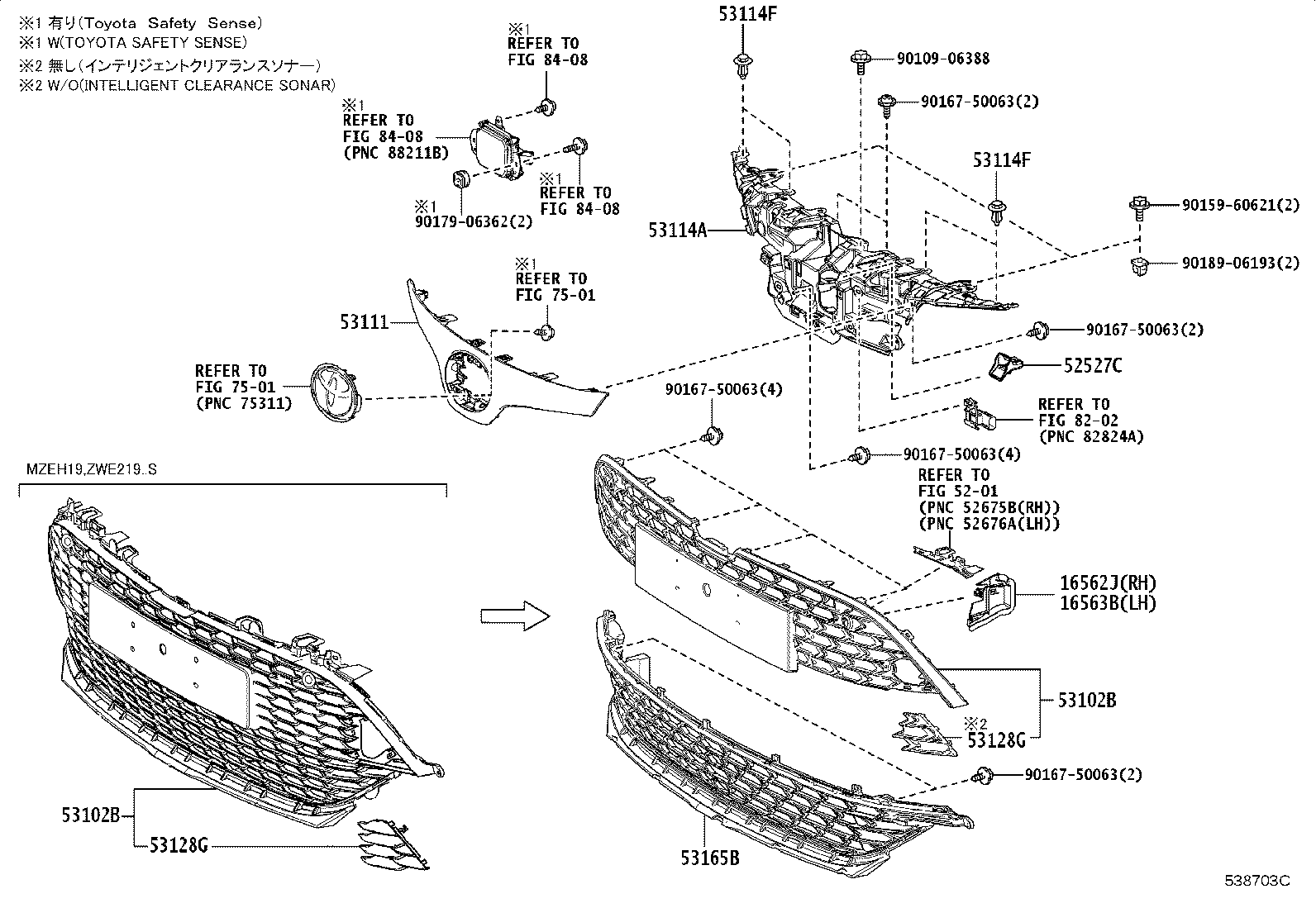

Figure 535803H 535803H 2019-01 → — Figure 538703C 538703C 2023-01 → —

Part groups

PNCDescription
16562J Seal, Radiator TO Support, NO.2
16563B Seal, Radiator TO Support, NO.3
52527C Retainer, Front Bumper, Lower NO.2
53102B Grille Sub-assy, Radiator, Lower
53111 Grille, Radiator
53114A Grille, Radiator, Inner
53114F Clip, Radiator Grille
53128G Grille, Radiator, Lower Side LH
53165B Support, Radiator, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
