Toyota Corolla (UKP)
2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe
Supported model
Data version 2022-12
Floor Side Member

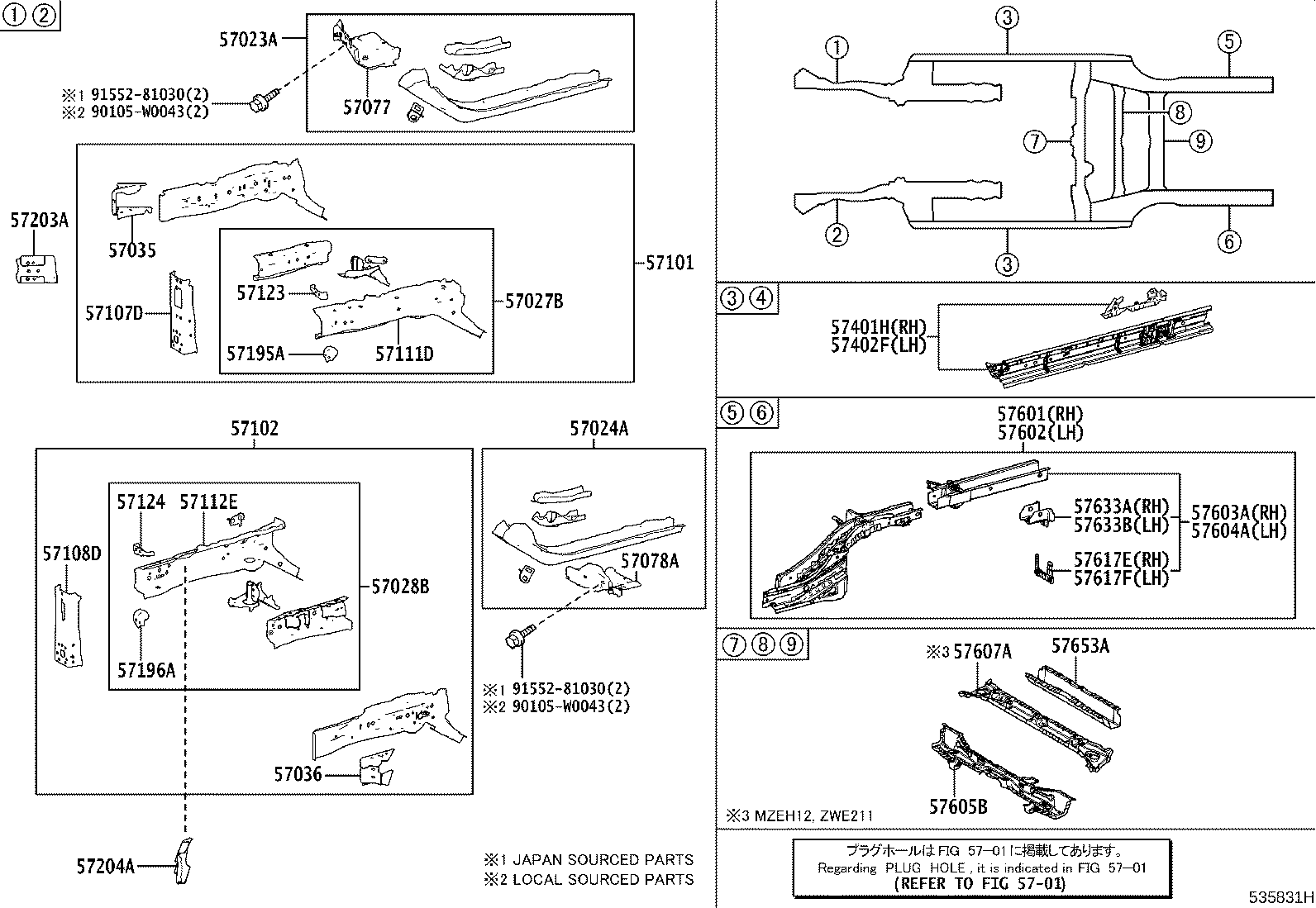

33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 57023A | Member Sub-assy, Rear Side, RH |
| 57024A | Member Sub-assy, Rear Side, LH |
| 57027B | Member Sub-assy, Front Side, Inner RH |
| 57028B | Member Sub-assy, Front Side, Inner LH |
| 57035 | Panel Sub-assy, Front Step, RH |
| 57036 | Panel Sub-assy, Front Step, LH |
| 57077 | Box Sub-assy, Torque, Front RH |
| 57078A | Box Sub-assy, Torque, Front LH |
| 57101 | Member Sub-assy, Front Side, RH |
| 57102 | Member Sub-assy, Front Side, LH |
| 57107D | Reinforce Sub-assy, Front Bumper Mounting, RH |
| 57108D | Reinforce Sub-assy, Front Bumper Mounting, LH |
| 57111D | Member, Front Side, Inner RH |
| 57112E | Member, Front Side, Inner LH |
| 57123 | Support, Front Side Member, RH |
| 57124 | Support, Front Side Member, LH |
| 57195A | Reinforcement, Front Side Member, Front RH |
| 57196A | Reinforcement, Front Side Member, Front LH |
| 57203A | Extension Sub-assy, Front Side Member, NO.2 RH |
| 57204A | Extension Sub-assy, Front Side Member, NO.2 LH |
| 57401H | Member Sub-assy, Floor Side, Inner RH |
| 57402F | Member Sub-assy, Floor Side, Inner LH |
| 57601 | Member Sub-assy, Rear Floor Side, RH |
| 57602 | Member Sub-assy, Rear Floor Side, LH |
| 57603A | Member Sub-assy, Rear Floor Side, Rear RH |
| 57604A | Member Sub-assy, Rear Floor Side, Rear LH |
| 57605B | Member Sub-assy, Rear Floor Cross, NO.1 |
| 57607A | Member Sub-assy, Rear Floor Cross, NO.3 |
| 57617E | Plate, Rear Floor Side Member Sub |
| 57617F | Plate, Rear Floor Side Member Sub |
| 57633A | Extension, Rear Floor Side Member, Rear RH |
| 57633B | Extension, Rear Floor Side Member, Rear LH |
| 57653A | Member, Rear Floor Cross, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
