Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

23 part groups · 8 illustrations

Illustrations

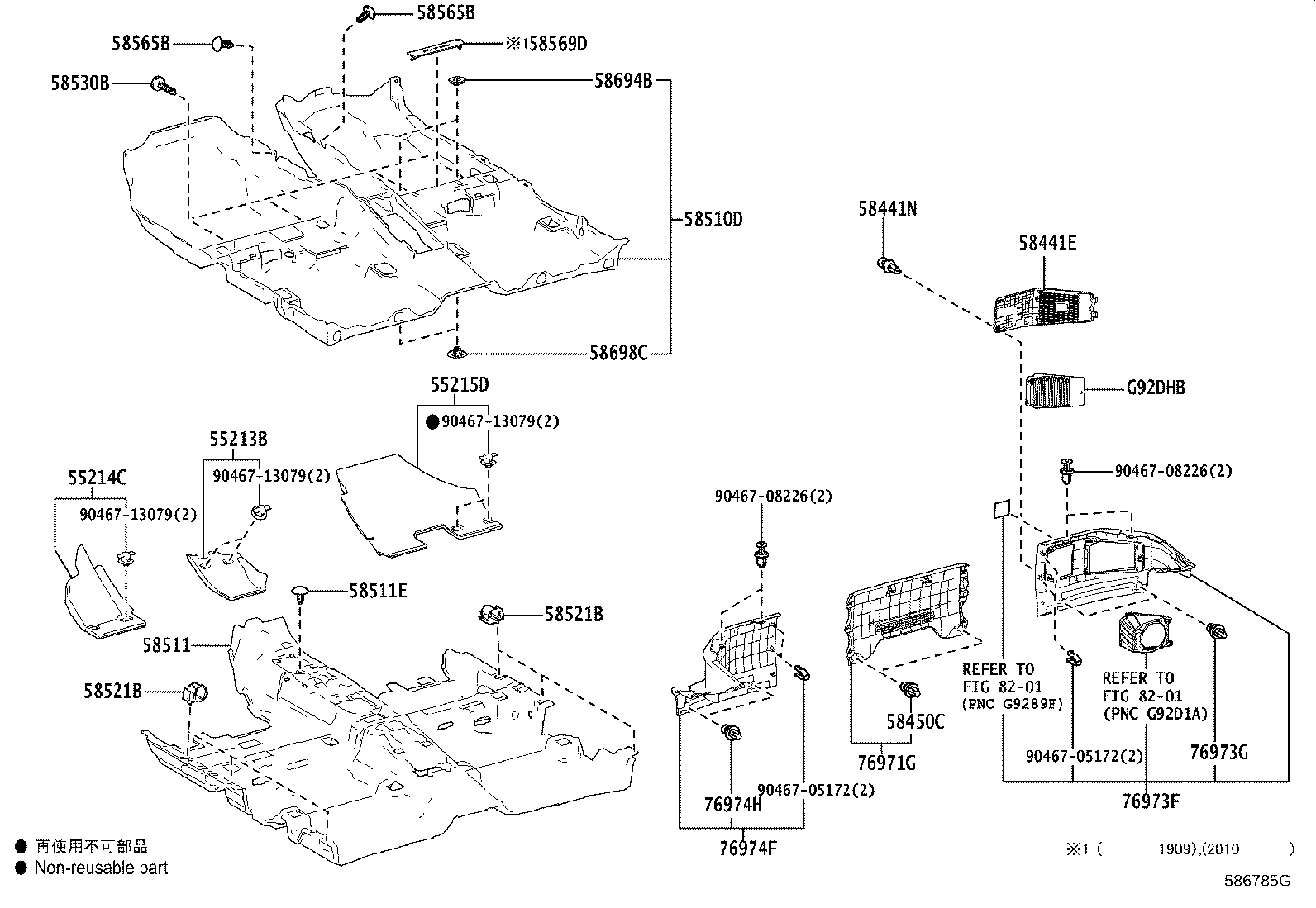

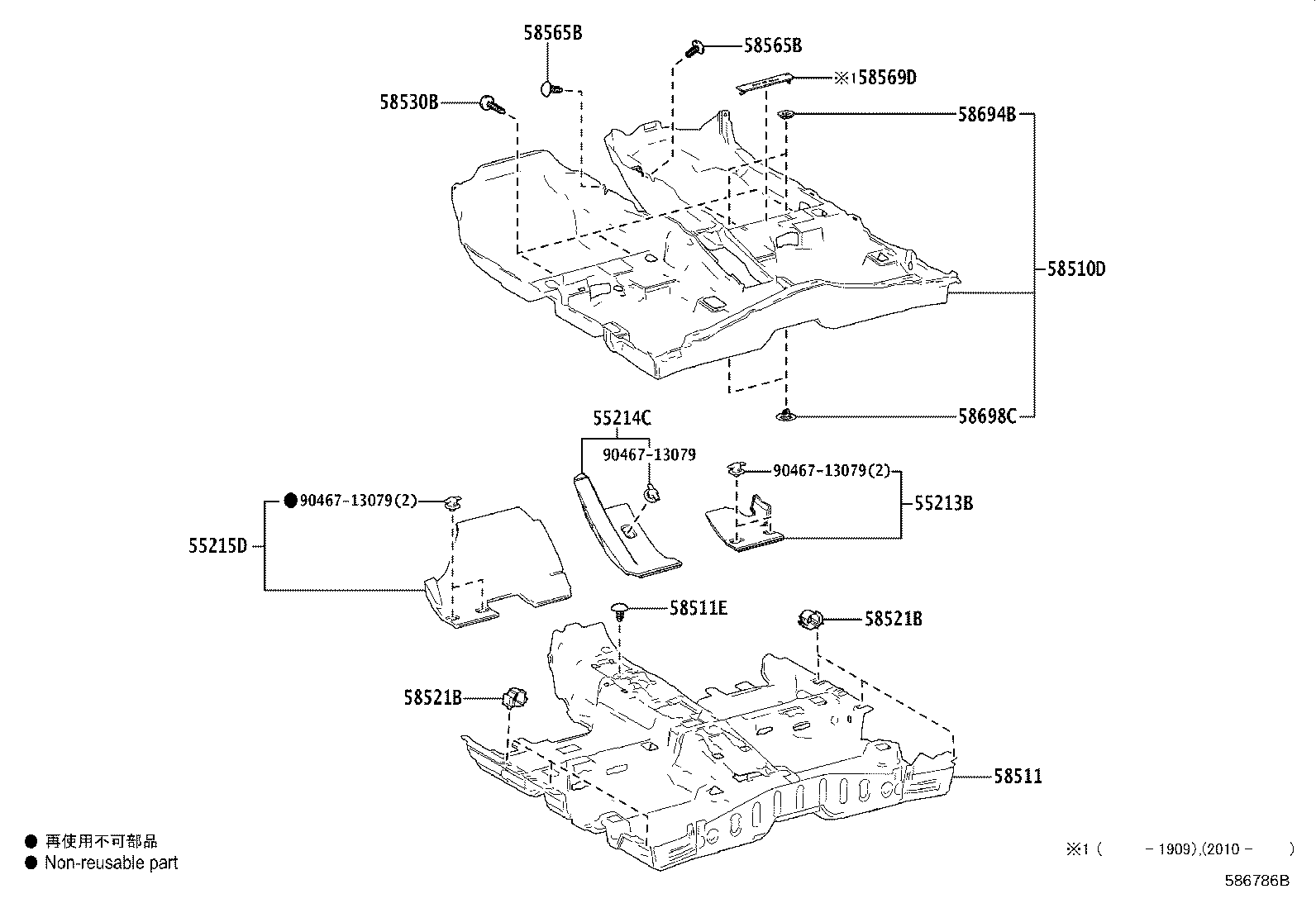

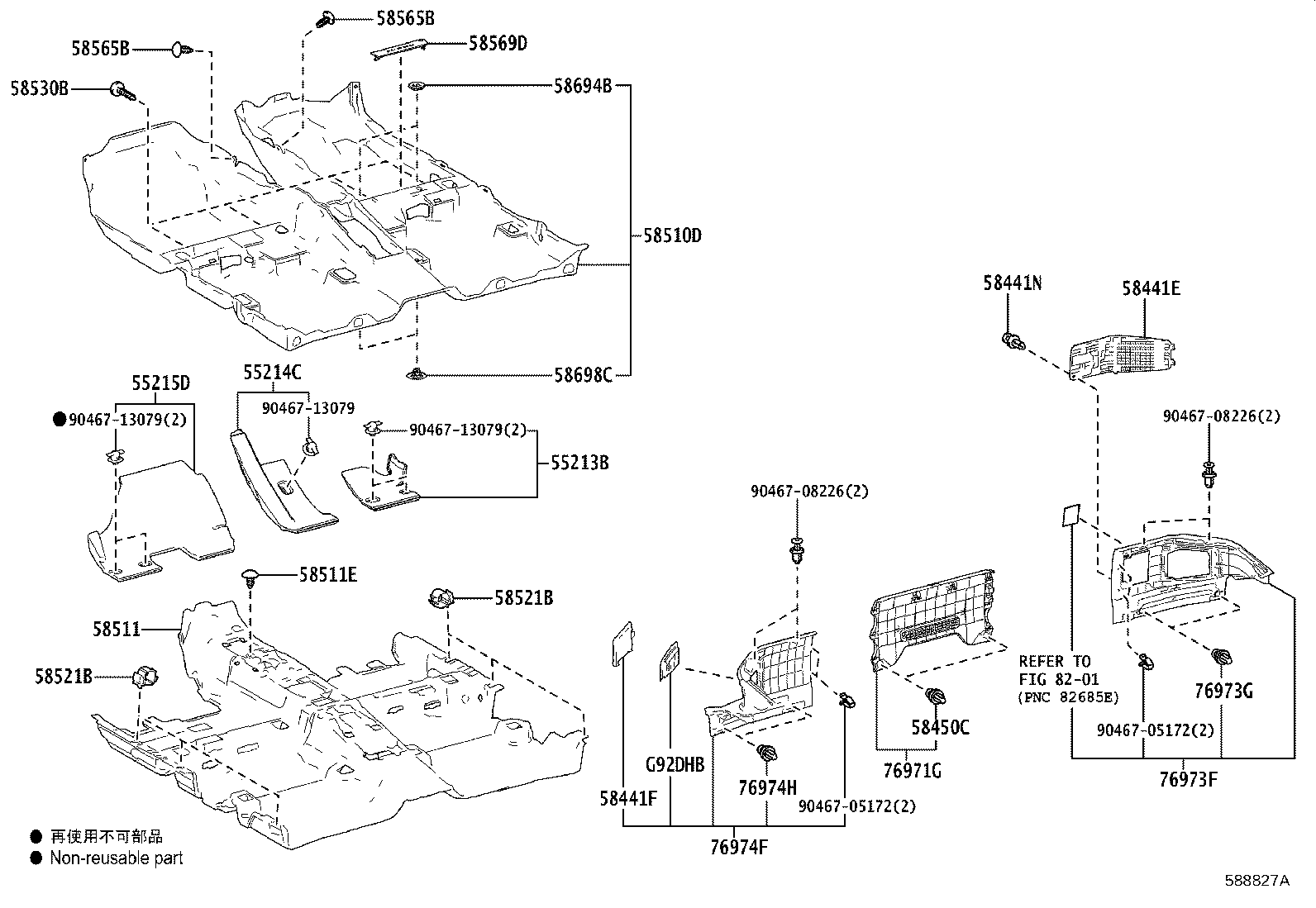

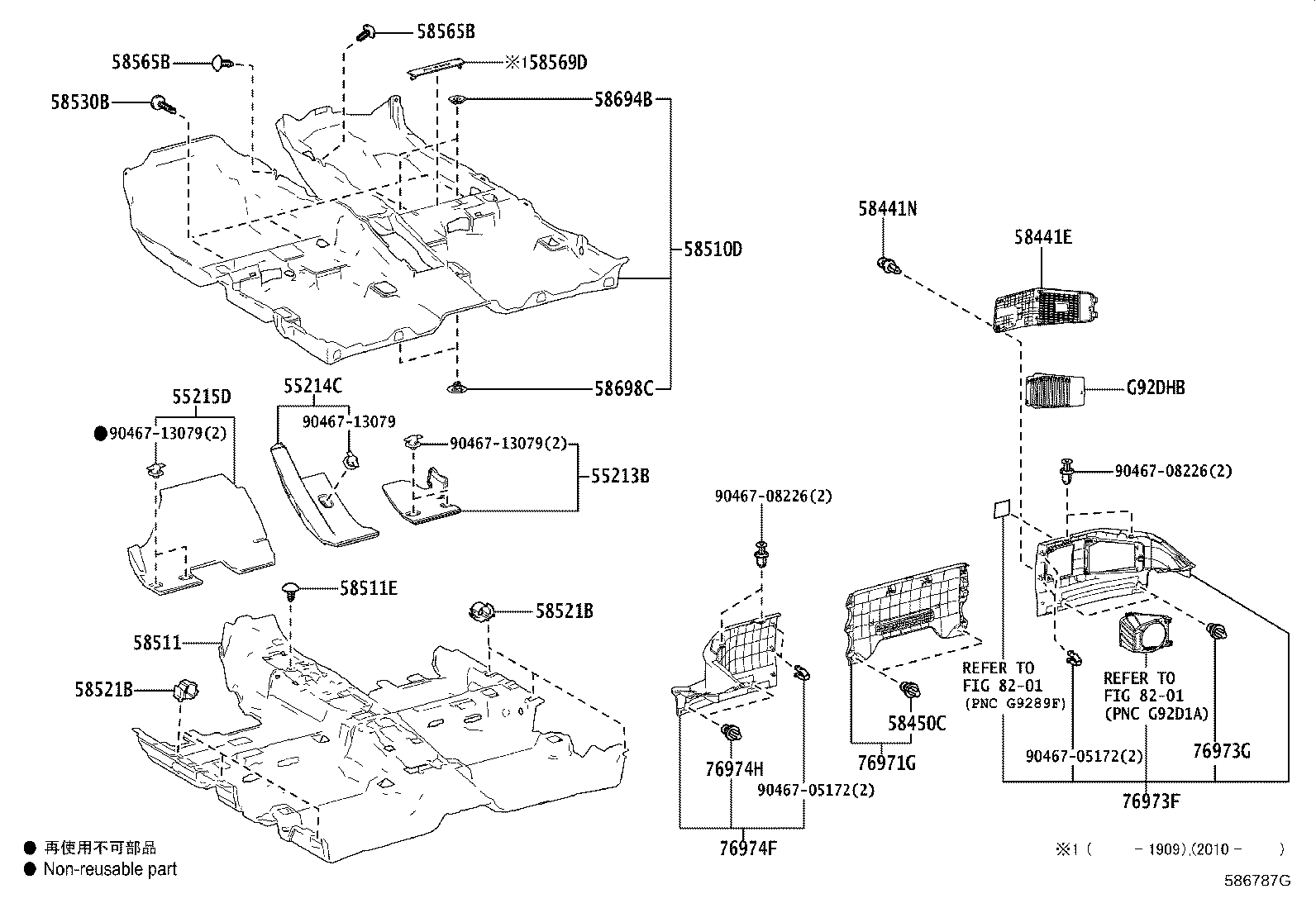

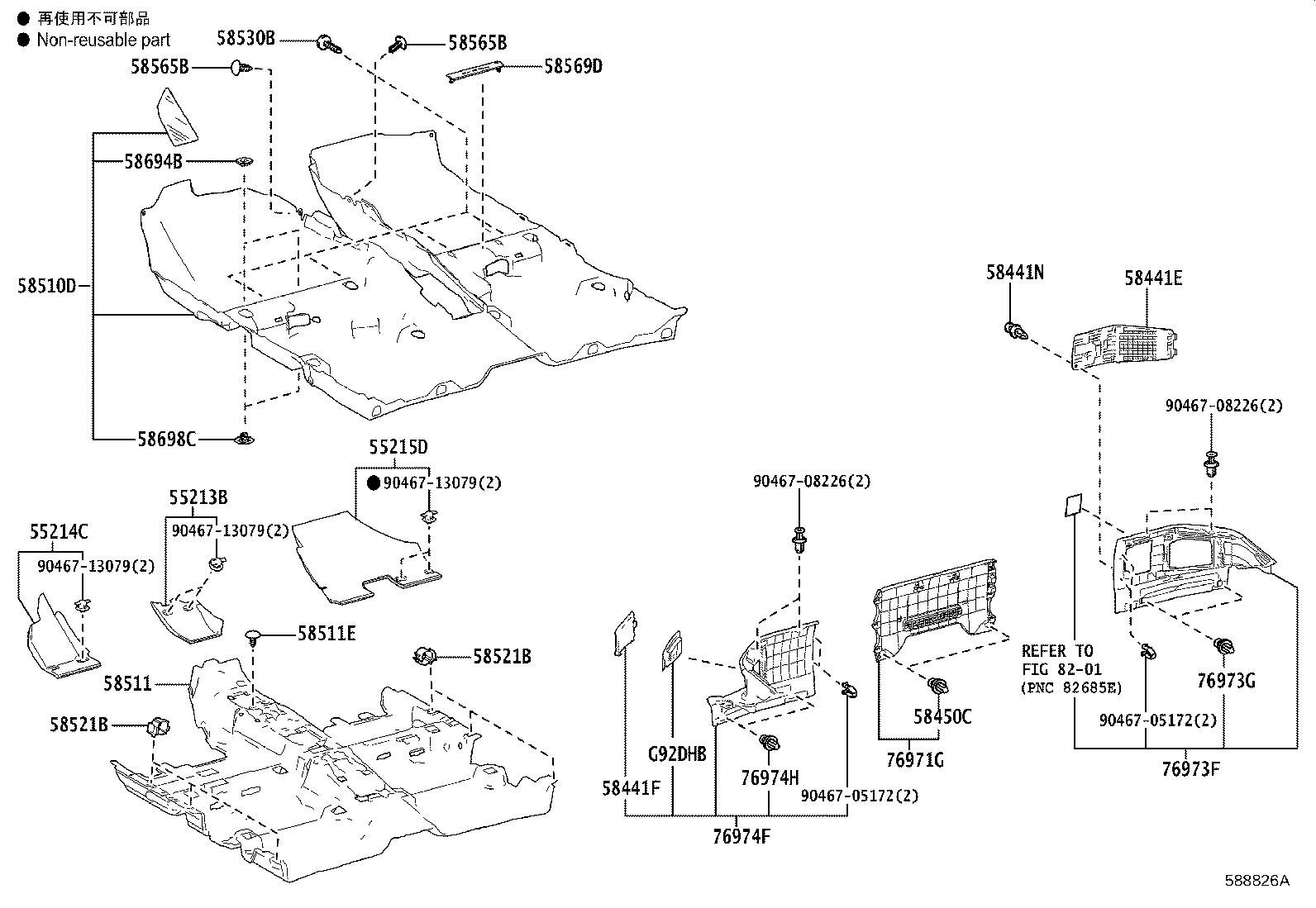

Figure 586784B 586784B 2019-01 → — Figure 586785G 586785G 2019-01 → — Figure 586786B 586786B 2019-01 → — Figure 586787G 586787G 2019-01 → — Figure 586846 586846 2019-01 → — Figure 586847 586847 2019-01 → — Figure 588826A 588826A 2023-01 → — Figure 588827A 588827A 2023-01 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58441E Cover, Battery Service Hole
58441F Cover, Battery Service Hole
58441N Clip(FOR BATTERY SERVICE HOLE COVER)
58450C Clip
58510D Carpet Assy, Floor, Front
58510H Mat Assy, Floor
58511 Mat, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58565B Clip
58569D Cover, Front Floor Caution Plate
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
76971G Cover, Rear Under
76973F Cover, Rear Under Side, RH
76973G Clip, Rear Under Side Cover, RH
76974F Cover, Rear Under Side, LH
76974H Clip, Rear Under Side Cover, LH
G92DHB Filter, HV Battery Intake, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
