Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

45 part groups · 7 illustrations

Illustrations

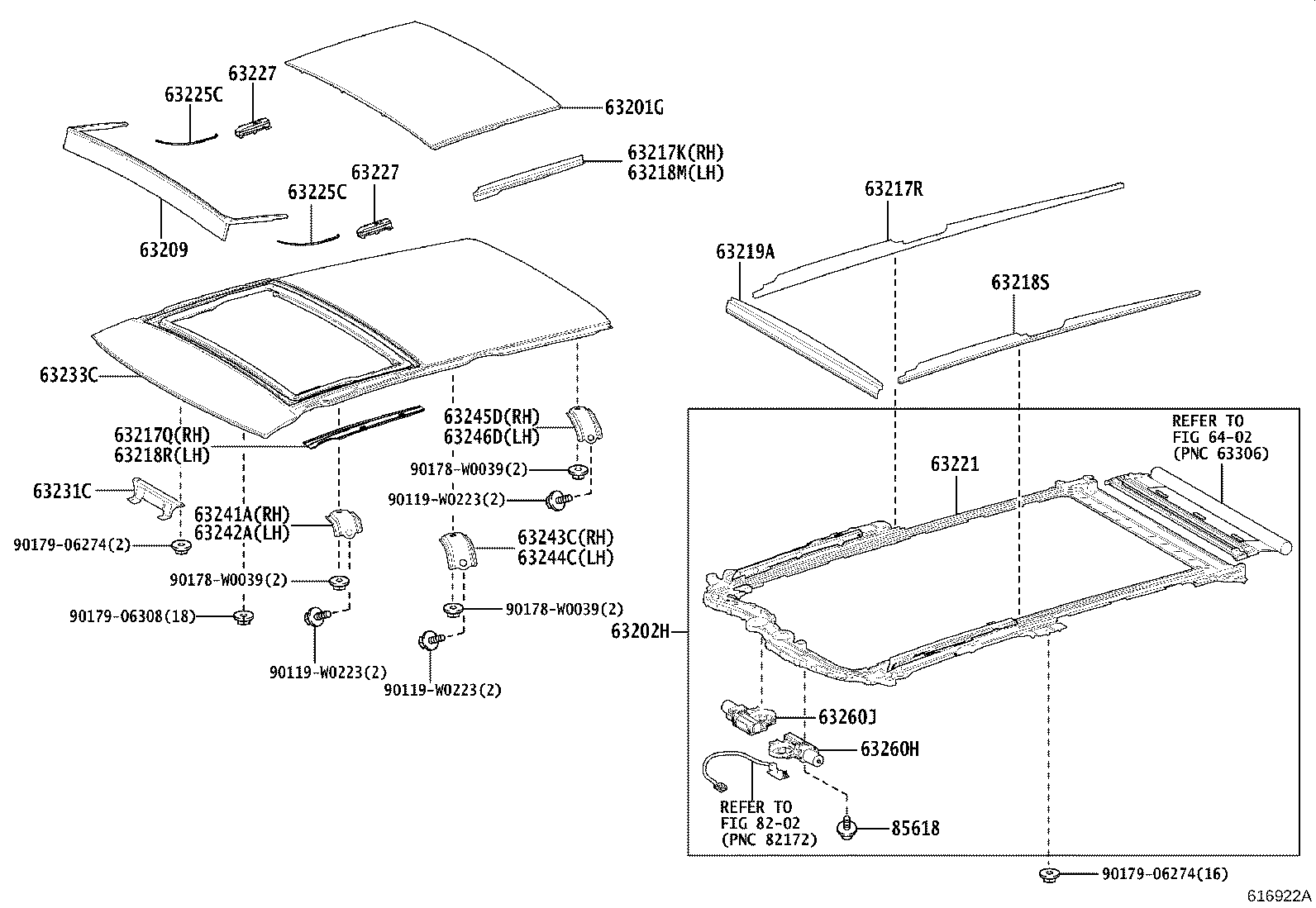

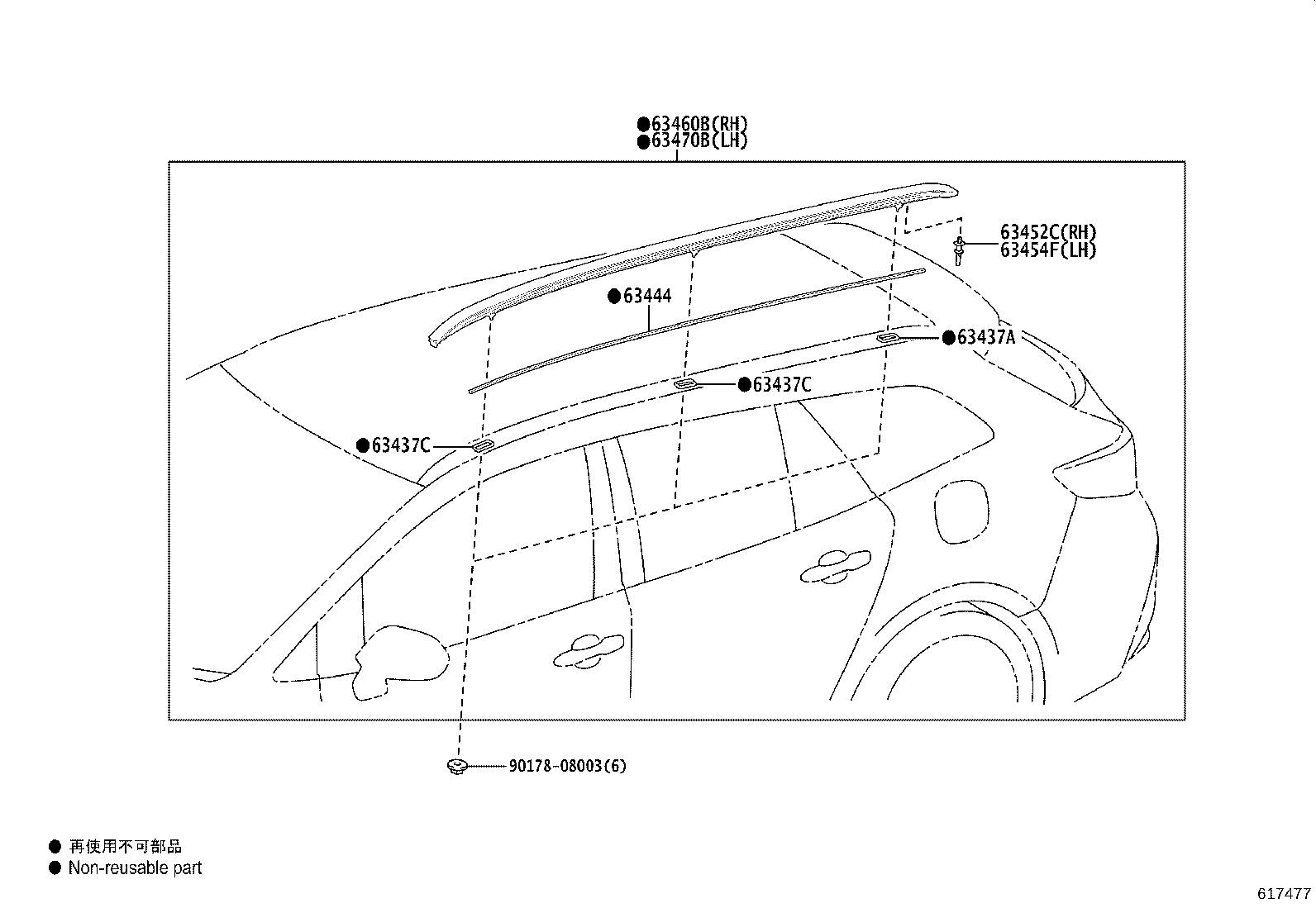

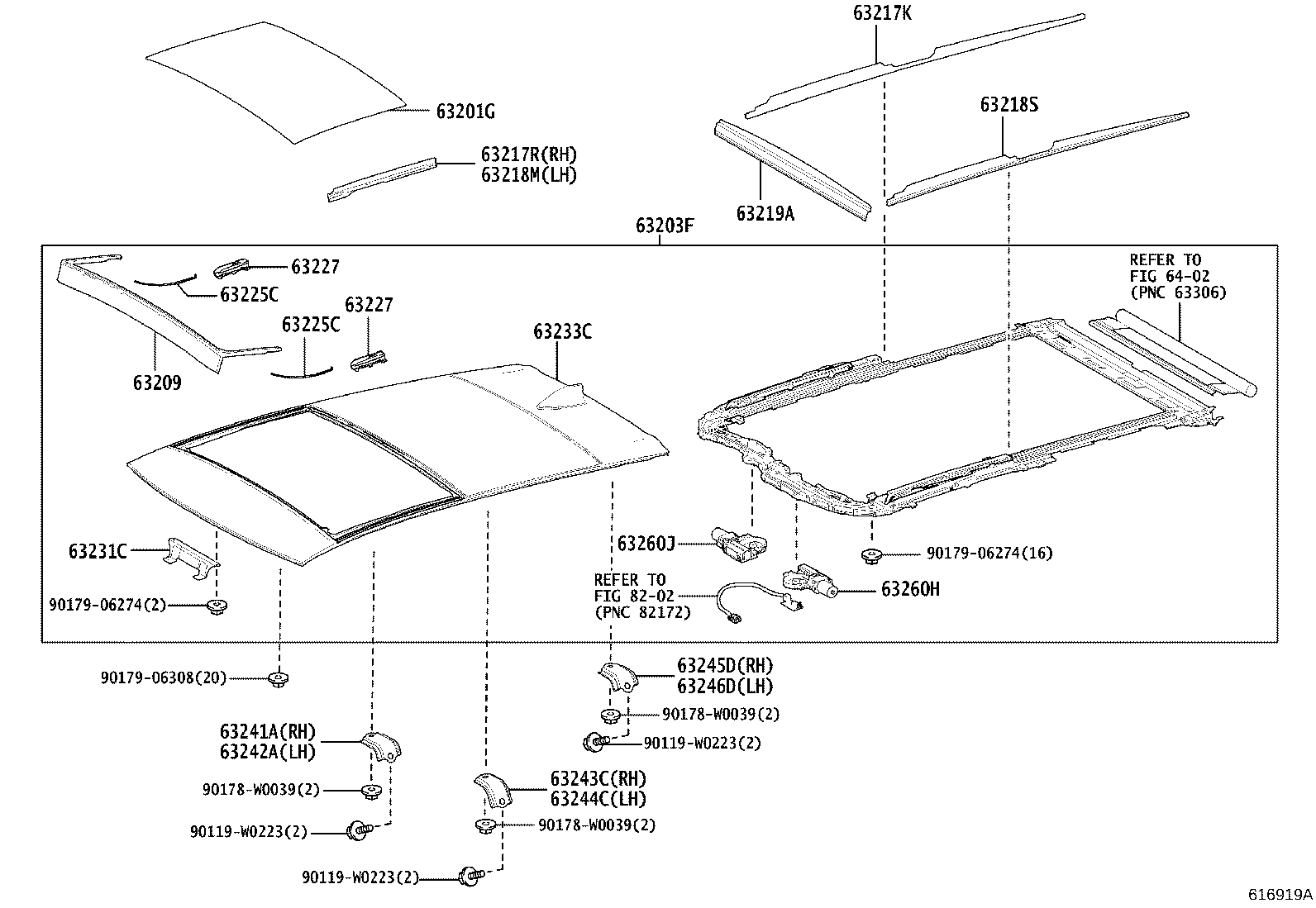

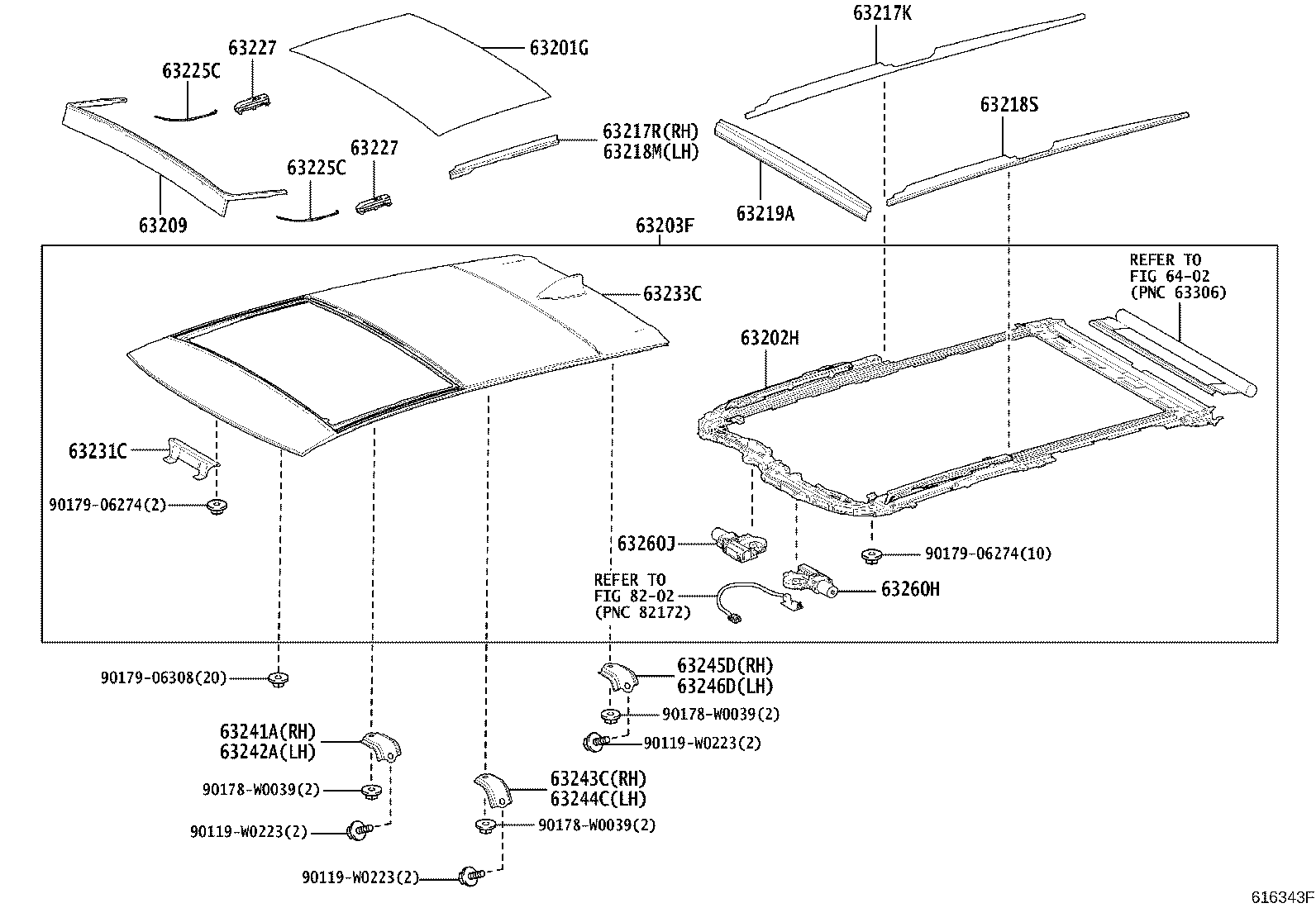

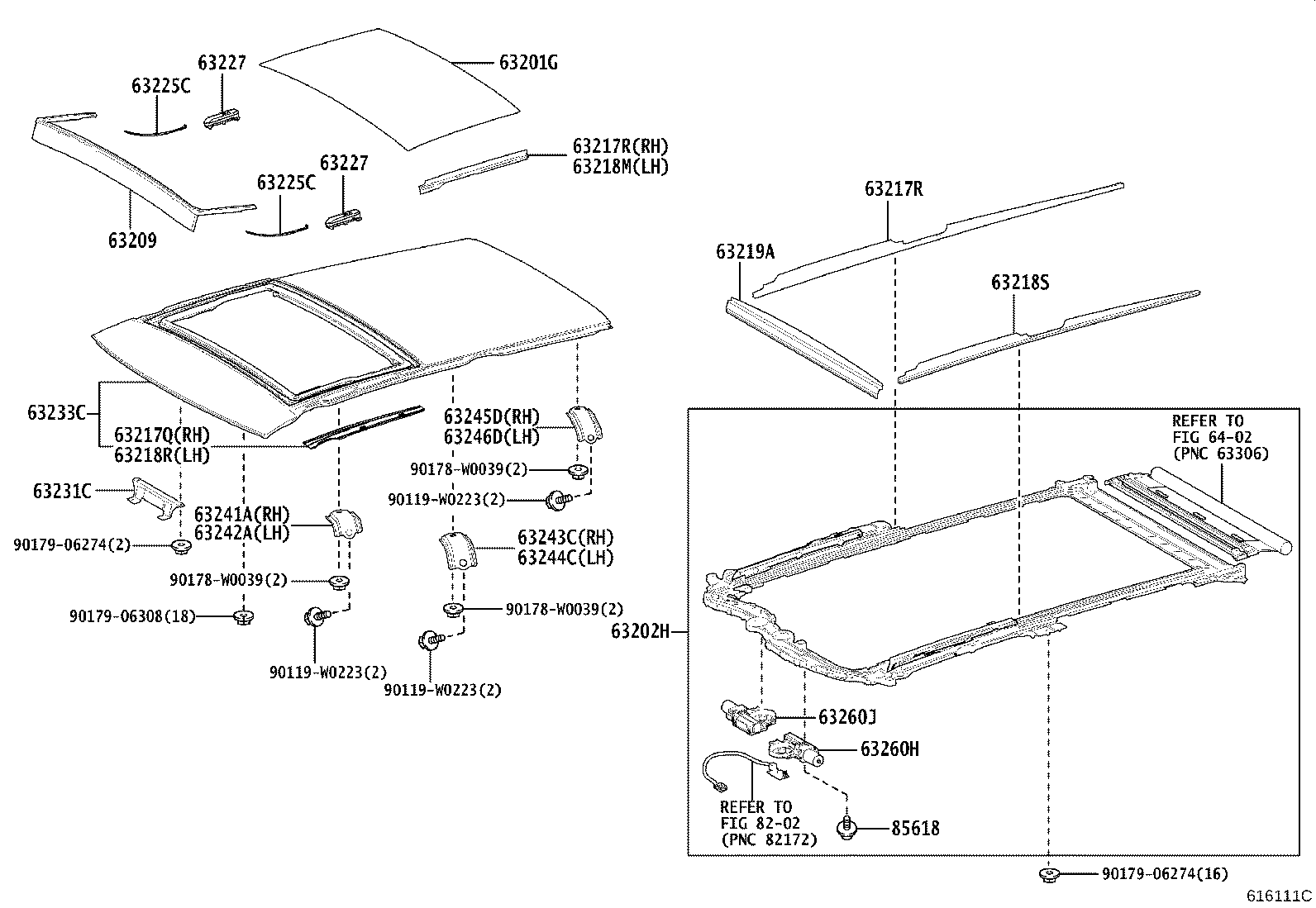

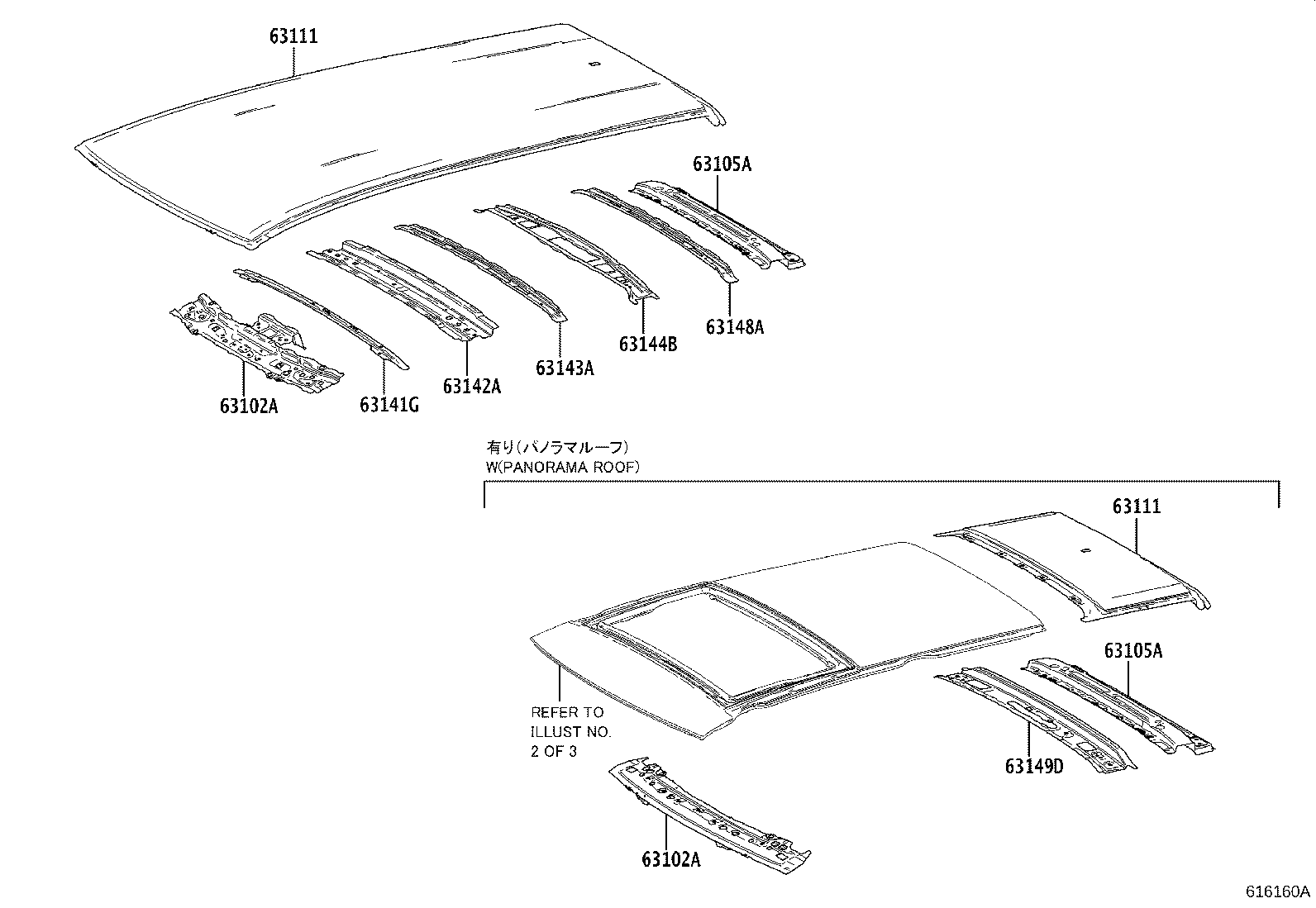

Figure 616159A 616159A 2019-01 → — Figure 616343F 616343F 2019-01 → 2019-08 Figure 616919A 616919A 2019-08 → — Figure 616160A 616160A 2019-02 → — Figure 616111C 616111C 2019-02 → 2019-08 Figure 616922A 616922A 2019-08 → — Figure 617477 617477 2019-02 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63141G Reinforcement, Roof Panel, NO.1
63142A Reinforcement, Roof Panel, NO.2
63143A Reinforcement, Roof Panel
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63144B Reinforcement, Roof Panel, NO.4
63145A Reinforcement, Roof Panel, NO.5
63146D Reinforcement, Roof Panel, NO.6
63148A Reinforcement, Roof Panel, NO.7
63149D Reinforcement, Roof Panel, NO.8
63201G Glass Sub-assy, Sliding Roof
63202H Rail Sub-assy, Slide Roof
63203F Housing Sub-assy, Sliding Roof
63209 Panel Sub-assy, Roof Wind Deflector
63217K Garnish, Sliding Roof Side, RH
63217Q Garnish, Sliding Roof Side, RH
63217R Garnish, Sliding Roof Side, RH
63218M Garnish, Sliding Roof Side, LH
63218R Garnish, Sliding Roof Side, LH
63218S Garnish, Sliding Roof Side, LH
63219A Garnish, Sliding Roof, Rear
63221 Casing, Sliding Roof Cable Guide
63225C Spring, Roof Wind Deflector
63227 Clip, Roof Wind Deflector Panel
63231C Bracket, Room Lamp
63233C Panel, Sliding Roof Housing
63241A Bracket, Sliding Roof Housing Front Mounting, RH
63242A Bracket, Sliding Roof Housing Front Mounting, LH
63243C Bracket, Sliding Roof Housing Center Mounting, RH
63244C Bracket, Sliding Roof Housing Center Mounting, LH
63245D Bracket, Sliding Roof Housing Rear Mounting, RH
63246D Bracket, Sliding Roof Housing Rear Mounting, LH
63260H Gear Assy, Sliding Roof Drive
63260J Gear Assy, Sliding Roof Drive
63437A Seal, Roof Carrier, NO.2
63437C Seal, Roof Carrier
63444 Protector, Roof Carrier, NO.1
63452C Retainer, Roof Rack, Rear RH
63454F Retainer, Roof Rack, Rear LH
63460B Rack Assy, Roof, RH
63470B Rack Assy, Roof, LH
85618 Screw, Slide Roof Motor Thrust
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
