Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

17 part groups · 9 illustrations

Illustrations

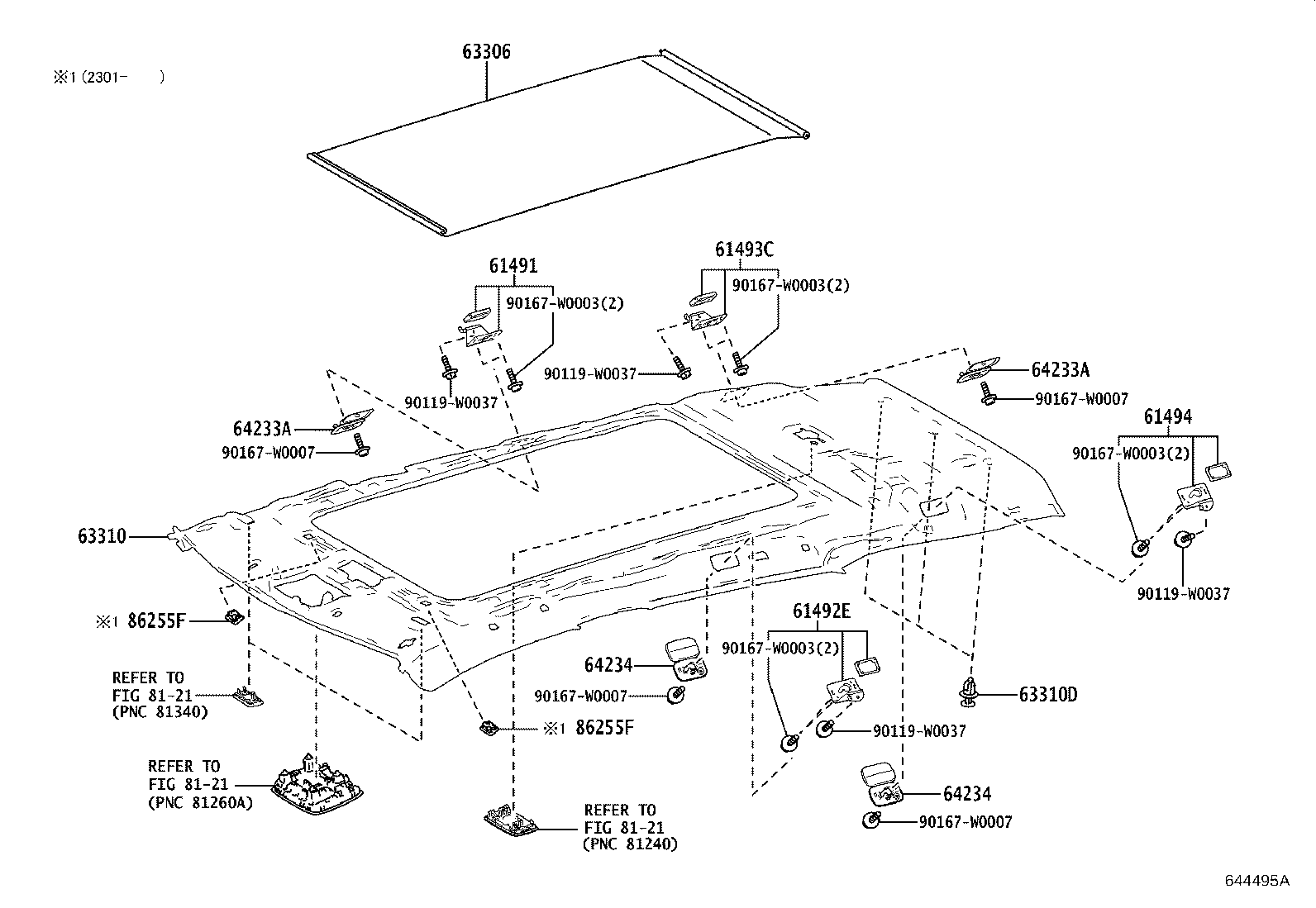

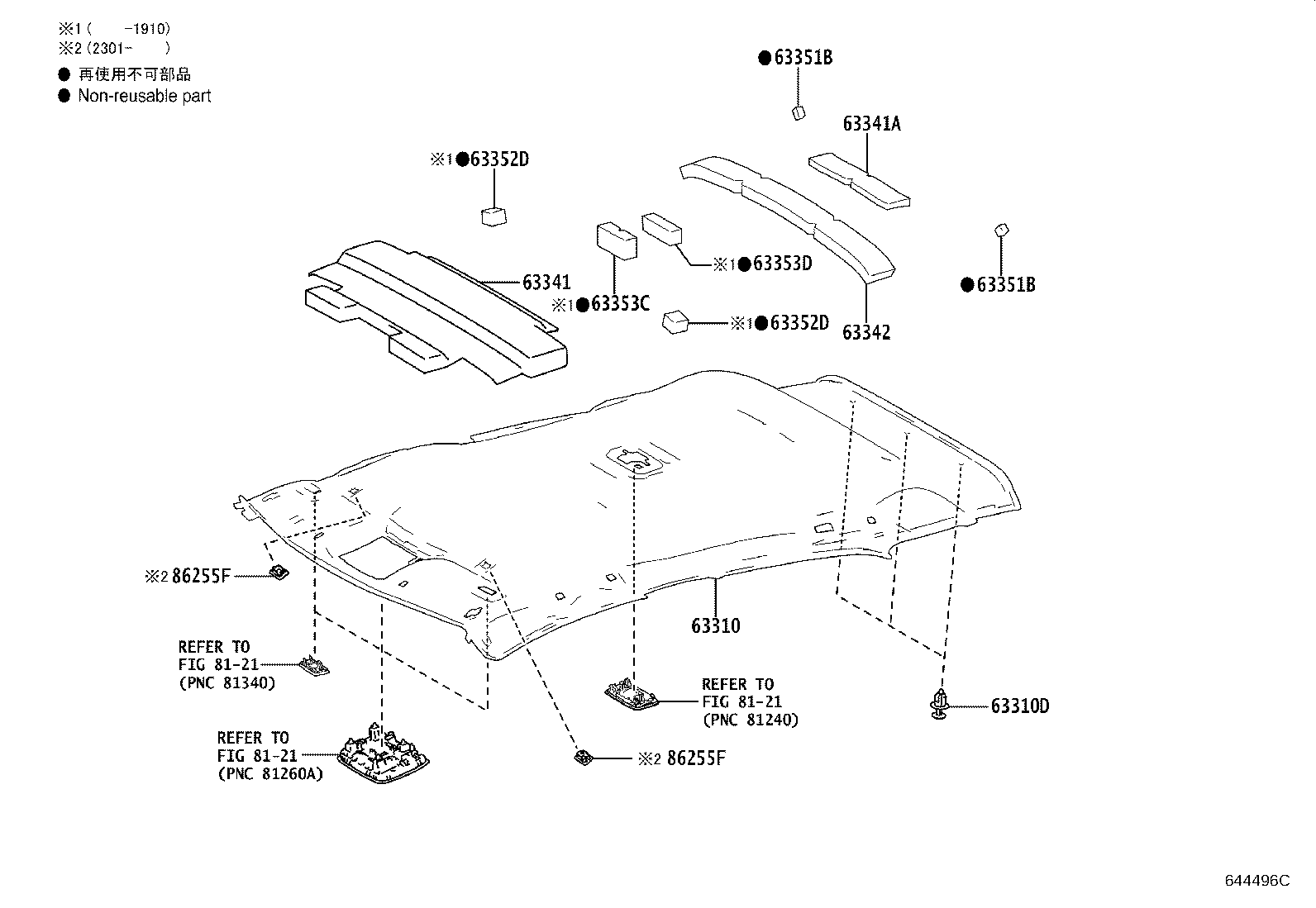

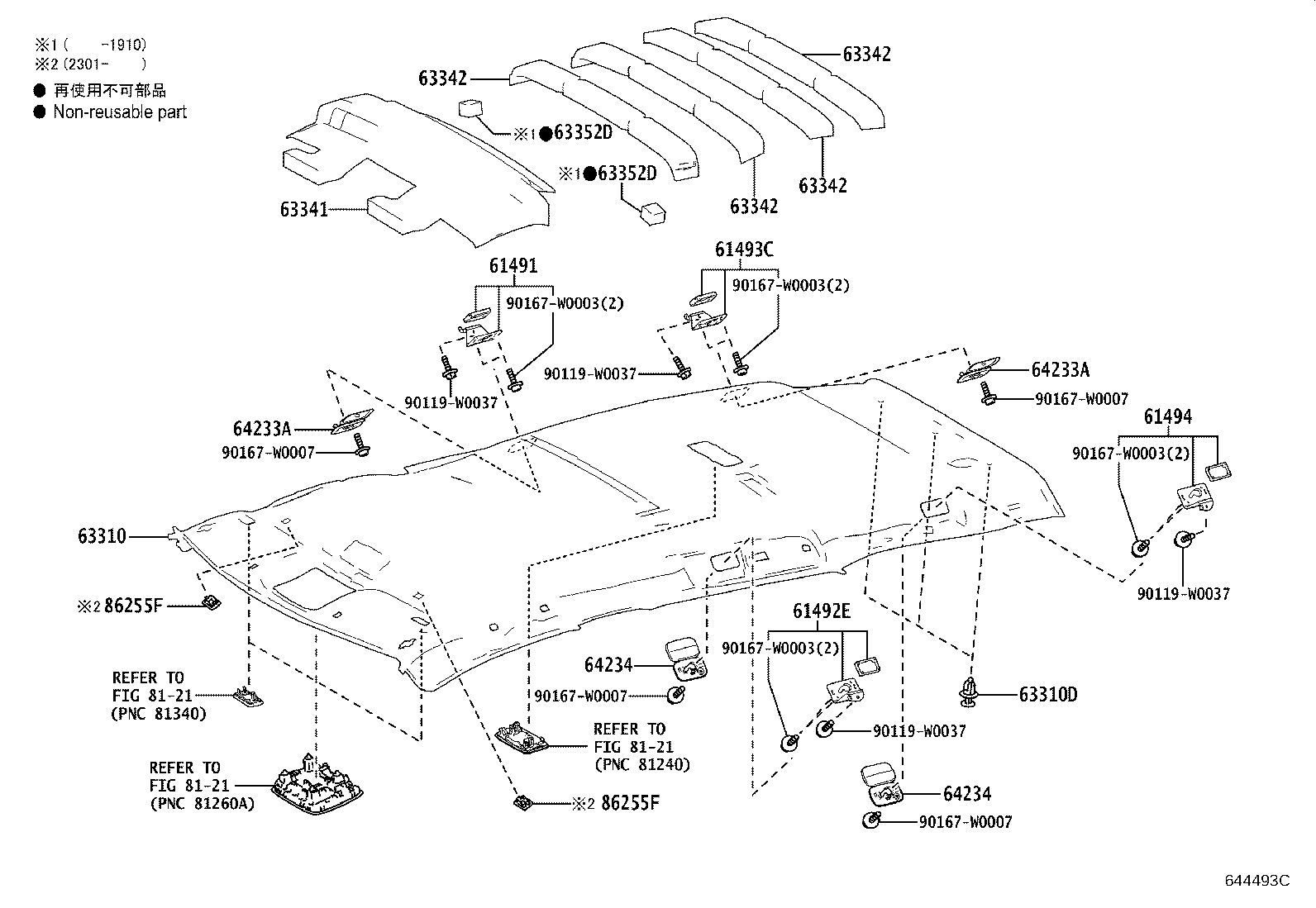

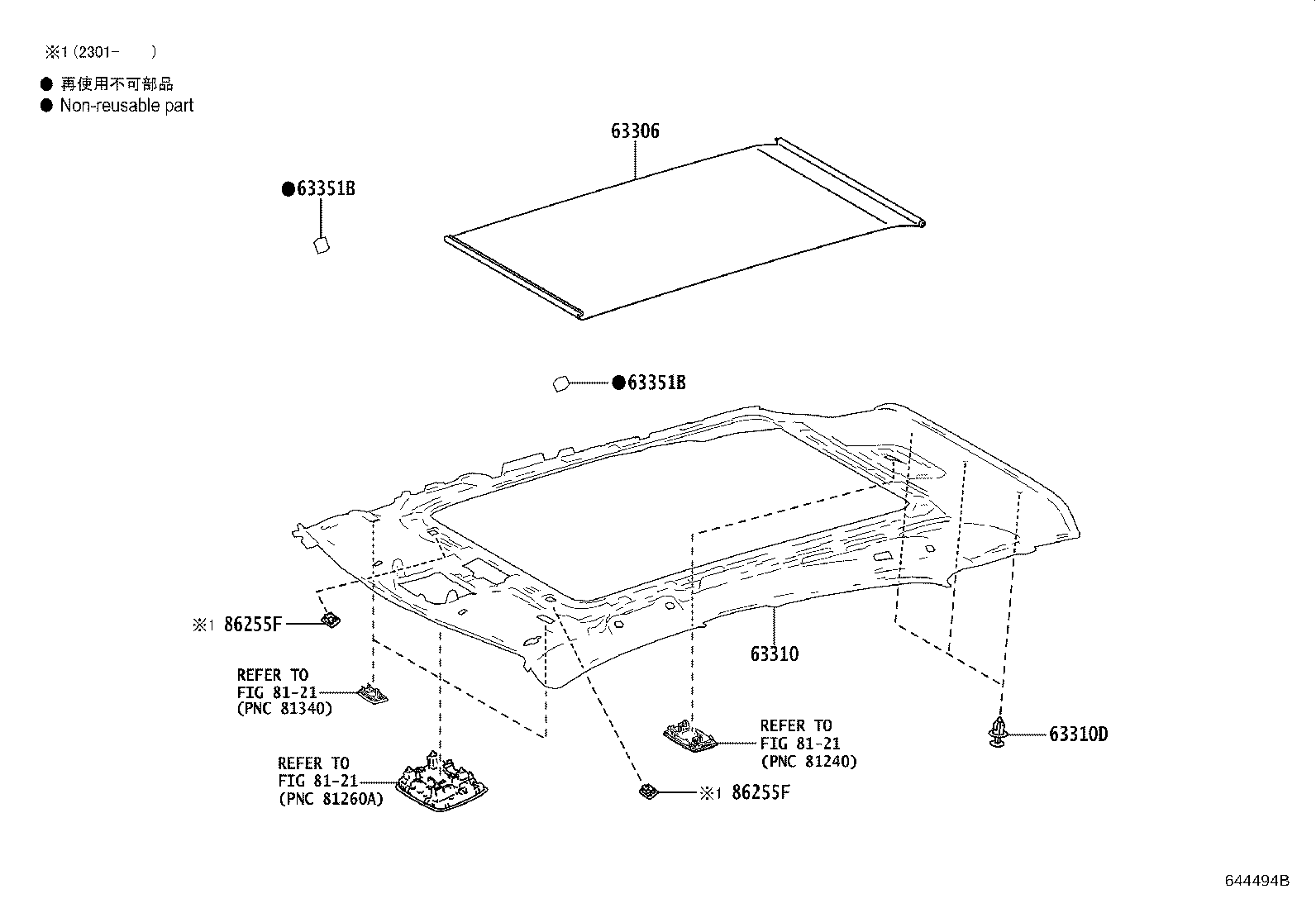

Figure 645743 645743 2019-01 → 2022-05 Figure 645743 645743 2022-01 → 2022-05 Figure 644496C 644496C 2019-01 → 2022-01 Figure 644496C 644496C 2019-01 → — Figure 644496C 644496C 2022-05 → — Figure 644496C 644496C 2022-06 → — Figure 644494B 644494B 2019-01 → — Figure 644493C 644493C 2019-02 → — Figure 644495A 644495A 2019-02 → —

Part groups

PNCDescription
61491 Bracket, Side Panel Strength, NO.1
61492E Bracket, Side Panel Strength, NO.2
61493C Bracket, Side Panel Strength, NO.3
61494 Bracket, Side Panel Strength, NO.4
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63341 Pad, Roof Silencer, NO.1
63341A Silencer, Roof, NO.1
63342 Pad, Roof Silencer, NO.2
63351B Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63353C Pad, Roof Headlining, Center
63353D Pad, Roof Headlining, Center
64233A Hook, Room Partition Net, Rear RH
64234 Hook, Room Partition Net, Rear LH
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
