Toyota Corolla (UKP)
2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe
Supported model
Data version 2022-12

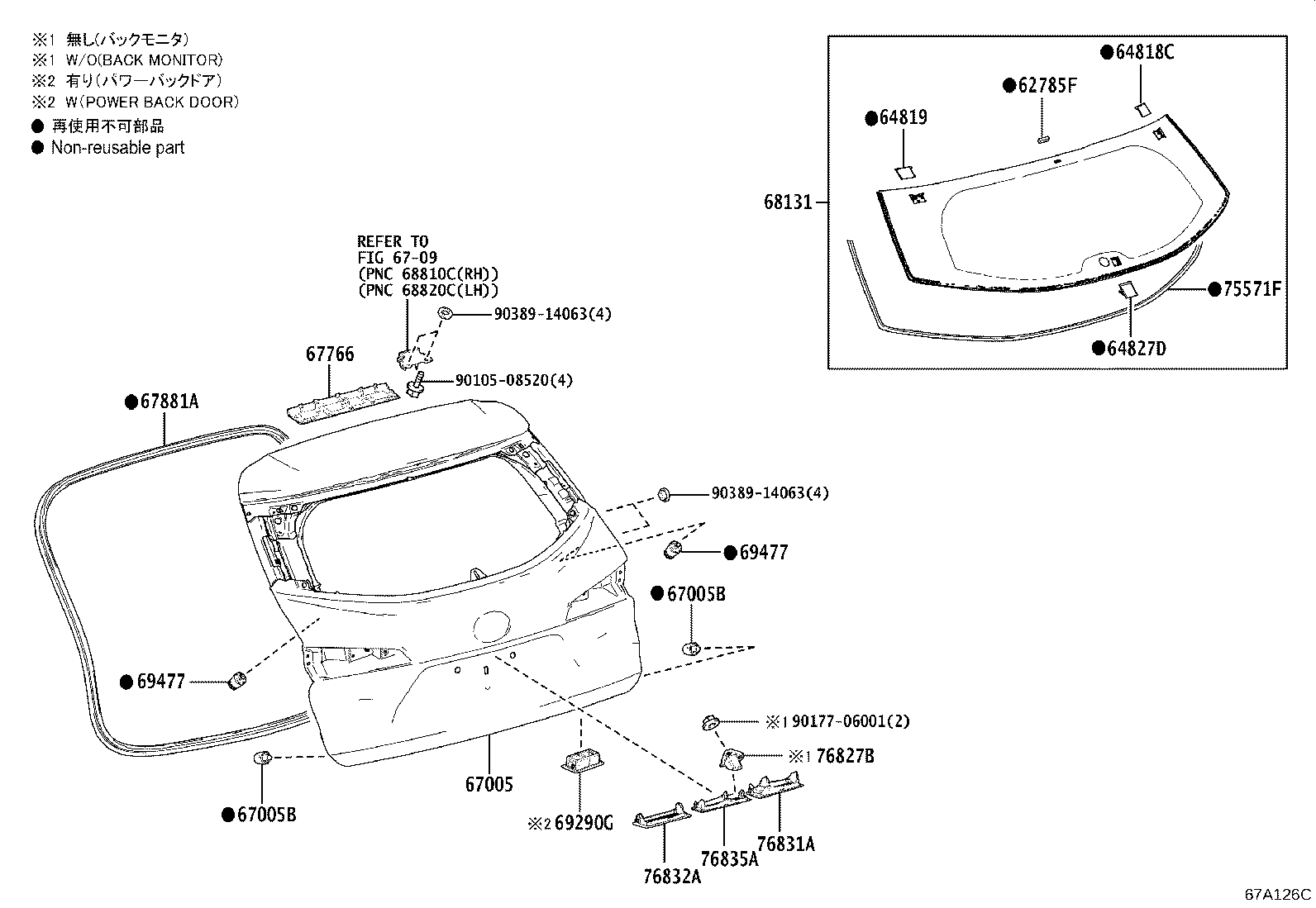

Back Door Panel & Glass
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62785F | Spacer, Back Door Glass |
| 64338C | Hook, Package Tray Trim Garnish, RH |
| 64338D | Hook, Package Tray Trim Garnish, LH |

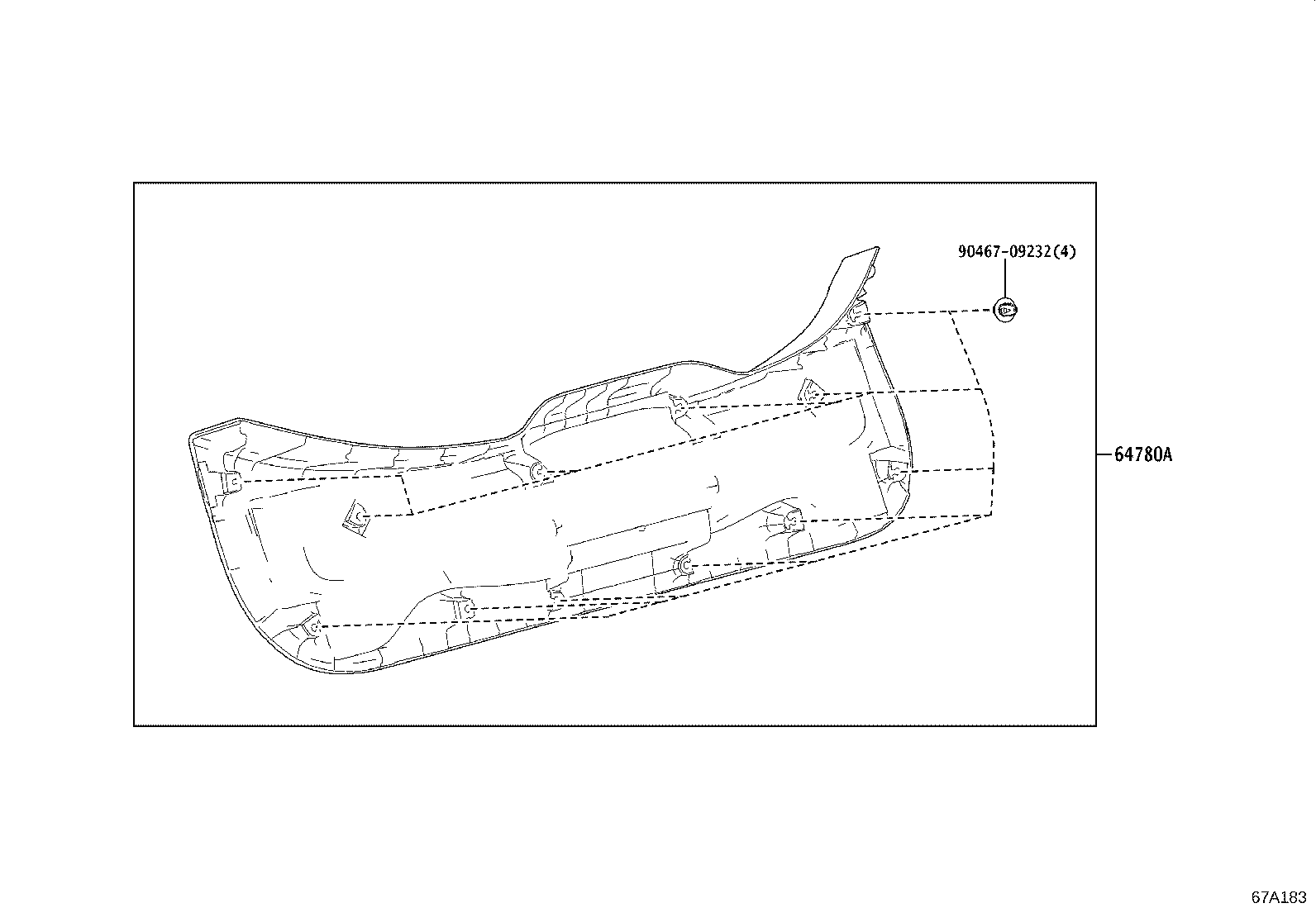

| 64780A | Panel Assy, Back Door Trim |
| 64818C | Spacer, Back Window Glass, NO.1 |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 64827D | Clip, Back Window Glass |
| 64904D | Cover Sub-assy, Tonneau, NO.2 |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67766 | Cover, Back Door Service Hole, NO.2 |
| 67881A | Weatherstrip, Back Door |
| 68131 | Glass, Back Door |
| 69290G | Base Assy, Glide Door Inside Handle |
| 69477 | Cushion, Back Door Upper Stopper |
| 75571F | Mouldimg, Back Door Window |
| 75575D | Moulding, Back Window, Lower |
| 76827B | Retainer, Back Door Garnish, NO.2 |
| 76831A | Cover, Back Door Finish Panel, RH |
| 76832A | Cover, Back Door Finish Panel, LH |
| 76835A | Protector, Back Door Finish Panel, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
