Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

15 part groups · 6 illustrations

Illustrations

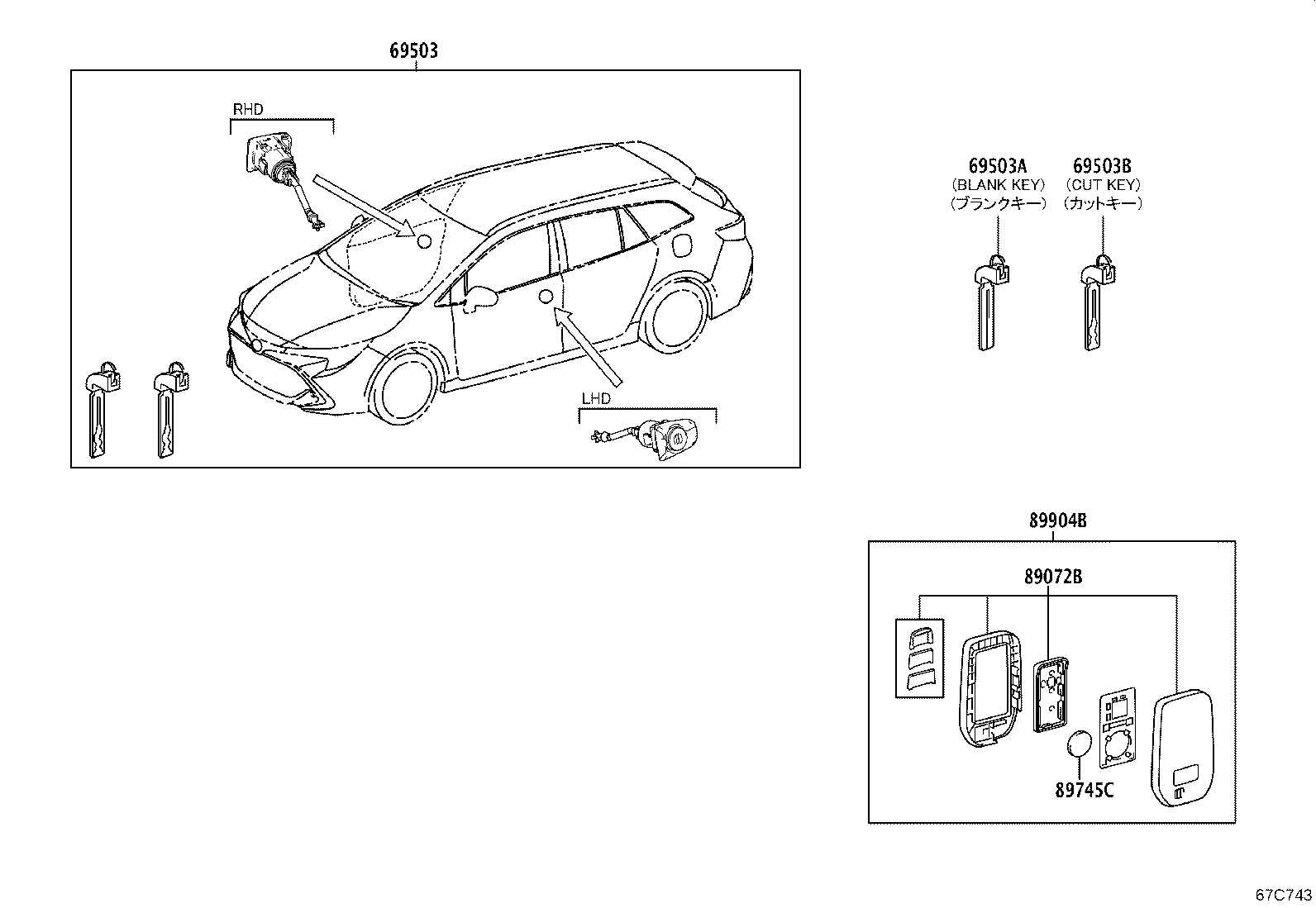

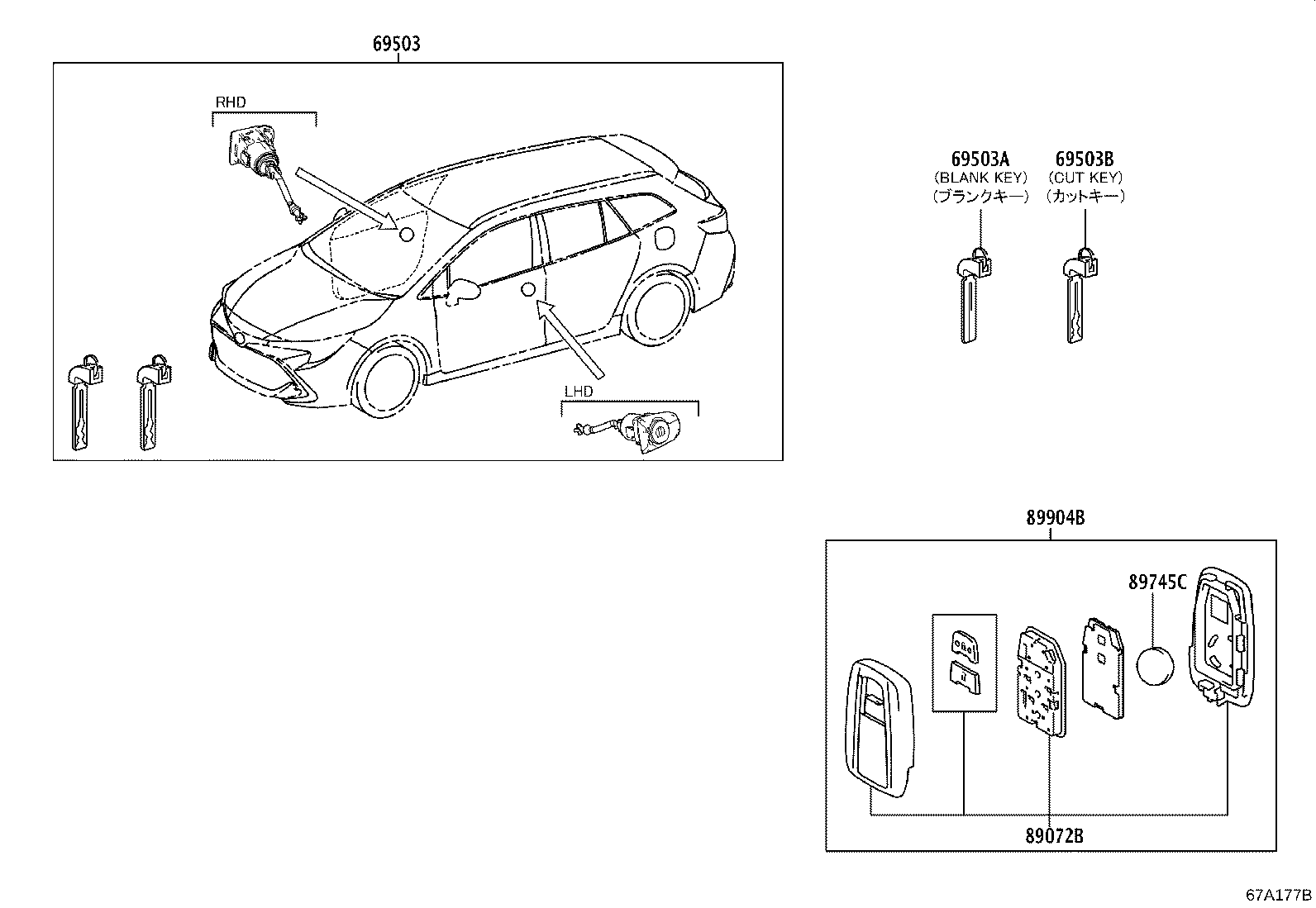

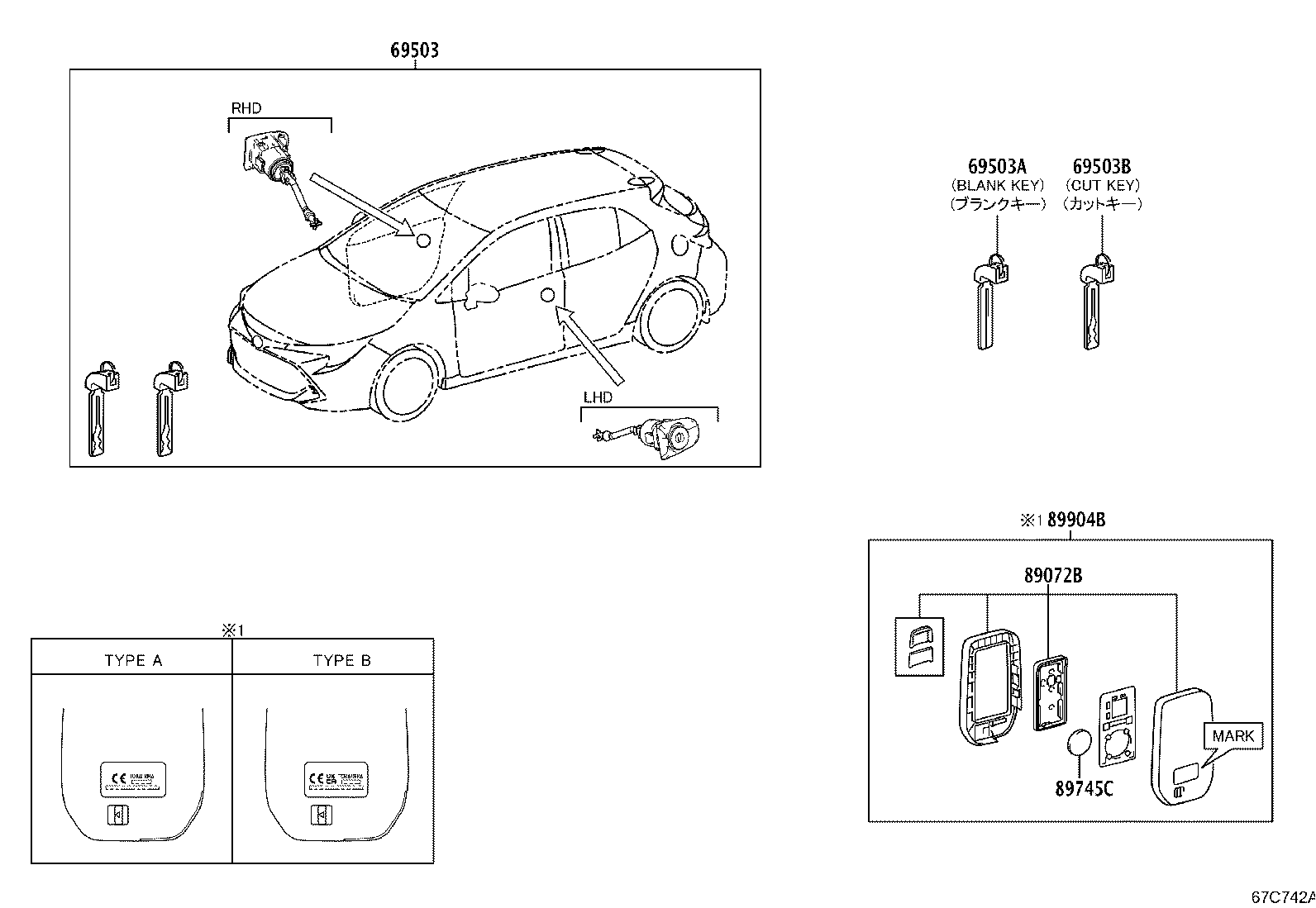

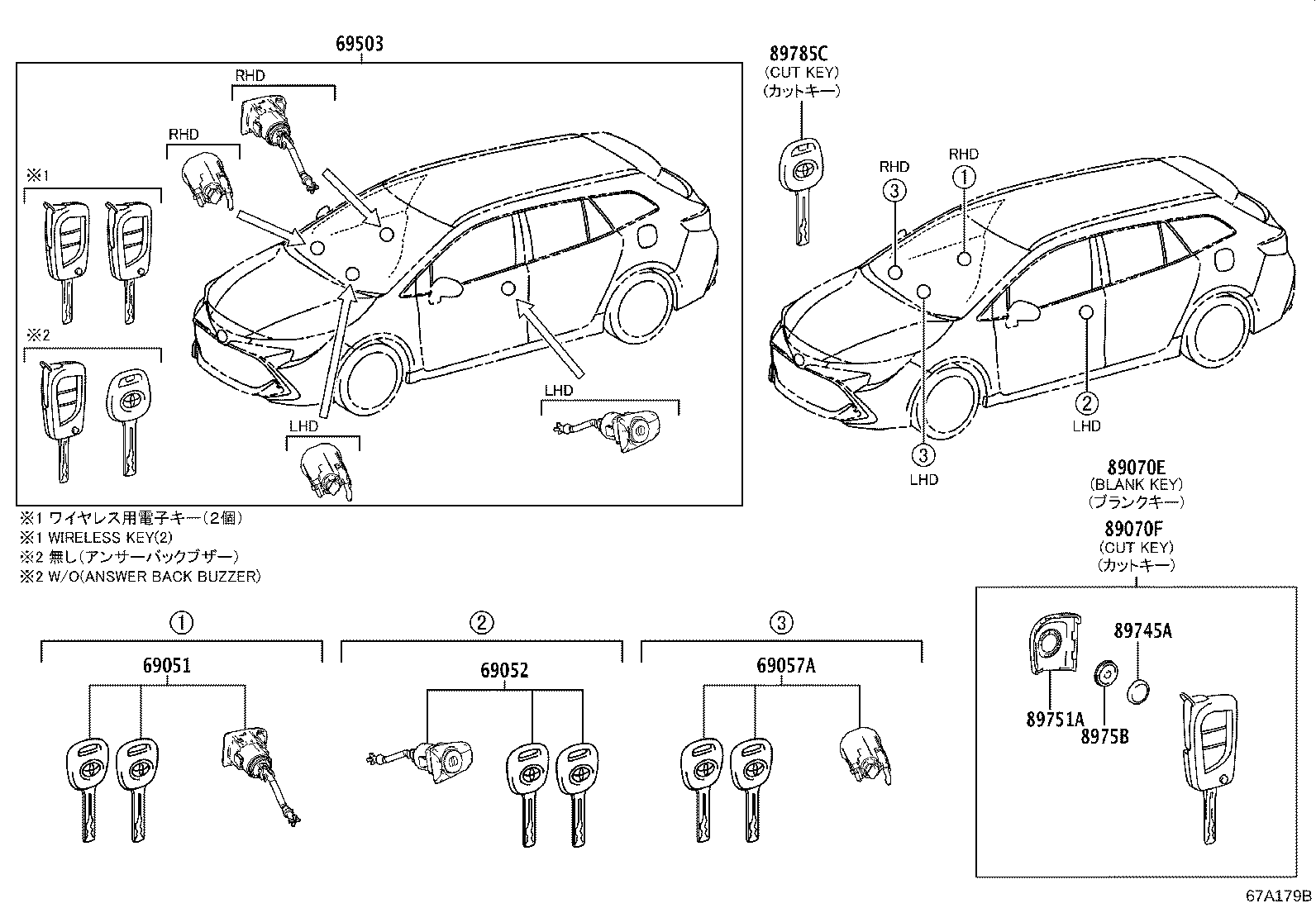

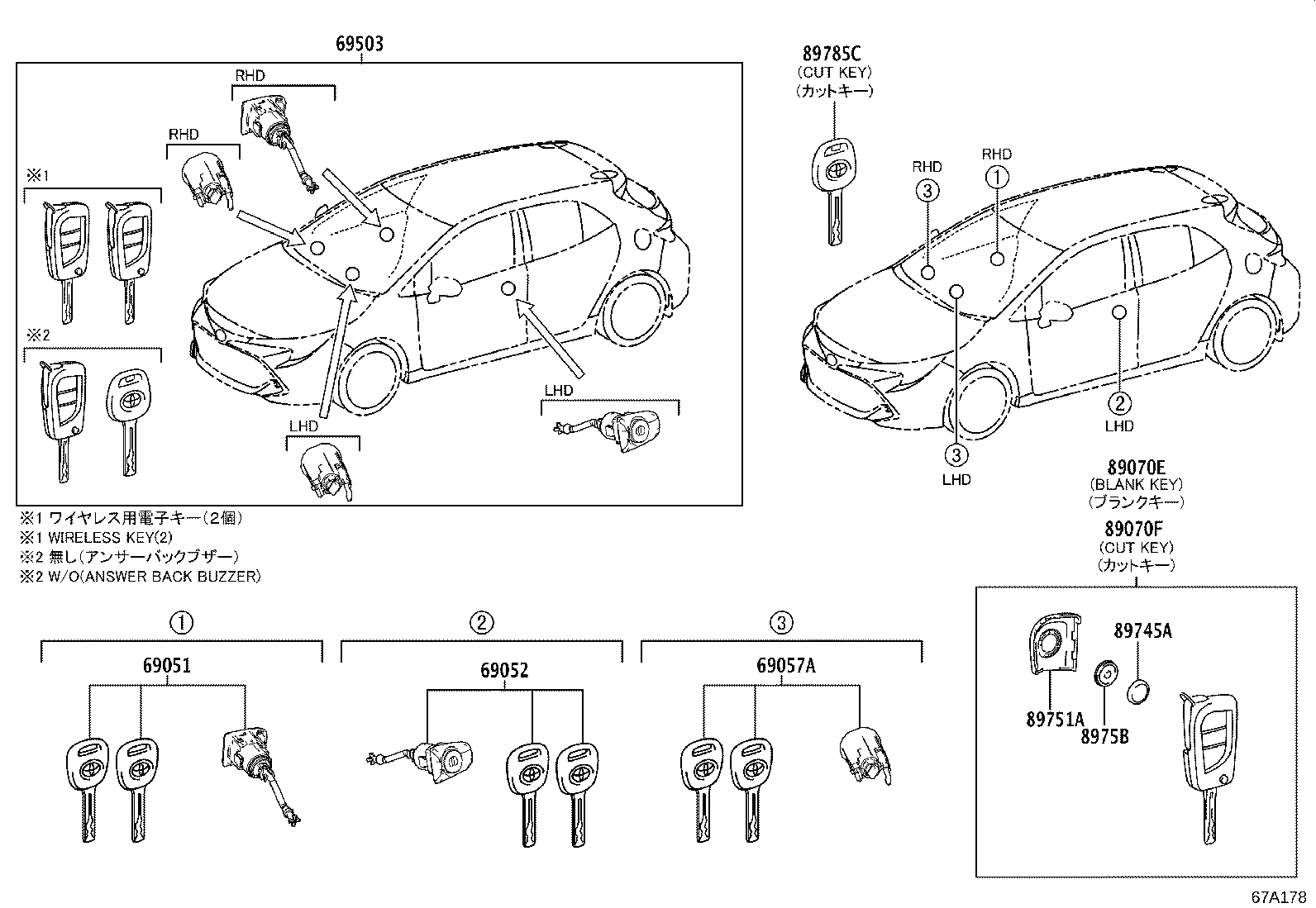

Figure 67A176B 67A176B 2019-01 → — Figure 67A178 67A178 2019-01 → — Figure 67A177B 67A177B 2019-02 → — Figure 67A179B 67A179B 2019-02 → — Figure 67C742A 67C742A 2023-01 → — Figure 67C743 67C743 2023-01 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
89070E Transmitter Assy, Door Control
89070F Transmitter Assy, Door Control (CUT KEY)
89072B Housing Set, Door Control Transmitter (FOR SMART KEY)
89745A Battery, Transmitter
89745C Battery, Transmitter
89751A Cover, Transmitter Housing
8975B Cover, Transmitter Battery Housing
89785C Transmitter, Transponder Key Master
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
