Toyota Corolla (UKP)
2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe
Supported model
Data version 2022-12

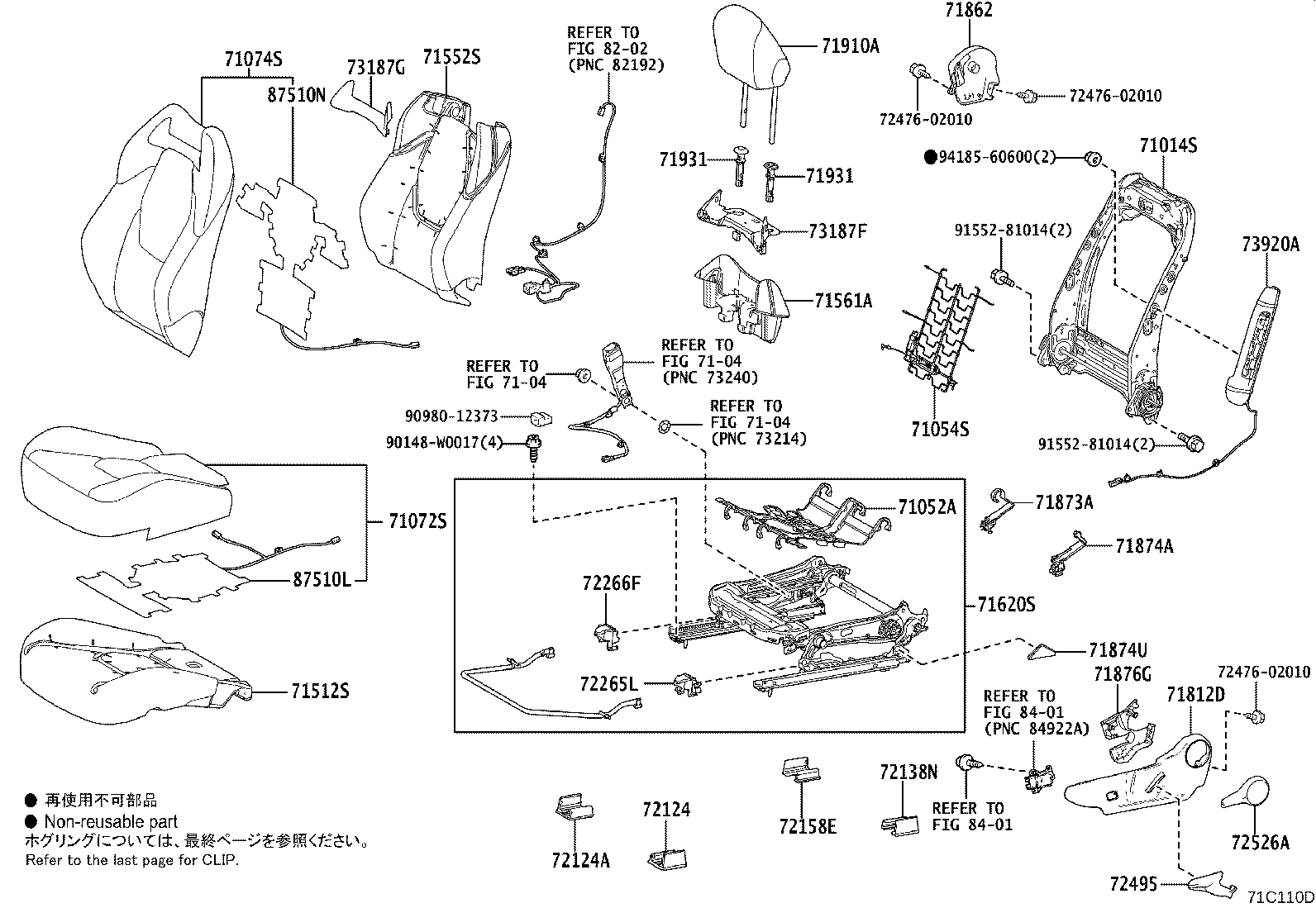

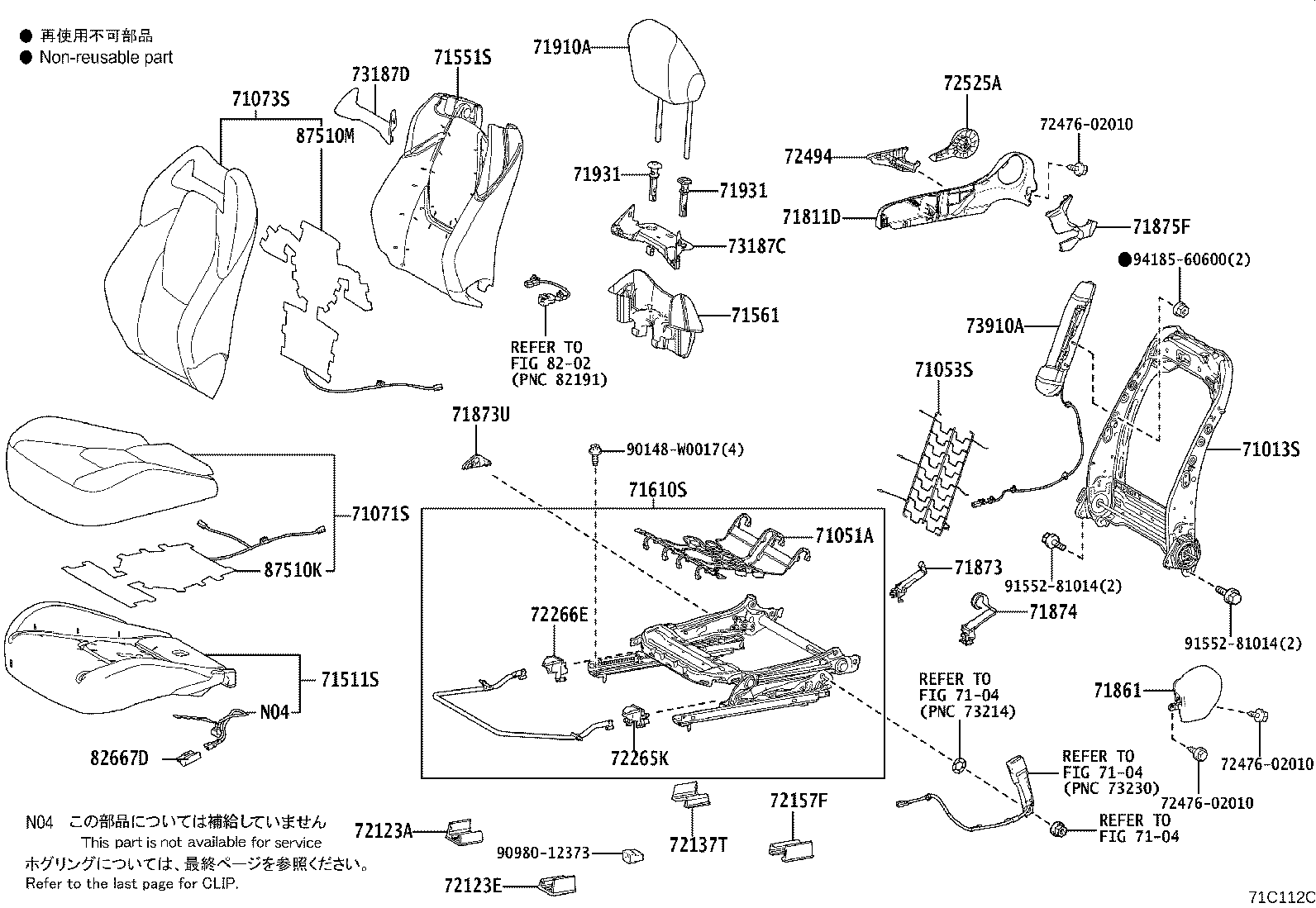

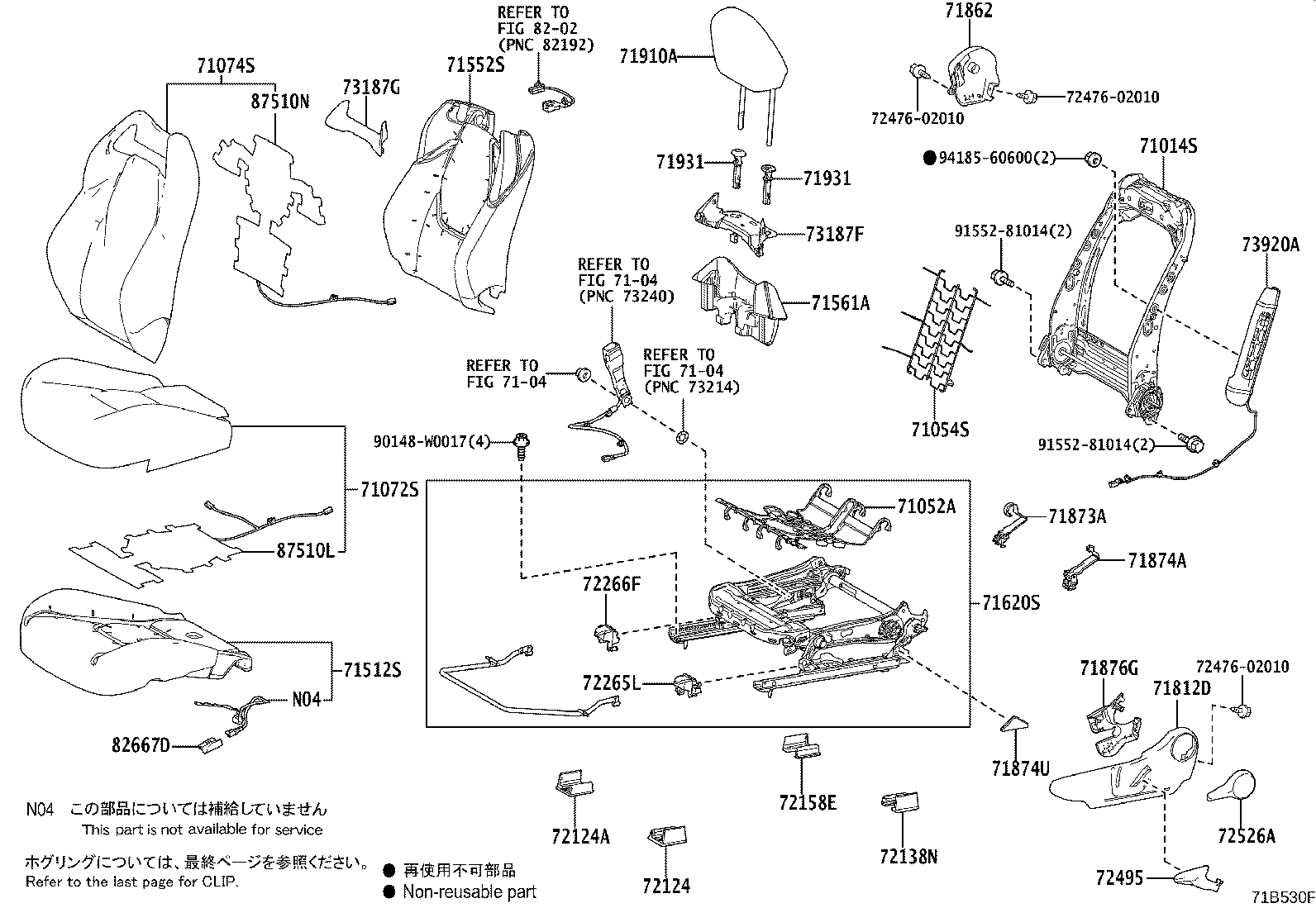

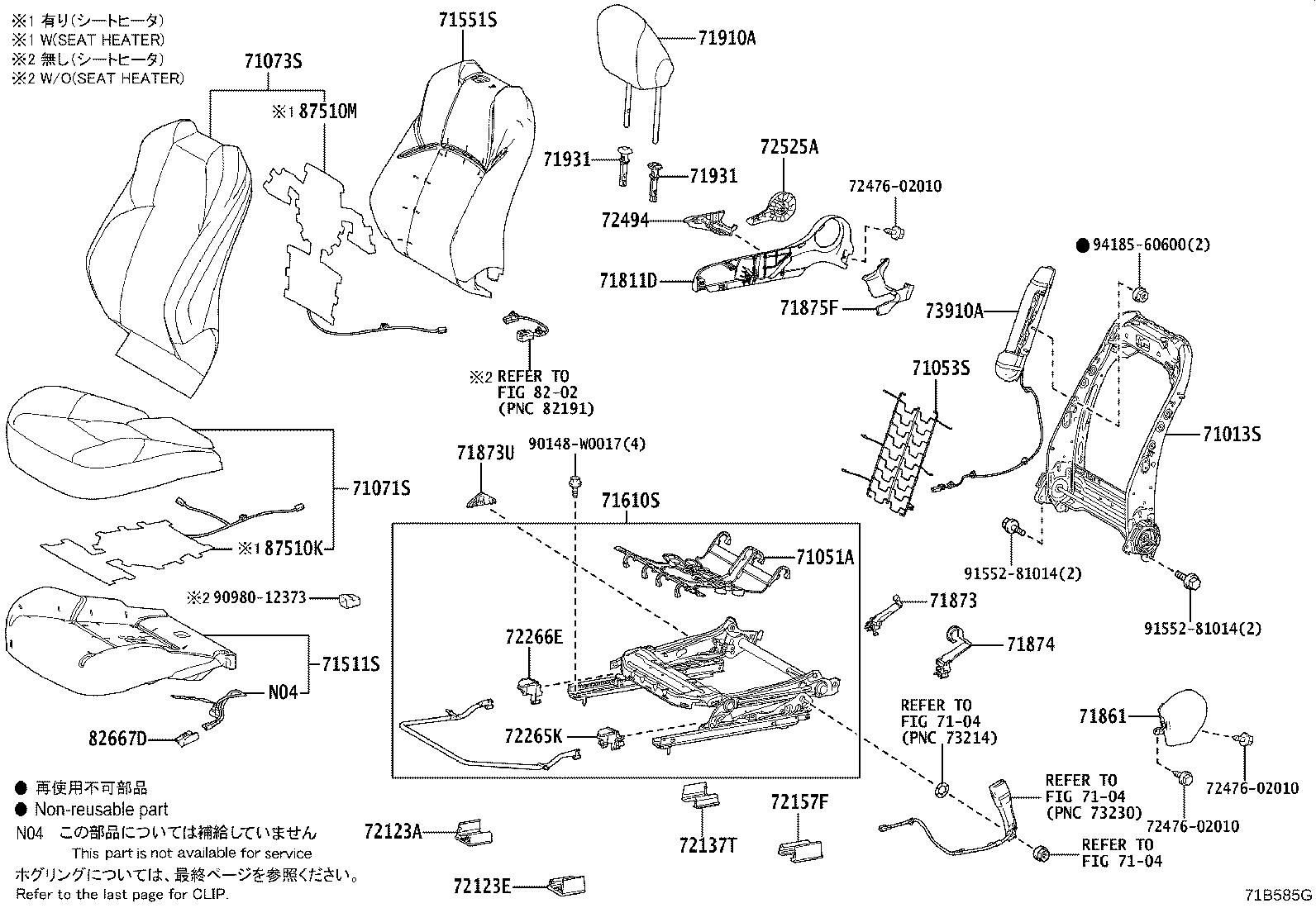

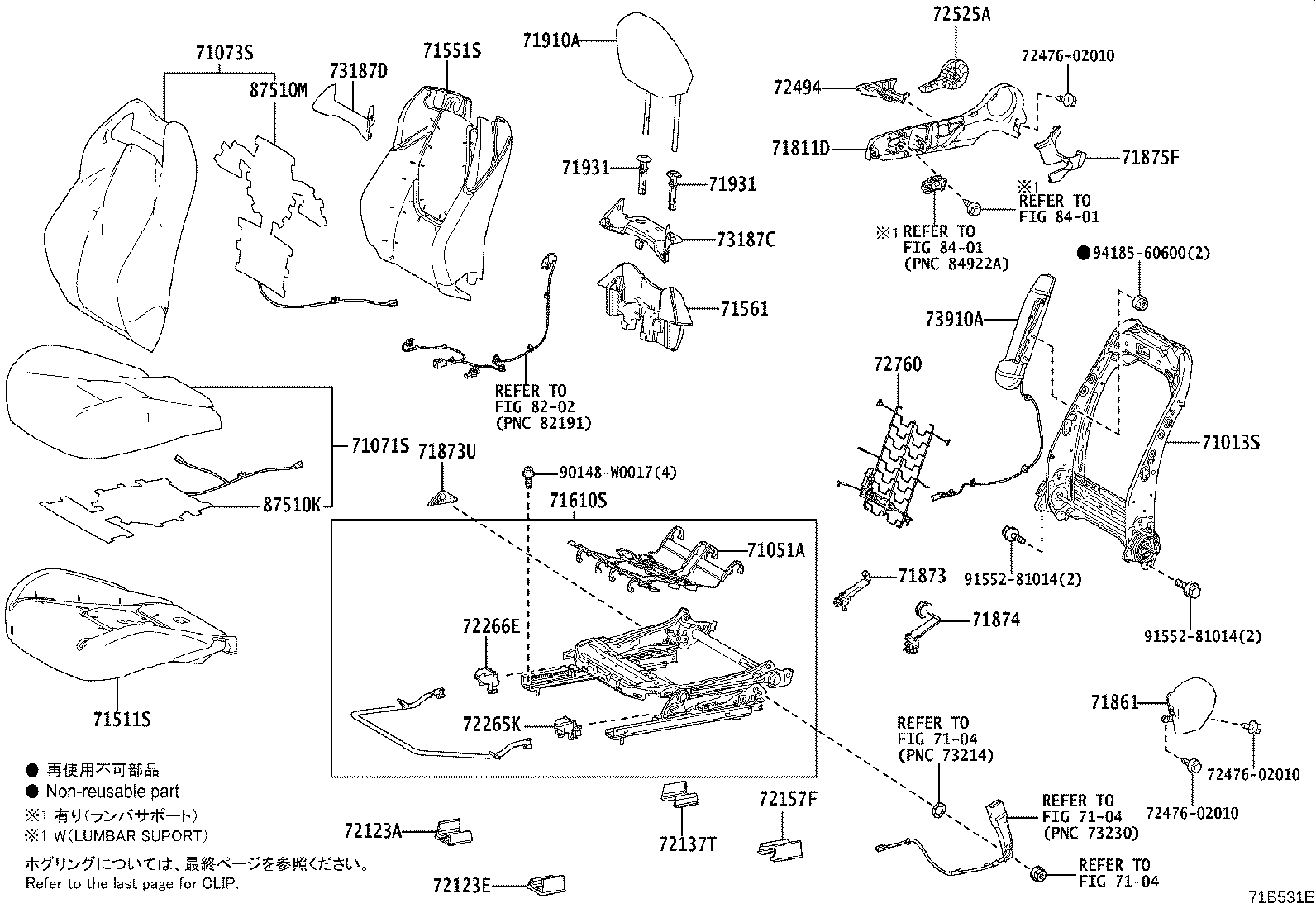

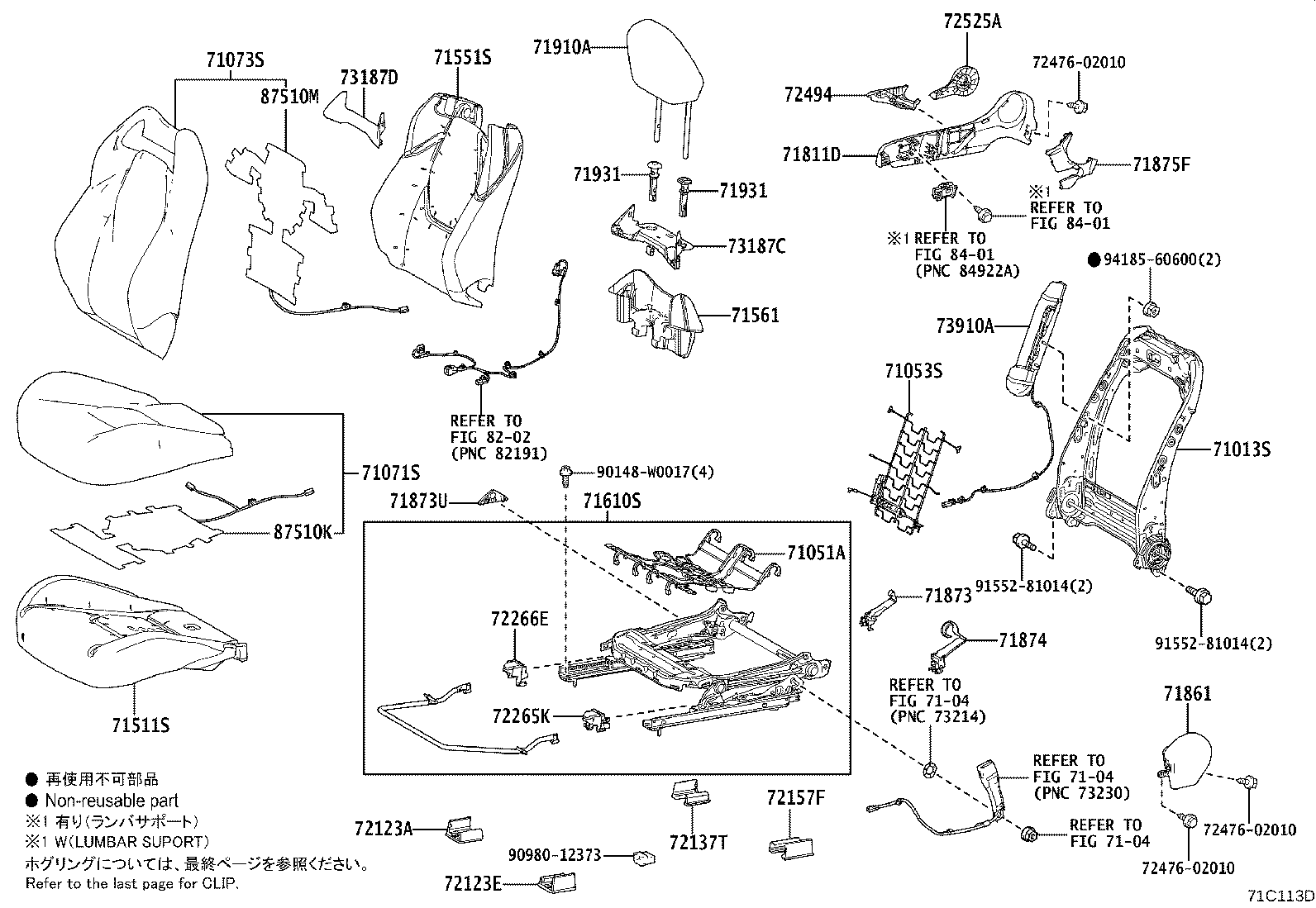

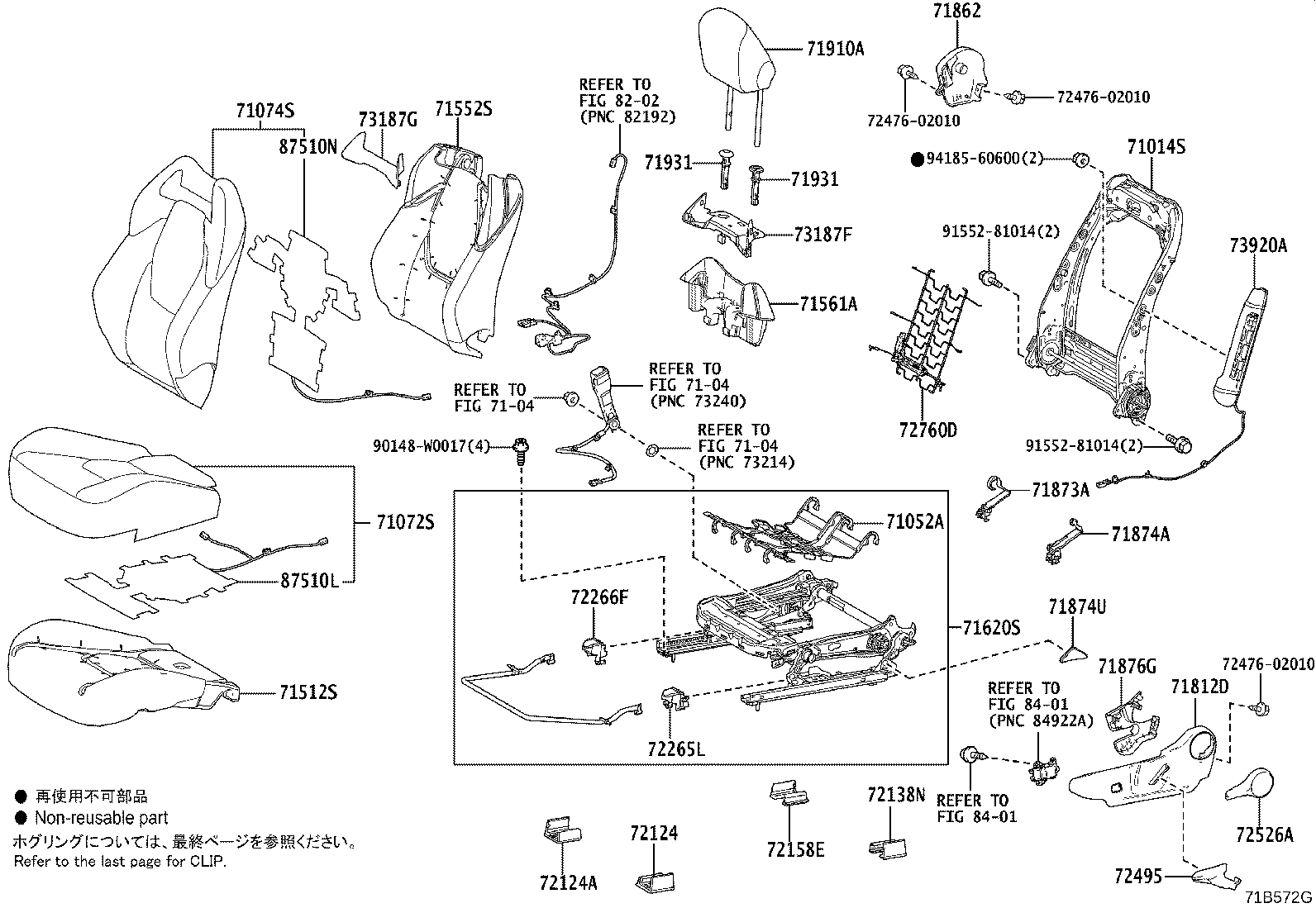

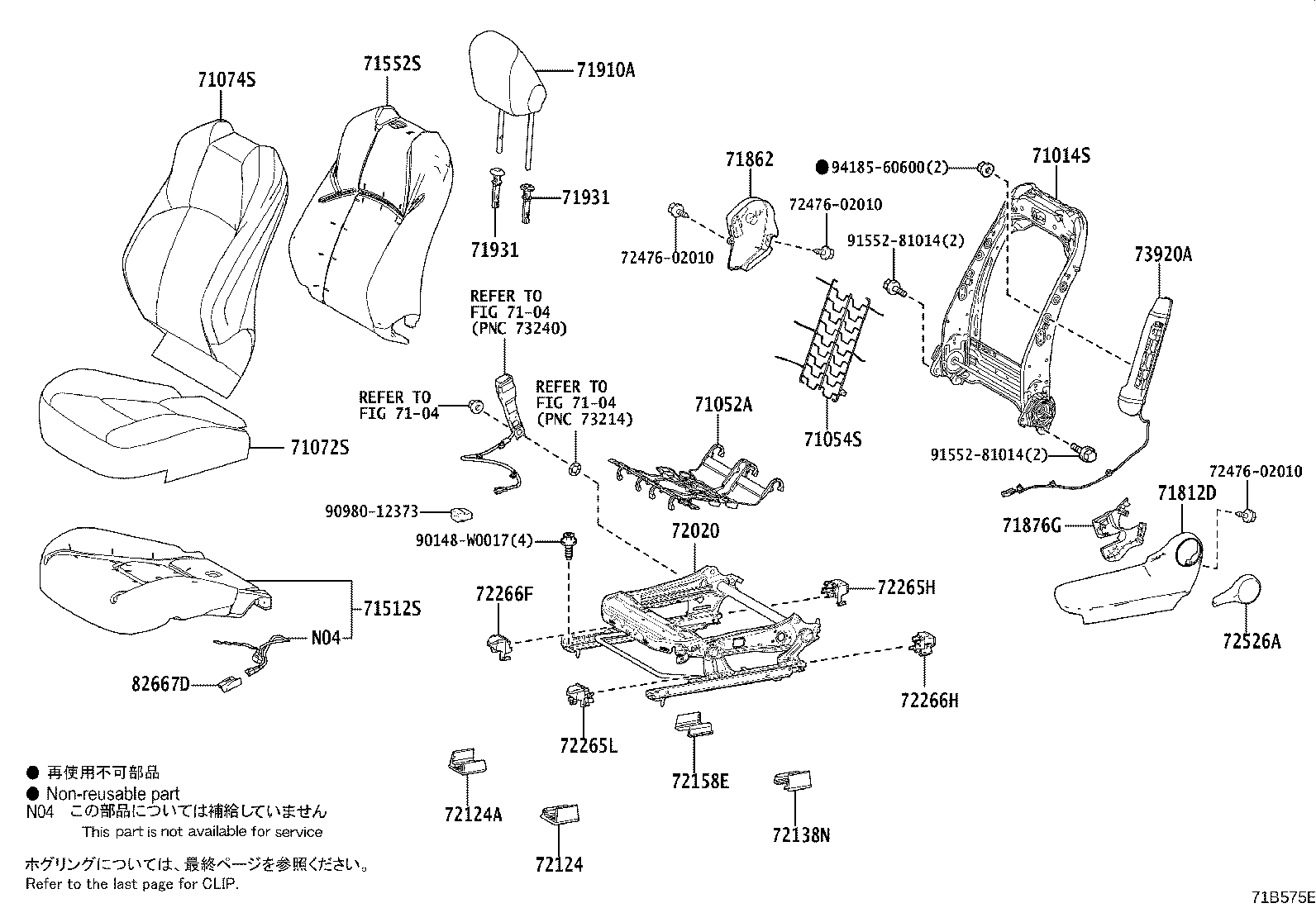

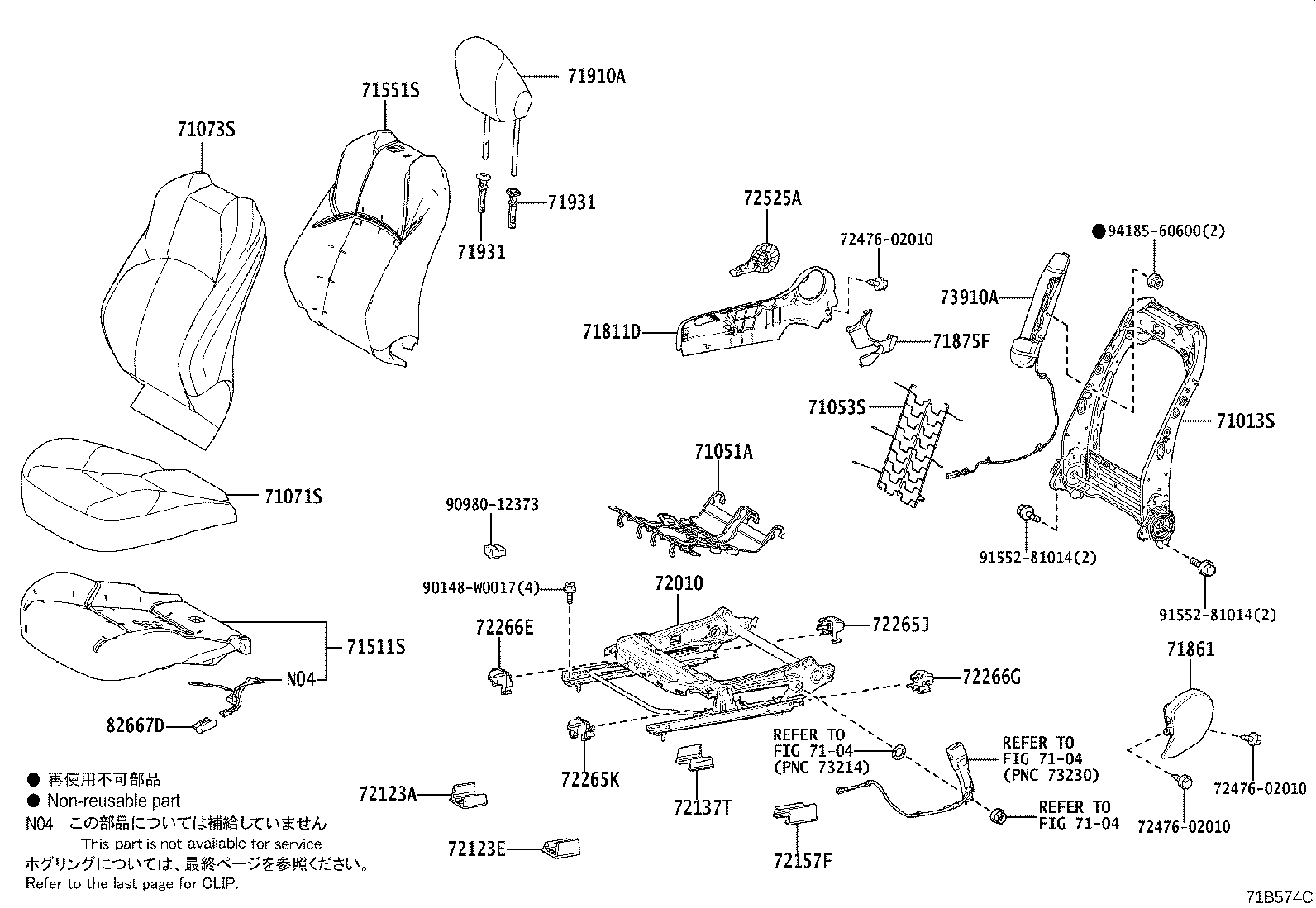

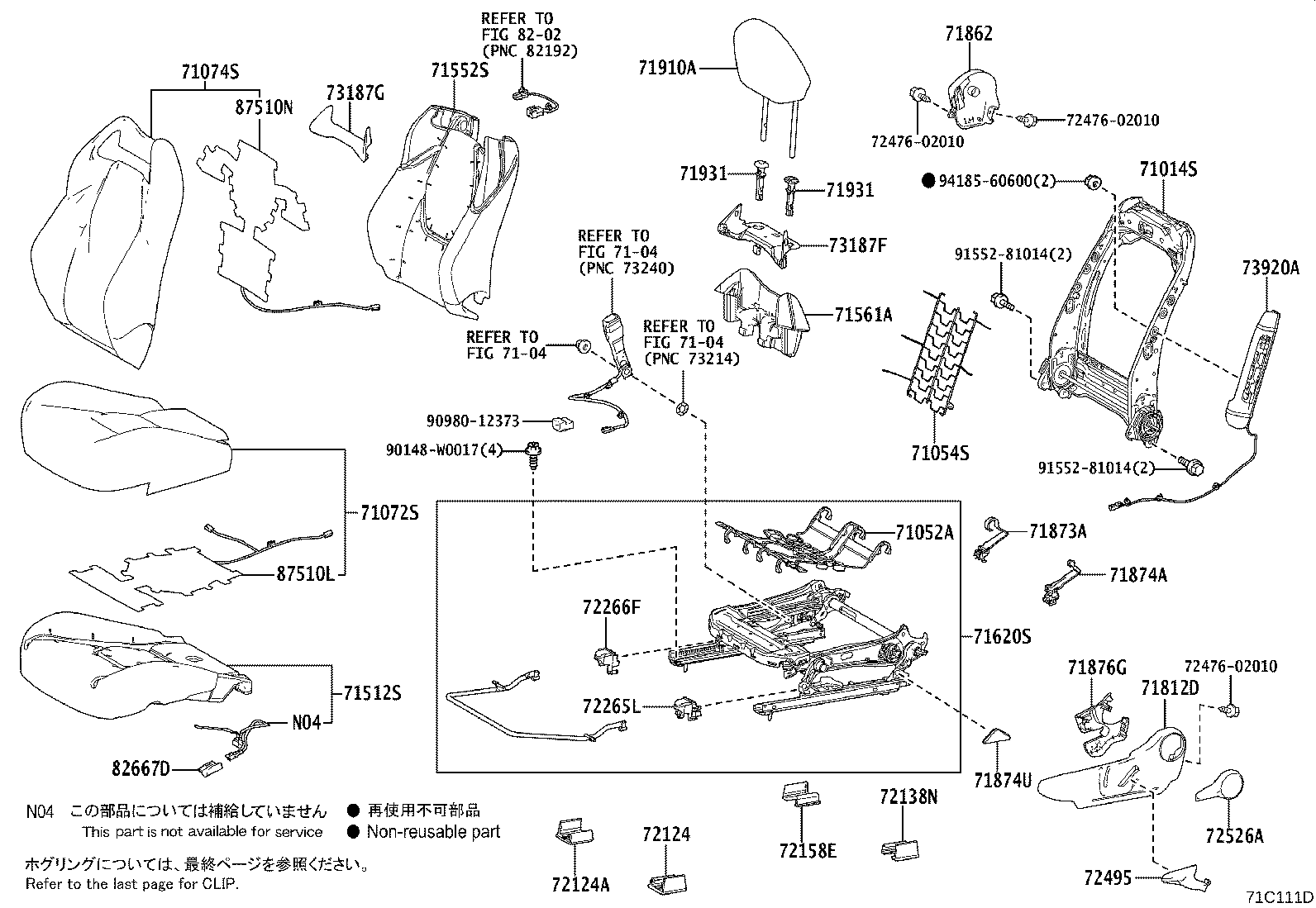

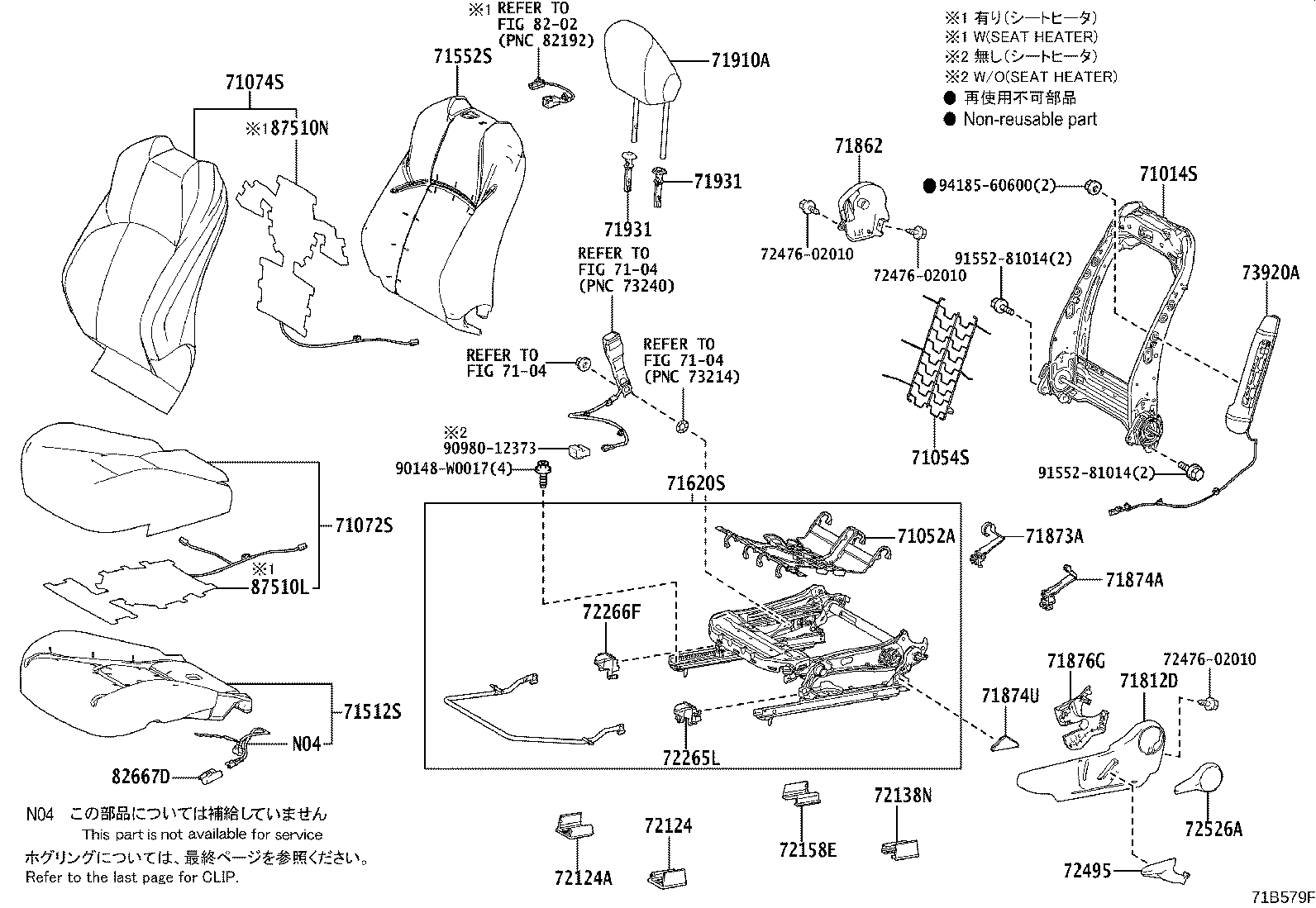

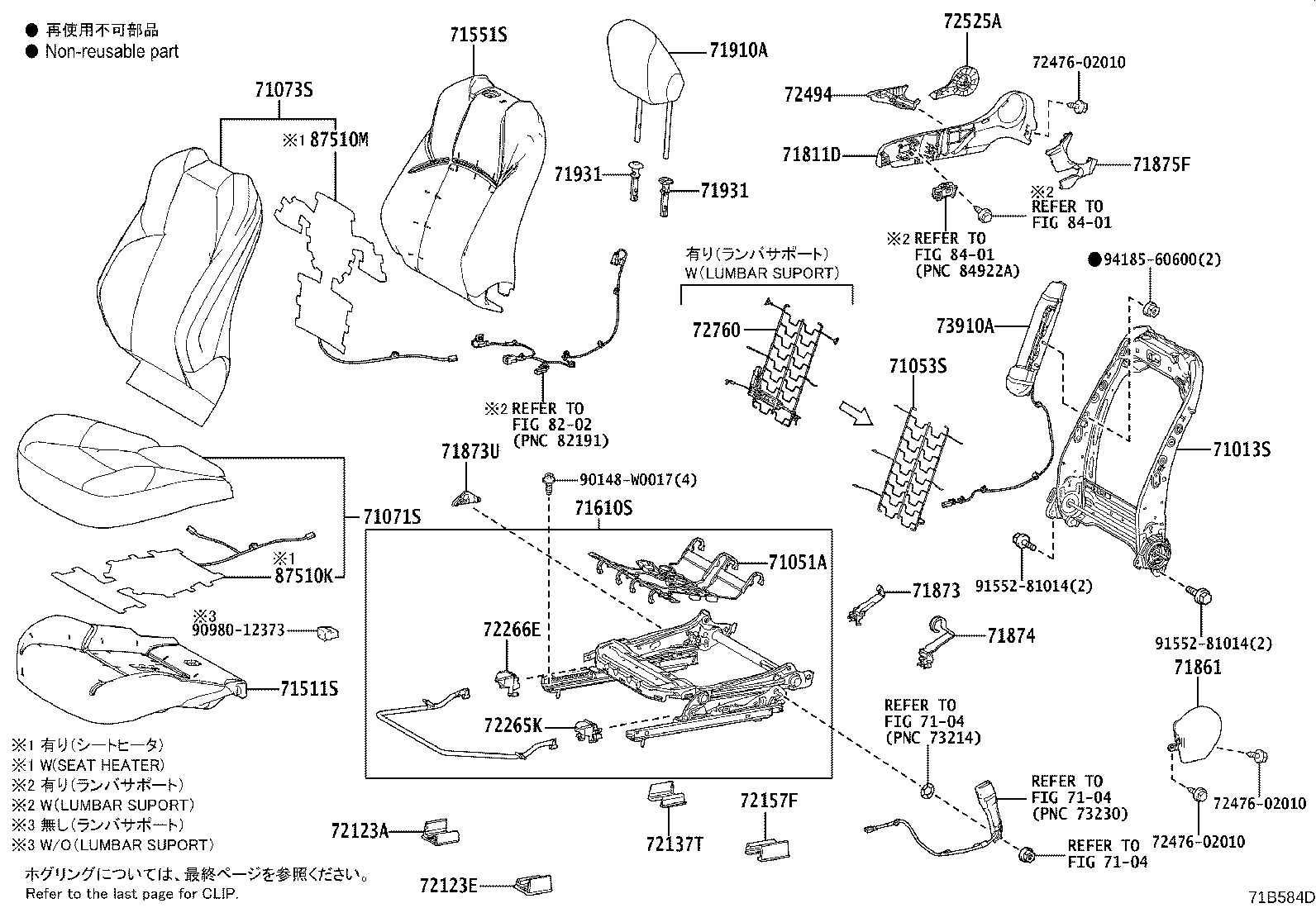

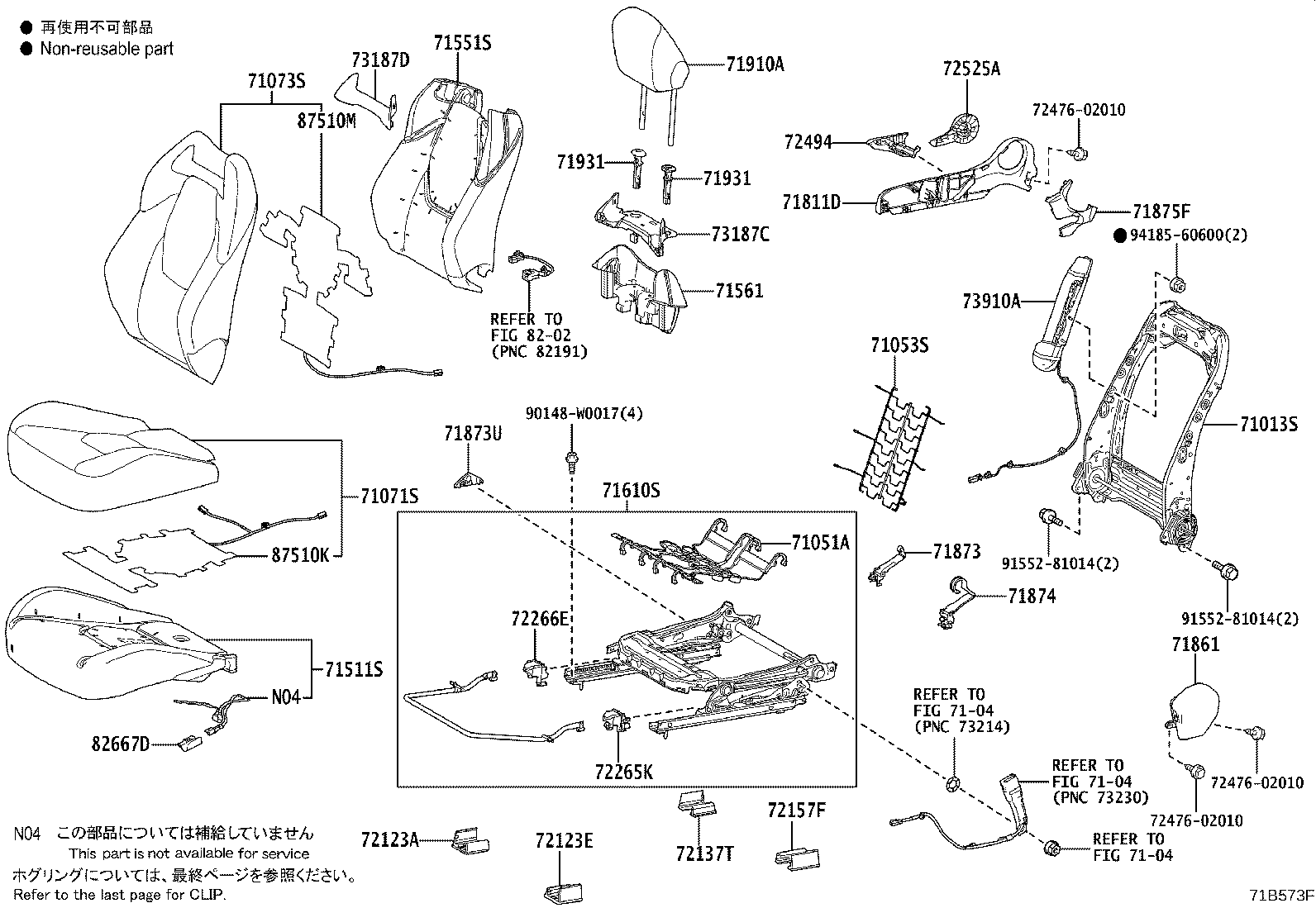

Front Seat & Seat Track
67 part groups · 15 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71051A | Spring Sub-assy, Front Seat Cushion, RH |
| 71052A | Spring Sub-assy, Front Seat Cushion, LH |
| 71053S | Spring Sub-assy, Front Seatback, RH |
| 71054S | Spring Sub-assy, Front Seatback, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71561 | Pad, Front Seatback, Upper RH |
| 71561A | Pad, Front Seatback, Upper LH |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71873U | Shield, Front Seat Cushion, Lower RH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71874U | Shield, Front Seat Cushion, Lower LH |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72123E | Cover, Seat Track Bracket, Inner Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72124A | Cover, Seat Track Bracket, Inner Front LH |
| 72137T | Cover, Seat Track Bracket, Outer Rear RH |
| 72138N | Cover, Seat Track Bracket, Outer Rear LH |
| 72157F | Cover, Seat Track Bracket, Inner Rear RH |
| 72158E | Cover, Seat Track Bracket, Inner Rear LH |
| 72265H | Cover, Seat Track Upper Rail, Rear Inner |
| 72265J | Cover, Seat Track Upper Rail, Rear Outer |
| 72265K | Cover, Seat Track Upper Rail, Front Inner(FOR RH SEAT) |
| 72265L | Cover, Seat Track Upper Rail, Front Outer(FOR LH SEAT) |
| 72266E | Cover, Seat Track Upper Rail, Front Outer(FOR RH SEAT) |
| 72266F | Cover, Seat Track Upper Rail, Front Inner(FOR LH SEAT) |
| 72266G | Cover, Seat Track Upper Rail, Rear Inner |
| 72266H | Cover, Seat Track Upper Rail, Rear Outer |
| 72494 | Handle, Vertical Adjusting, RH |
| 72495 | Handle, Vertical Adjusting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72760 | Adjuster Assy, Lumbar Support, RH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 73187C | Guide, Front Seat Shoulder Belt, RH NO.1 |
| 73187D | Guide, Front Seat Shoulder Belt, RH NO.2 |
| 73187F | Guide, Front Seat Shoulder Belt, LH NO.1 |
| 73187G | Guide, Front Seat Shoulder Belt, LH NO.2 |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 82667D | Holder, Connector |
| 87510K | Heater Assy, Front Seat Cushion, RH |
| 87510L | Heater Assy, Front Seat Cushion, LH |
| 87510M | Heater Assy, Front Seatback, RH |
| 87510N | Heater Assy, Front Seatback, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
