Toyota Corolla (UKP)
2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe
Supported model
Data version 2022-12

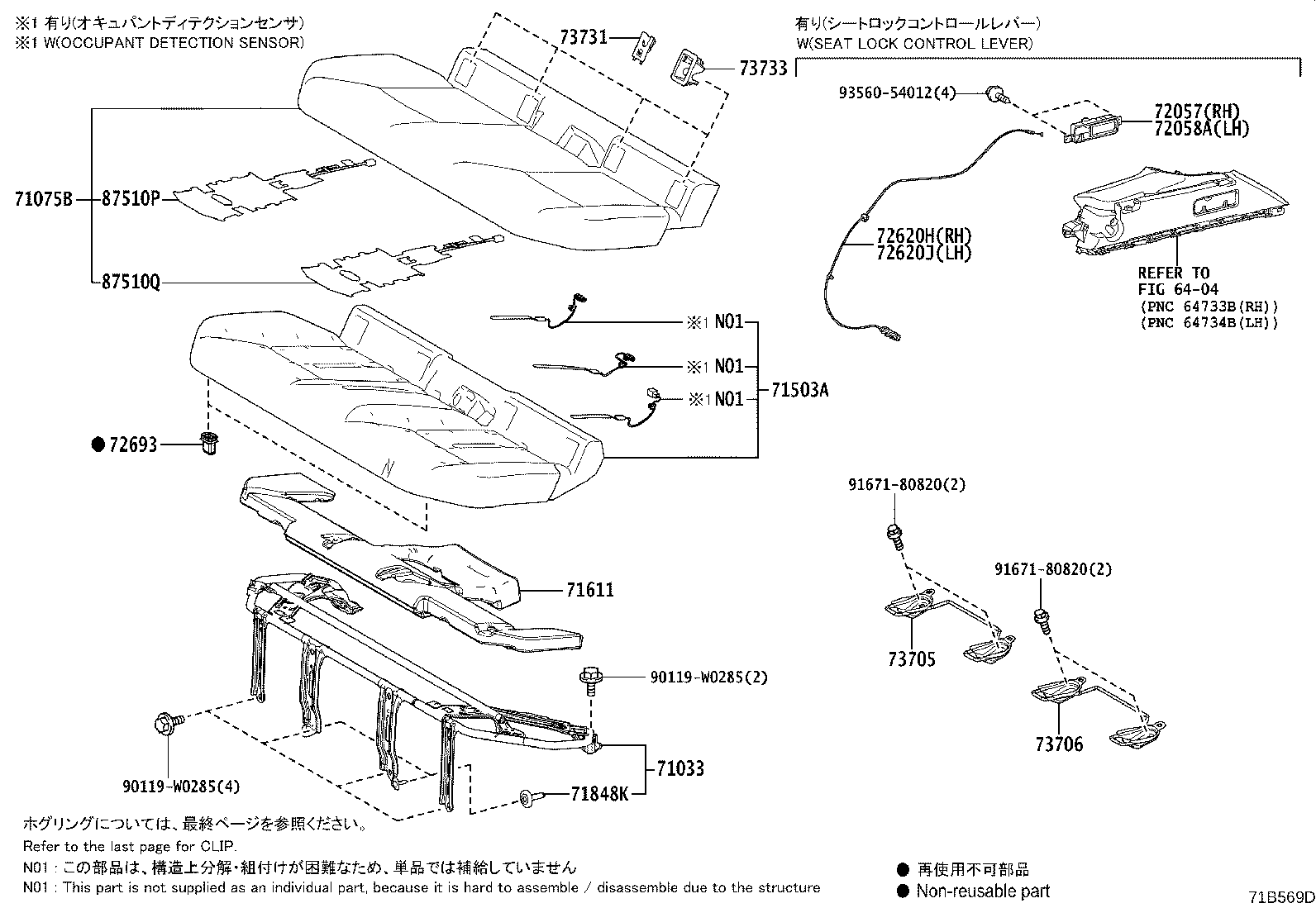

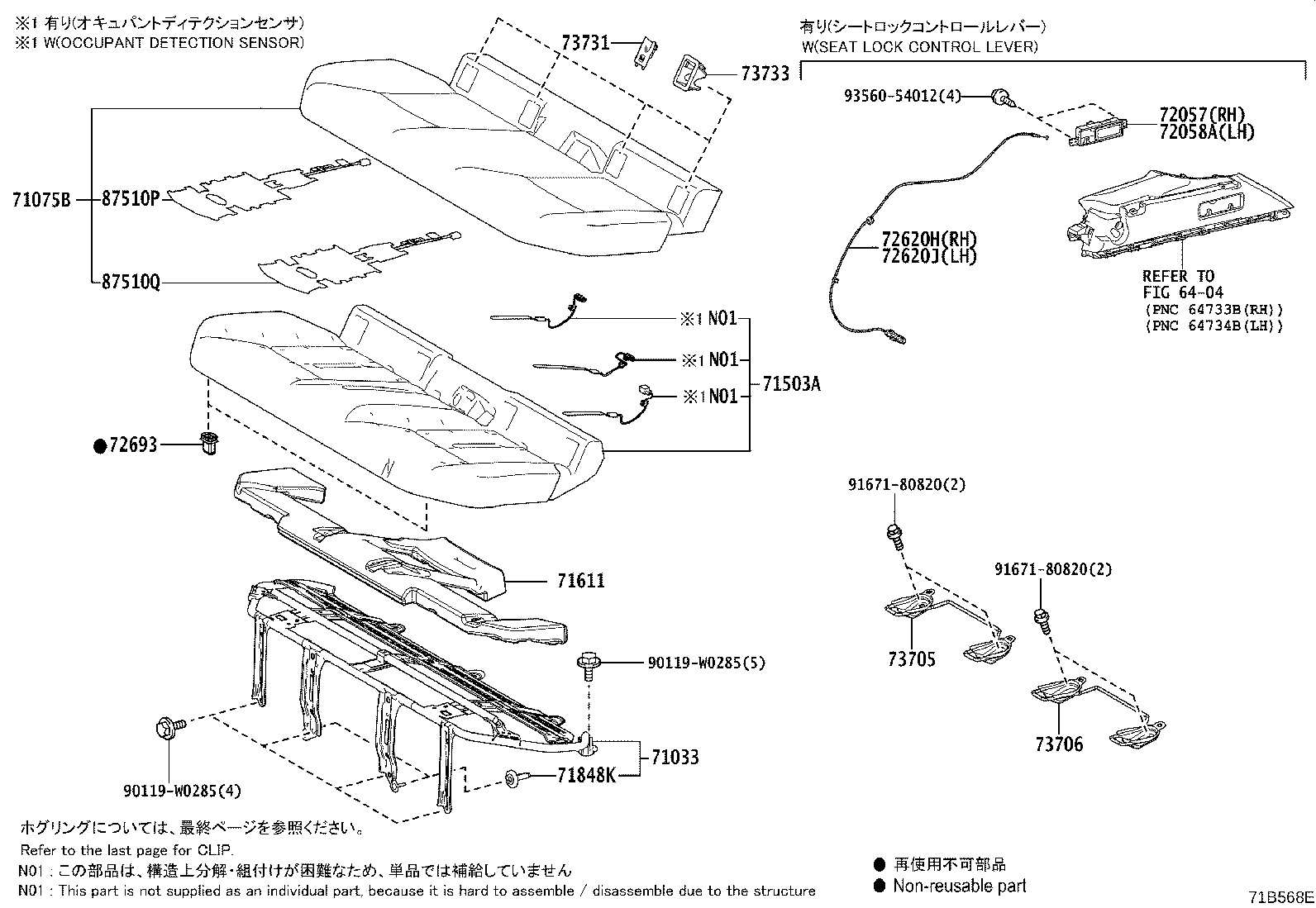

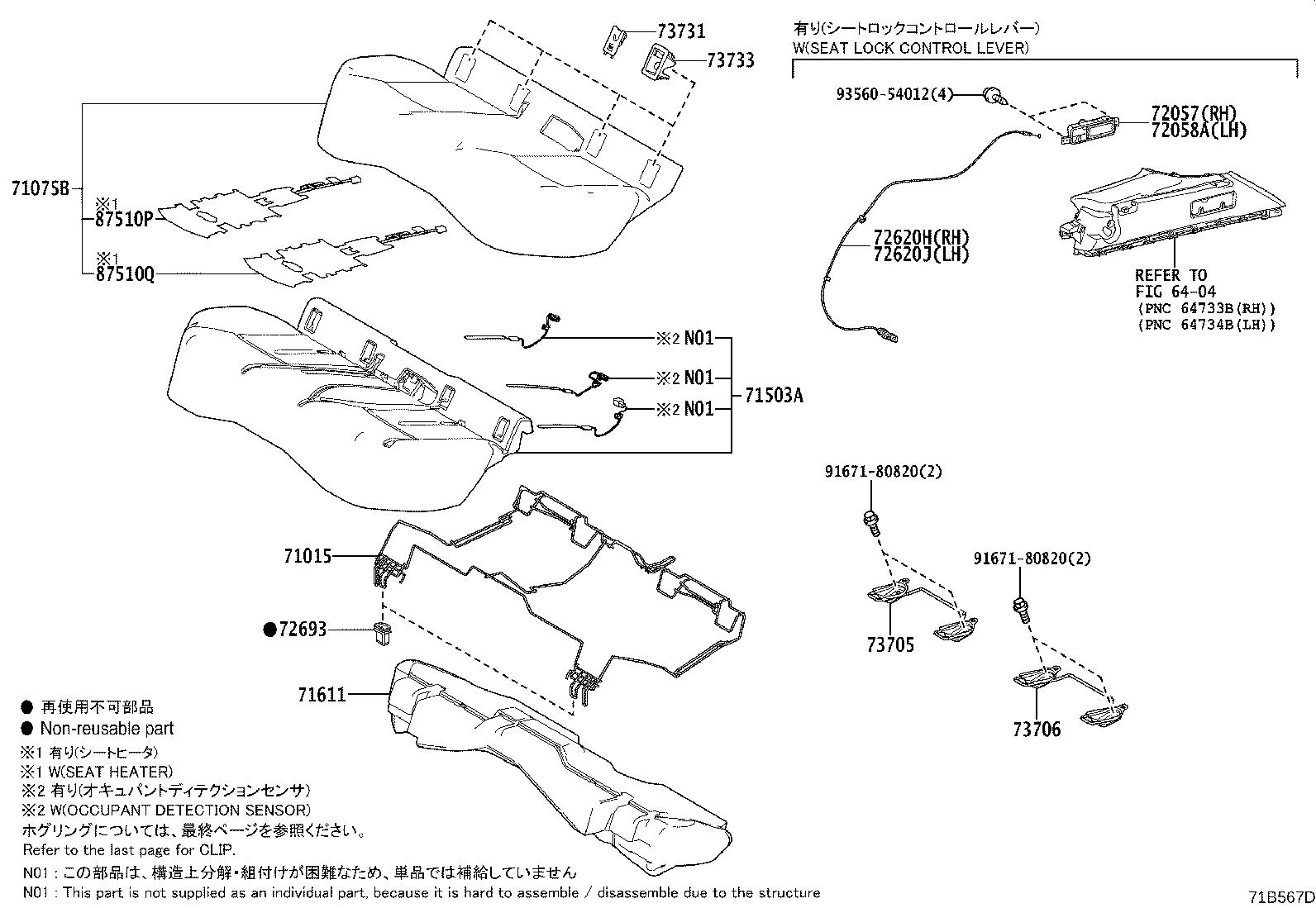

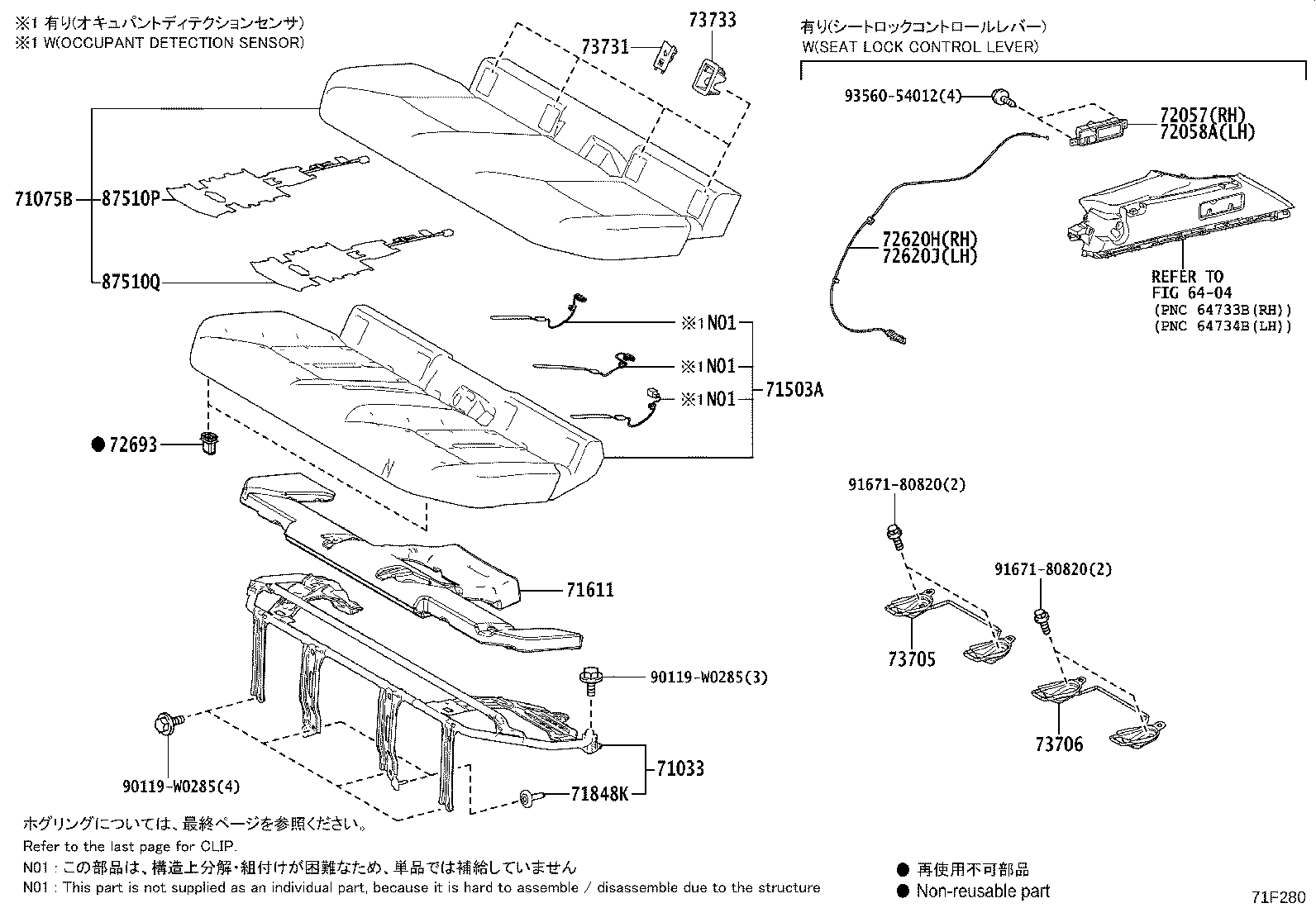

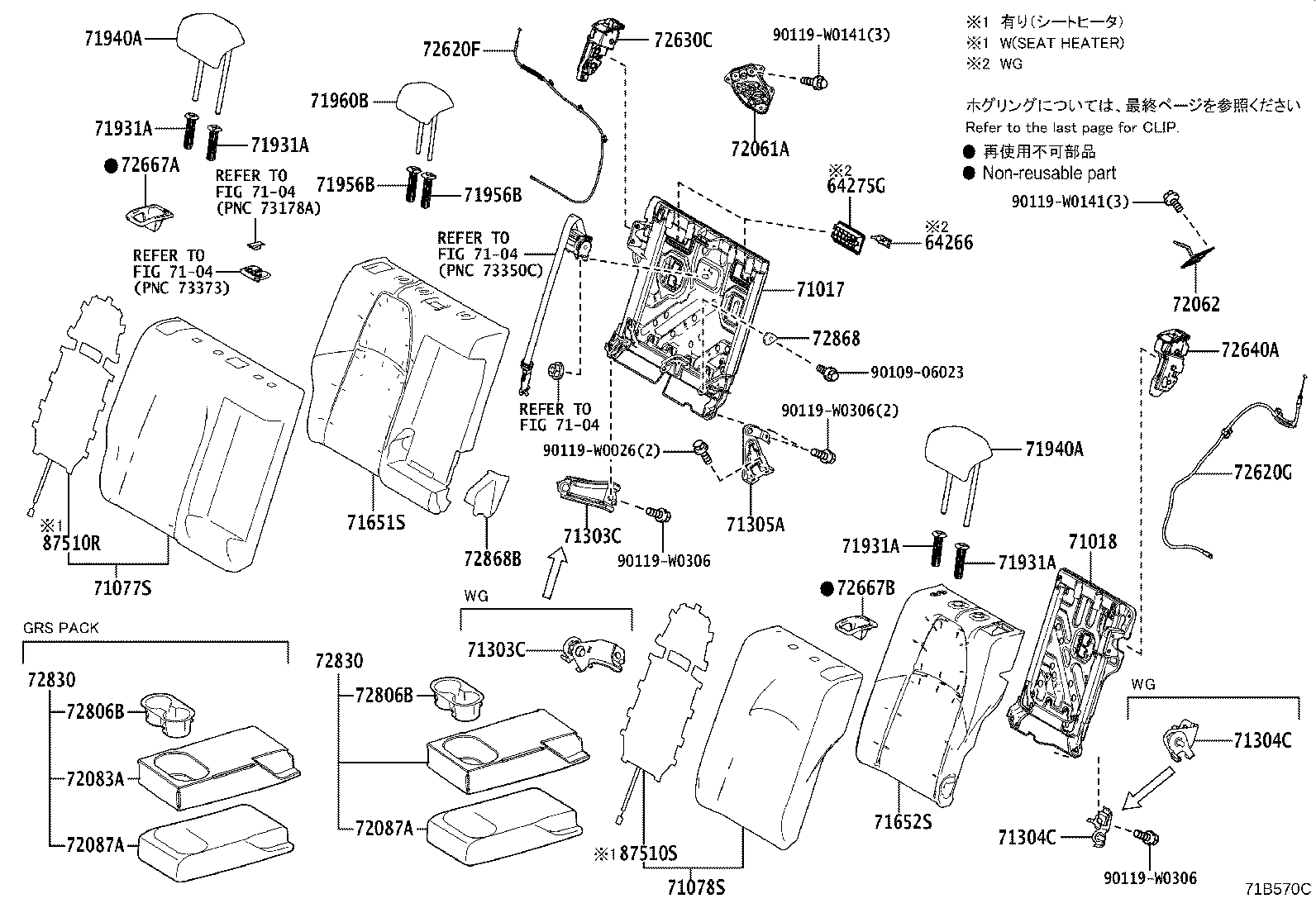

Rear Seat & Seat Track
47 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 64266 | Anchor, Room Partition Net |
| 64275G | Cover, Room Partition |
| 71015 | Frame Sub-assy, Rear Seat Cushion |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71033 | Leg Sub-assy, Rear Seat Cushion |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71303C | Hinge Sub-assy, Rear Seatback, RH |
| 71304C | Hinge Sub-assy, Rear Seatback, LH |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71503A | Pad Sub-assy, Rear Seat Cushion |
| 71611 | Pad, Rear Seat Cushion |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71848K | Cap, Seat Adjuster Cover |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71956B | Support, Rear Seat Headrest |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72057 | Lever Sub-assy, Rear Seat Lock Control, RH |
| 72058A | Lever Sub-assy, Rear Seat Lock Control, LH |
| 72061A | Base Sub-assy, Rear Seatback Lock, RH |
| 72062 | Base Sub-assy, Rear Seatback Lock, LH |
| 72087A | Cover Sub-assy, Rear Seat Center Armrest |
| 72620F | Cable Assy, Rear Seat Lock, RH |
| 72620G | Cable Assy, Rear Seat Lock, LH |
| 72620H | Cable Assy, Rear Seat Remote Folding, RH |
| 72620J | Cable Assy, Rear Seat Remote Folding, LH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72667A | Bezel, Rear Seatback Lock, Upper RH |
| 72667B | Bezel, Rear Seatback Lock, Upper LH |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72806B | Holder Sub-assy, Rear Seat Center Armrest Cup |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72868 | Cover, Center Armrest Hinge, RH |
| 72868B | Cover, Center Armrest Hinge |
| 73705 | Bracket Sub-assy, Child Restraint Seat Anchor, RH |
| 73706 | Bracket Sub-assy, Child Restraint Seat Anchor, LH |
| 73731 | Cover, Child Restraint Seat |
| 73733 | Cover, Child Restraint Seat Base |
| 87510P | Heater Assy, Seat |
| 87510Q | Heater Assy, Seat |
| 87510R | Heater Assy, Seat |
| 87510S | Heater Assy, Seat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
