Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

4 part groups · 5 illustrations

Illustrations

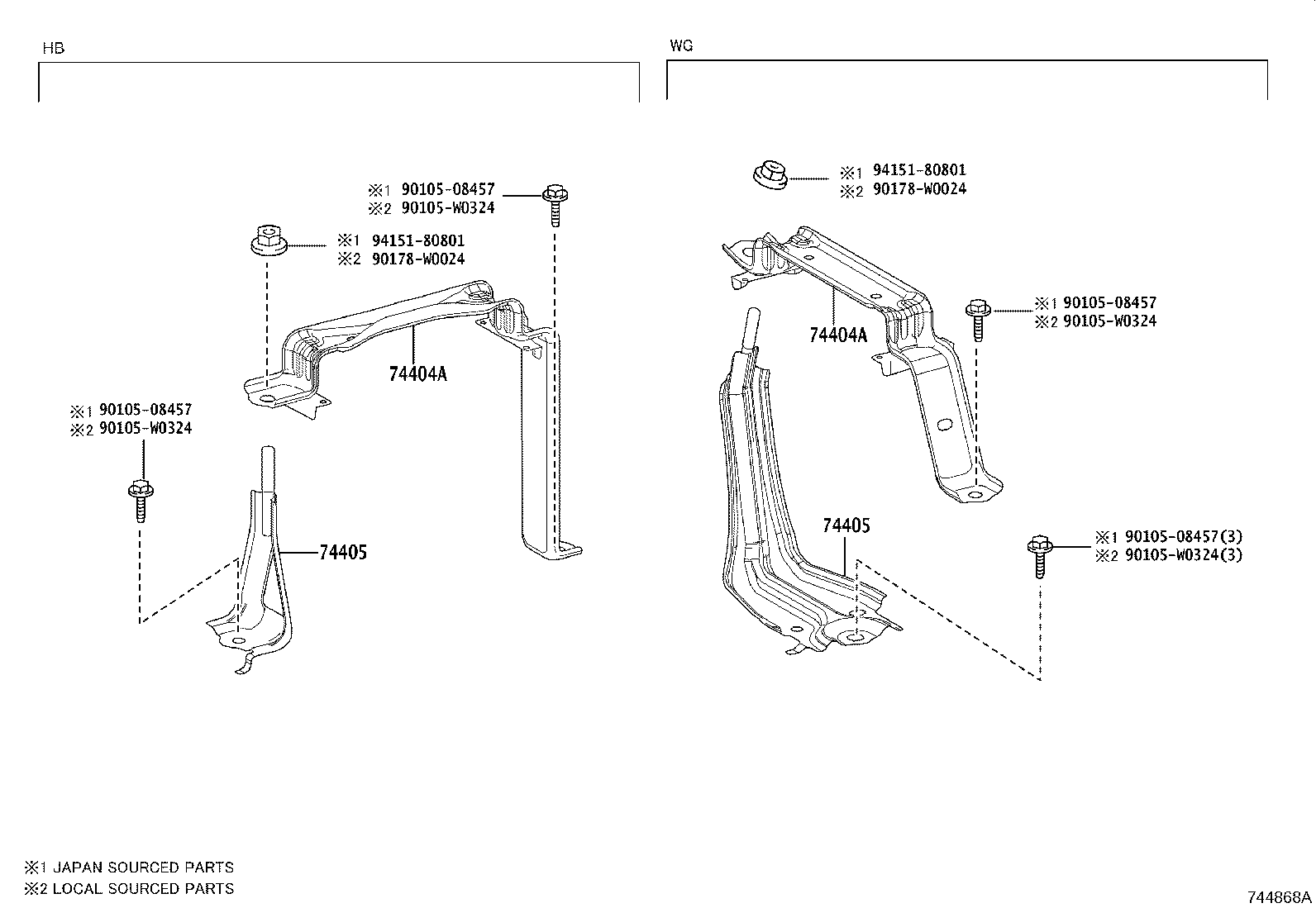

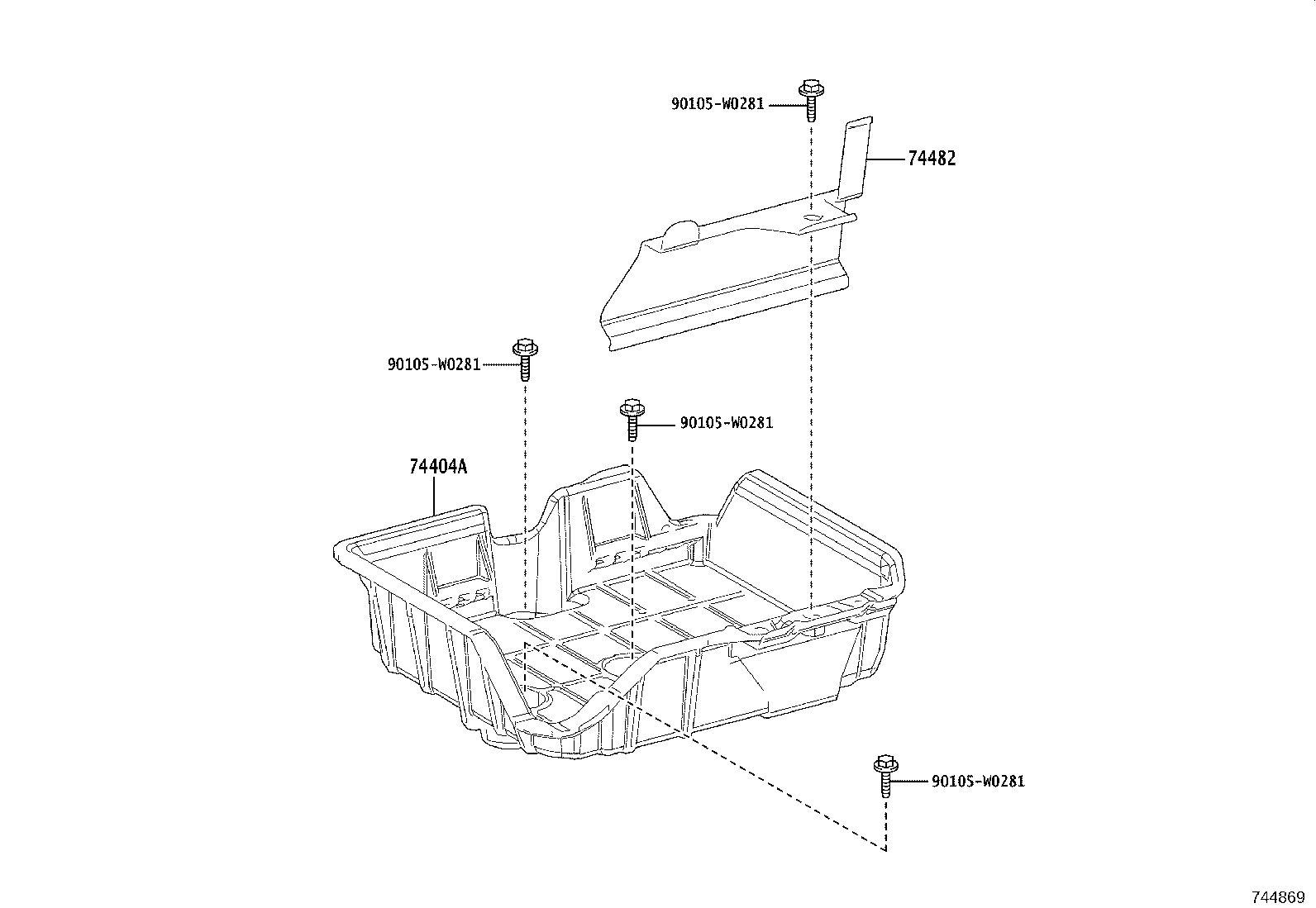

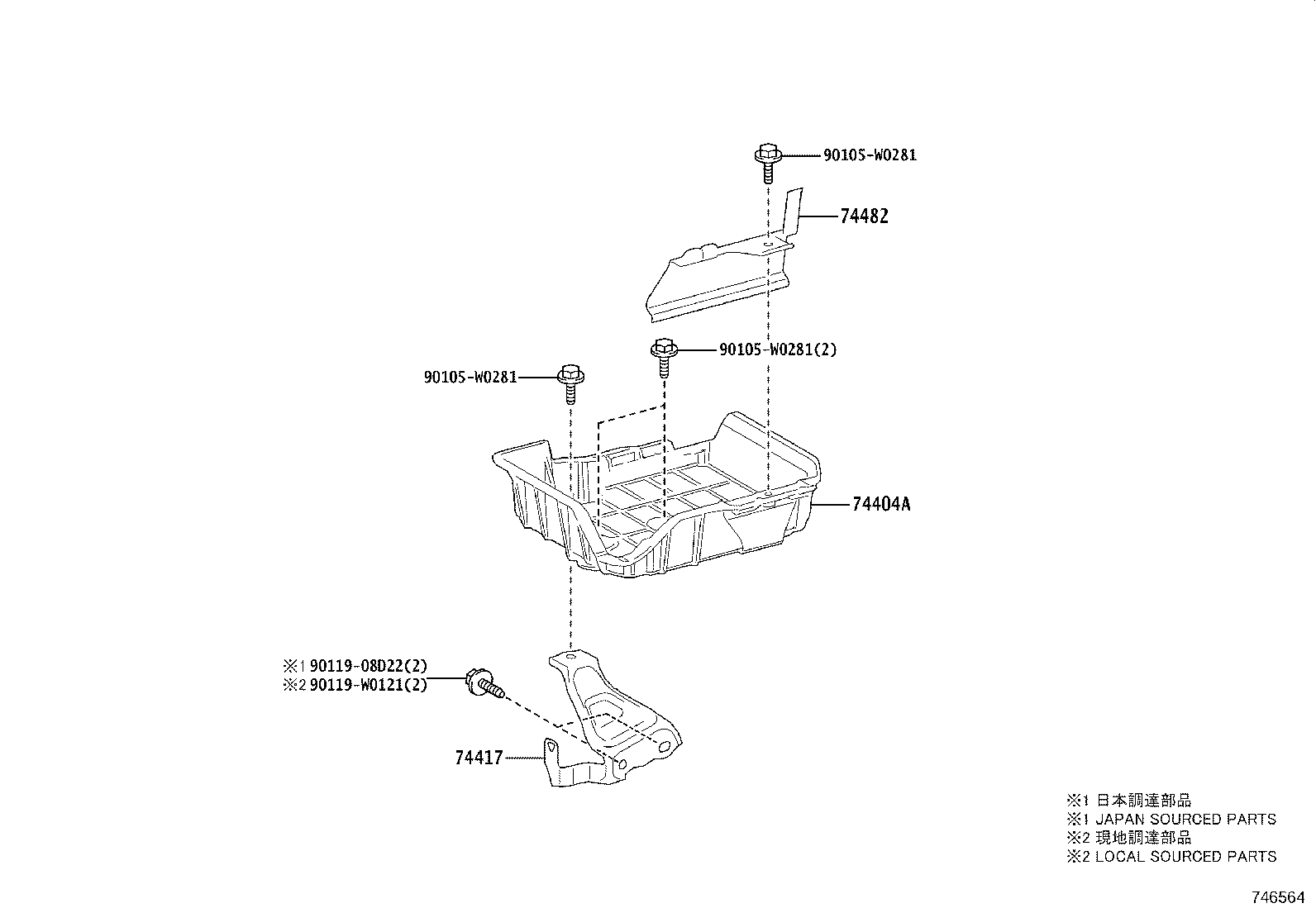

Figure 744870 744870 2019-01 → — Figure 744869 744869 2019-01 → — Figure 746564 746564 2023-01 → — Figure 744868A 744868A 2019-02 → — Figure 744868A 744868A 2023-01 → —

Part groups

PNCDescription
74404A Clamp Sub-assy, Battery
74405 Clamp Sub-assy, Battery, NO.2
74417 Bracket, Battery Carrier
74482 Clamp, Battery, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
