Toyota Corolla (UKP)
2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe
Supported model
Data version 2022-12

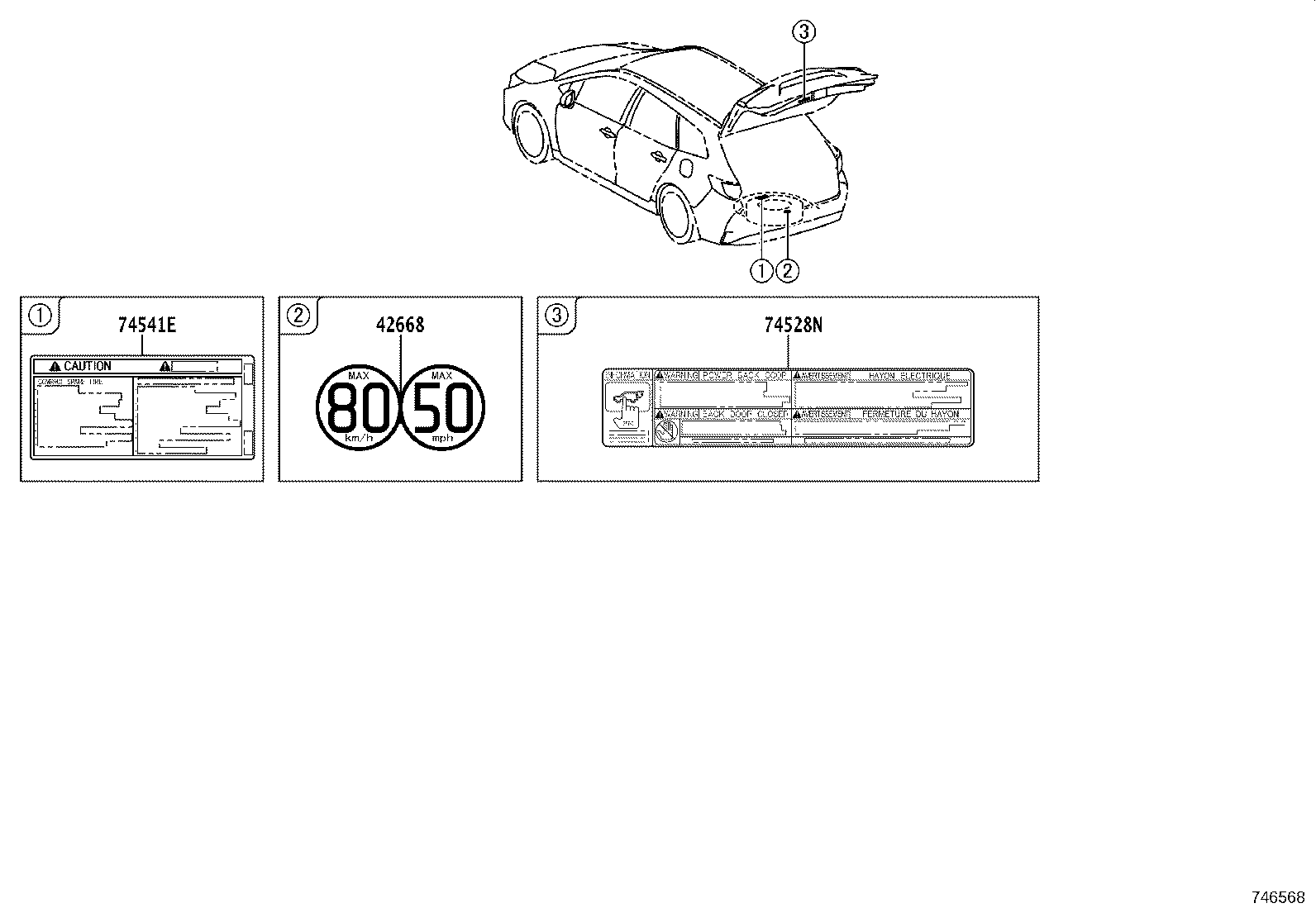

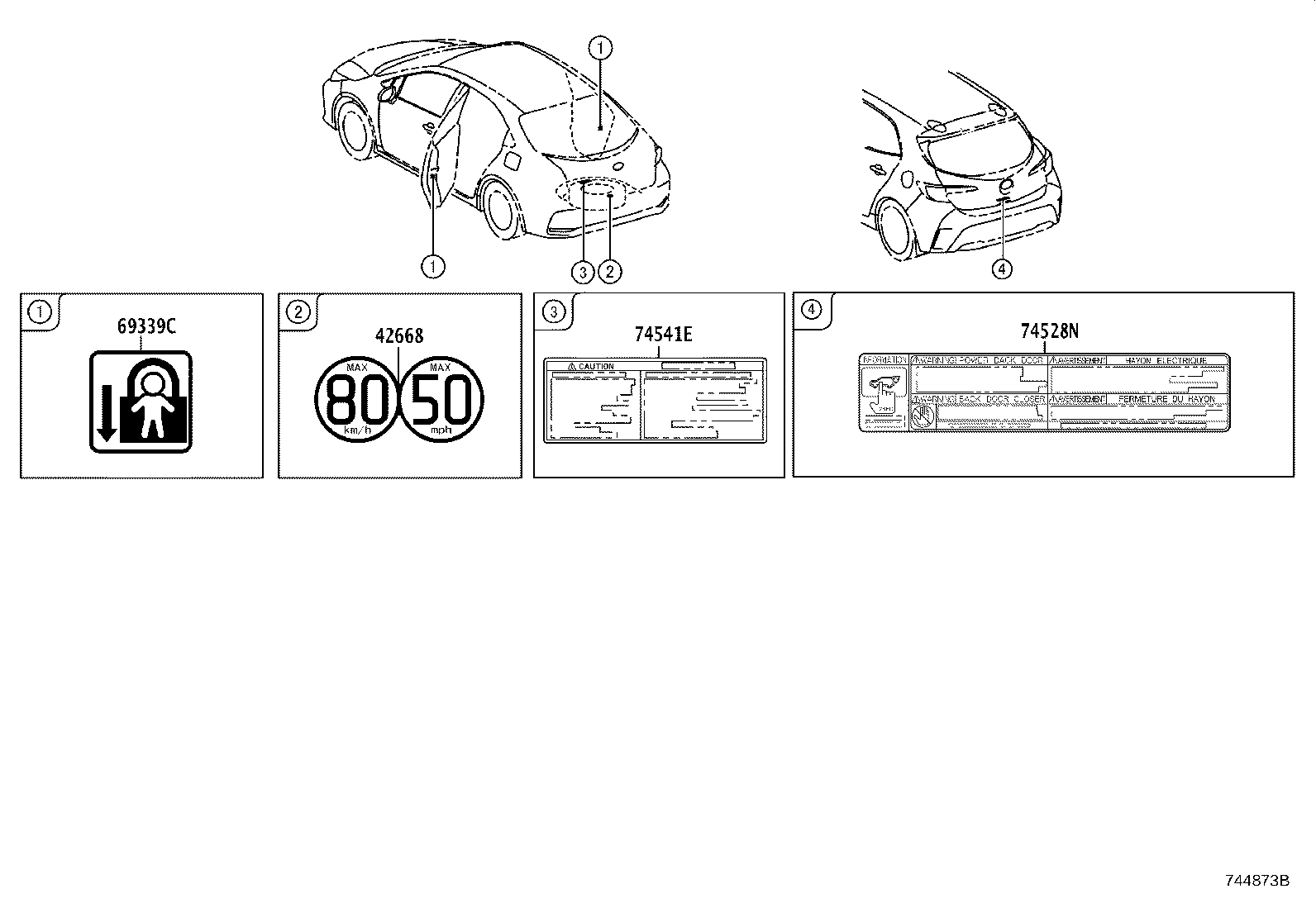

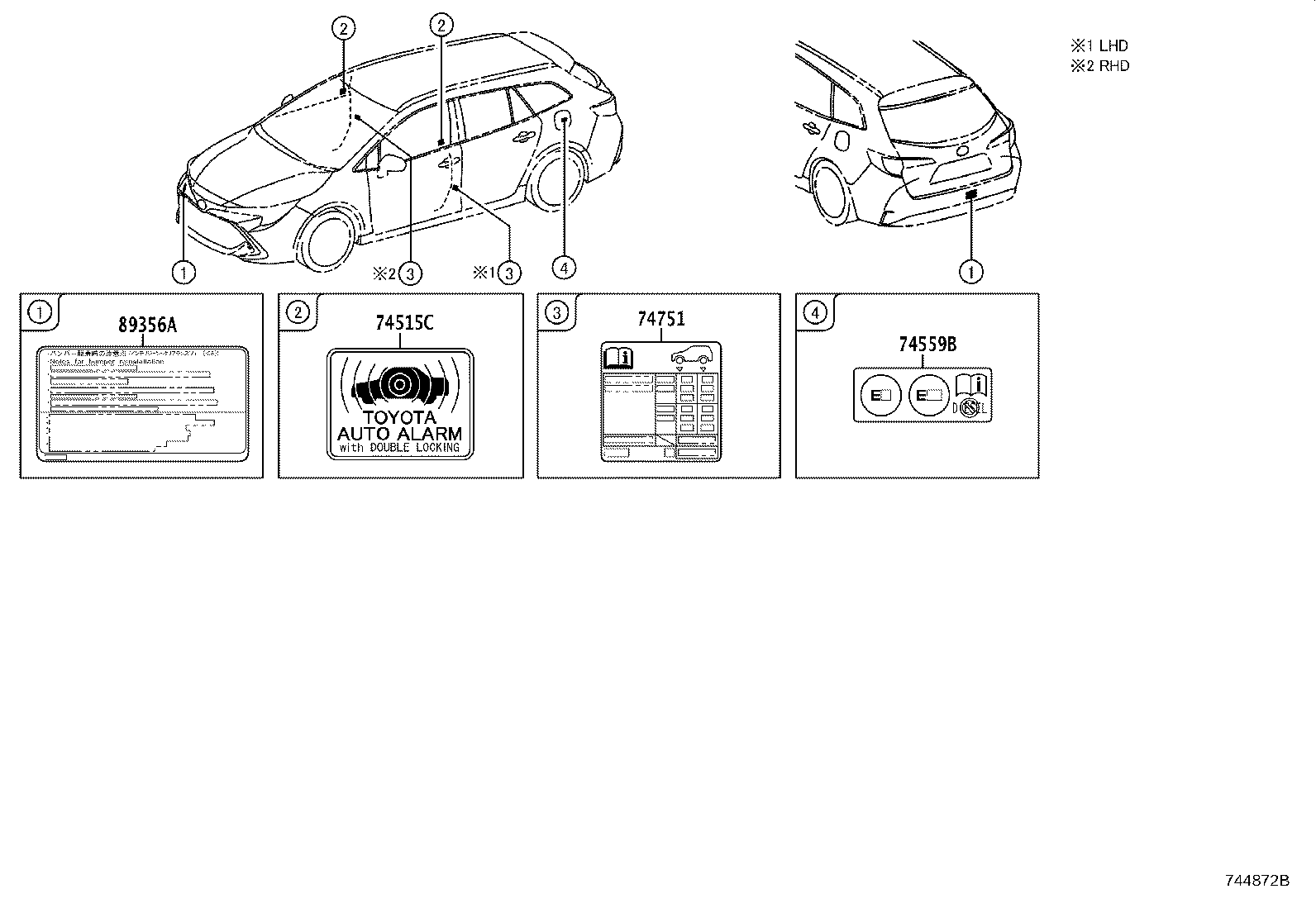

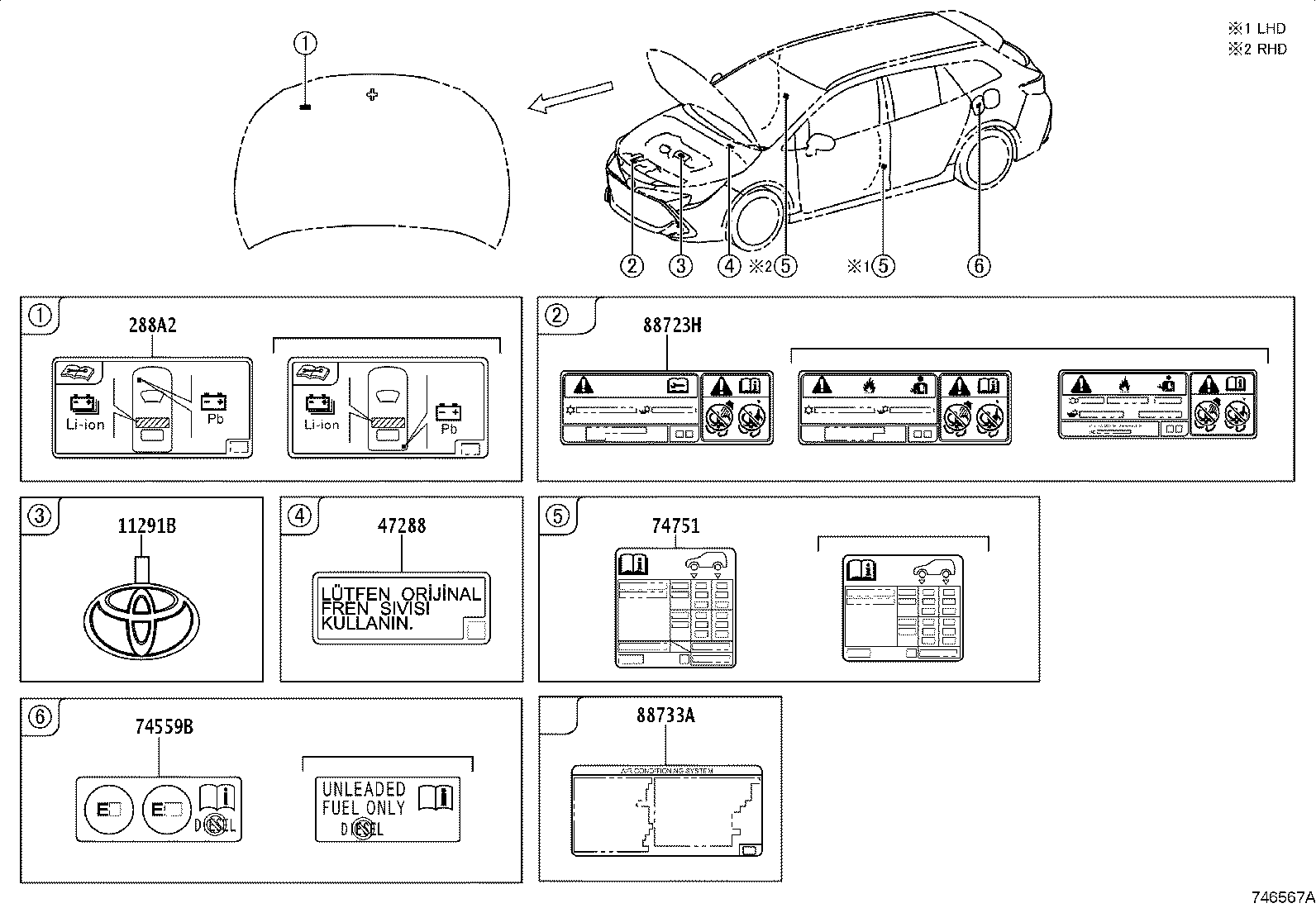

Caution Plate (EXTERIOR & INTERIOR)
18 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11291B | Plate, Engine Name |
| 11293D | Label, Engine Caution |
| 16793B | Label, Cooling Fan Information |
| 288A2 | Label, Battery Location |
| 42668 | Label, Compact Spare Tire Caution |
| 47288 | Label, Brake Fluid Notice |
| 47997C | Label, Accumulator Caution, NO.1 |
| 69339C | Label, Child Protector Information |
| 74515C | Label, Theft Warning Information |
| 74528N | Label, Back Door Caution, NO.2 |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74751 | Label, Tire Pressure Information |
| 88723H | Label, Cooler Service Caution |
| 88733A | Label, Cooler Service Information |
| 89356A | Label, Clearance Warning Information |
| G9275 | Label, Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
