Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

7 part groups · 2 illustrations

Illustrations

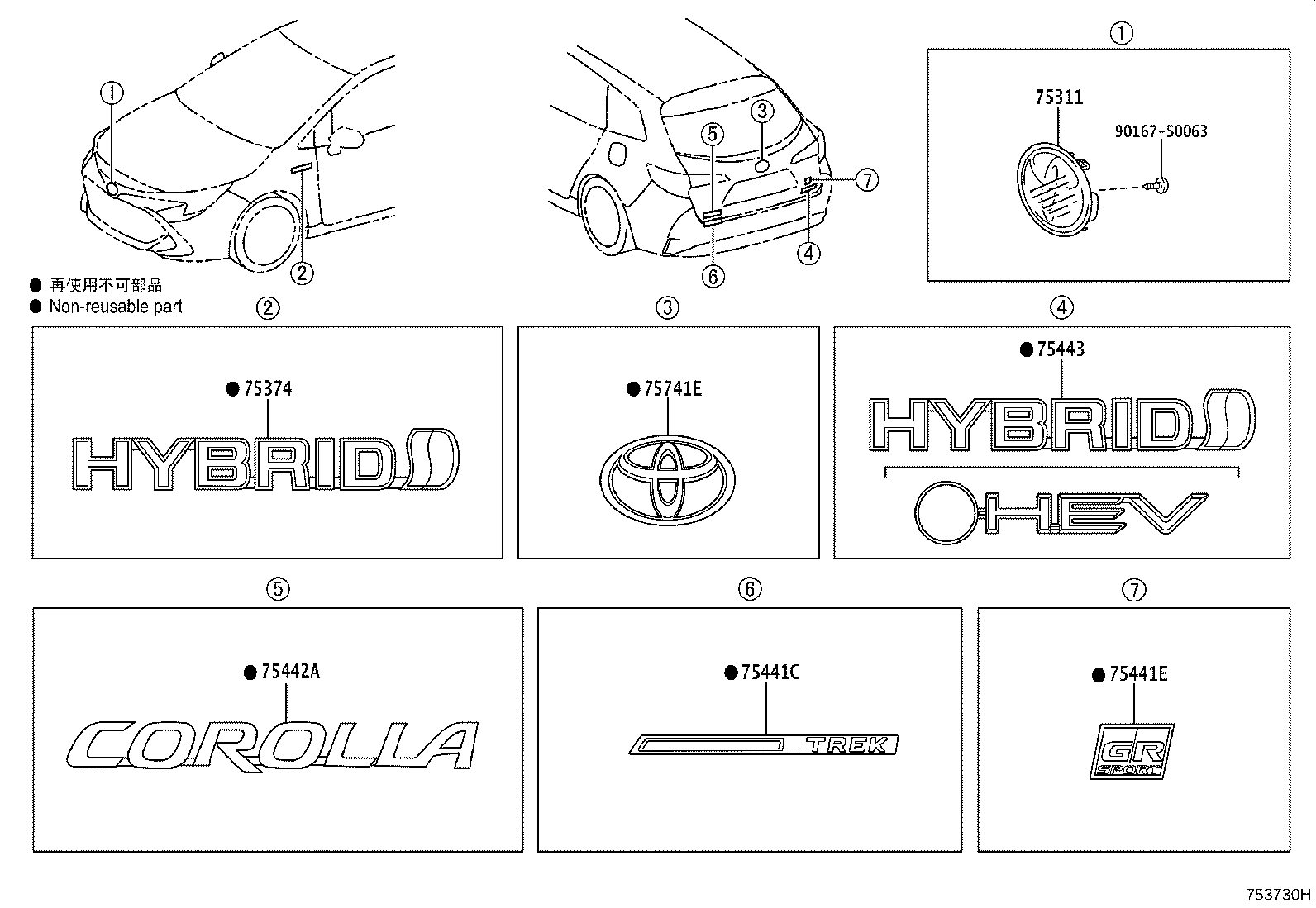

Figure 753729H 753729H 2019-01 → — Figure 753730H 753730H 2019-02 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75374 Emblem, Side Panel
75441C Plate, Back Door Name
75441E Plate, Back Door Name, NO.1
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
75741E Emblem, Symbol
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
