Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

38 part groups · 10 illustrations

Illustrations

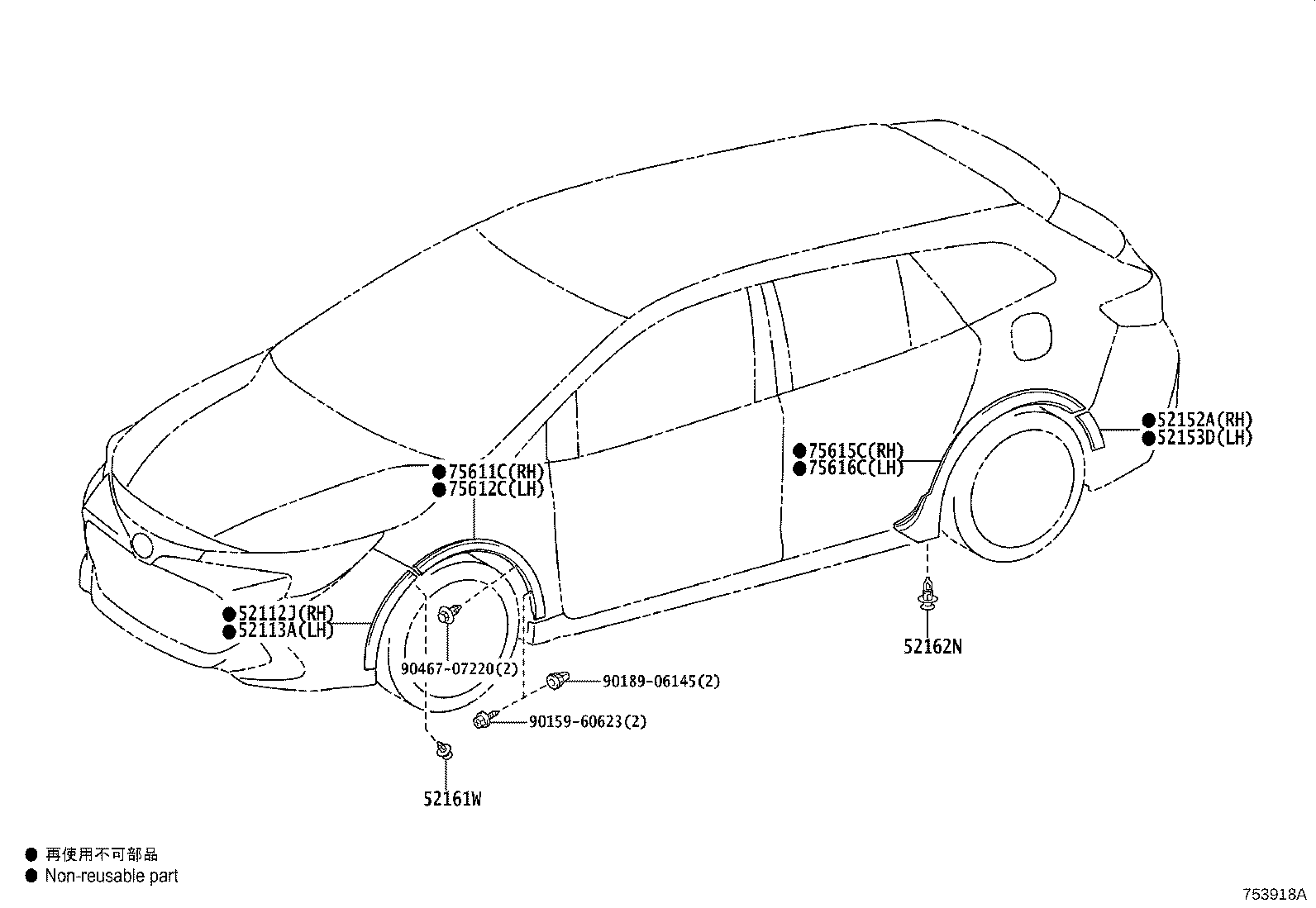

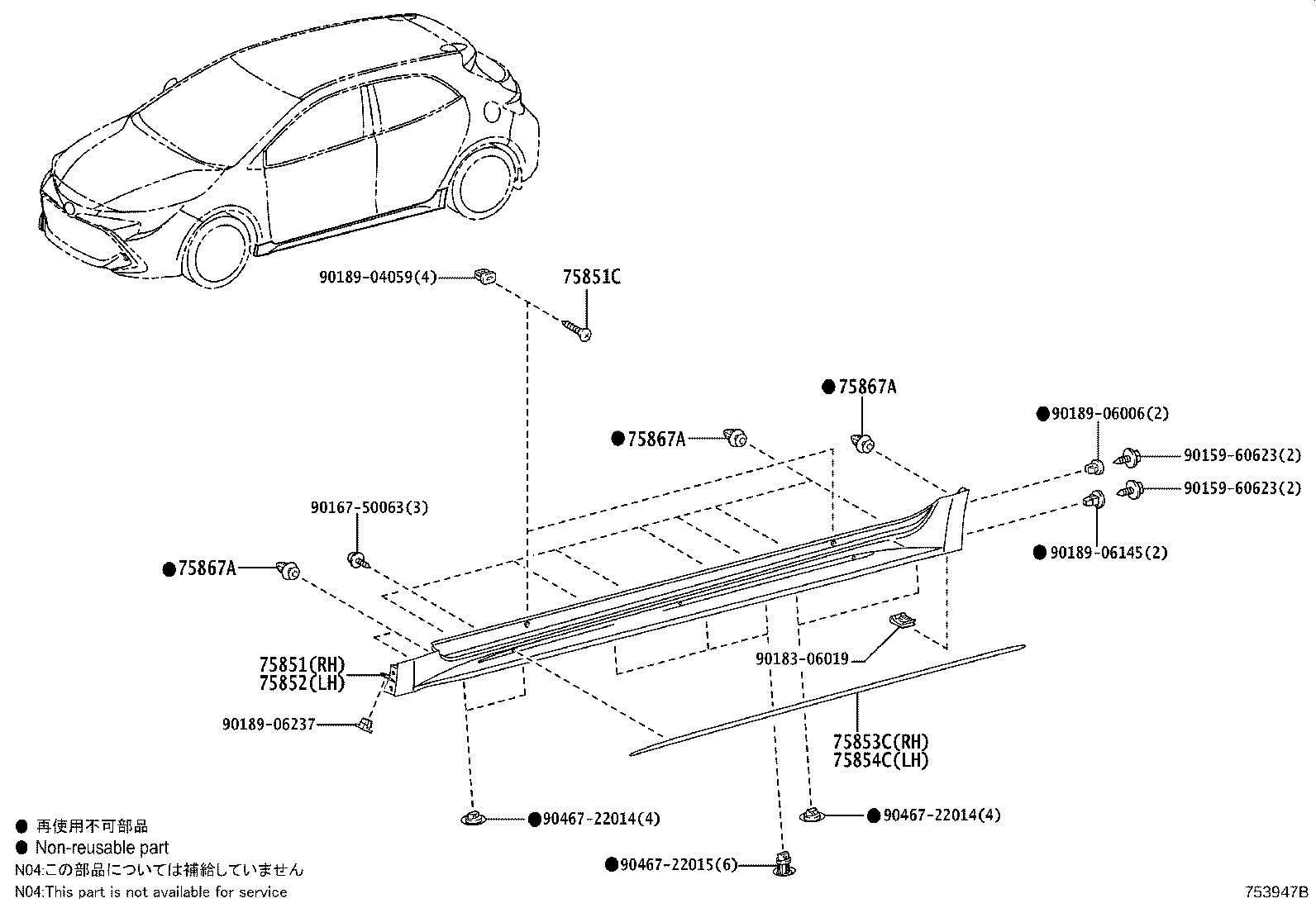

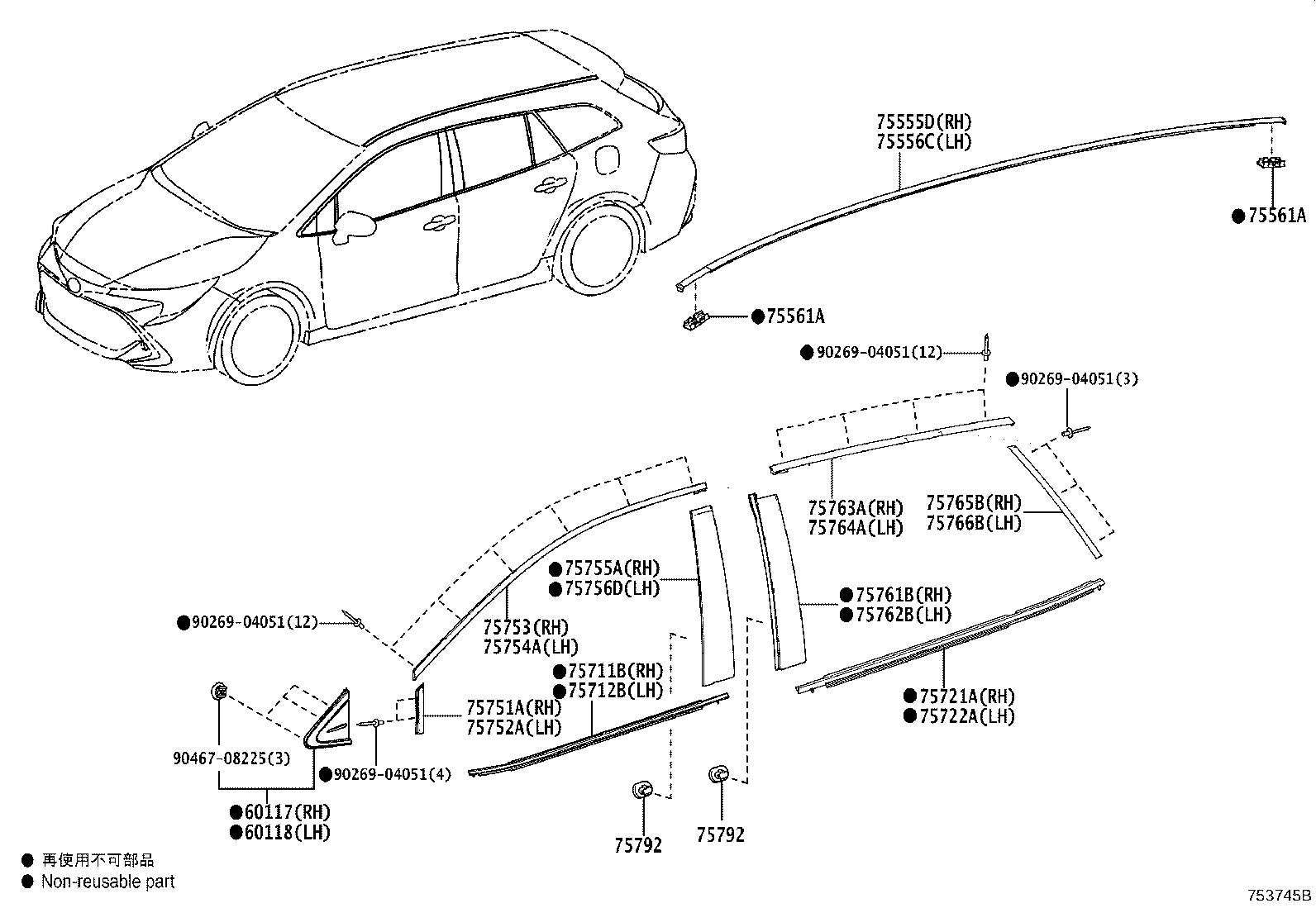

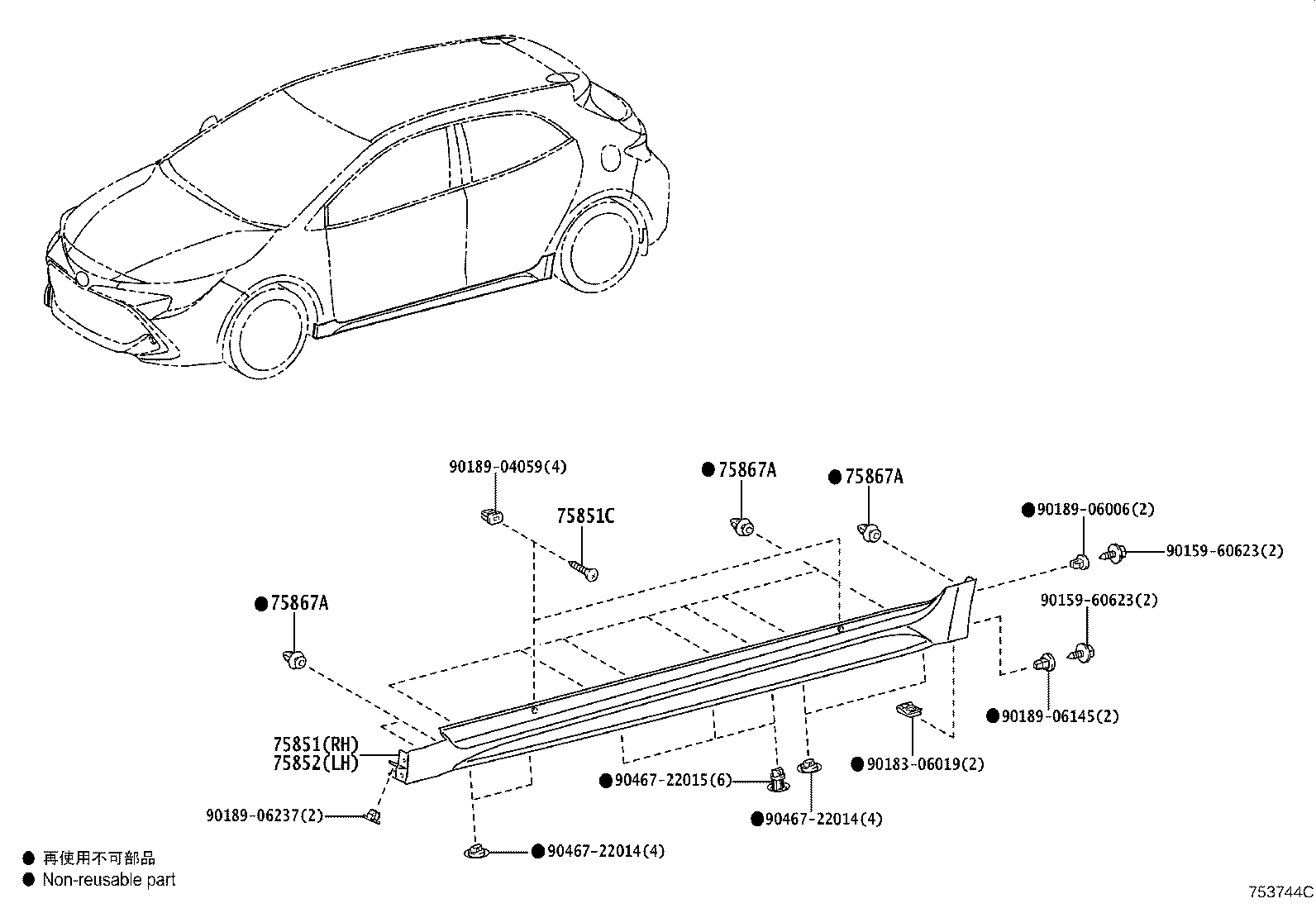

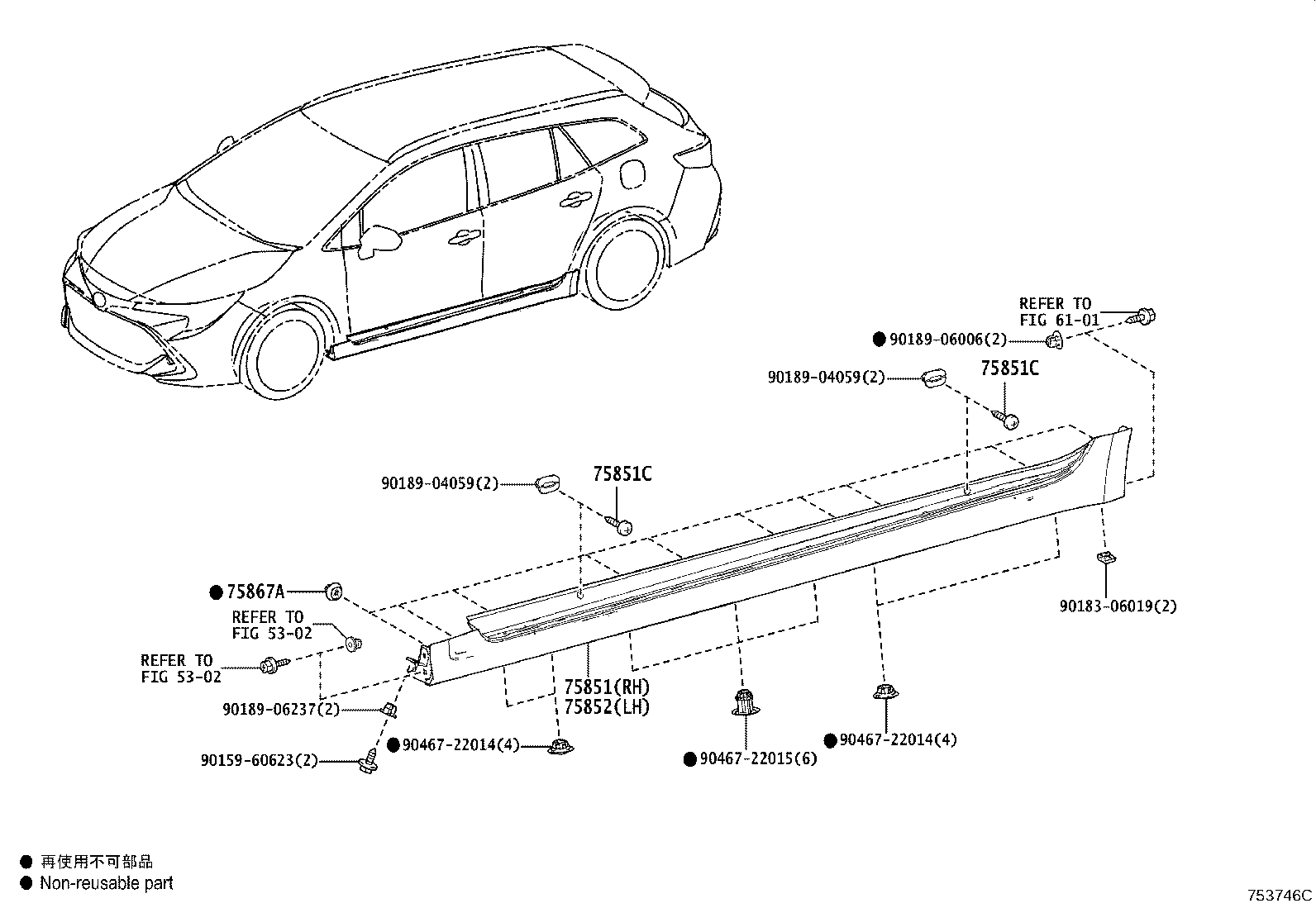

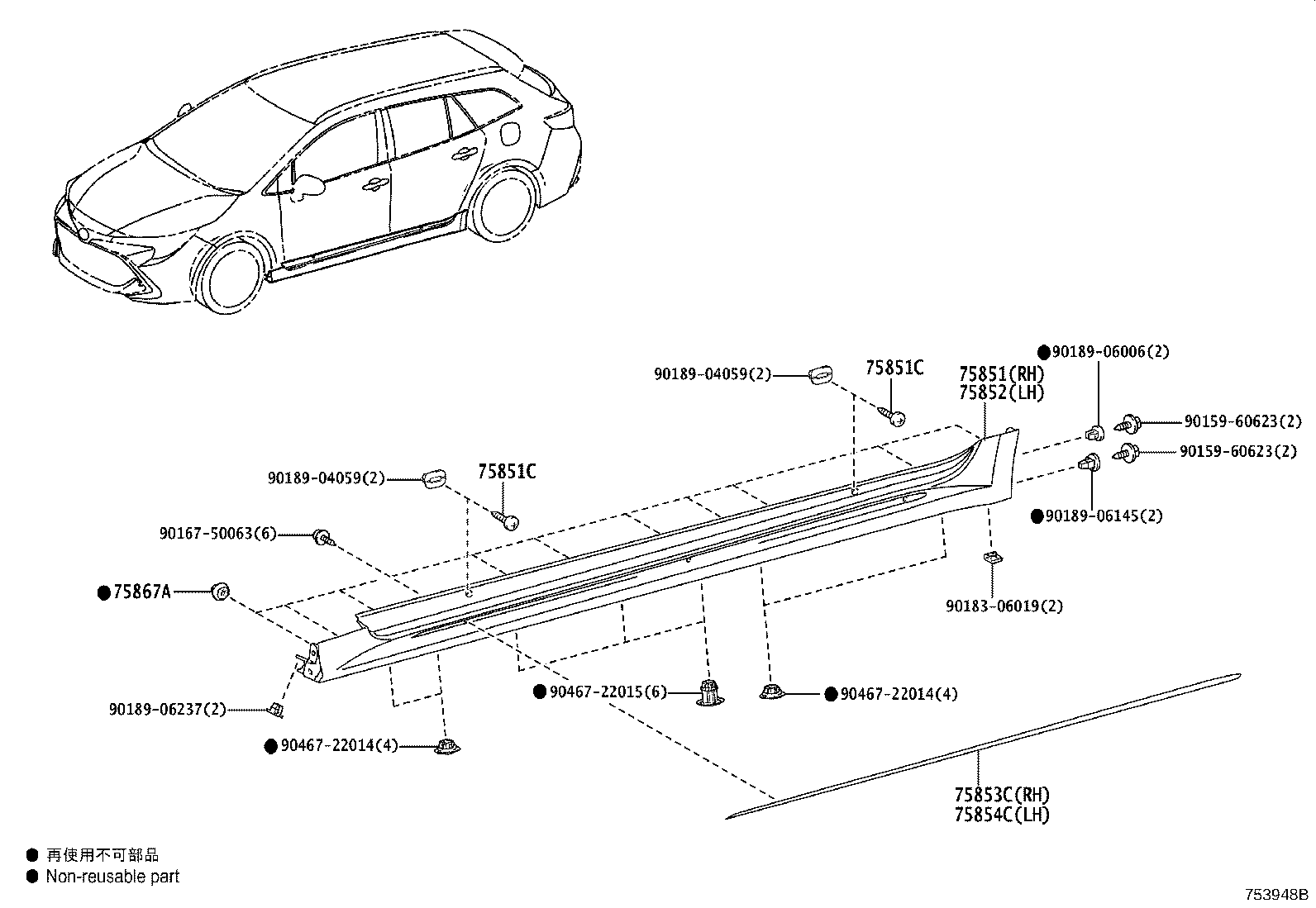

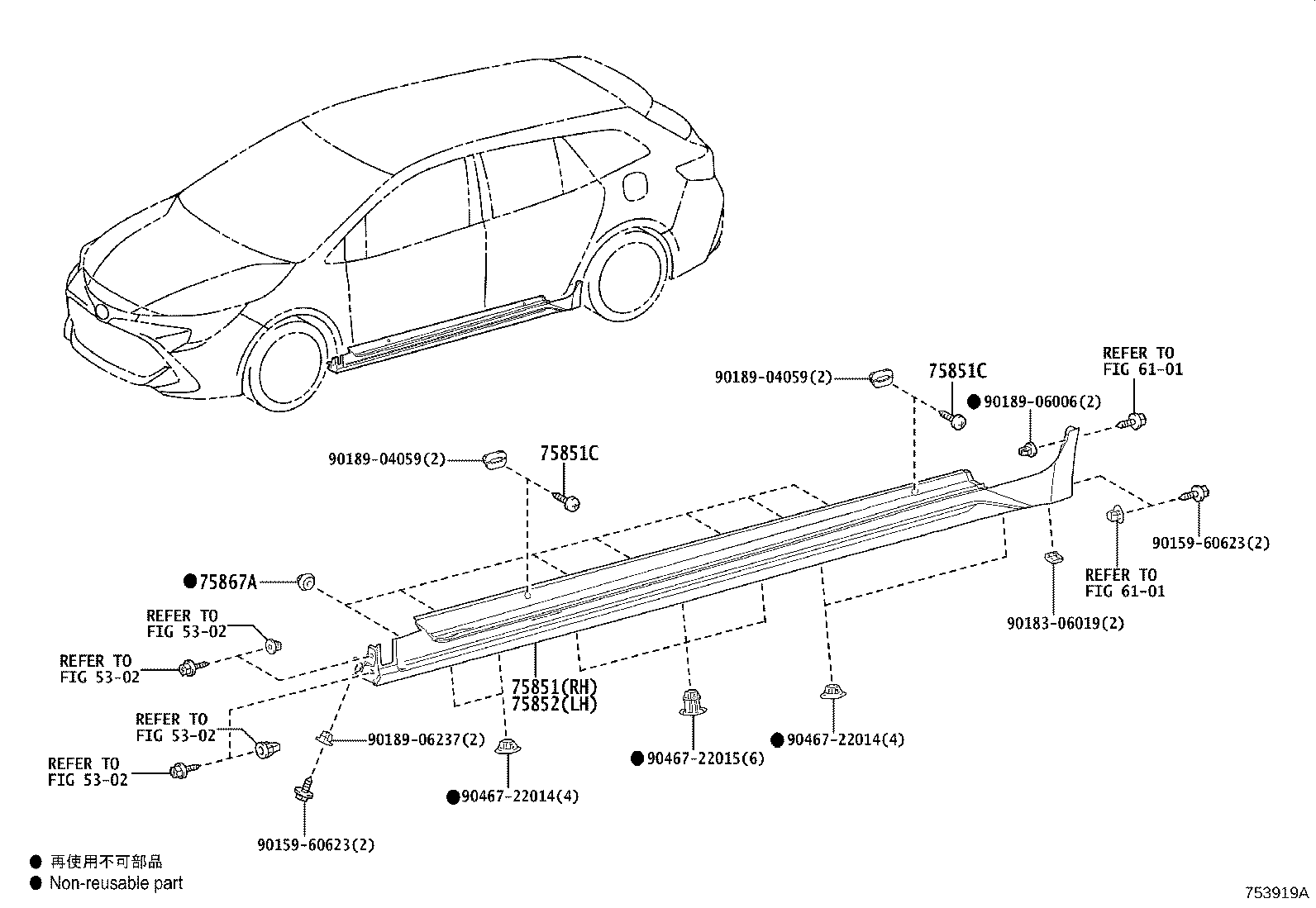

Figure 753743B 753743B 2019-01 → — Figure 753744C 753744C 2019-01 → — Figure 753947B 753947B 2019-11 → — Figure 753947B 753947B 2023-01 → — Figure 753745B 753745B 2019-02 → — Figure 753746C 753746C 2019-02 → — Figure 753919A 753919A 2019-07 → — Figure 753948B 753948B 2019-11 → — Figure 753948B 753948B 2023-01 → — Figure 753918A 753918A 2019-07 → —

Part groups

PNCDescription
52112J Extension, Front Bumper, RH
52113A Extension, Front Bumper, LH
52152A Extension, Rear Bumper, RH
52153D Extension, Rear Bumper, LH
52161W Piece, Front Bumper
52162N Piece, Rear Bumper
60117 Cover Sub-assy, Front Pillar, Upr RH
60118 Cover Sub-assy, Front Pillar, Upr LH
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75561A Clip, Roof Drip Side Finish Moulding
75611C Moulding, Front Fender, Outside RH
75612C Moulding, Front Fender, Outside LH
75615C Moulding, Front Fender, Rear RH
75616C Moulding, Front Fender, Rear LH
75711B Moulding, Front Door Belt, RH
75712B Moulding, Front Door Belt, LH
75721A Moulding, Rear Door Belt, RH
75722A Moulding, Rear Door Belt, LH
75751A Moulding, Front Door Window Frame, RH(FRONT PILLAR SIDE)
75752A Moulding, Front Door Window Frame, LH(FRONT PILLAR SIDE)
75753 Moulding, Front Door Window Frame, Upper RH
75754A Moulding, Front Door Window Frame, Upper LH
75755A Moulding, Front Door Window Frame, RH(CENTER PILLAR SIDE)
75756D Moulding, Front Door Window Frame, LH(CENTER PILLAR SIDE)
75761B Moulding, Rear Door Window Frame, RH(CENTER PILLAR SIDE)
75762B Moulding, Rear Door Window Frame, LH(CENTER PILLAR SIDE)
75763A Moulding, Rear Door Window Frame, Upper RH
75764A Moulding, Rear Door Window Frame, Upper LH
75765B Moulding, Rear Door Window Frame, RH(REAR PILLAR SIDE)
75766B Moulding, Rear Door Window Frame, LH(REAR PILLAR SIDE)
75792 Clip, Door Window Frame Moulding
75851 Moulding, Rocker Panel, RH
75851C Screw(FOR BODY ROCKER PANEL MOULDING)
75852 Moulding, Rocker Panel, LH
75853C Moulding, Rocker Panel, Lower RH
75854C Moulding, Rocker Panel, Lower LH
75867A Clip, Rocker Panel Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
