Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

26 part groups · 7 illustrations

Illustrations

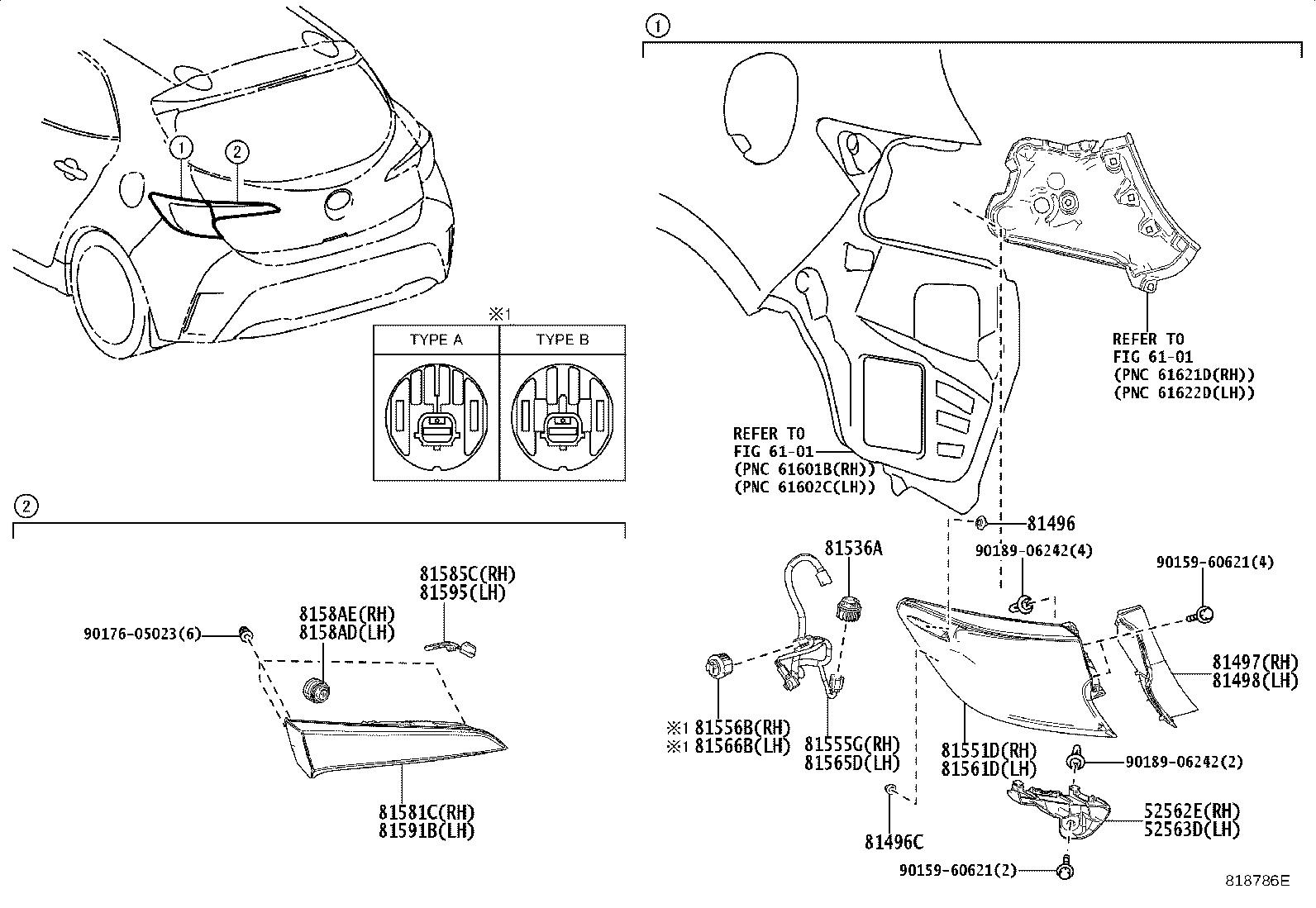

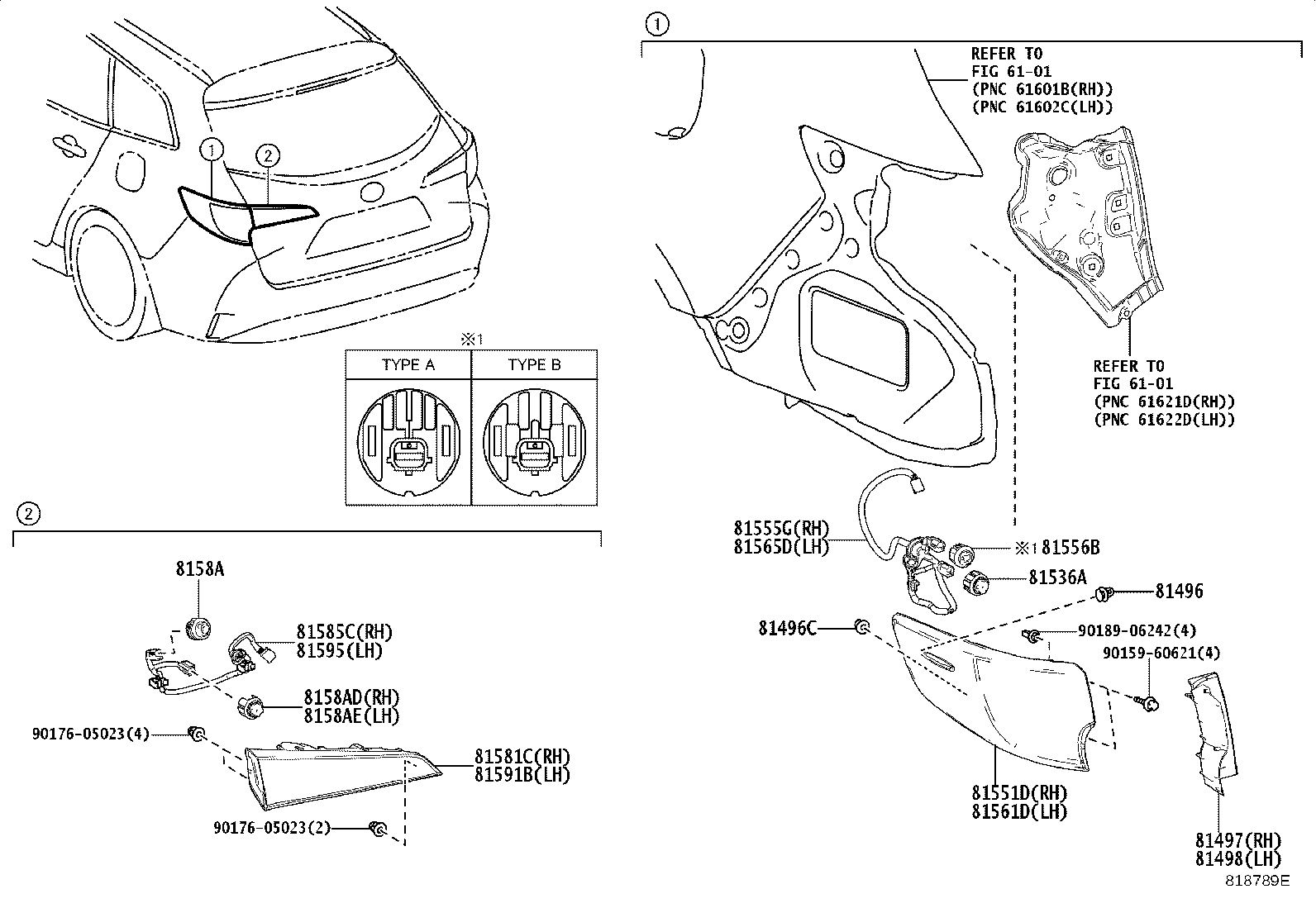

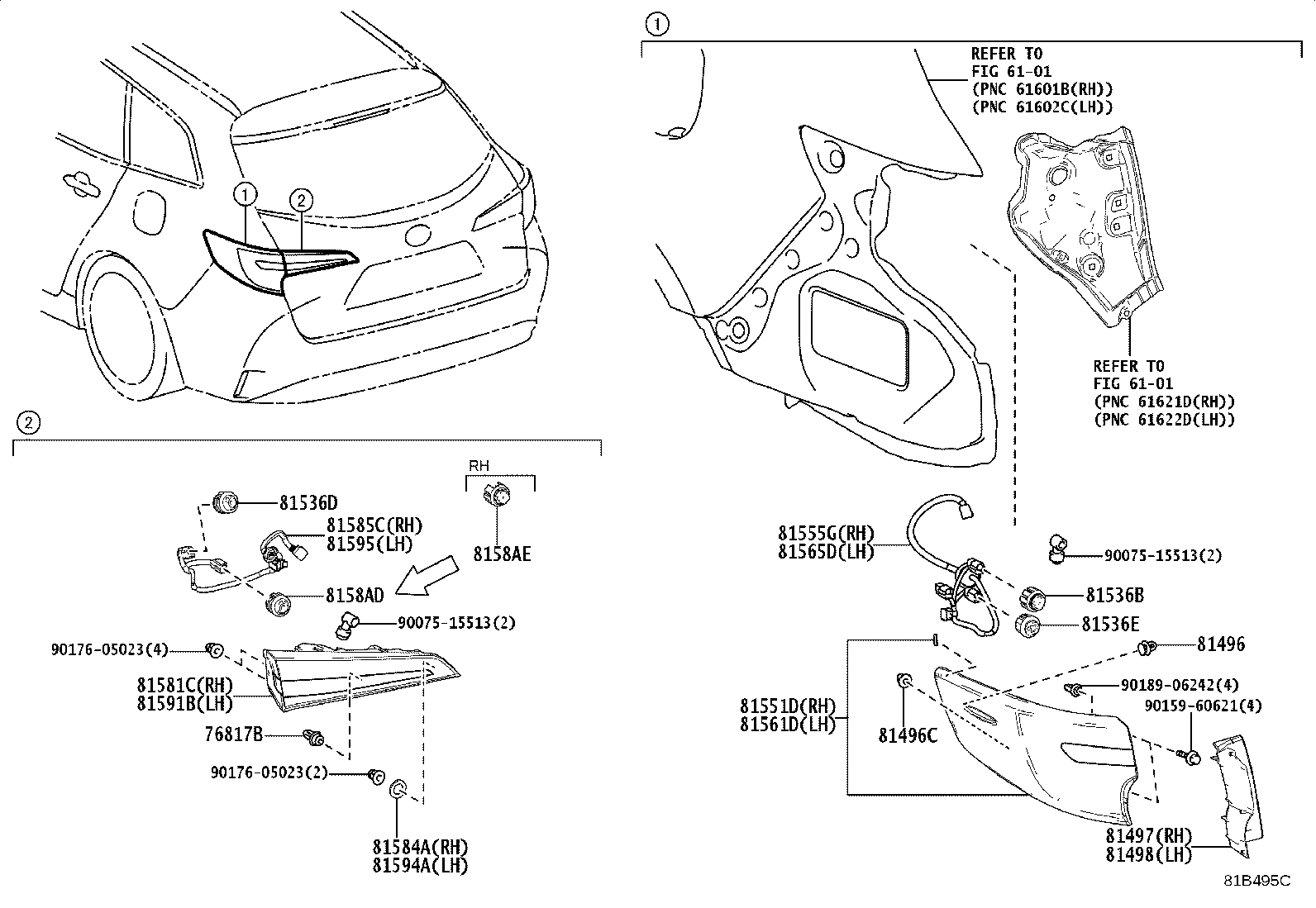

Figure 818785E 818785E 2019-01 → — Figure 818786E 818786E 2019-01 → — Figure 818788E 818788E 2019-02 → 2023-01 Figure 818788E 818788E 2022-01 → 2023-01 Figure 818789E 818789E 2019-02 → 2023-01 Figure 81B495C 81B495C 2023-01 → — Figure 81B496C 81B496C 2023-01 → —

Part groups

PNCDescription
52562E Retainer, Rear Bumper, Upper RH
52563D Retainer, Rear Bumper, Upper LH
76817B Clip, Rear Lamp
81496 Guide, Rear Combination Lamp
81496C Guide, Rear Combination Lamp, NO.2
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81536A Led, Rear Combination Lamp
81536B Led, Rear Turn Signal Lamp
81536D Led, Taillamp
81536E Led, Stop Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81555G Cord, Rear Combination Lamp, RH
81556B Led, Rear Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
81565D Cord, Rear Combination Lamp, LH
81566B Led, Rear Combination Lamp, LH
81581C Lens And Body, Rear Lamp, RH
81584A Gasket, Rear Lamp RH
81585C Socket & Wire, Rear Lamp, RH
8158A Led, Rear Lamp
8158AD Led, Rear Fog Lamp
8158AE Led, Back-up Lamp
81591B Lens And Body, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
81595 Socket & Wire, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
