Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

5 part groups · 7 illustrations

Illustrations

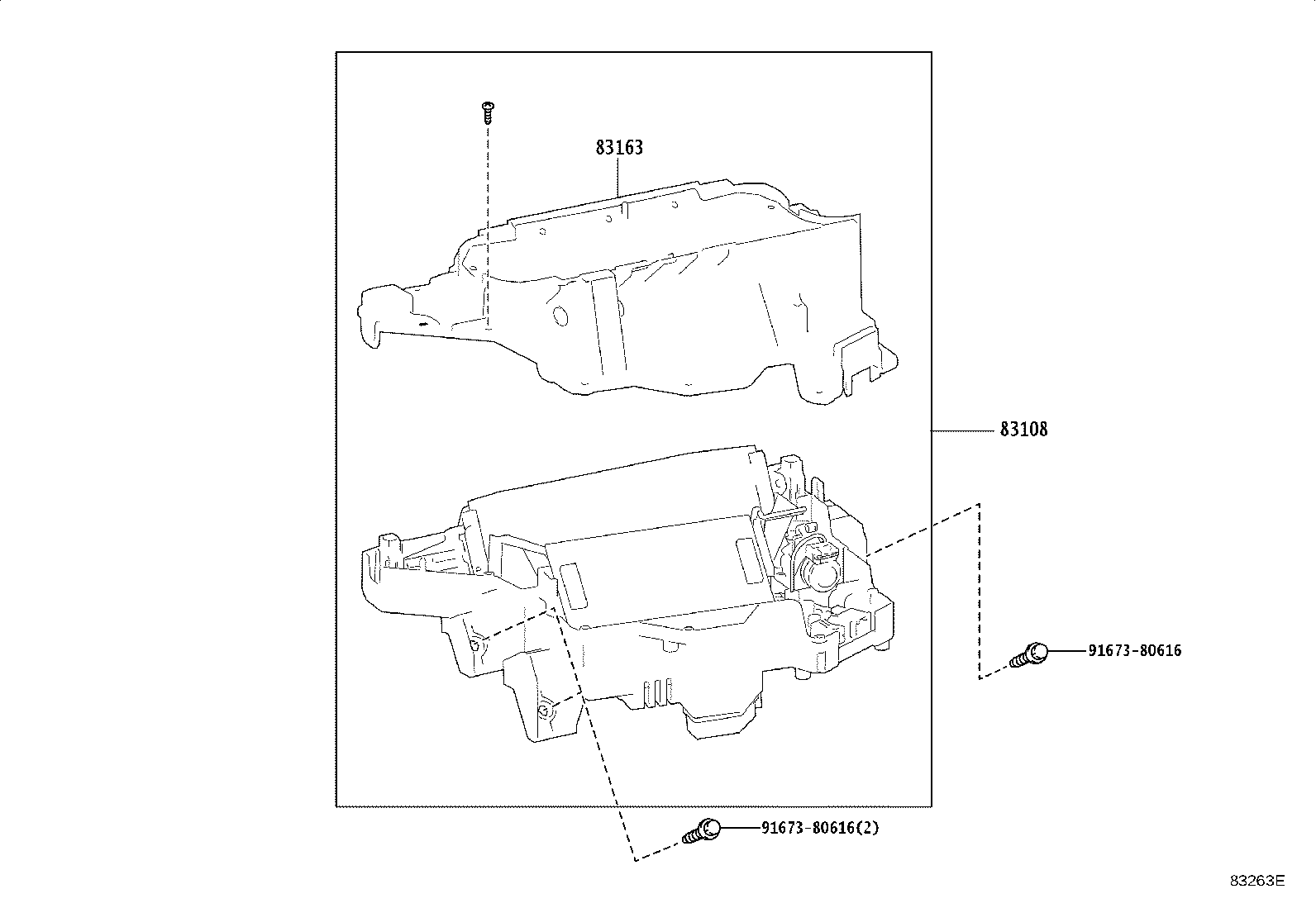

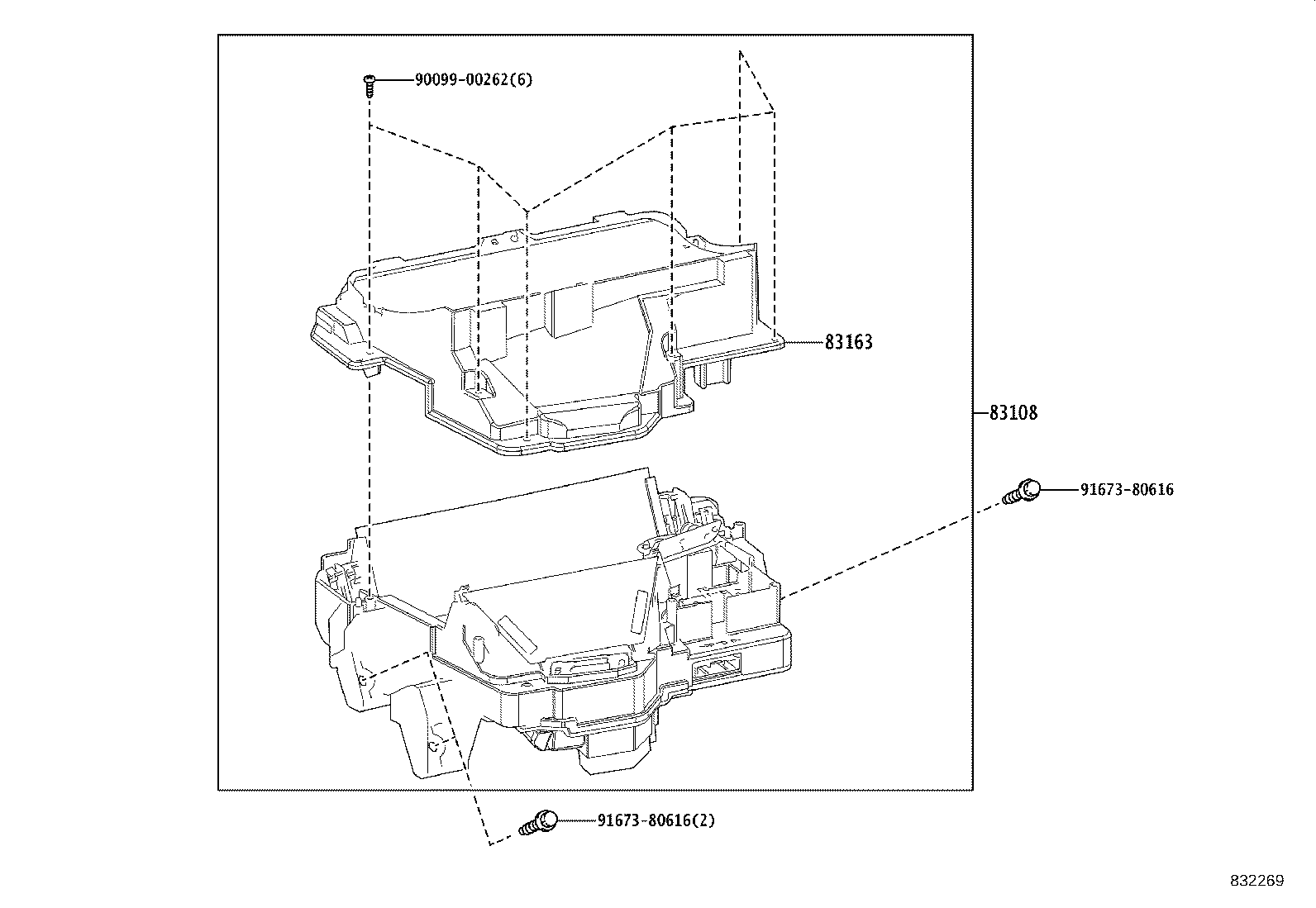

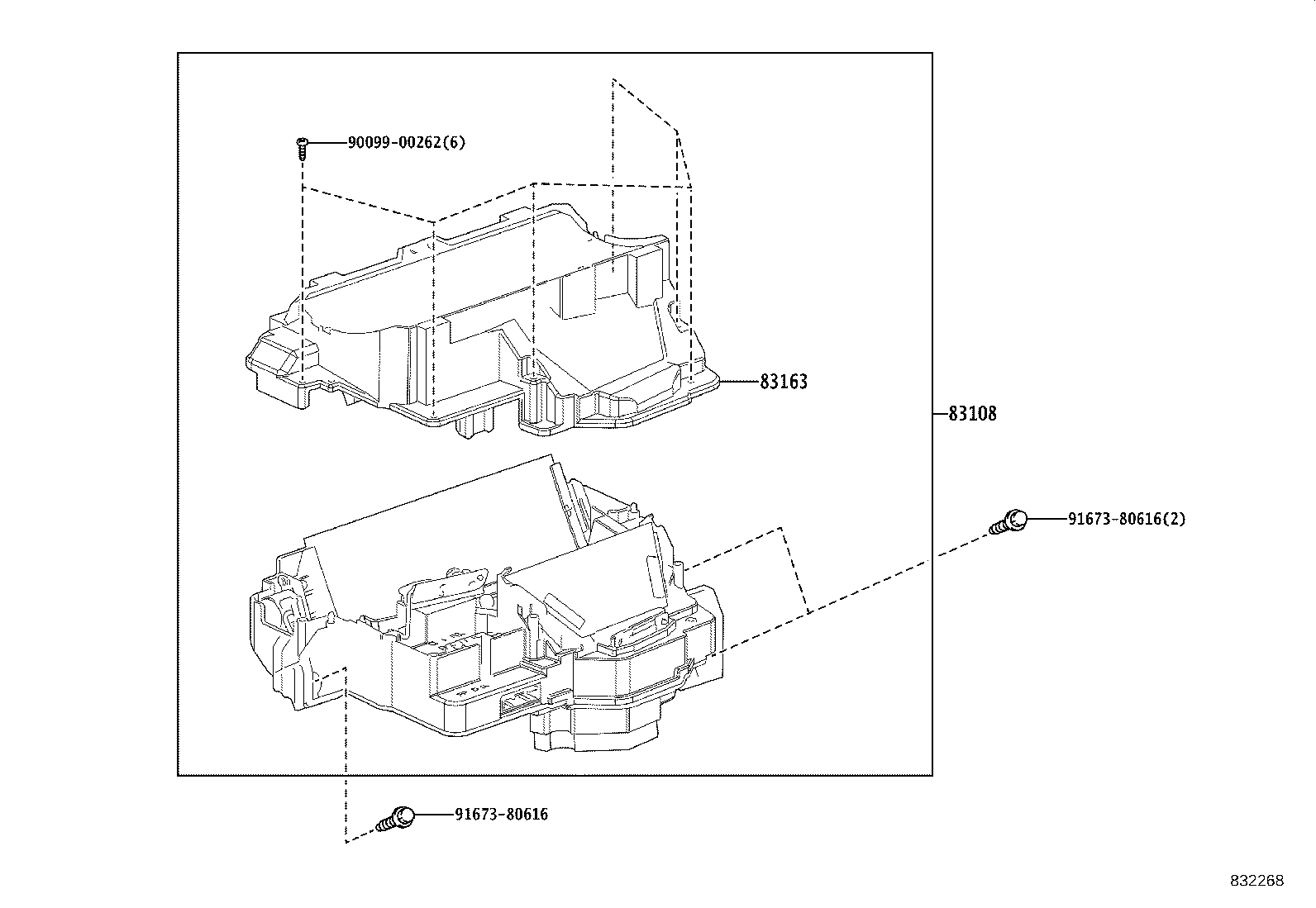

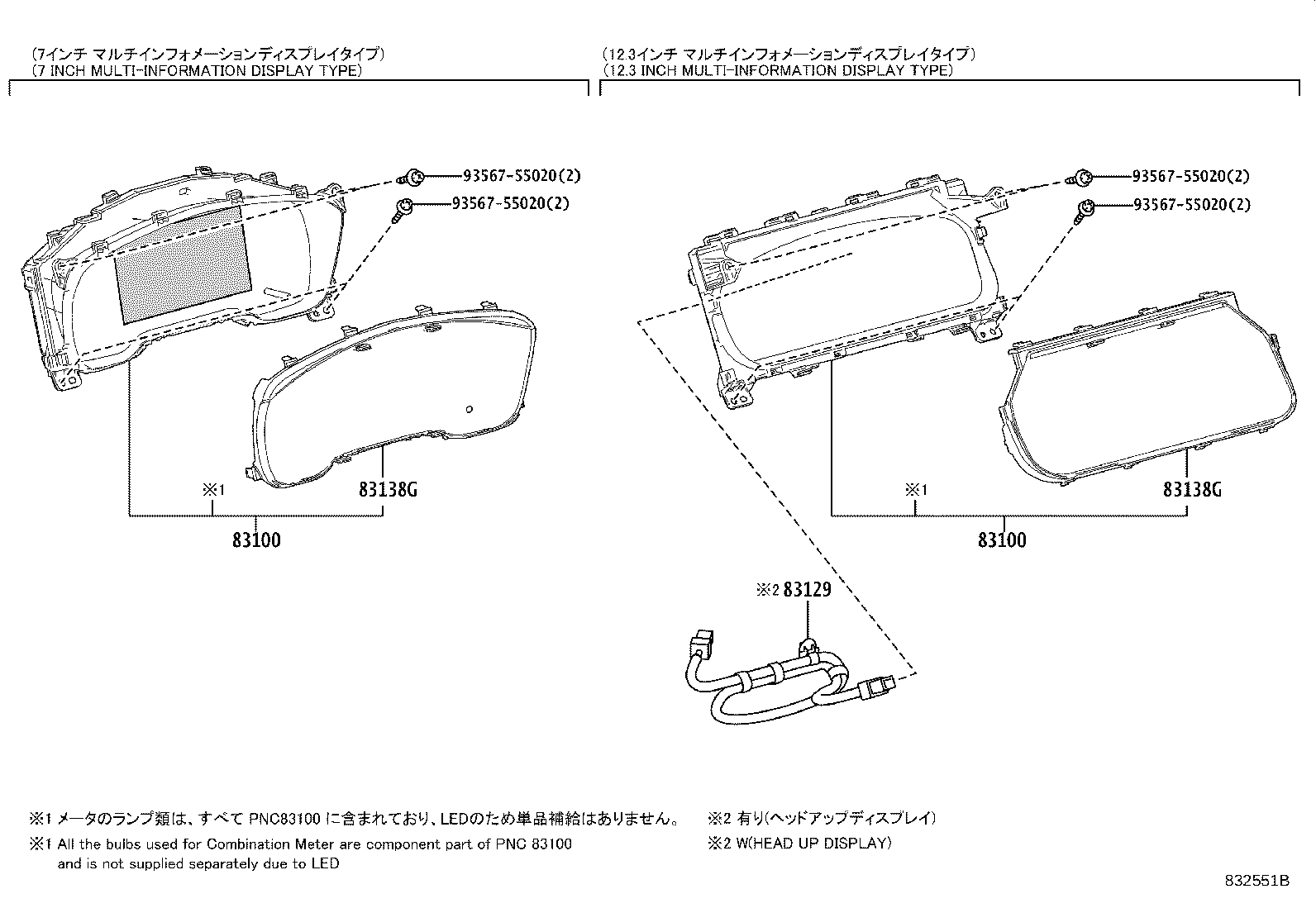

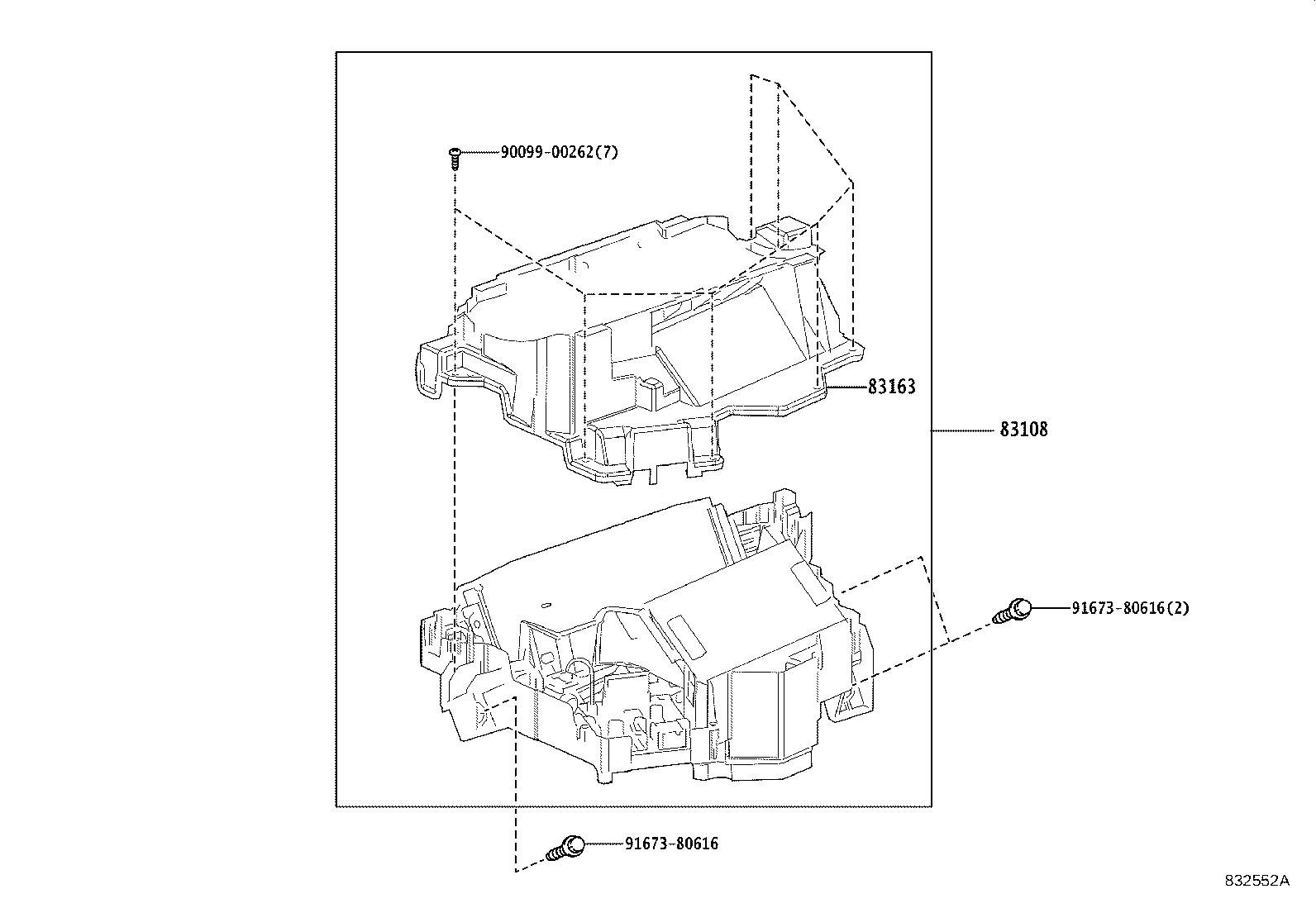

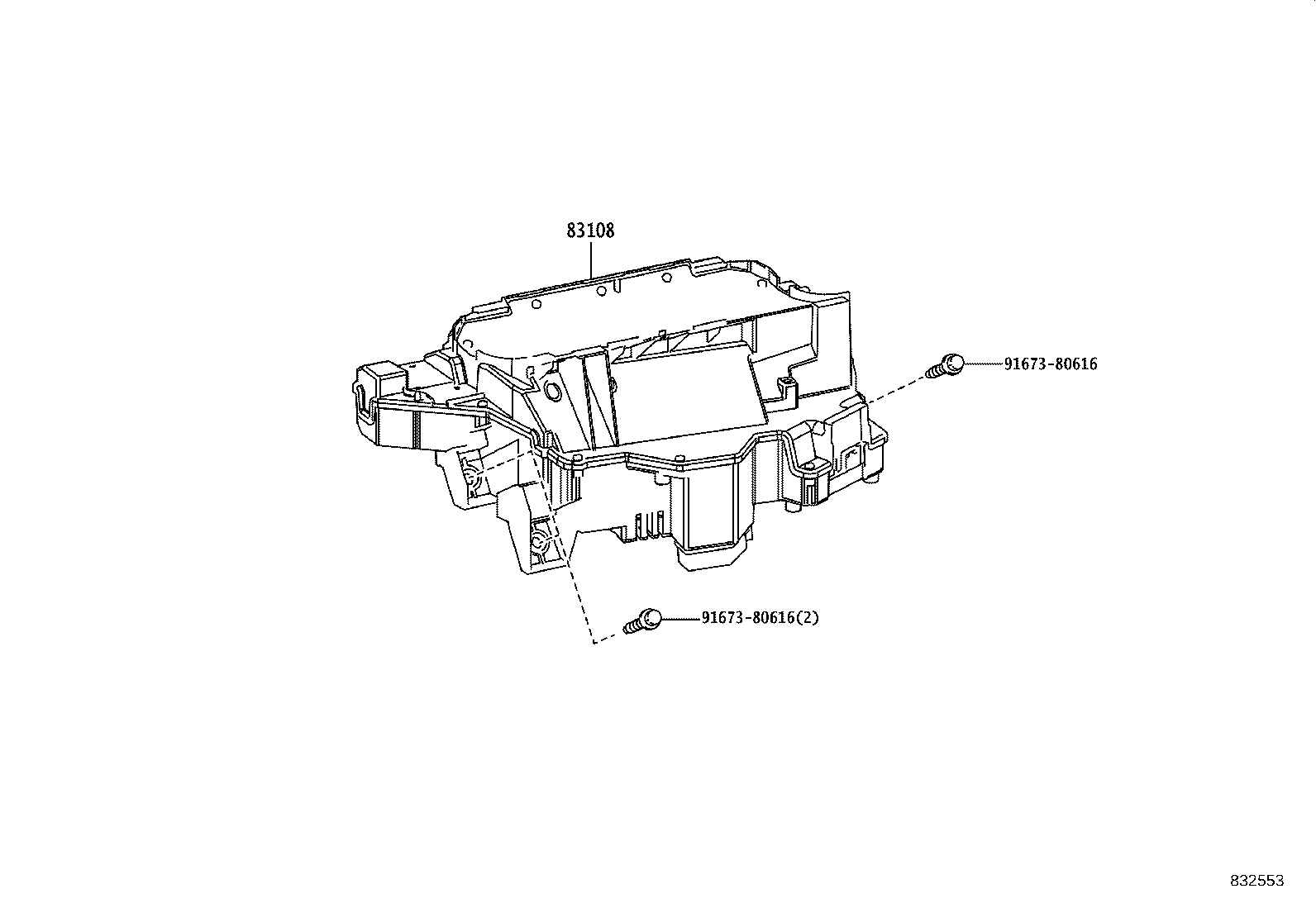

Figure 832267 832267 2019-01 → — Figure 832551B 832551B 2023-01 → — Figure 832268 832268 2019-01 → — Figure 832269 832269 2019-01 → — Figure 832552A 832552A 2023-01 → — Figure 83263E 83263E 2023-01 → — Figure 832553 832553 2023-01 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83108 Mirror Sub-assy, Meter
83129 Wire, Meter
83138G Glass, Combination Meter
83163 Plate, Combination Meter Mirror, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
