Toyota Corolla (UKP)
2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe
Supported model
Data version 2022-12
Switch & Relay & Computer
177 part groups · 38 illustrations
Illustrations
Part groups

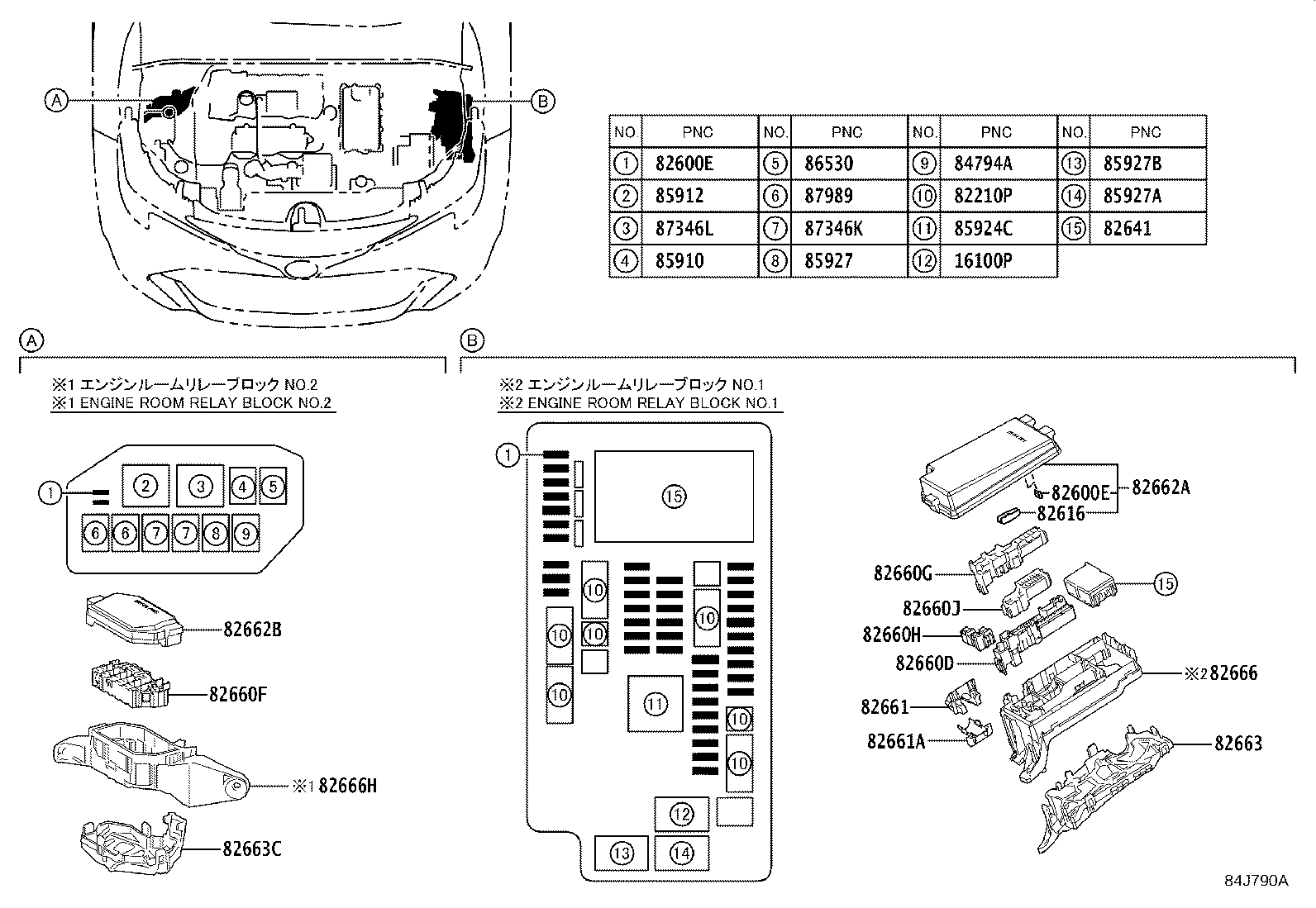

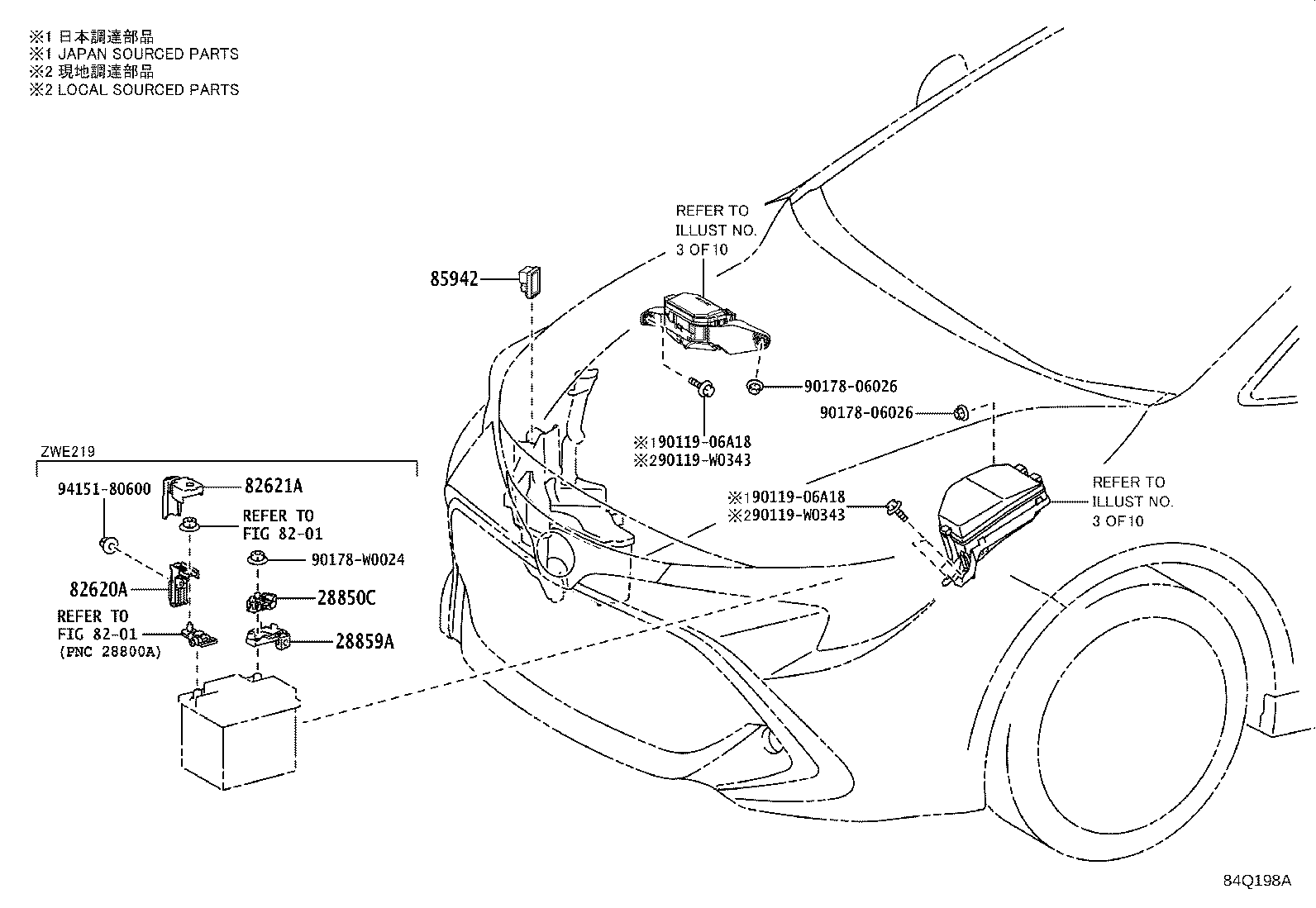

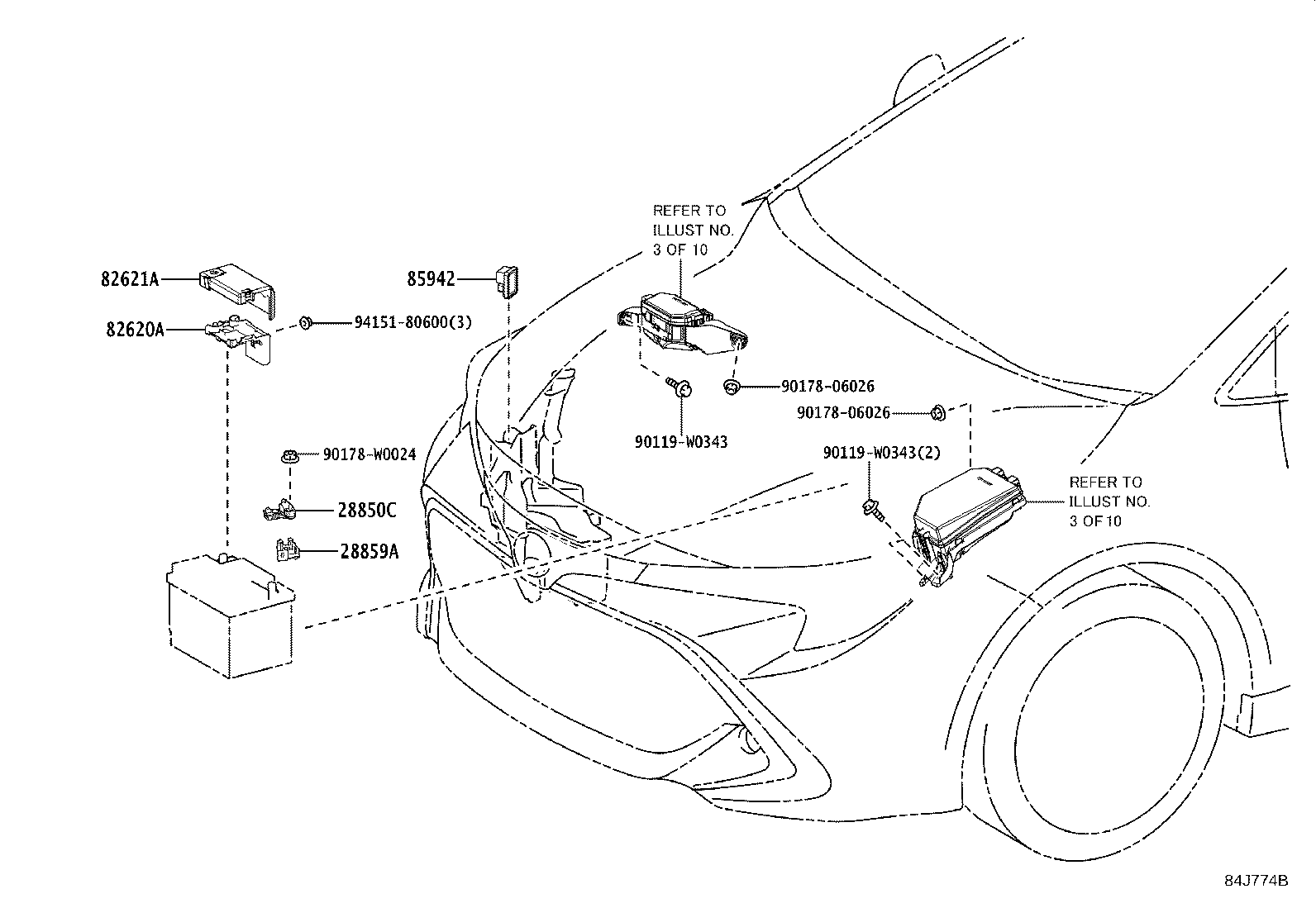

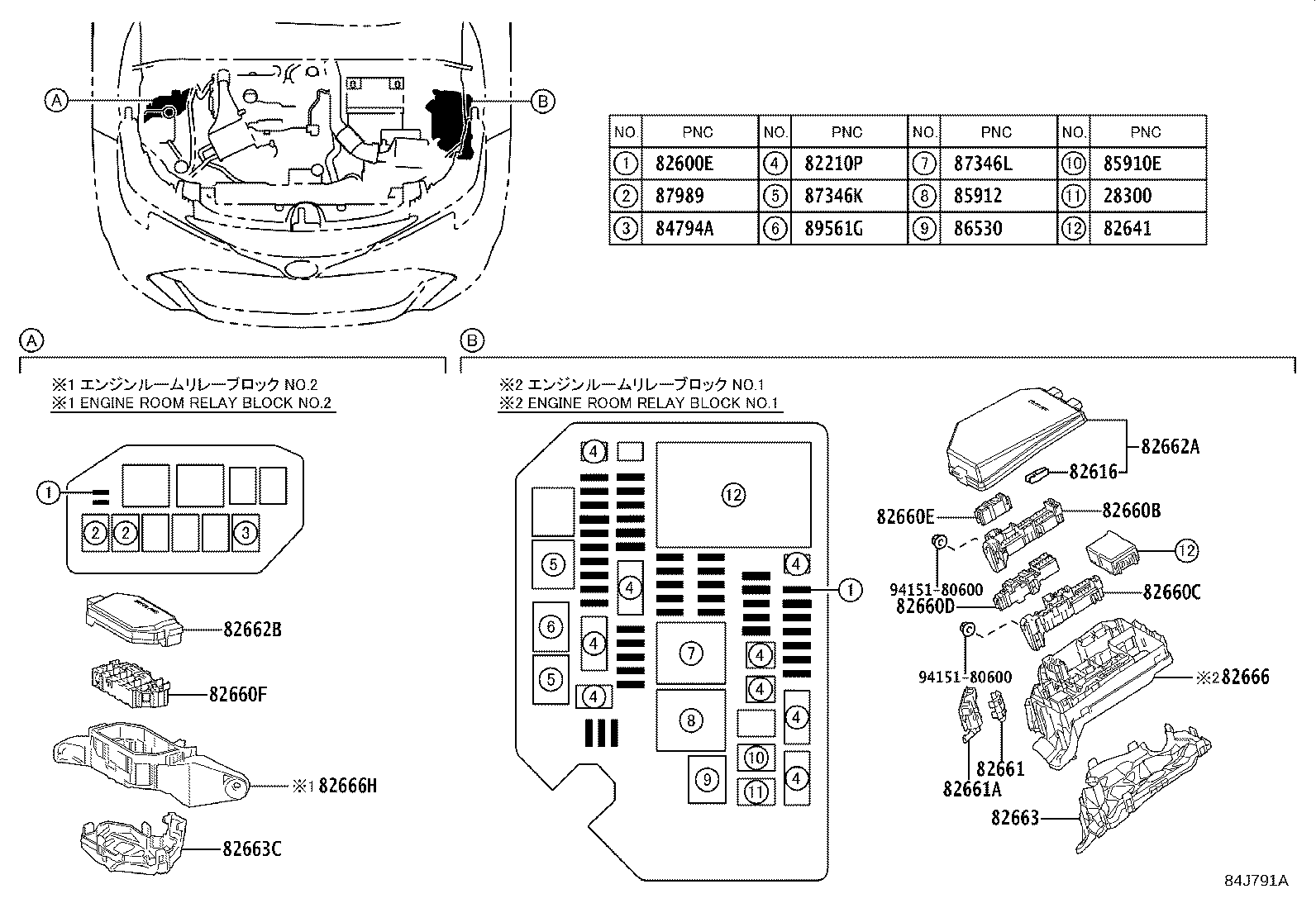

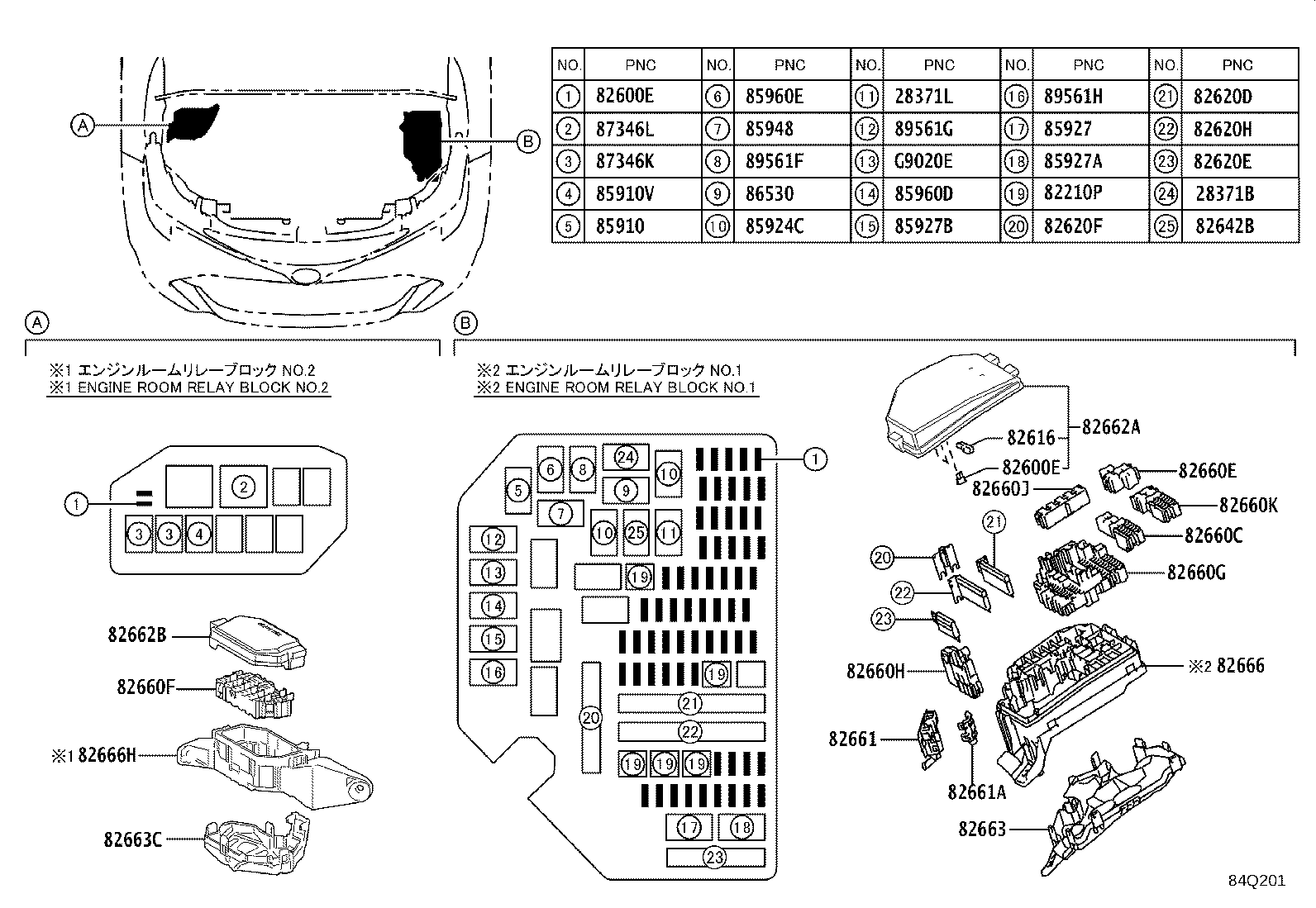

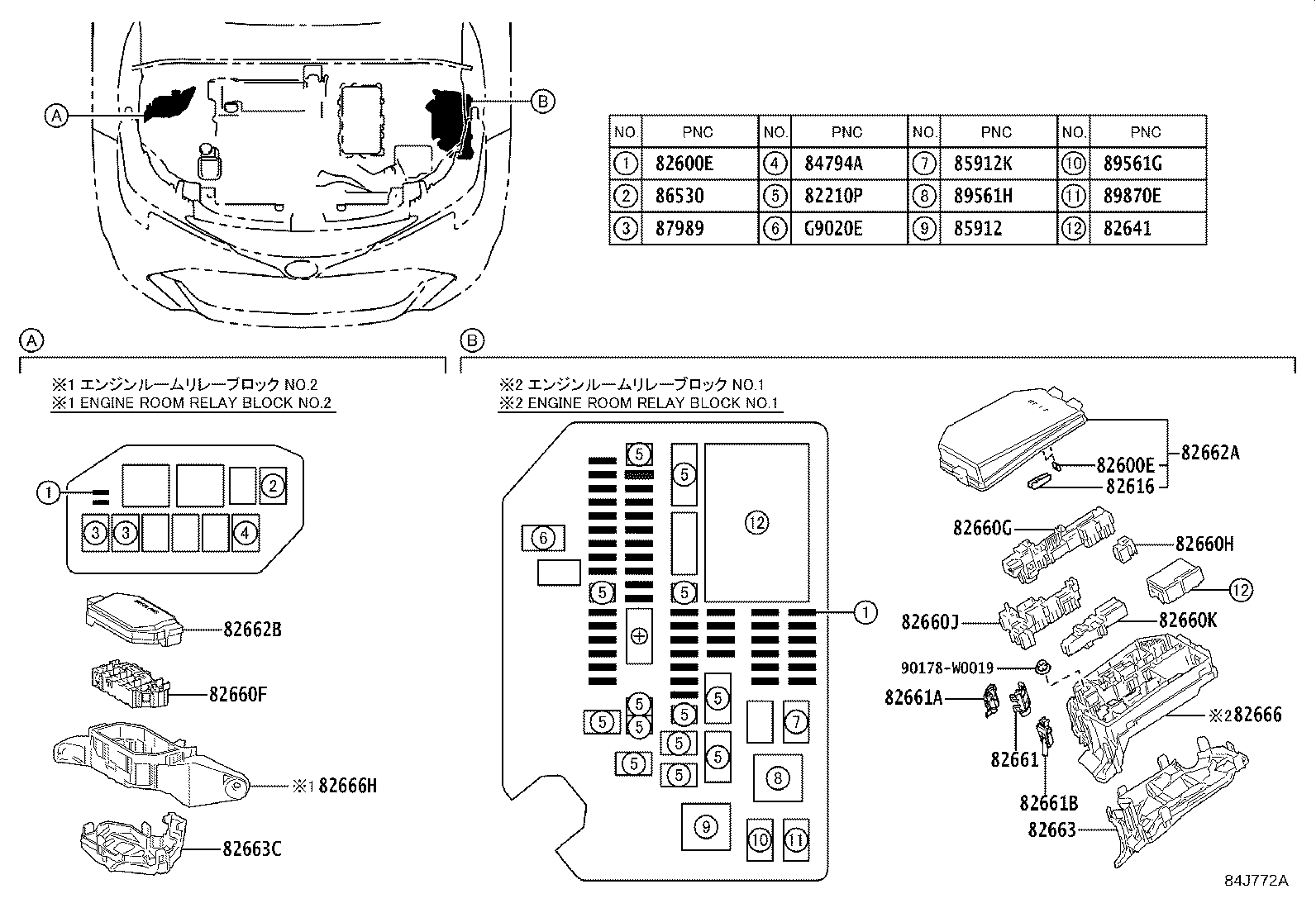

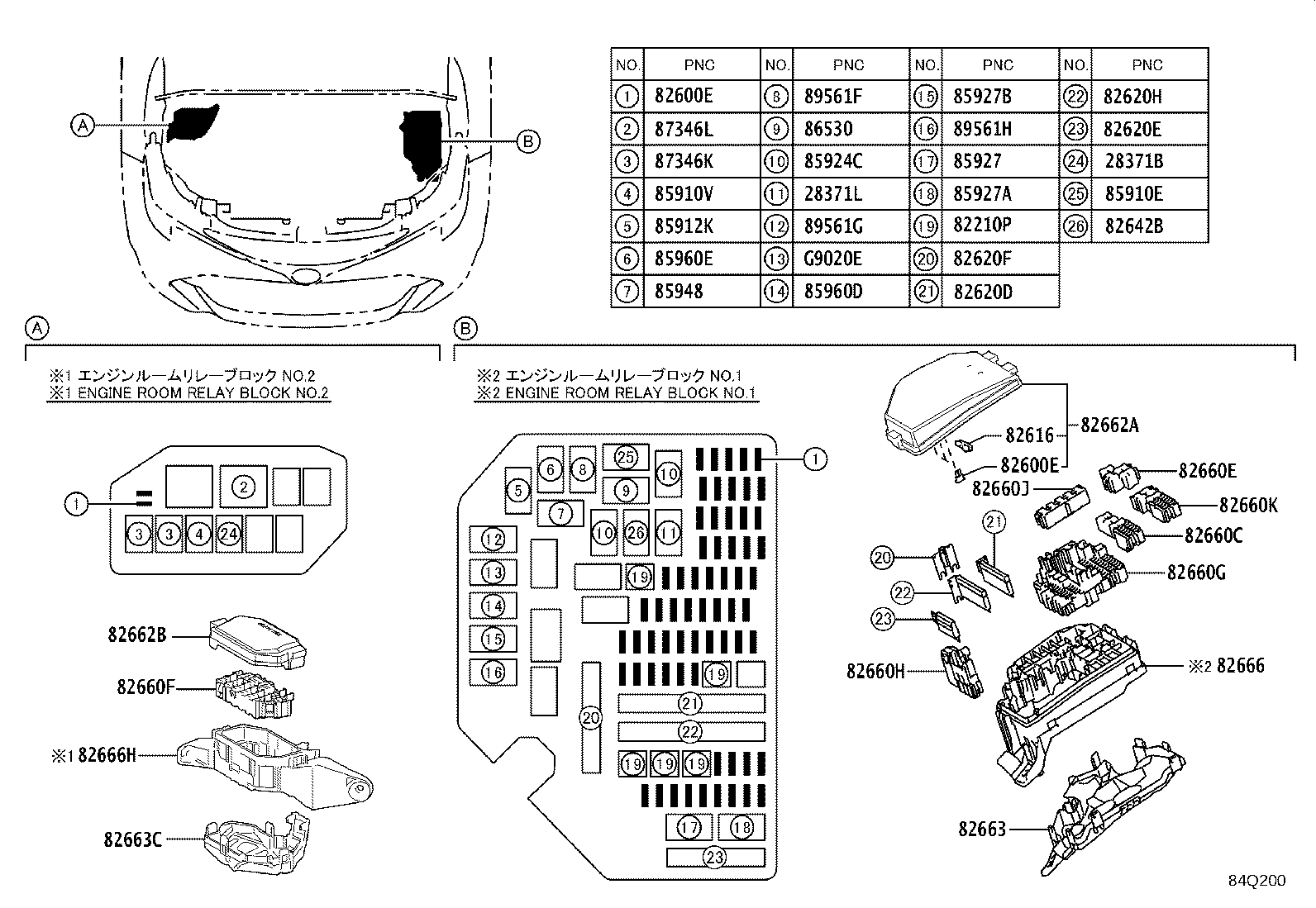

| PNC | Description |
|---|---|
| 16100P | Relay, Water Pump |
| 28300 | Relay Assy, Starter |
| 28371B | Relay, Igr |
| 28371E | Relay, Ignition, NO.4 |
| 28371L | Relay, Igp |
| 28850C | Sensor Assy, Battery State |
| 28859A | Holder, Battery Current Sensor |
| 69065A | Cylinder Sub-assy, Airbag Cut Off Switch |
| 82210N | Instrument Panel Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82241L | Wire, Relay |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |

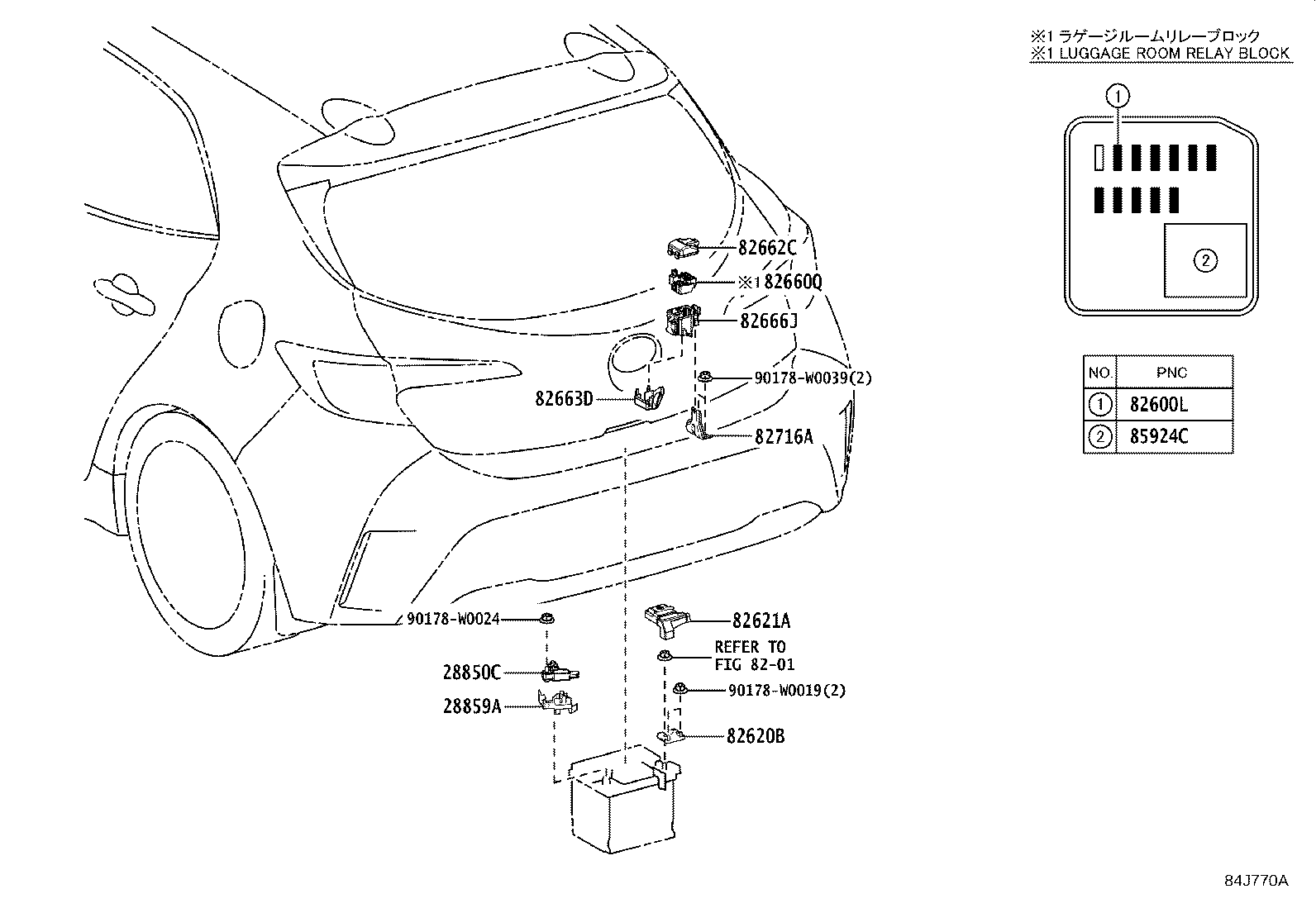

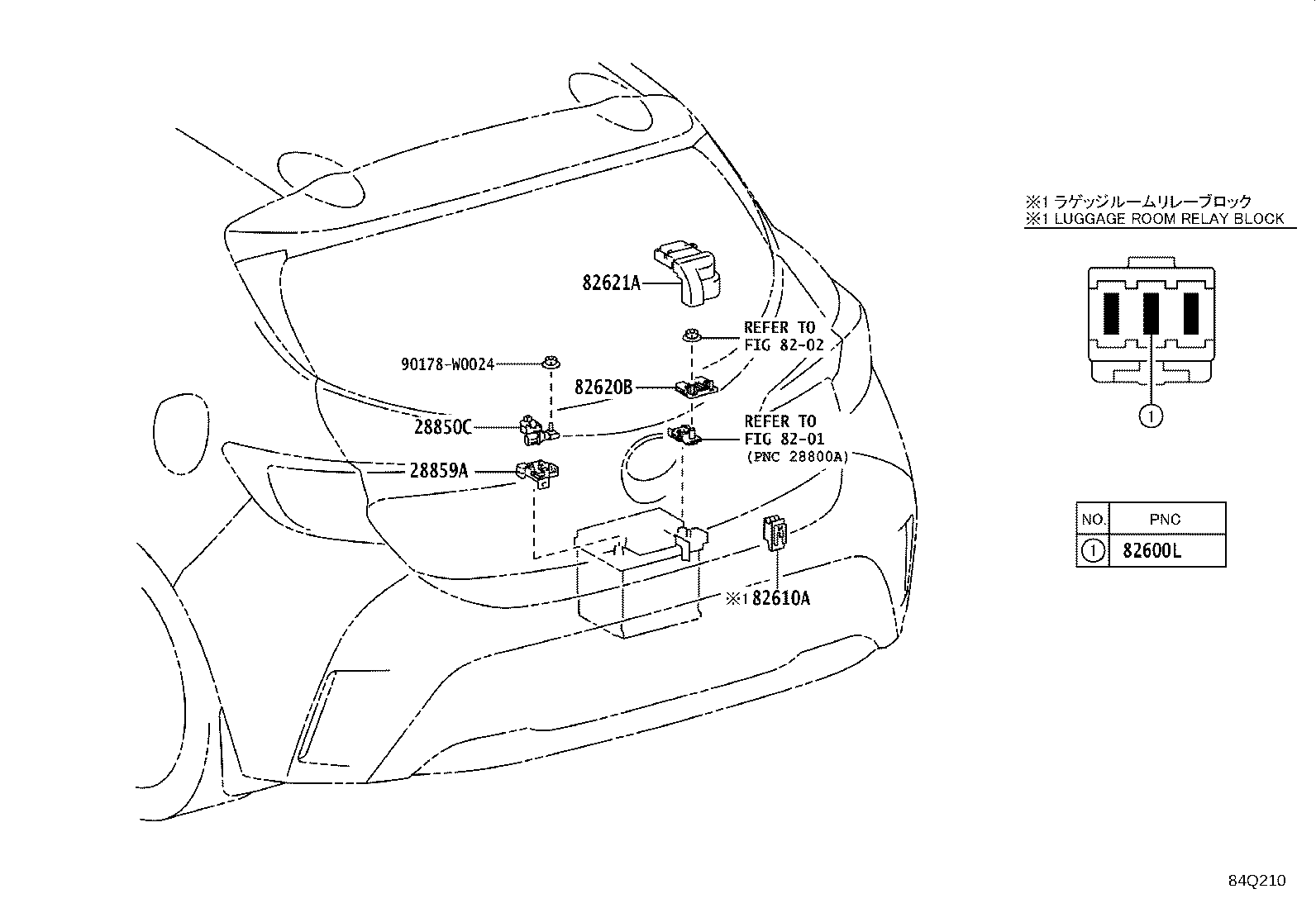

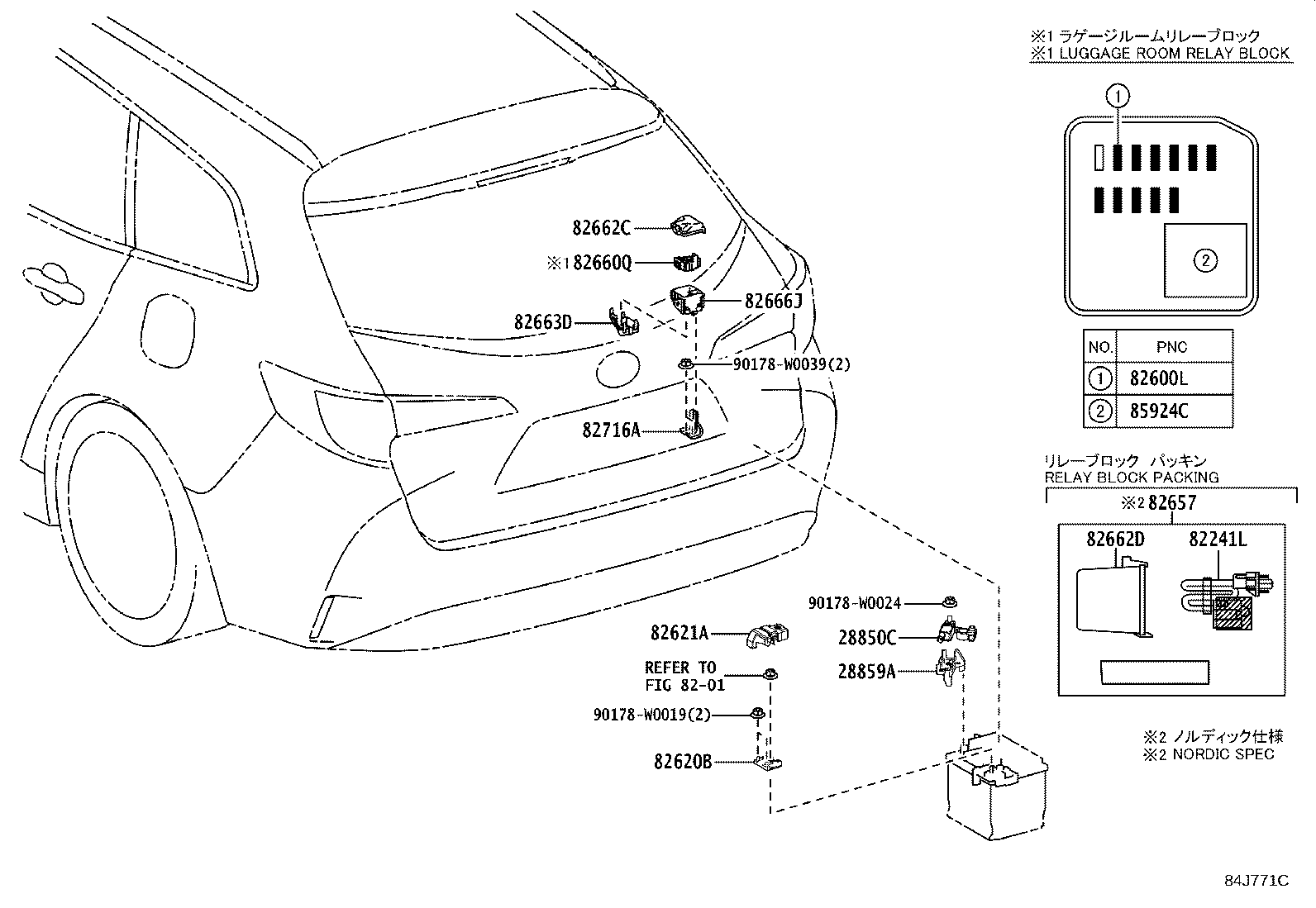

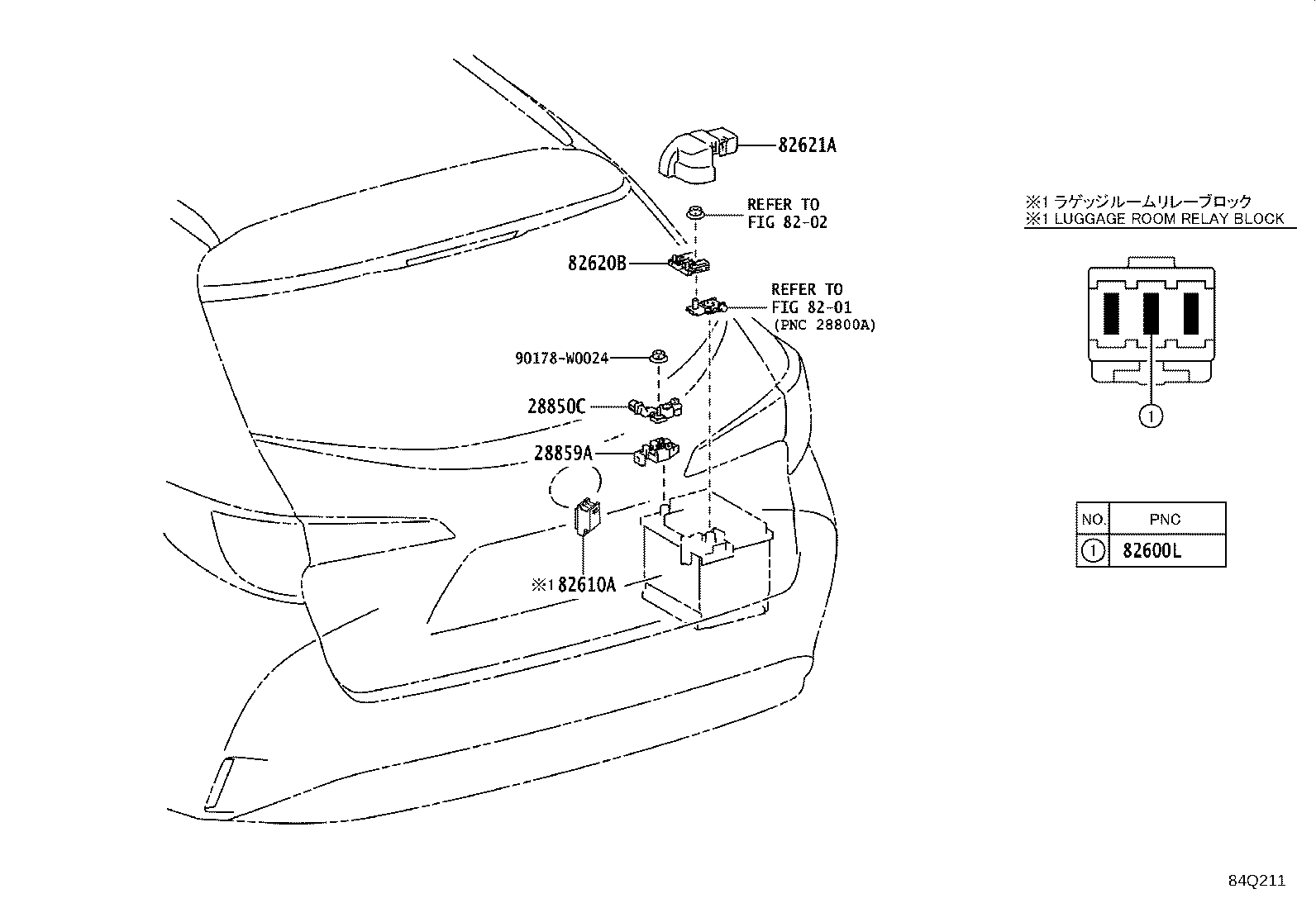

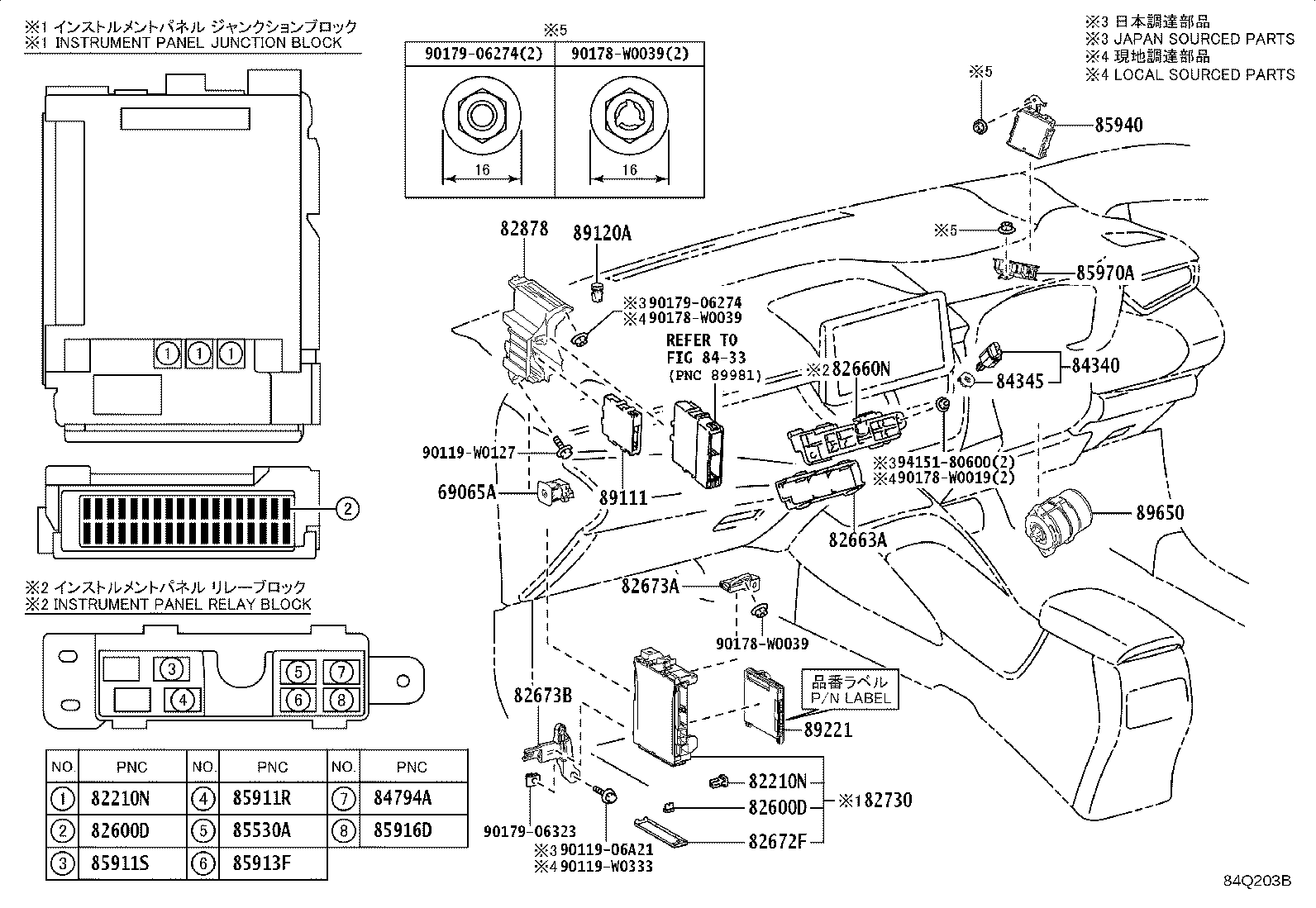

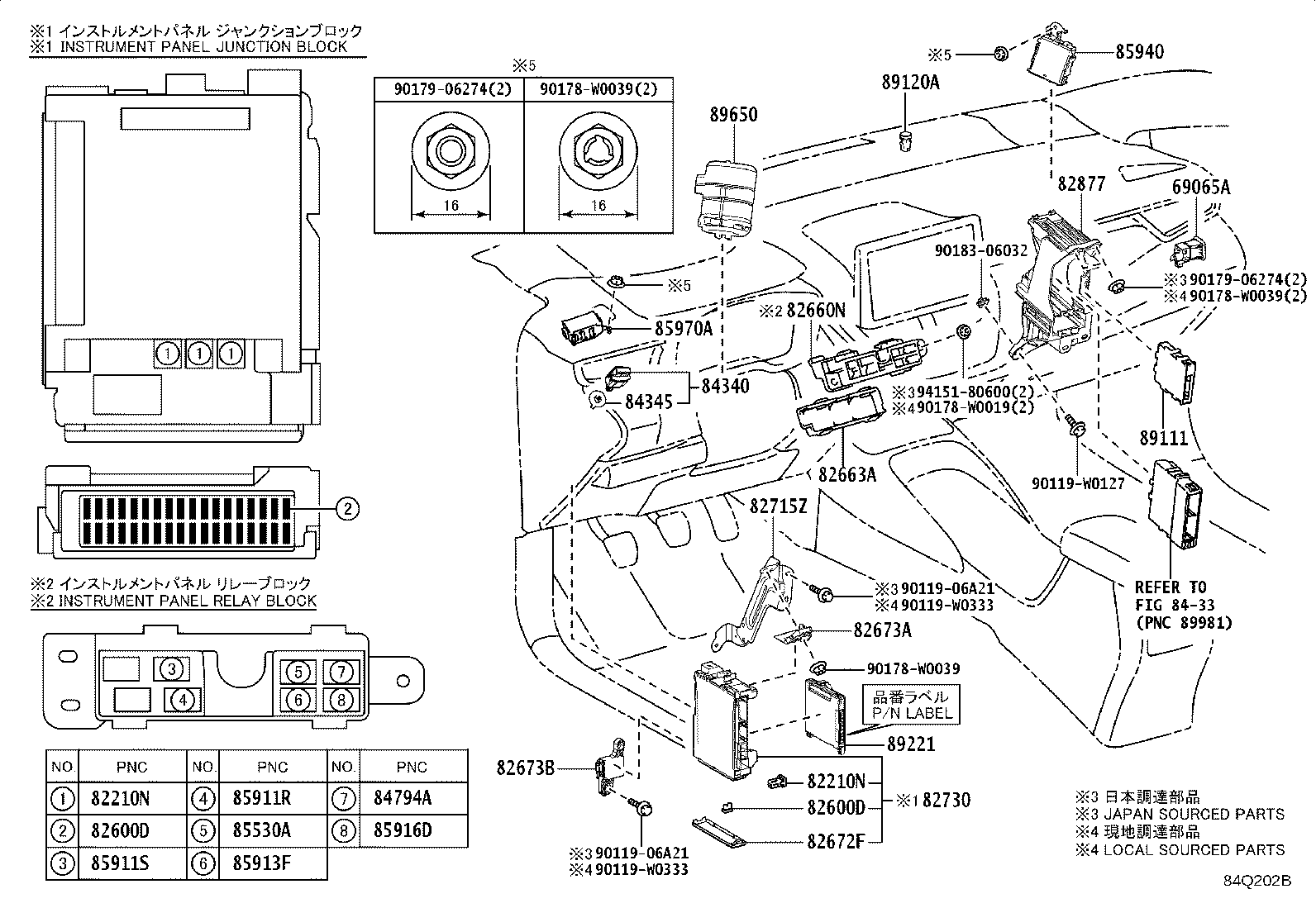

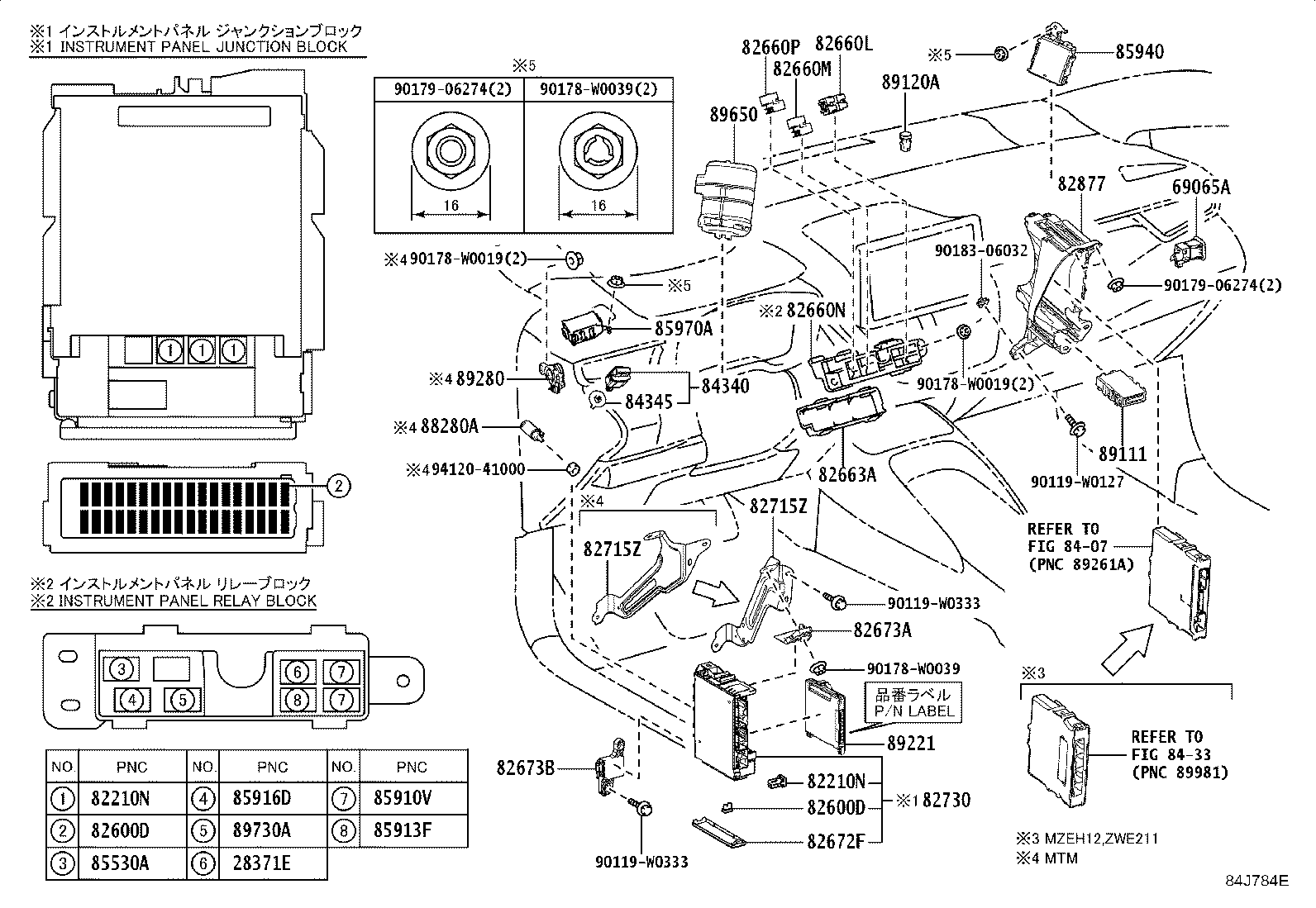

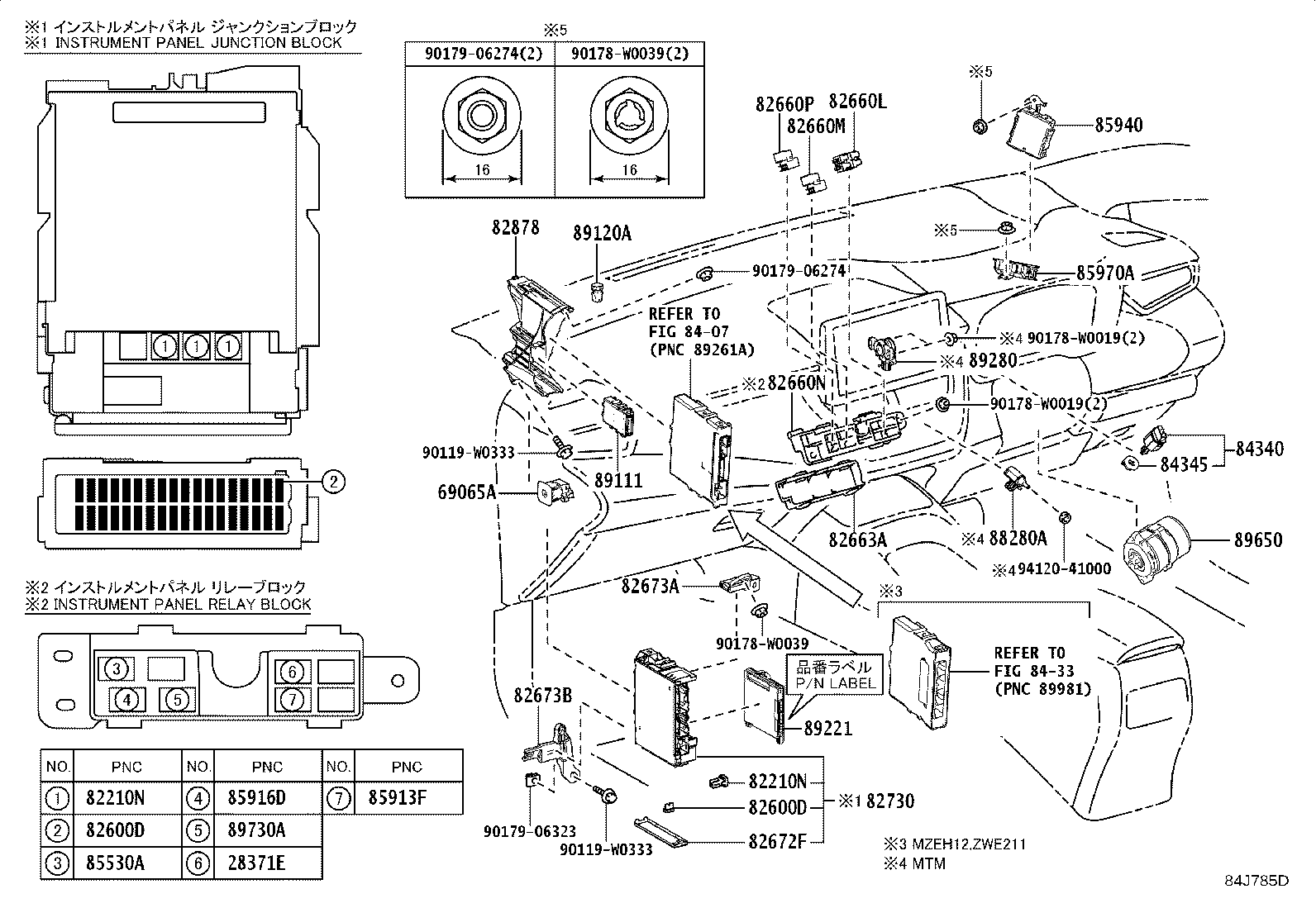

| 82600L | Luggage Room Fuse |
| 82610A | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620B | Block Assy, Fusible Link |
| 82620D | Block Assy, Fusible Link |
| 82620E | Block Assy, Fusible Link |
| 82620F | Block Assy, Fusible Link |
| 82620H | Block Assy, Fusible Link |
| 82621A | Cover, Fusible Link |
| 82641 | Relay, Integration NO.1 |
| 82642B | Relay, Day Time Running Light, NO.1 |
| 82657 | Packing, Relay Block, NO.1 |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660F | Block Assy, Relay |
| 82660G | Block Assy, Relay |
| 82660H | Block Assy, Relay |
| 82660J | Block Assy, Relay |
| 82660K | Block Assy, Relay |
| 82660L | Block Assy, Relay |
| 82660M | Block Assy, Relay |
| 82660N | Block Assy, Relay |
| 82660P | Block Assy, Relay |
| 82660Q | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82661A | Cover, Relay Block, NO.2 |
| 82661B | Cover, Relay Block, NO.3 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82662D | Cover, Relay Block, Upper, NO.4 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663C | Cover, Relay Block Lower, NO.4 |
| 82663D | Cover, Relay Block, Lower, NO.5 |
| 82666 | Holder, Connector |
| 82666H | Holder, Connector, NO.2 |
| 82666J | Holder, Connector, NO.3 |
| 82671A | Block, Junction |
| 82672F | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82715 | Bracket,Wiring Harness Clamp |
| 82715W | Bracket, Wiring Harness Clamp |
| 82715X | Bracket, Wiring Harness Clamp, NO.2 |
| 82715Y | Bracket, Wiring Harness Clamp, NO.3 |
| 82715Z | Bracket, Wiring Harness Clamp |
| 82716A | Bracket, Wiring Harness Clamp |
| 82730 | Block Assy, Instrument Panel Junction |
| 82877 | Box, Computer Integration, RH |
| 82878 | Box, Computer Integration, LH |
| 83320 | Gage Assy, Fuel Sender |
| 83520 | Gage Assy,Oil Pressure Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83950M | Lamp Assy, Telltale |
| 84040 | Master Switch Assy,Multiplex Network |
| 84052 | Switch Assy, Un-lock Warning |

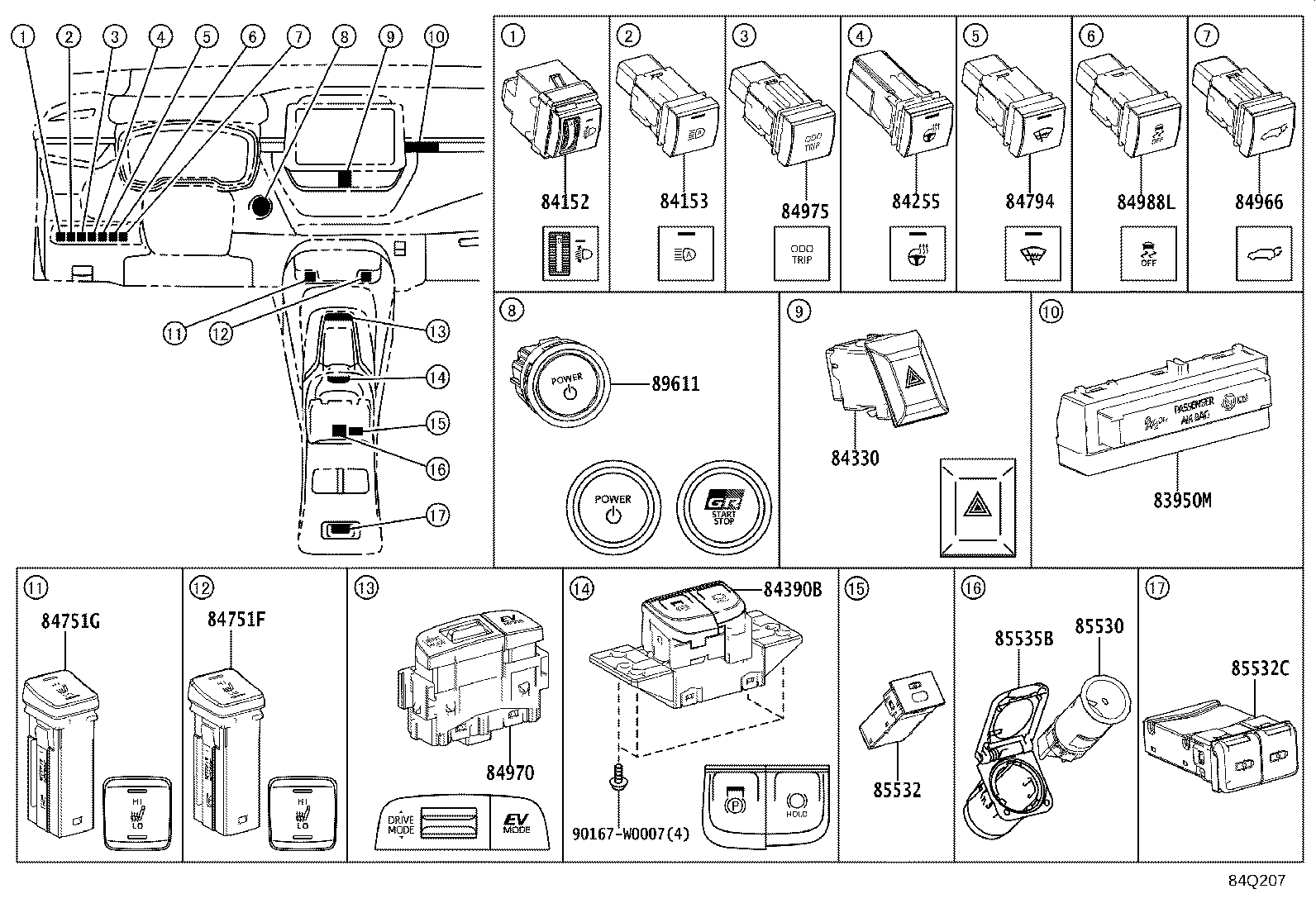

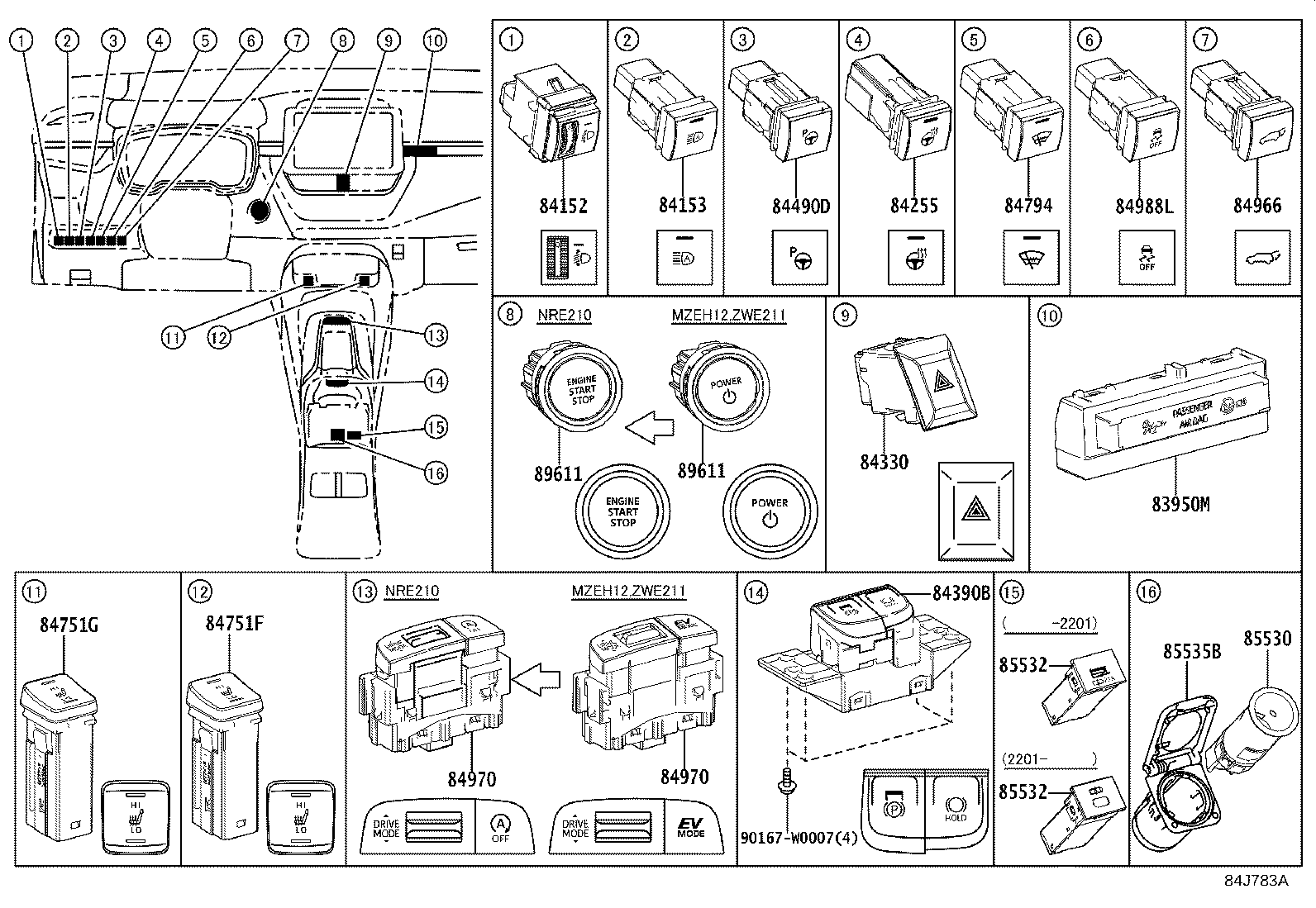

| 84152 | Switch, Headlamp Leveling |
| 84153 | Switch, Auto High Beam |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84250A | Switch Assy, Steering Pad |
| 84255 | Switch, Steering Heater |

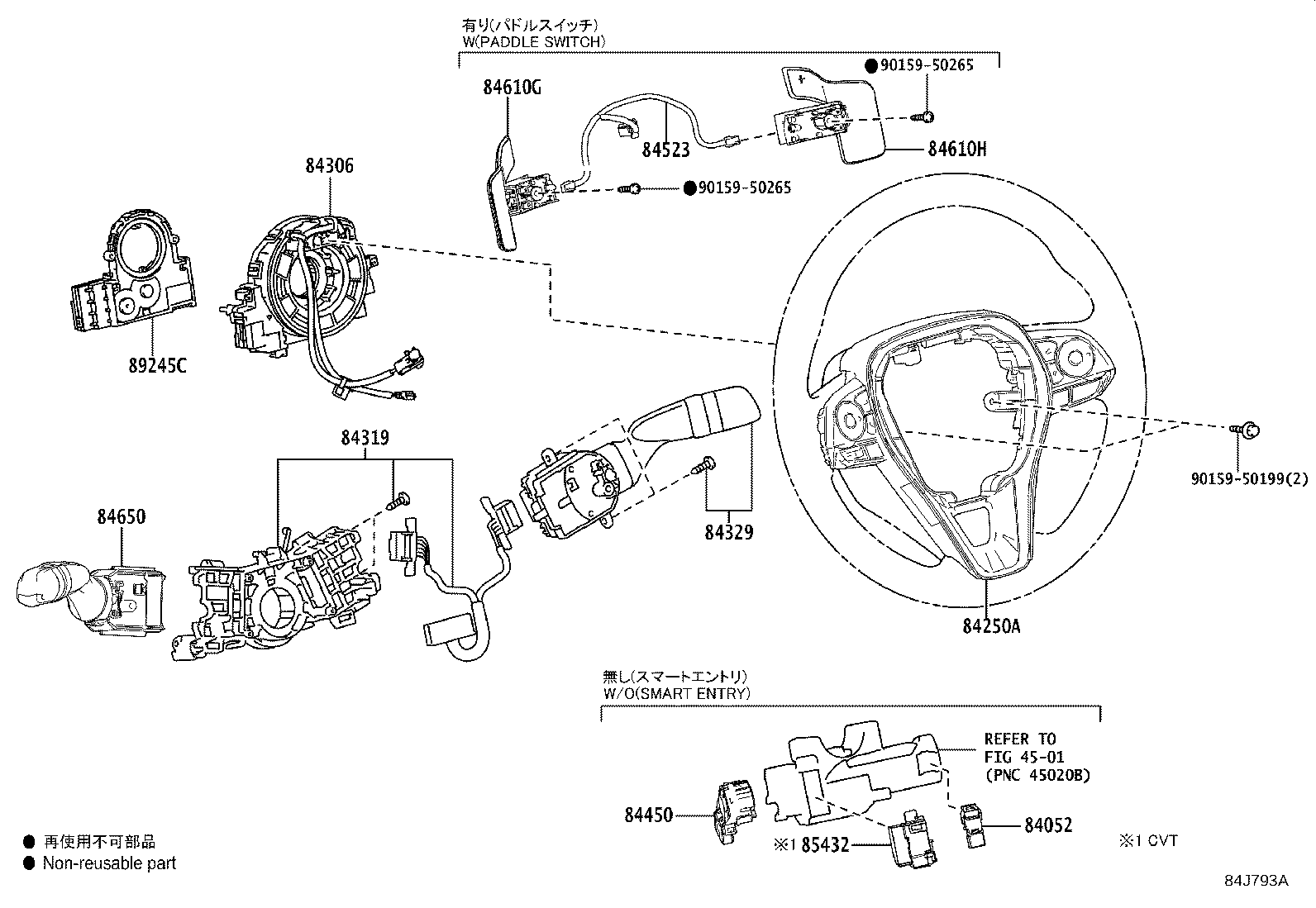

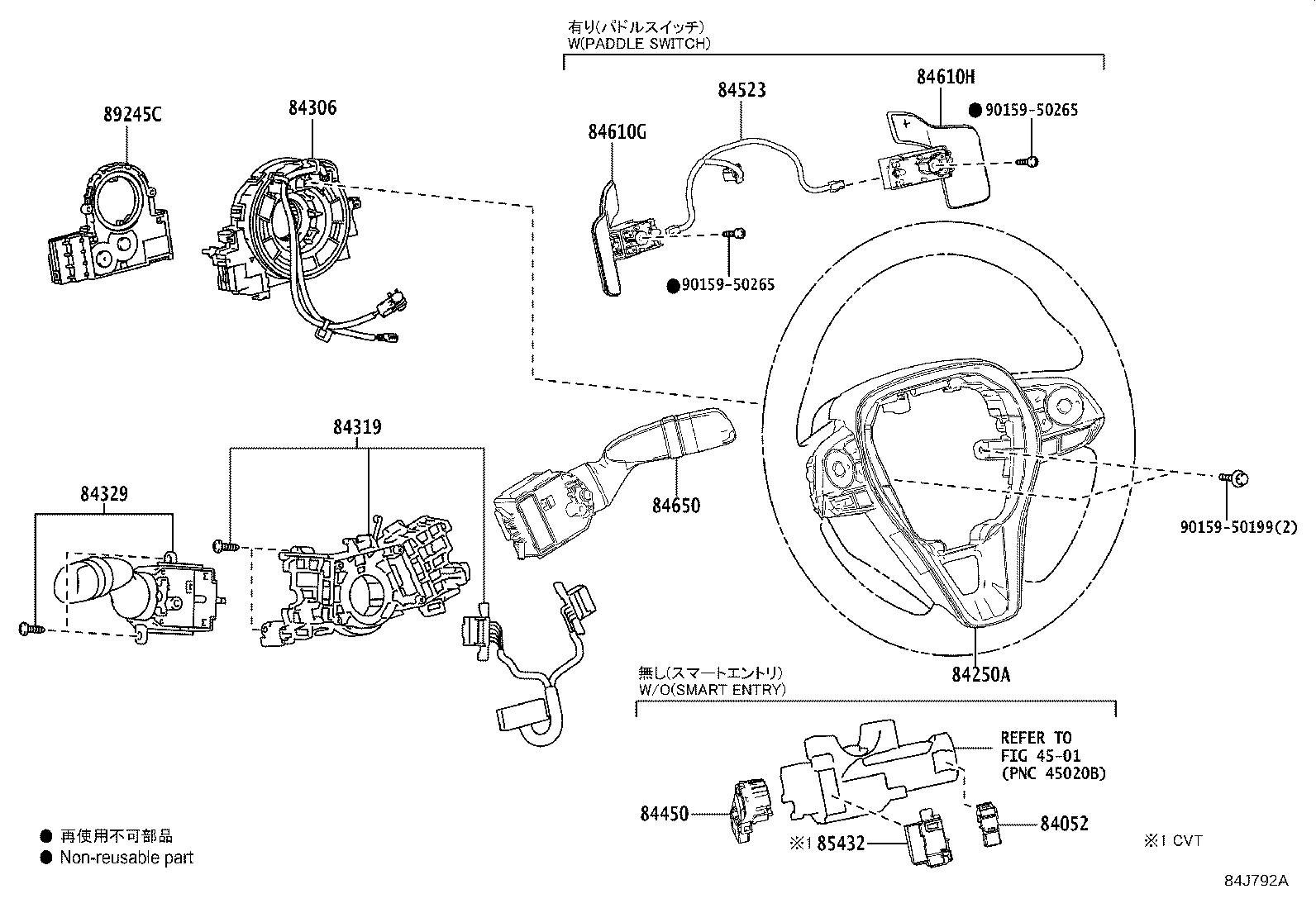

| 84306 | Cable Sub-assy, Spiral |
| 84319 | Housing, Steering Wheel Switch |
| 84329 | Switch, Turn Signal |

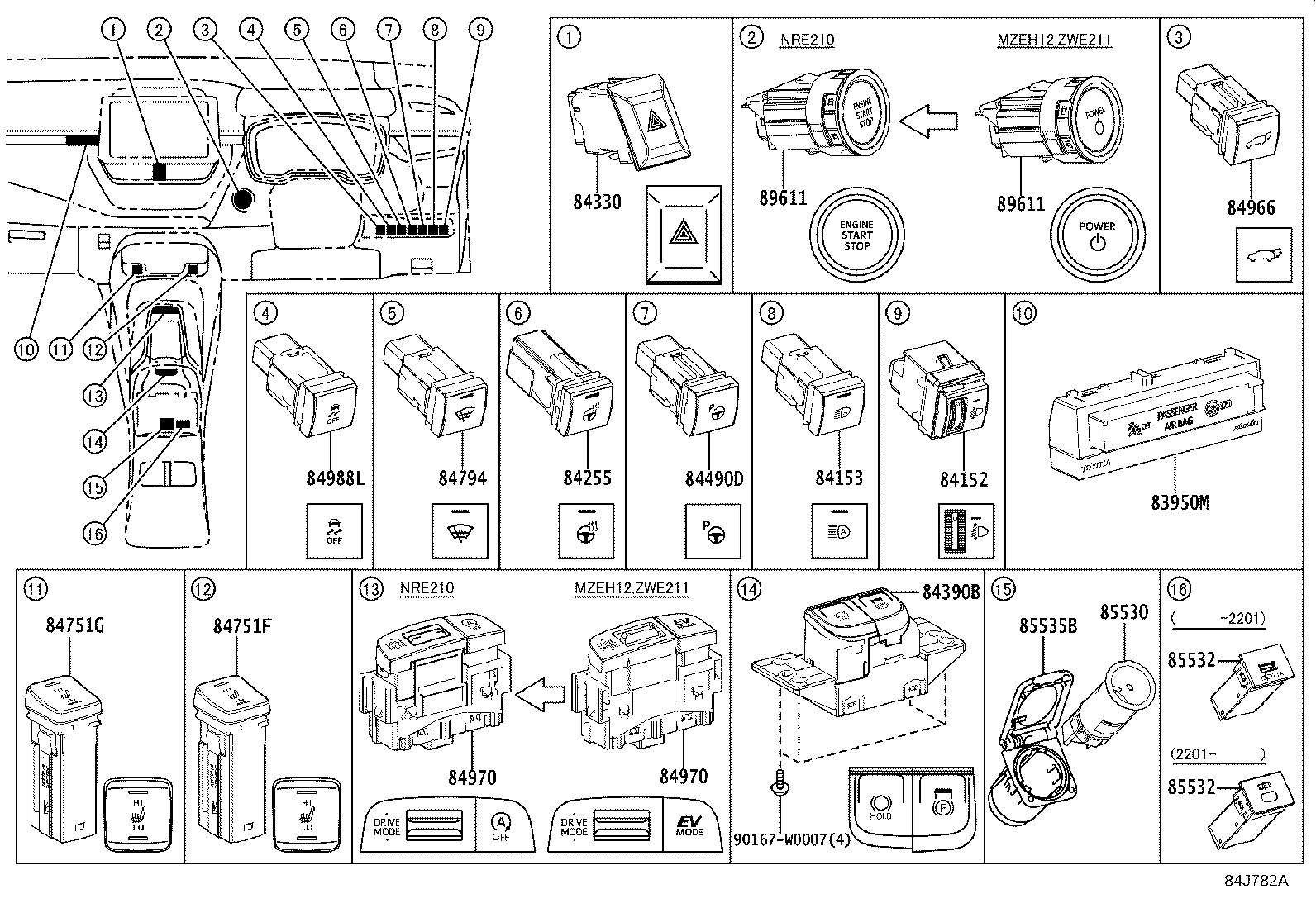

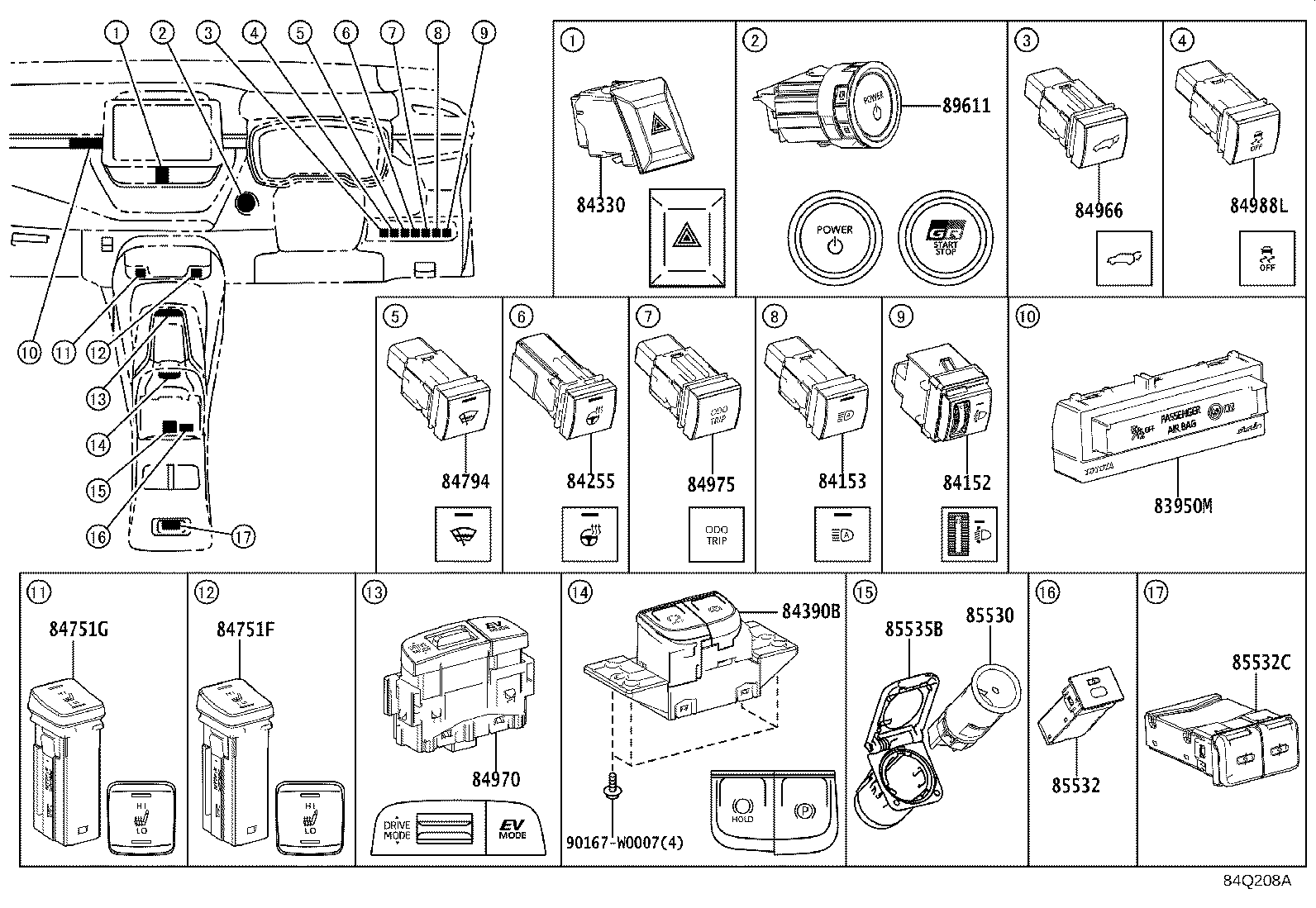

| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84390B | Switch Assy, Electric Parking Brake |
| 84450 | Switch Assy, Ignition OR Starter |
| 84490D | Switch Assy, Ipa Main |
| 84523 | Wire, Switch NO.1 |
| 84540 | Switch Assy, Neutral Start |
| 84545 | Switch, Neutral Position |
| 84610G | Switch Assy, Transmission Shift, NO.1 |
| 84610H | Switch Assy, Transmission Shift, NO.2 |
| 84650 | Switch Assy, Windshield Wiper |
| 84751F | Switch, Seat Heater |
| 84751G | Switch, Seat Heater |
| 84751R | Switch, Seat Heater(REAR) |
| 84794 | Switch, FR Wiper Deicer |
| 84794A | Relay, FR Wiper Deicer |
| 84804 | Switch Sub-assy, Back Door Opener |

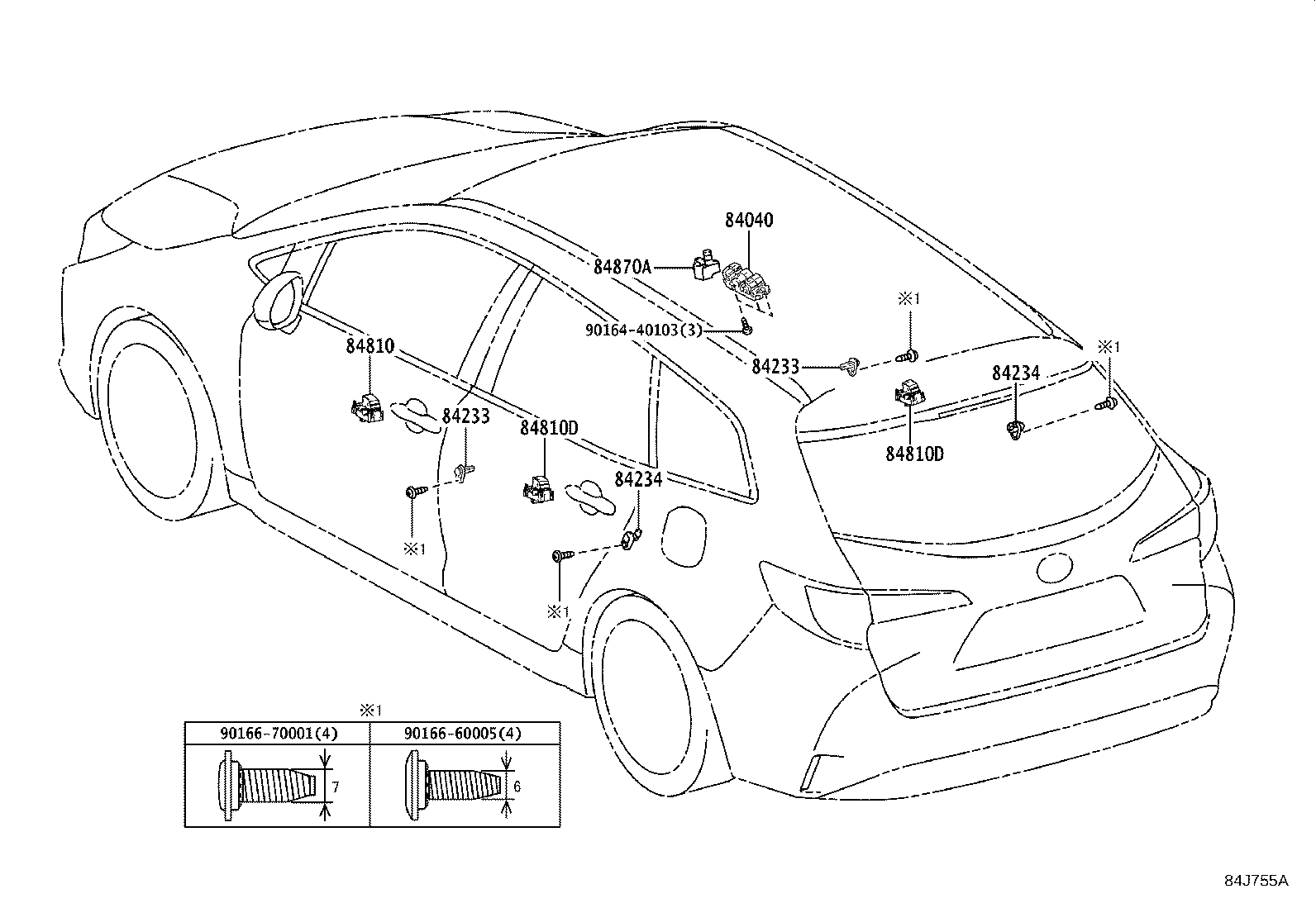

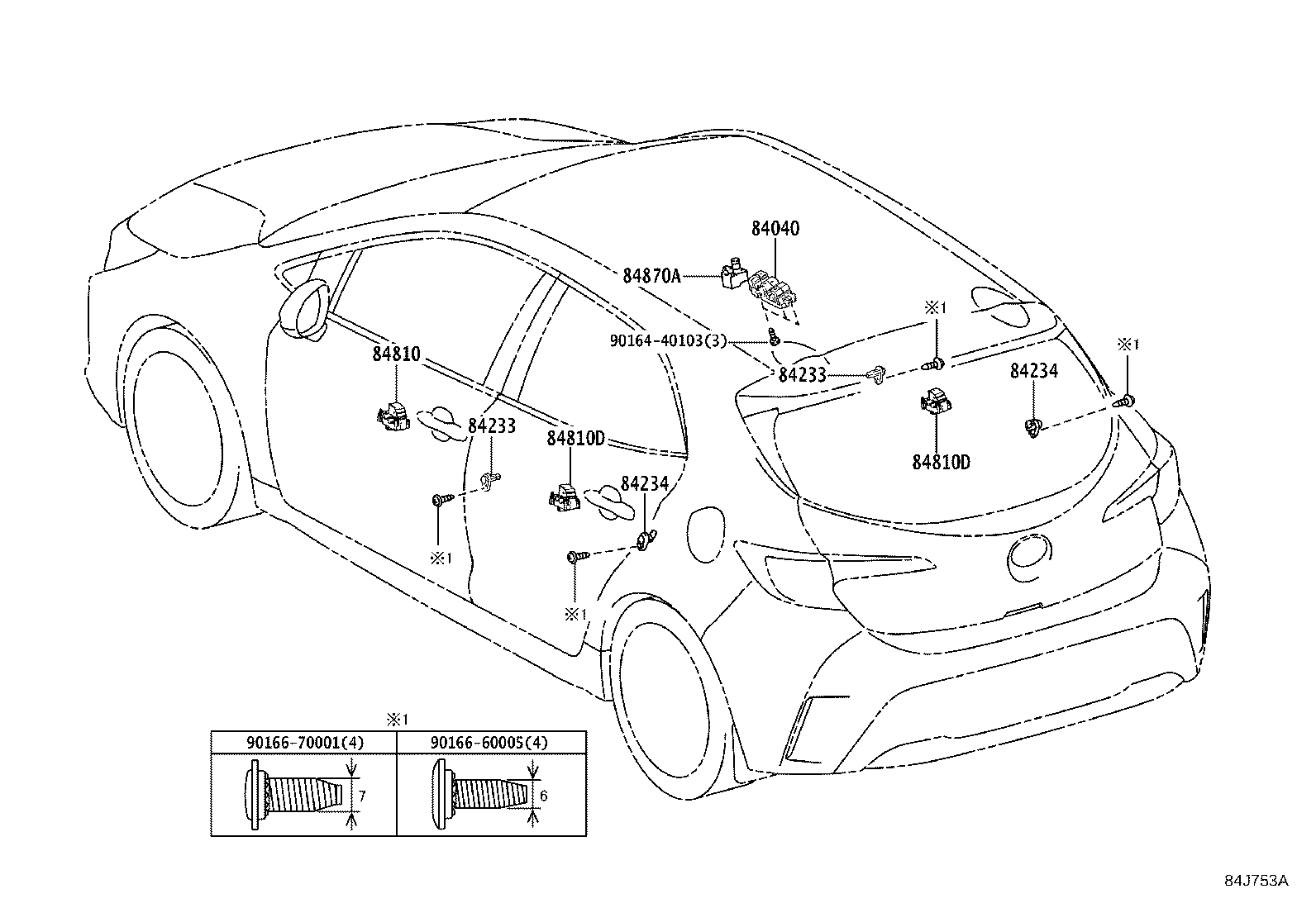

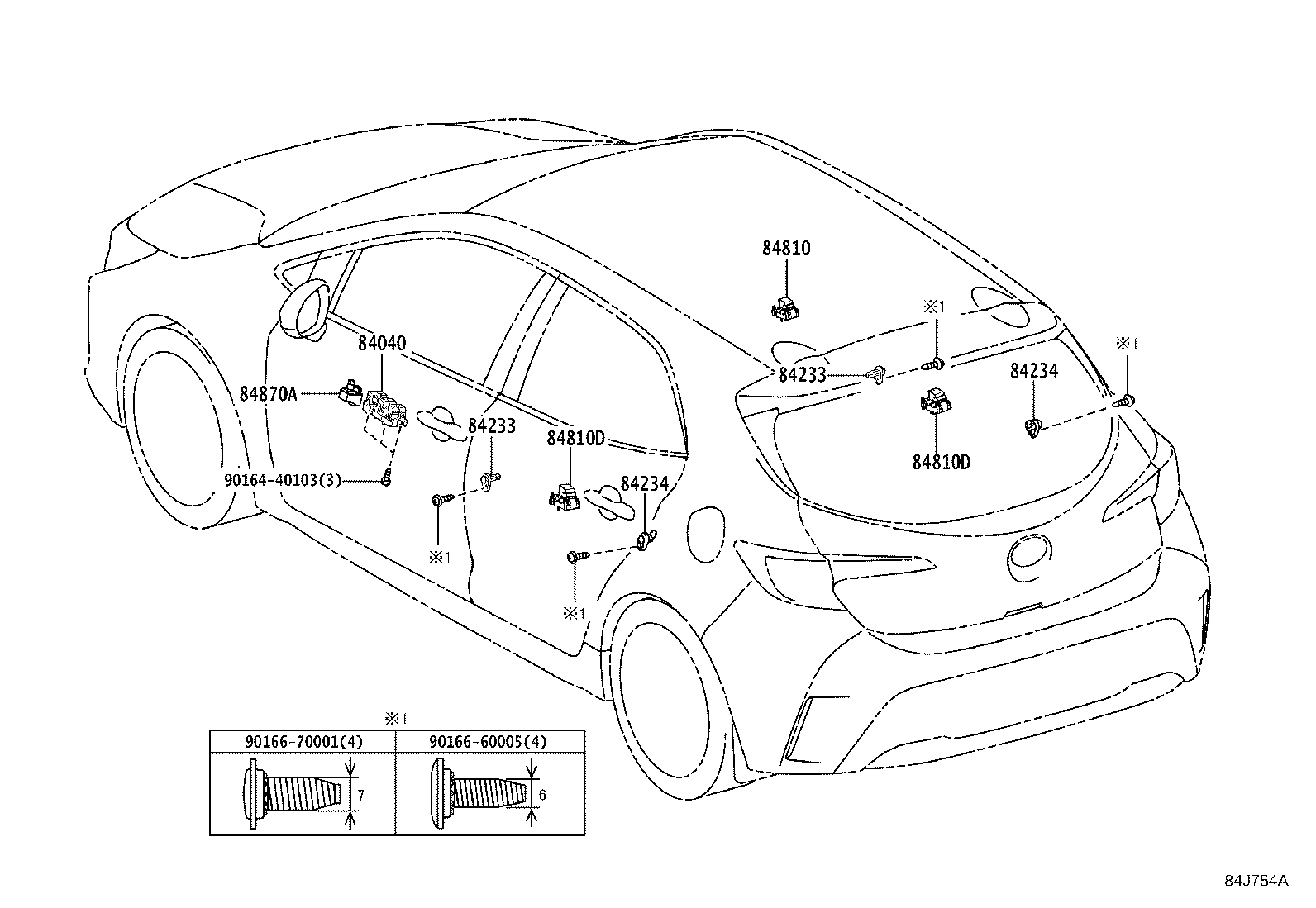

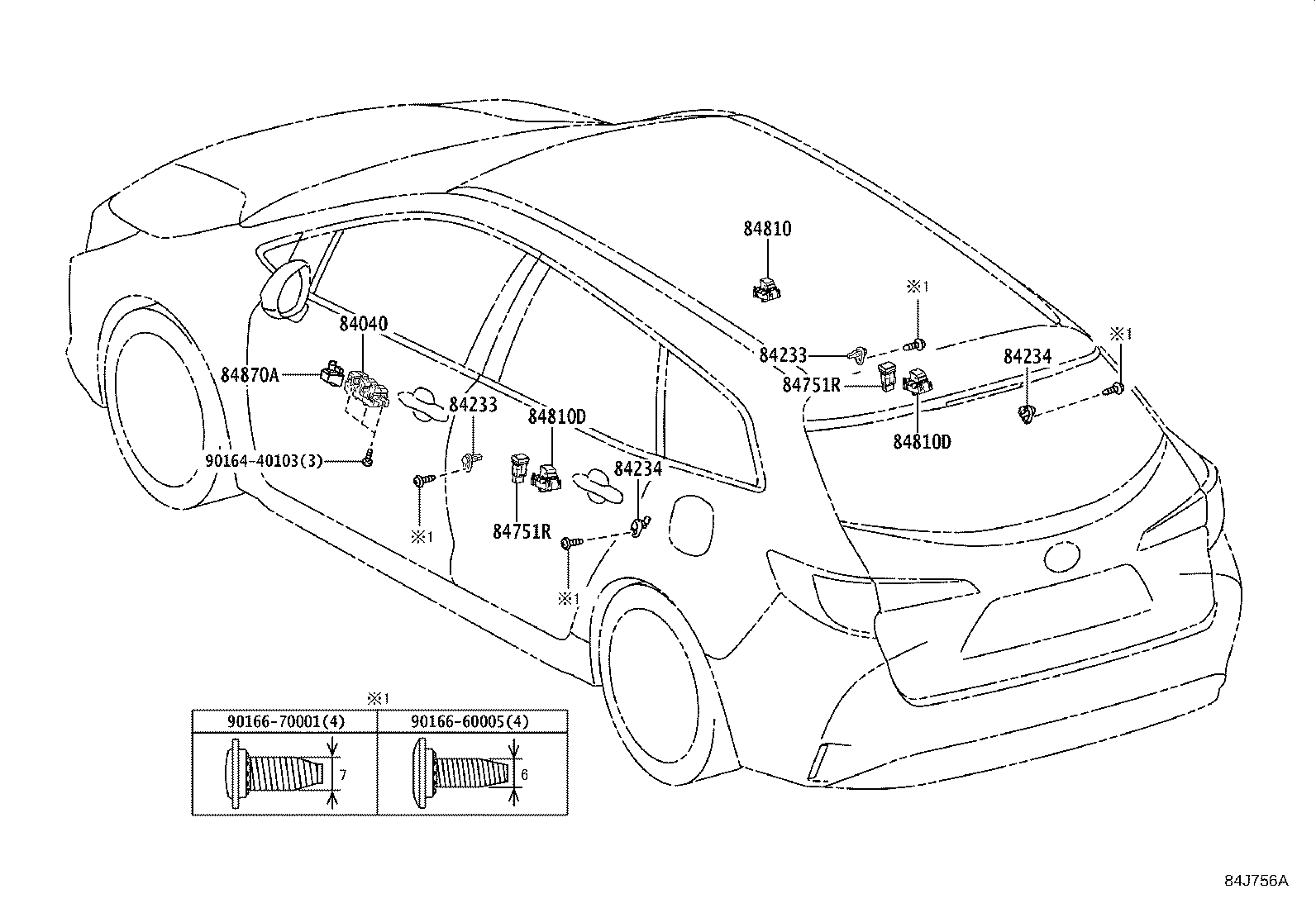

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |

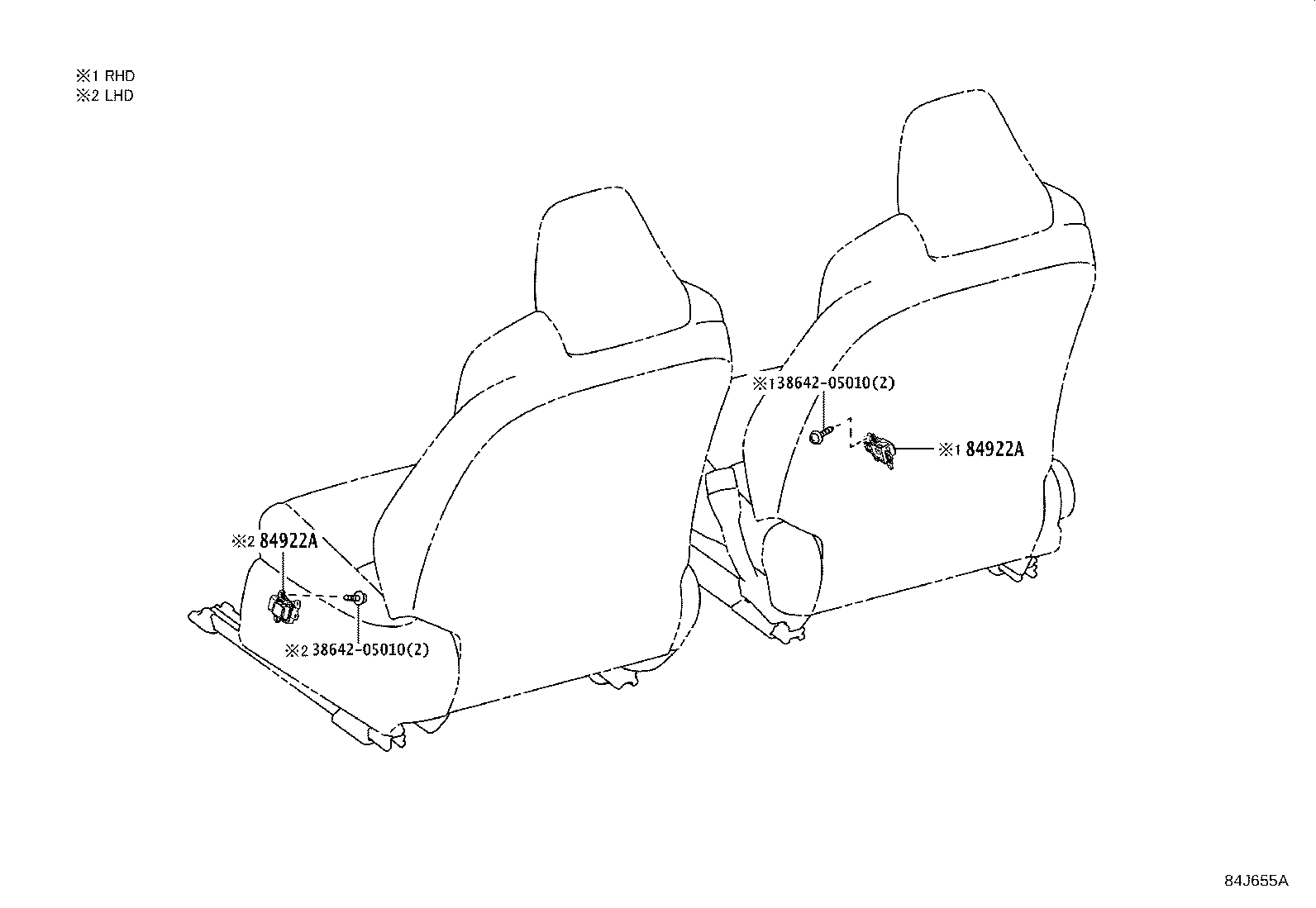

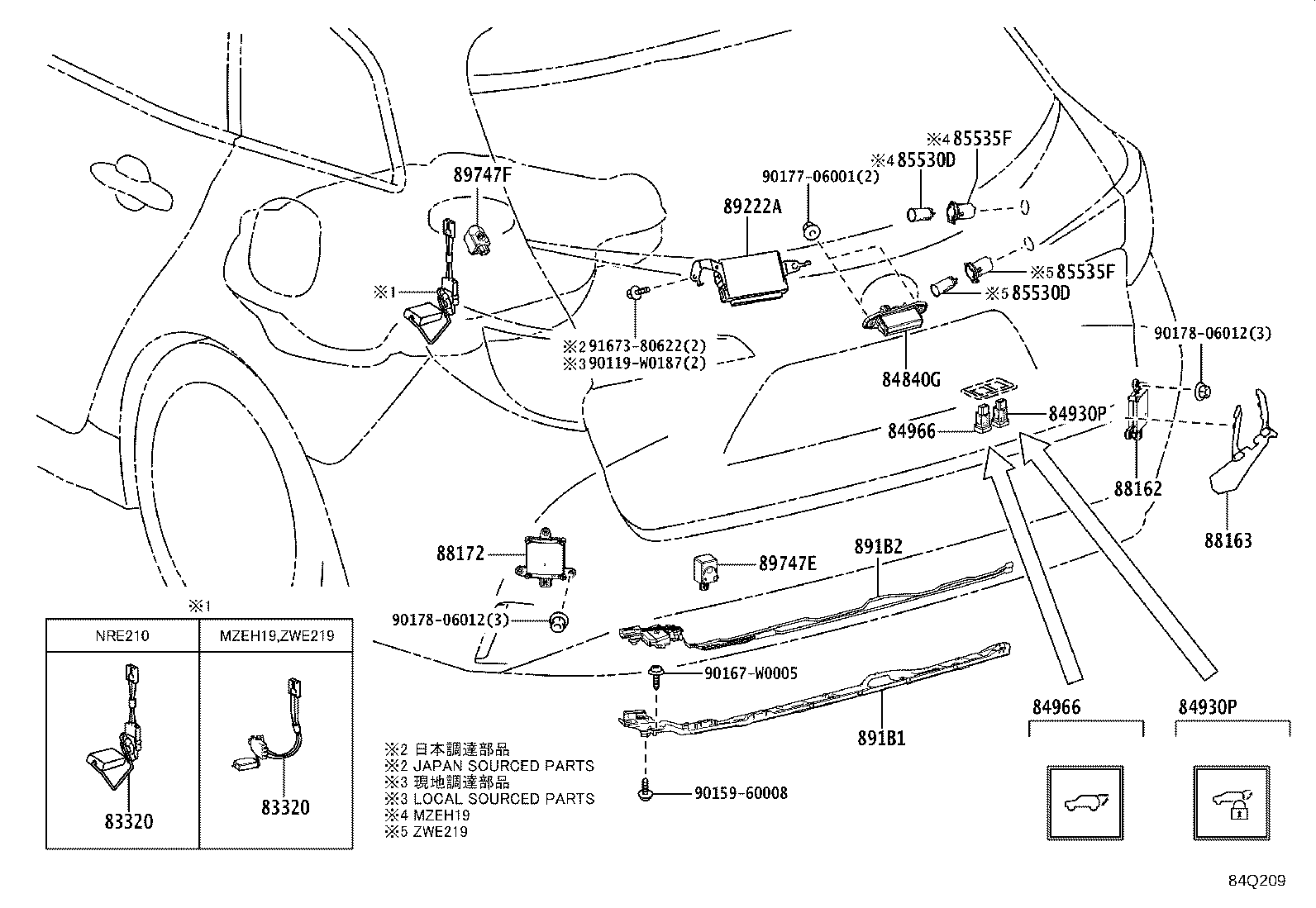

| 84922A | Switch, Front Power Seat(FOR LUMBAR) |
| 84930P | Switch Assy, Door Control |
| 84966 | Switch, Power Back Door Control |
| 84970 | Switch Assy, Combination |
| 84975 | Switch, Trip |
| 84988L | Switch, Vsc Off |
| 85432 | Solenoid, Key Interlock |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530A | Relay, Power Outlet Socket |
| 85530D | Socket Assy, Power Outlet, NO.2 |
| 85532 | Socket, Usb Charger |
| 85532C | Socket, Usb Charger, NO.2 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535F | Cover, Power Outlet Socket, Rear |
| 85910 | Relay Assy, Circuit Opening |
| 85910E | Relay, Injector |
| 85910V | Relay, Seat Heater |
| 85911R | Relay, Rear Seat Heater, RH |
| 85911S | Relay, Rear Seat Heater, LH |
| 85912 | Relay, Defogger |
| 85912K | Relay, Vvt |
| 85913F | Relay, Steering Heater |
| 85916D | Relay, Fog Lamp |
| 85924C | Relay, Igct |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85940 | Relay Assy, Windshield Wiper |

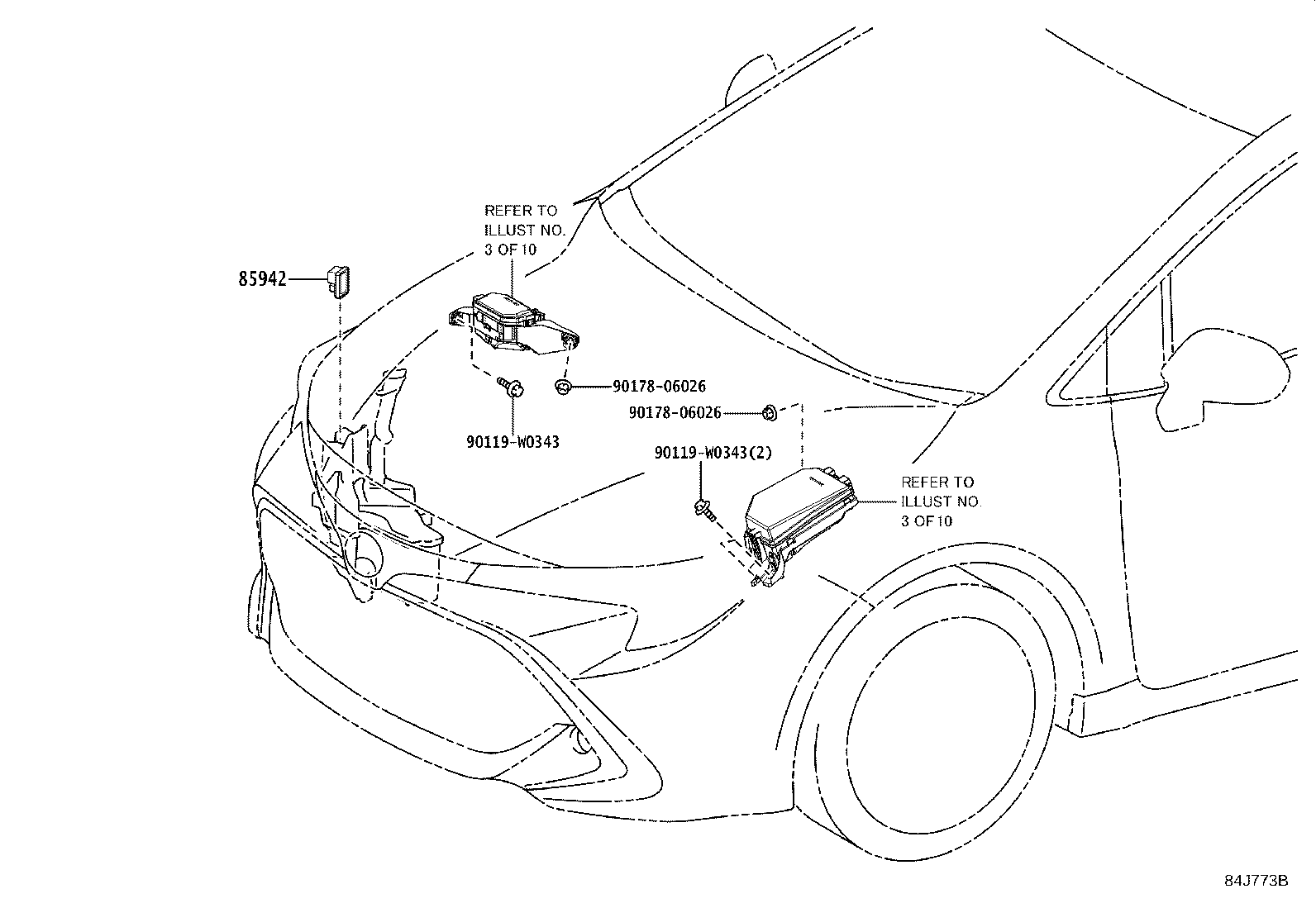

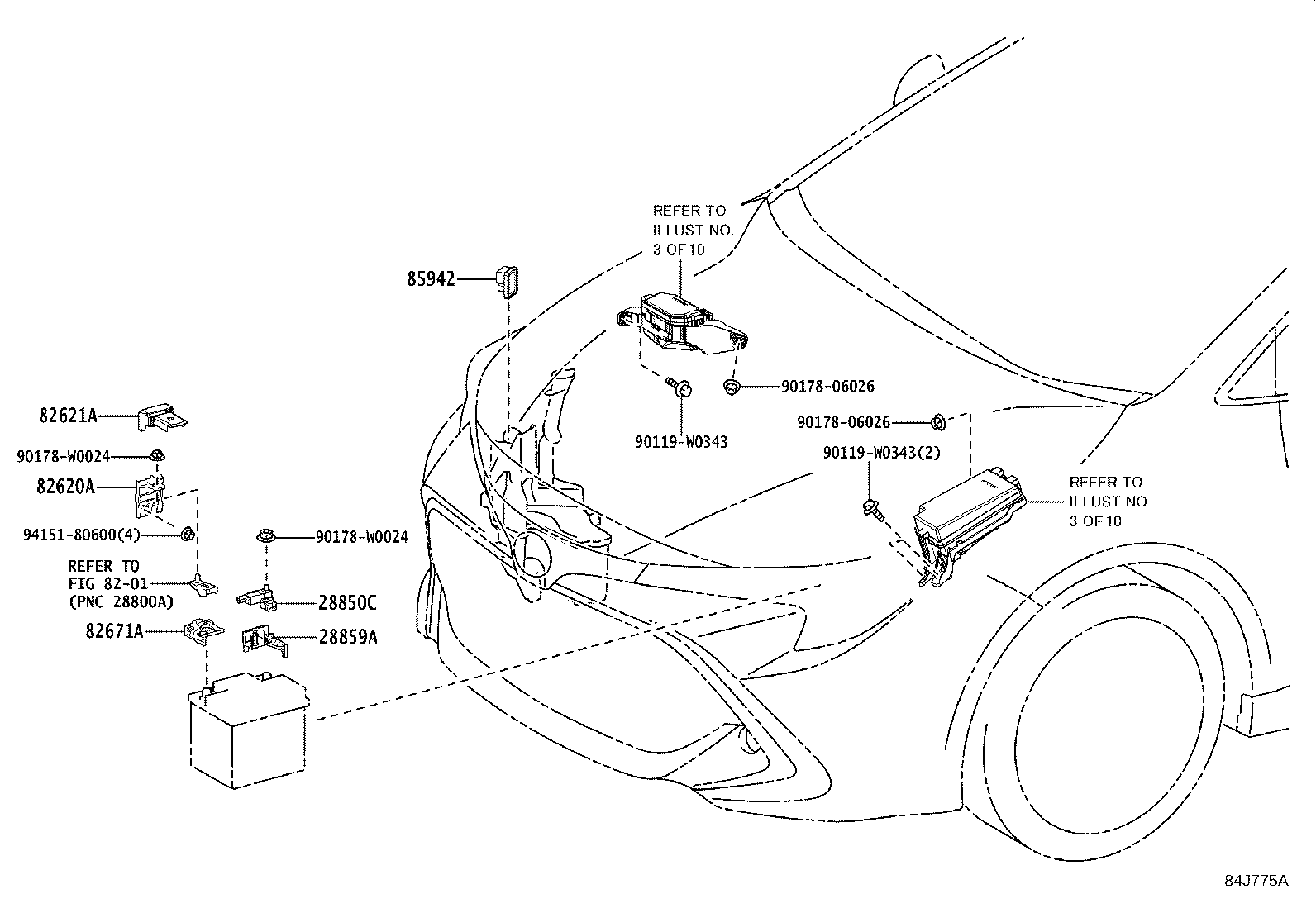

| 85942 | Relay, Headlamp Cleaner Control |
| 85948 | Relay, Windshield Wiper |
| 85960D | Relay, Headlamp, RH |
| 85960E | Relay, Headlamp, LH |
| 85970A | Relay Assy, Double Lock Door Control |
| 86530 | Relay Assy, Horn |
| 87346K | Relay, Ptc Heater |
| 87346L | Relay, Ptc Heater |
| 87989 | Relay, Mirror Control |

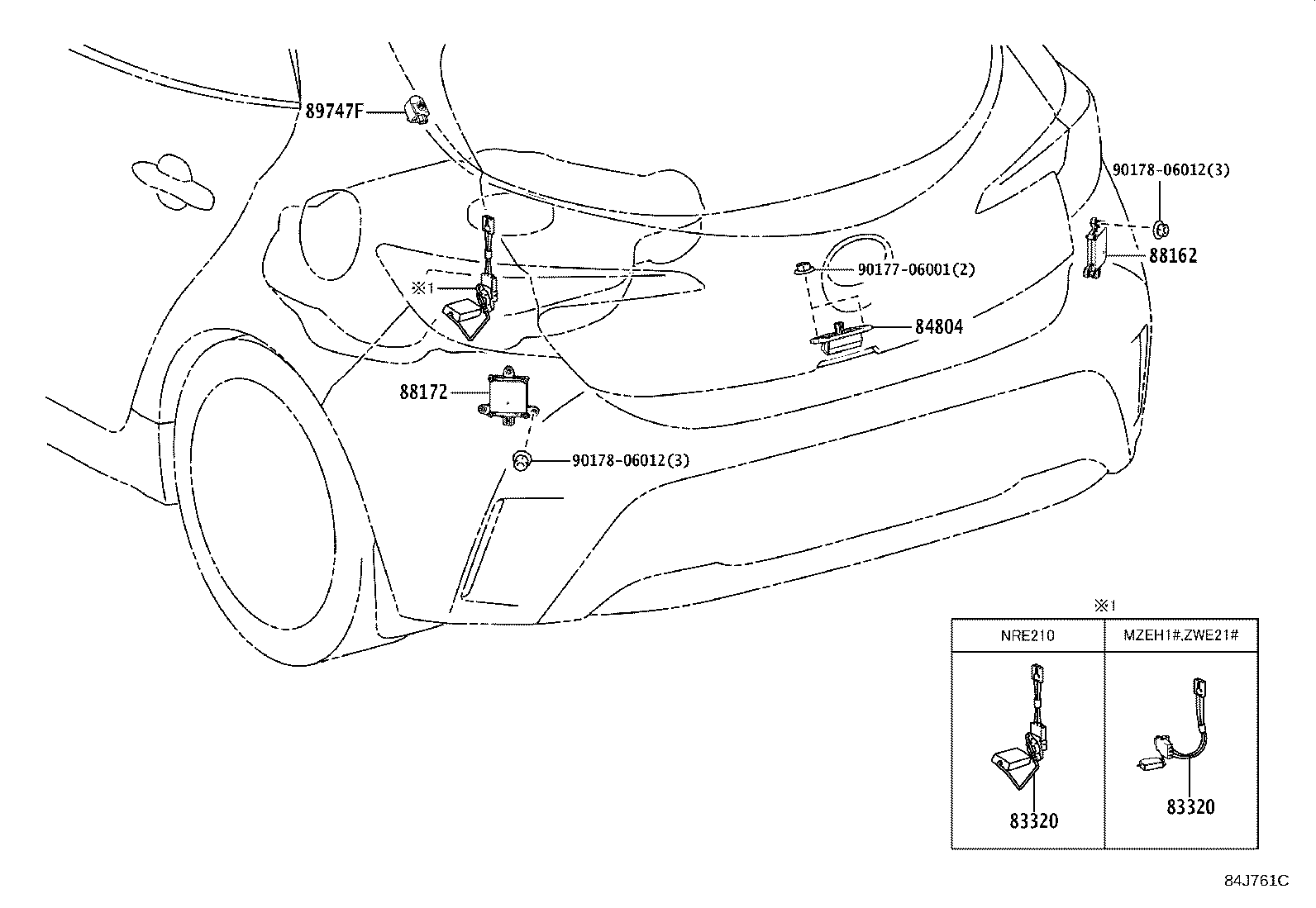

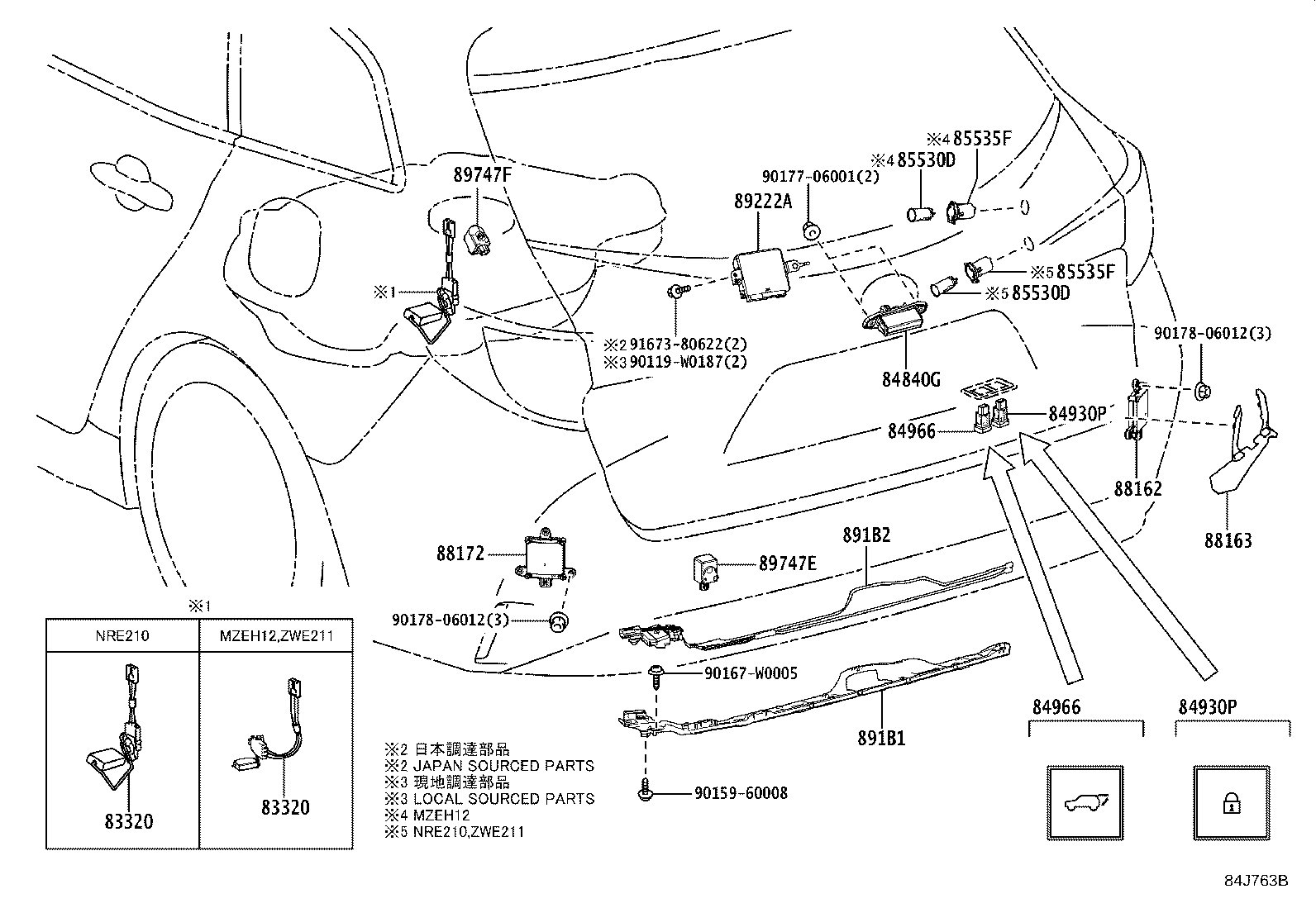

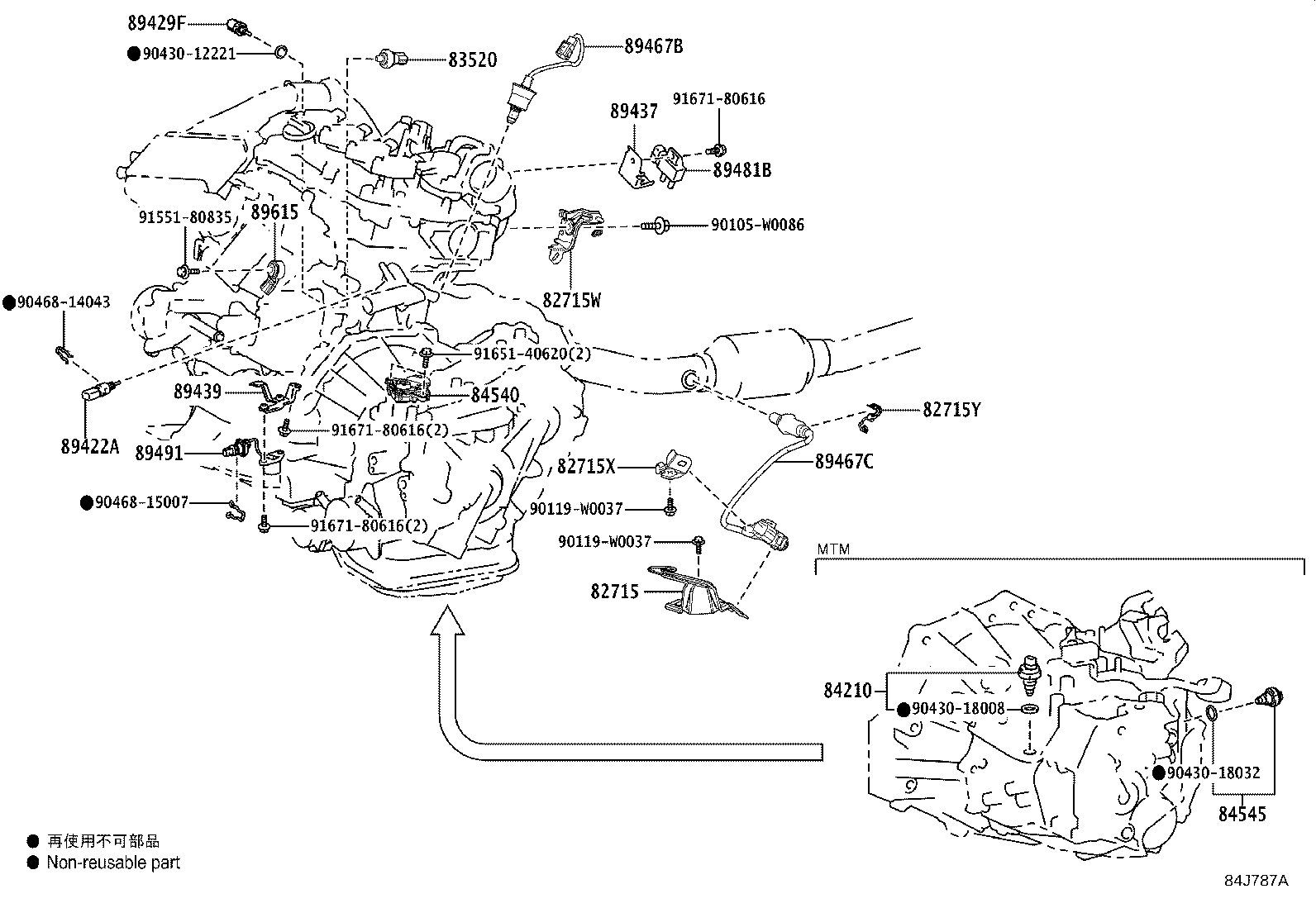

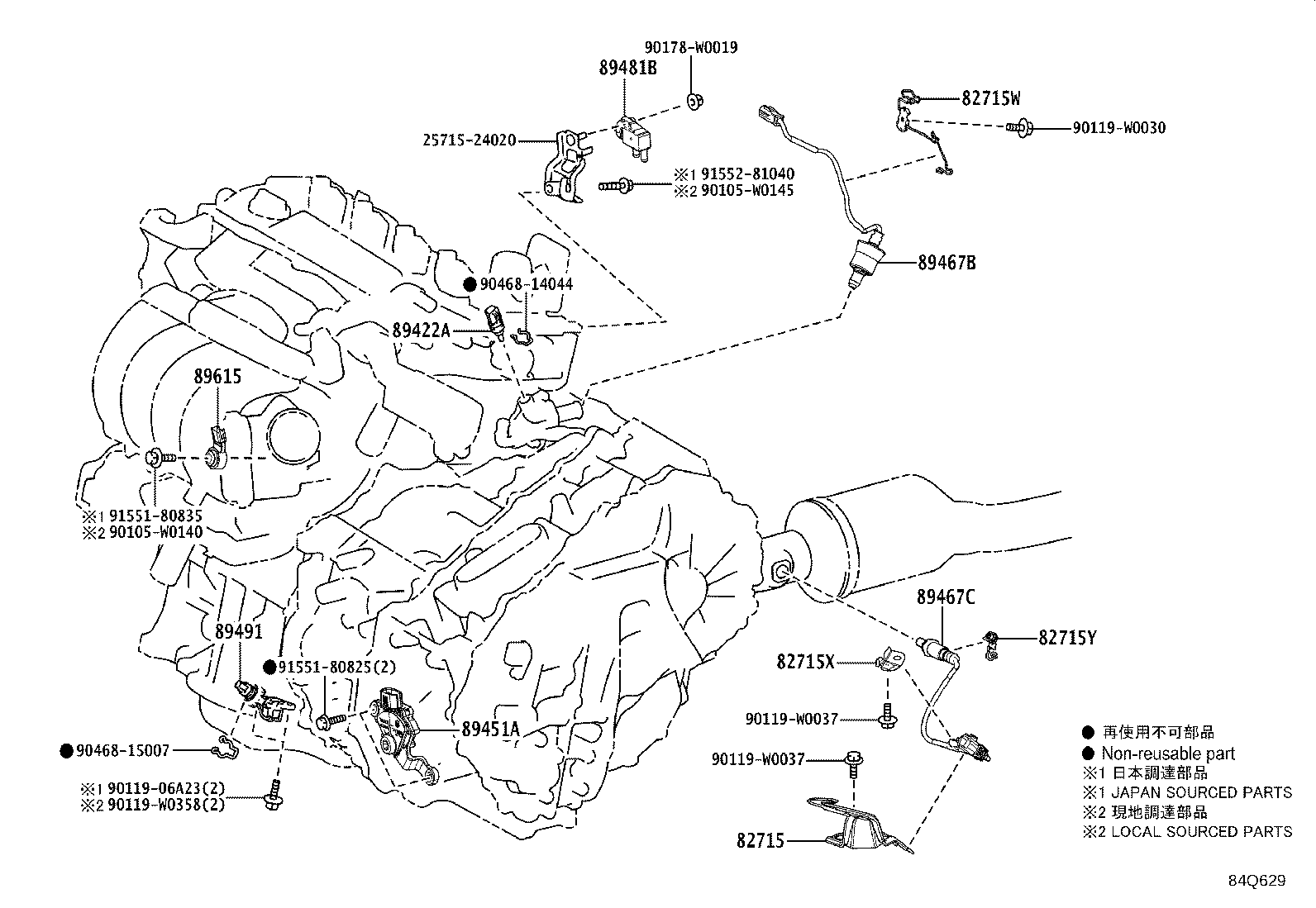

| 88162 | Sensor, Blind Spot Monitor, RH |
| 88163 | Cover, Blind Spot Monitor, RH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 88280A | Switch Assy, Clutch |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 891B1 | Bracket, Kick Door Control |
| 891B2 | Sensor, Kick Door Control |
| 89221 | Computer, Multiplex Network Body |
| 89222A | Computer, Multiplex Network Door |
| 89245C | Sensor, Steering |
| 89280 | Sensor Assy, Clutch Pedal Stroke |
| 89422A | Sensor, Water Temperature |
| 89429F | Sensor, Temperature |
| 89437 | Cover, Sensor |
| 89439 | Bracket, Sensor |
| 89439J | Bracket, Sensor, NO.2 |
| 89439K | Bracket, Sensor, NO.3 |
| 89451A | Sensor, Shift Lever Position |

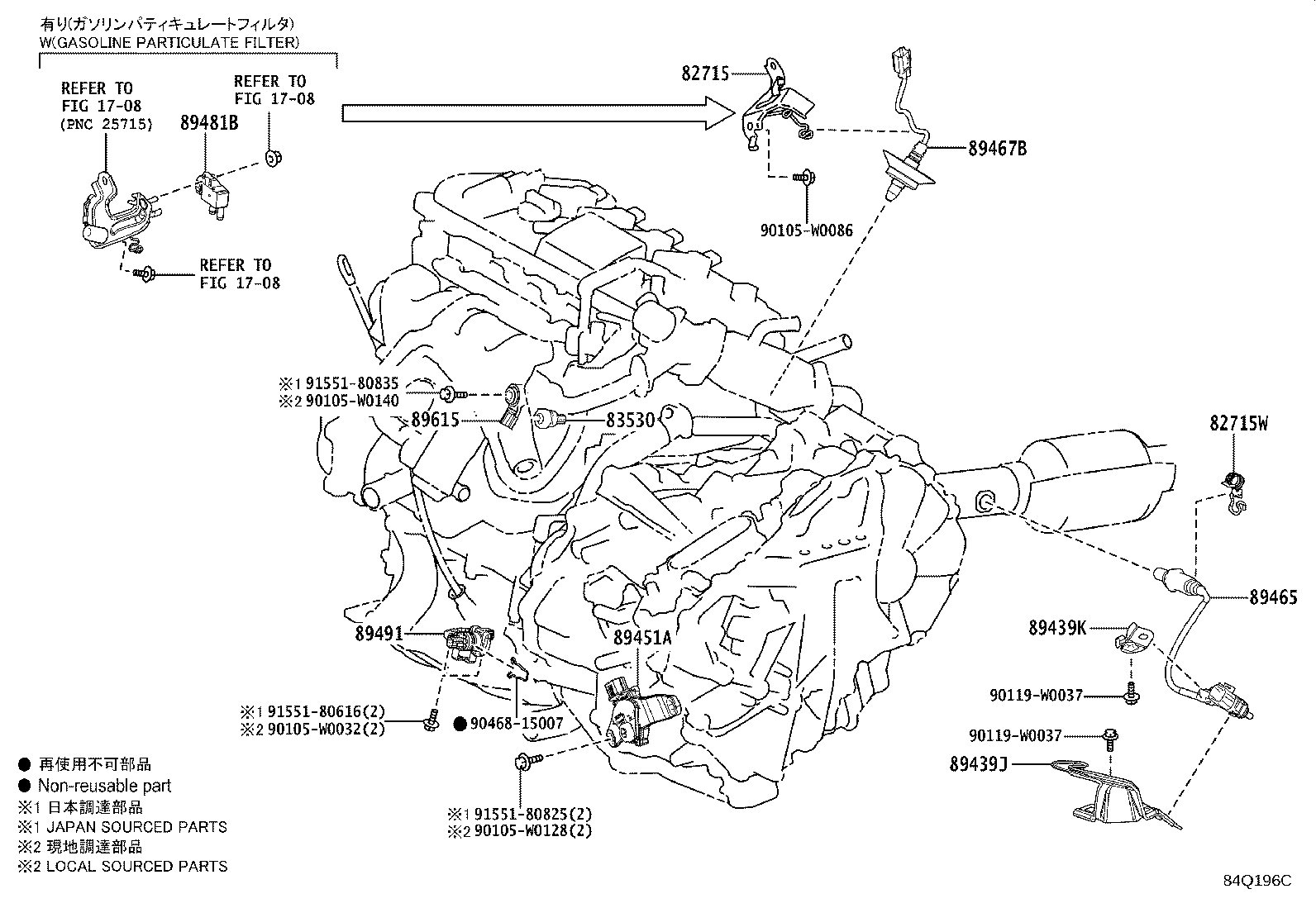

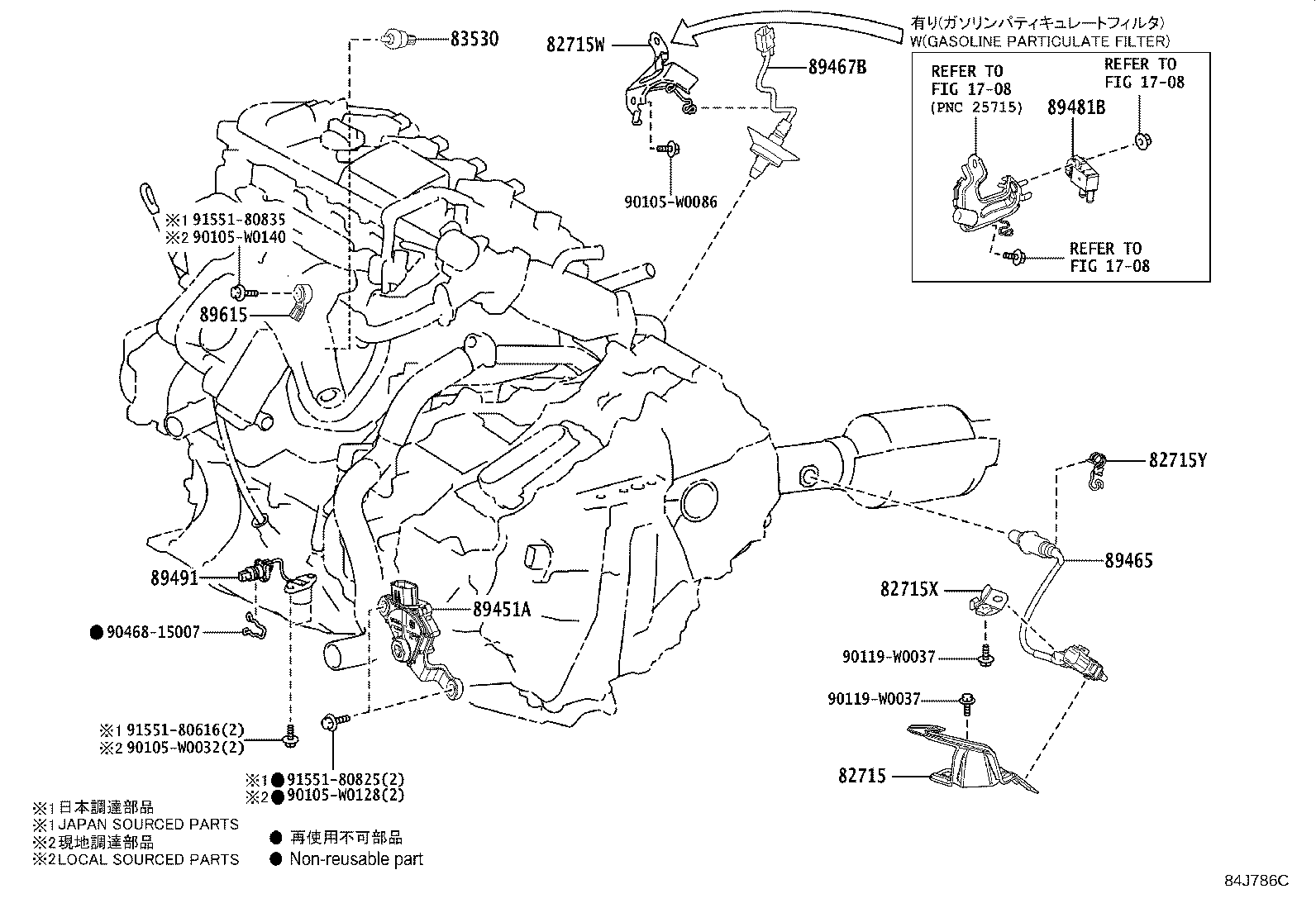

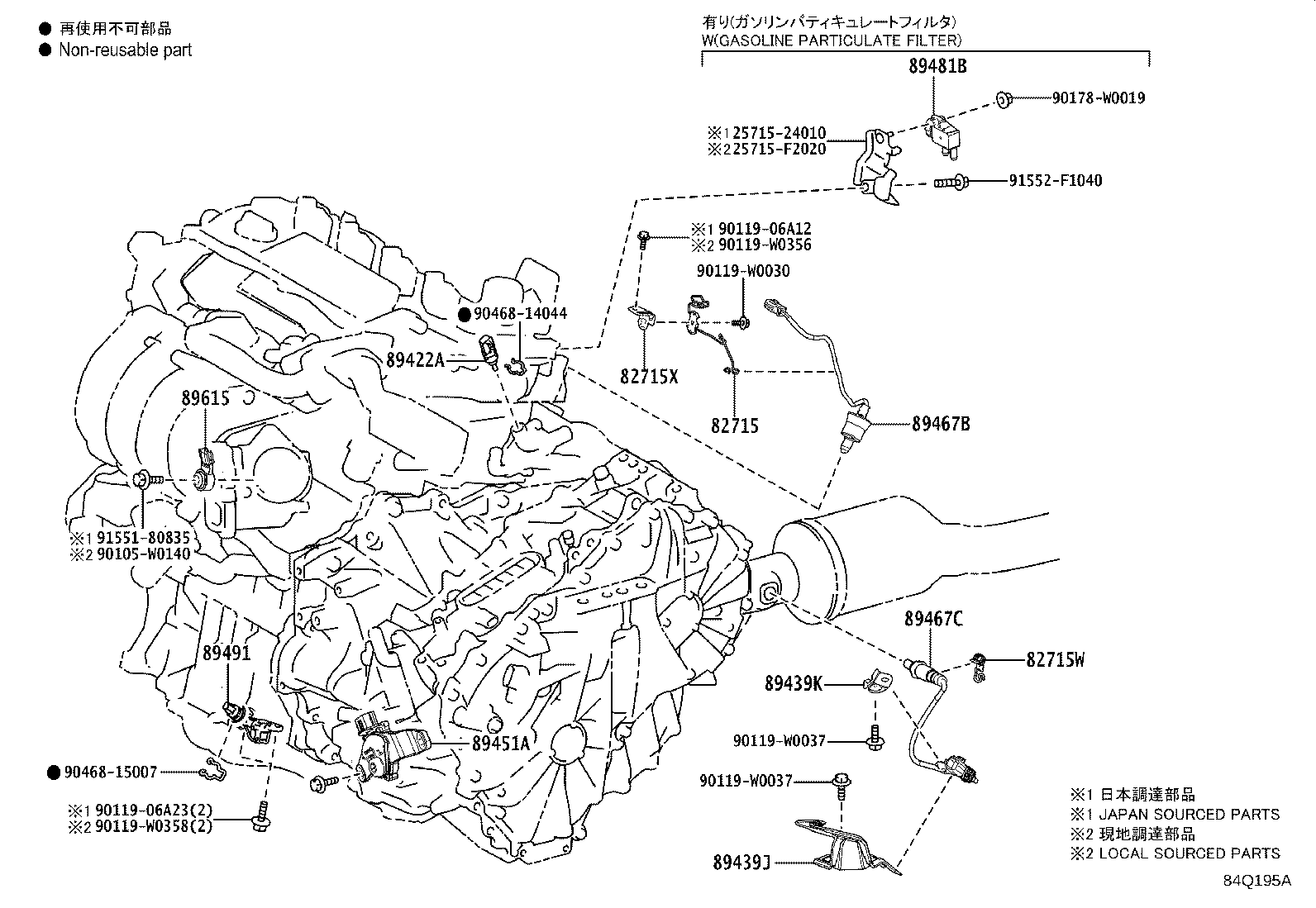

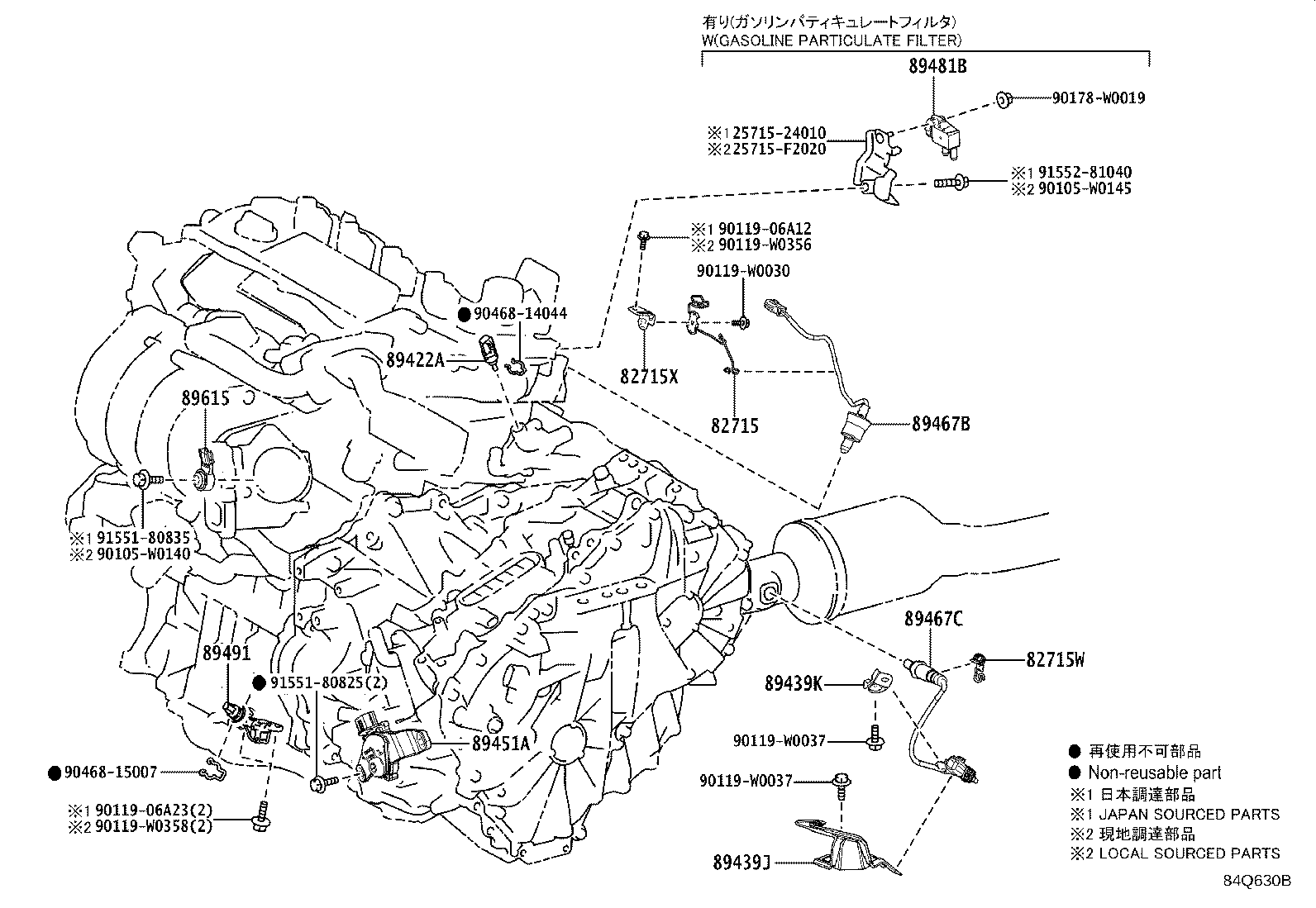

| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 89481B | Sensor, Differential Pressure |
| 89491 | Sensor, Engine Oil Level |
| 89561F | Relay, Electronic Fuel Injection Main, NO.1 |
| 89561G | Relay, Electronic Fuel Injection Main, NO.2 |
| 89561H | Relay, Electronic Fuel Injection Main, NO.3 |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89730A | Relay(FOR SECURITY WARNING) |
| 89747E | Buzzer, Power Back Door Warning |
| 89747F | Buzzer, Blind Spot Monitor |
| 89870E | Relay, Electronic Driver Unit |
| G9020E | Relay, Hybrid Water Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
