Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 2 illustrations

Illustrations

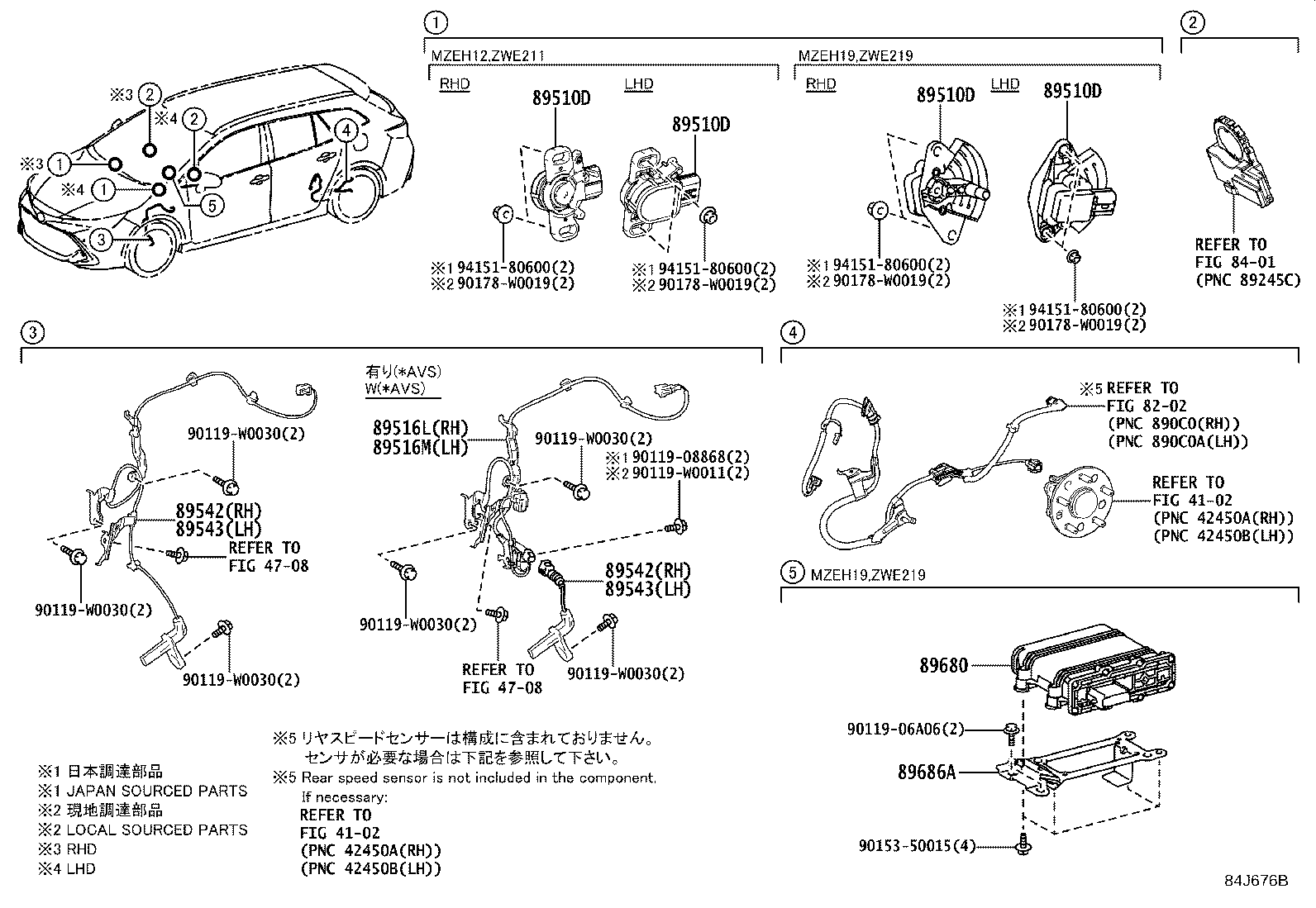

Figure 84J675B 84J675B 2019-01 → — Figure 84J676B 84J676B 2019-01 → —

Part groups

PNCDescription
89510D Sensor Assy, Brake Pedal Stroke
89516L Wire, Skid Control Sensor W/Suspension Control, RH
89516M Wire, Skid Control Sensor W/Suspension Control, LH
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89680 Supply Assy, Brake Control Power
89686A Bracket, Brake Control Power Supply, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
